Northbridge temperature is 80ºC in my Mac Pro 2006

[lbodnar]

No load temperature of my Mac Pro 1,1 2006 is 80 degrees C.

Is this normal?

Leo



[zachsilvey]

Normal, IDK but it is within safe working temperature. Mine sits around 68 at idle and 80 under load.



[Spacedust]

Yes. That's why Mac Pro 2008 is having a large radiator on chipset with heatpipes.

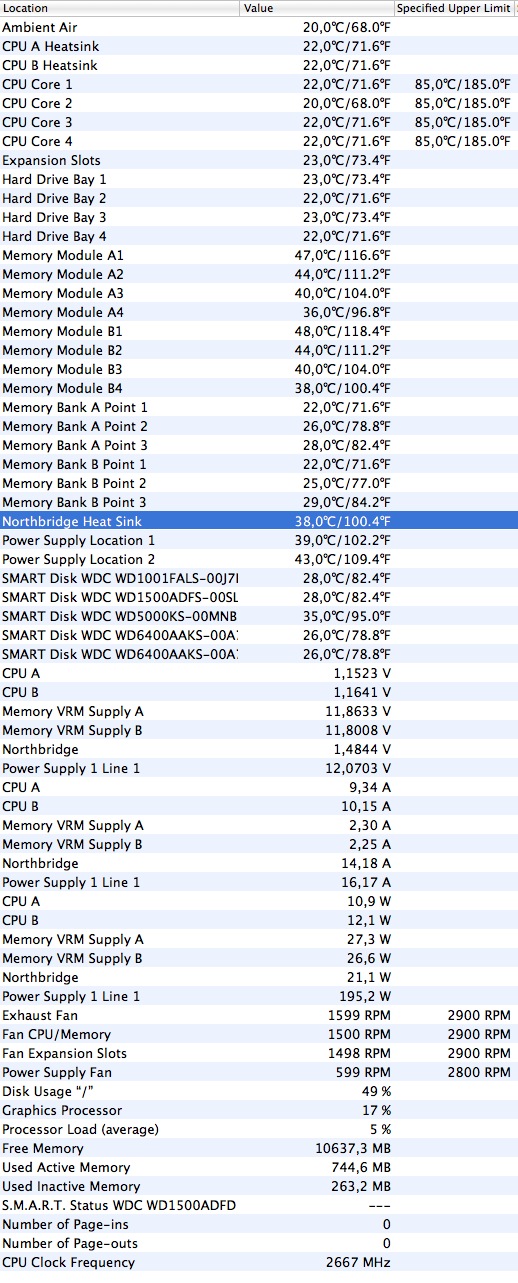

BTW. What's that program ? I want it



[lbodnar]

Yes. That's why Mac Pro 2008 is having a large radiator on chipset with heatpipes.

Is there a space there to fit a small slowly rotating fan to push some air through the heatsink?

BTW. What's that program ? I want it

http://www.islayer.com/apps/istatmenus/



[bearcatrp]

Get a north bridge cooler. Just google it. Get a fanless one if you can. One problem is fitting them on a mac mobo. You can make adjustments to make it fit though.



[zachsilvey]

I am not 100% sure but I think that with smcFanControl you could up the minimum fan speed. The machine would be a little louder but you could get the temp down.



[snouter]

That the Northbridge is higher than everything else is not surprising. They run hot.



[lbodnar]

The chipset's datasheet states in absolute maximum ratings section that storage temperature should not increase 85ºC. I can't seem to find absolute maximum operational temperature. Personally, this is quite a thin margin between actual operating parameter and absolute maximum value (=no go zone in electronics design lingo.)



[Peloche]

No load temperature of my Mac Pro 1,1 2006 is 80 degrees C.

Is this normal?

Leo

IMHO it's a bit hot, i'm using Fan Control to avoid fast aging



[lbodnar]

Update: I have taken the heatsink off. It had horrible bottom surface so I sanded it flat and put some fresh thermal compound on it.

After assembling it all back I had operating temperature drop from almost 80ºC to 63-65ºC. Cool!
