Old school DVI to VGA 90 degree adapter- where to get one?

[swamprock]

EDIT: Never mind. Disregard this post. I'm a complete bonehead. DVI-I is what I'm (probably) looking for.

As per subject, I need to find one of these. It can't be a DVI-D to VGA adapter, as those don't work with the Mini G4, and the regular straight adapters are too long for what I want to accomplish. Anyone know where to get one? I tried eBay, Amazon, and Newegg with no luck.

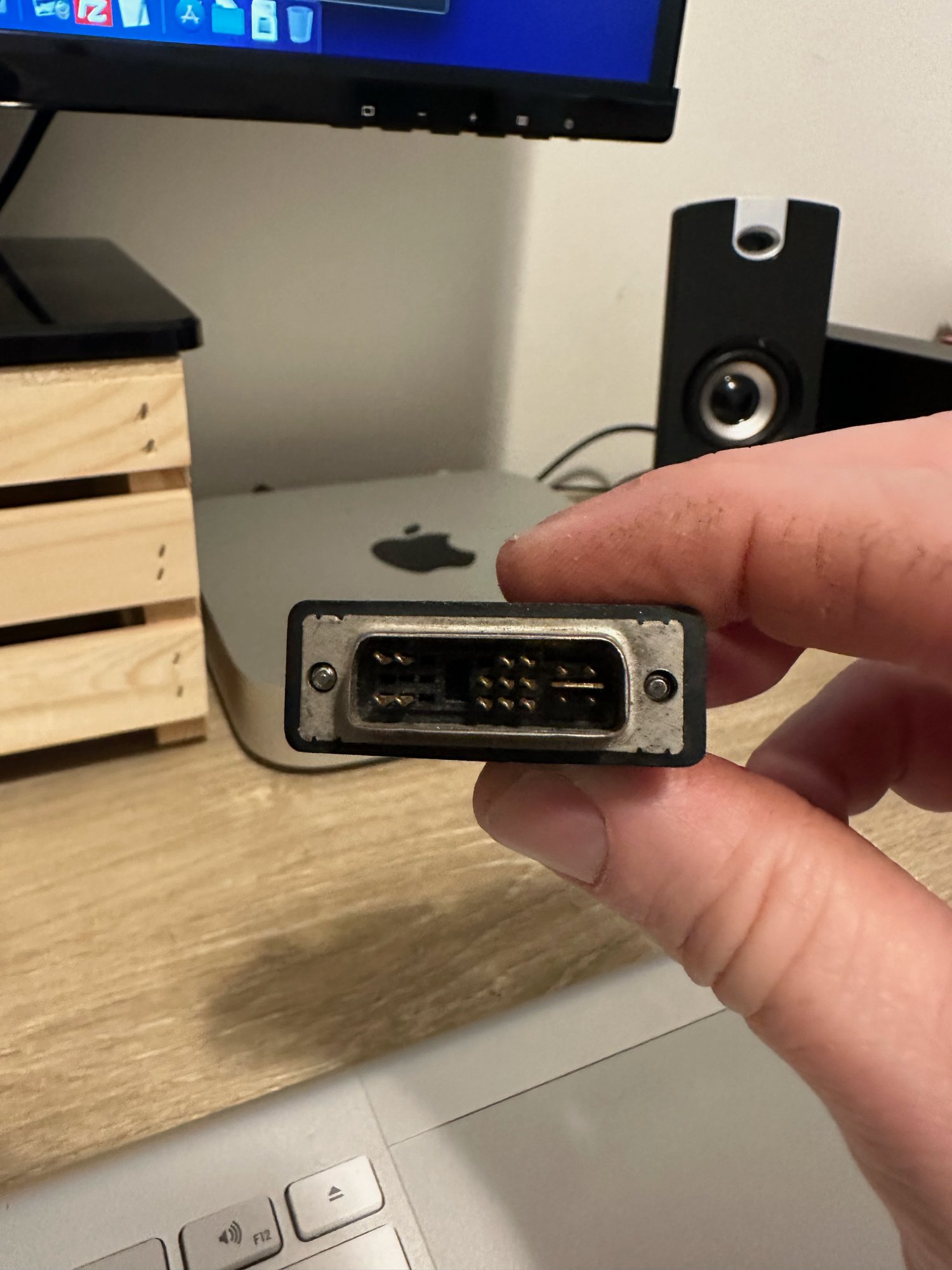

Here's a photo of the pin layout:



[joevt]

DVI-I is required for the analog signal pass thru to VGA.
https://en.wikipedia.org/wiki/Digital_Visual_Interface

I never had to deal with DVI-D to VGA adapters but they do exist. I know some PC motherboards have DVI-D outputs which are basically just HDMI.
https://www.bestbuy.ca/en-ca/produc...ive-adapter-converter-cable-dvi2vgae/10757276
Does Mac mini G4 not support DVI-D?

I've never seen a 90° DVI-I to VGA adapter before. Here's one:
https://can.grandado.com/products/d...or-adapter-15-pin-vga-socket-to-dvi-male-plug

It seems that the 90° adapter would take less space then a flexible DVI option:
https://www.ebay.ca/itm/155459501514



[velocityg4]

Found both of these on Amazon. One will point up the other will point down.

Oiyagai 2pcs VGA Female to DVI 24+5 Male Right Angle 90 Degree Adapter Adaptor Converter

Type : DVI-I Male to DVI-I Female 90 degree Adapter Connector Interface : DVI-I Dual Link Material: PVC ,Copper wire, Polypropylene, Metal connector Used for：Computer, digital TV, plasma, LCD TV, projectors Size:38x 38 x29 mm / 1.46 x 1.46 x 1.14 inches Package includes: 2 x VGA Female...

www.amazon.com

Nightwolf ® Right Angle 90 Degree L Style DVI-I 24+5 Analog Digital Male to VGA Female Adapter Convert Cable for HDTV LCD

Features: 90 degrees elbow, the application of equipment in the turning 90 degrees of the occasion. Gold Plated DVI-I(Digital and Analog) to VGA Adapter This DVI-I male to VGA female adapter. Allow you to use your DVI Video card with any standard HD-DB15 VGA/SVGA monitor Use this adapter...

www.amazon.com



[swamprock]

Thanks. I ended buying Apple's DVI single-link to VGA adapter. That'll work and give me the room that I need for it to clear the space that I need. It turns out that the cable I bought for the conversion was a DVI-D cable. Learn something new every day.

"Does Mac mini G4 not support DVI-D?"

I guess it doesn't, or, rather, not the frequency that my modern monitor requires.



[Amethyst1]

Does Mac mini G4 not support DVI-D?

It sure does, I’ve driven several digital-only displays off mine. The specs mention a 135 MHz pixel clock limit for “non-coherent displays” (I don’t know what that means though) which isn't sufficient for 1080p/WUXGA@60Hz.



[Wild Hare]



[swamprock]

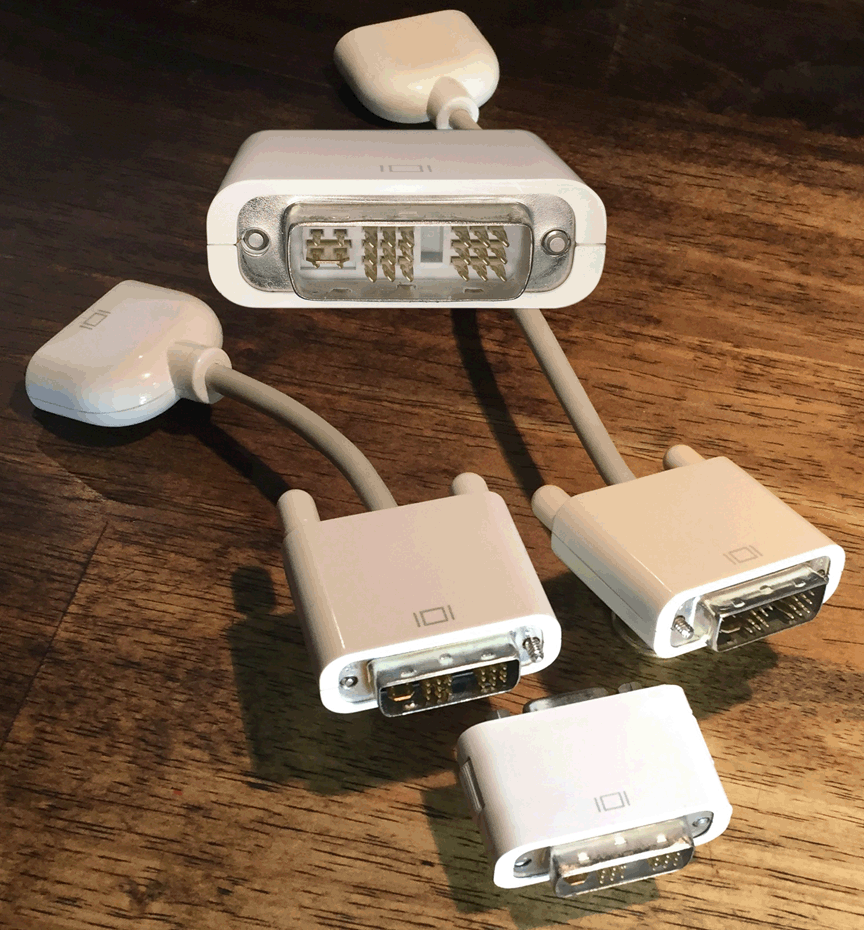

View attachment 2206127

That's what I ended up buying...



[DearthnVader]

It sure does, I’ve driven several digital-only displays off mine. The specs mention a 135 MHz pixel clock limit for “non-coherent displays” (I don’t know what that means though) which isn't sufficient for 1080p/WUXGA@60Hz.

It's not really something they list in the specs for a display, but most are non-coherent.

I ran across some linux documantion for the G4 mini that list a mode for both internal and external TMDS, so maybe the silent upgrade Mini with 64MB of VRAM they added an external TMDS to solve that issue.

Someone with a 1.5ghz Mini will have to test that for us.
