z970

macrumors 68040
Original poster
Jun 2, 2017
3,612
4,574

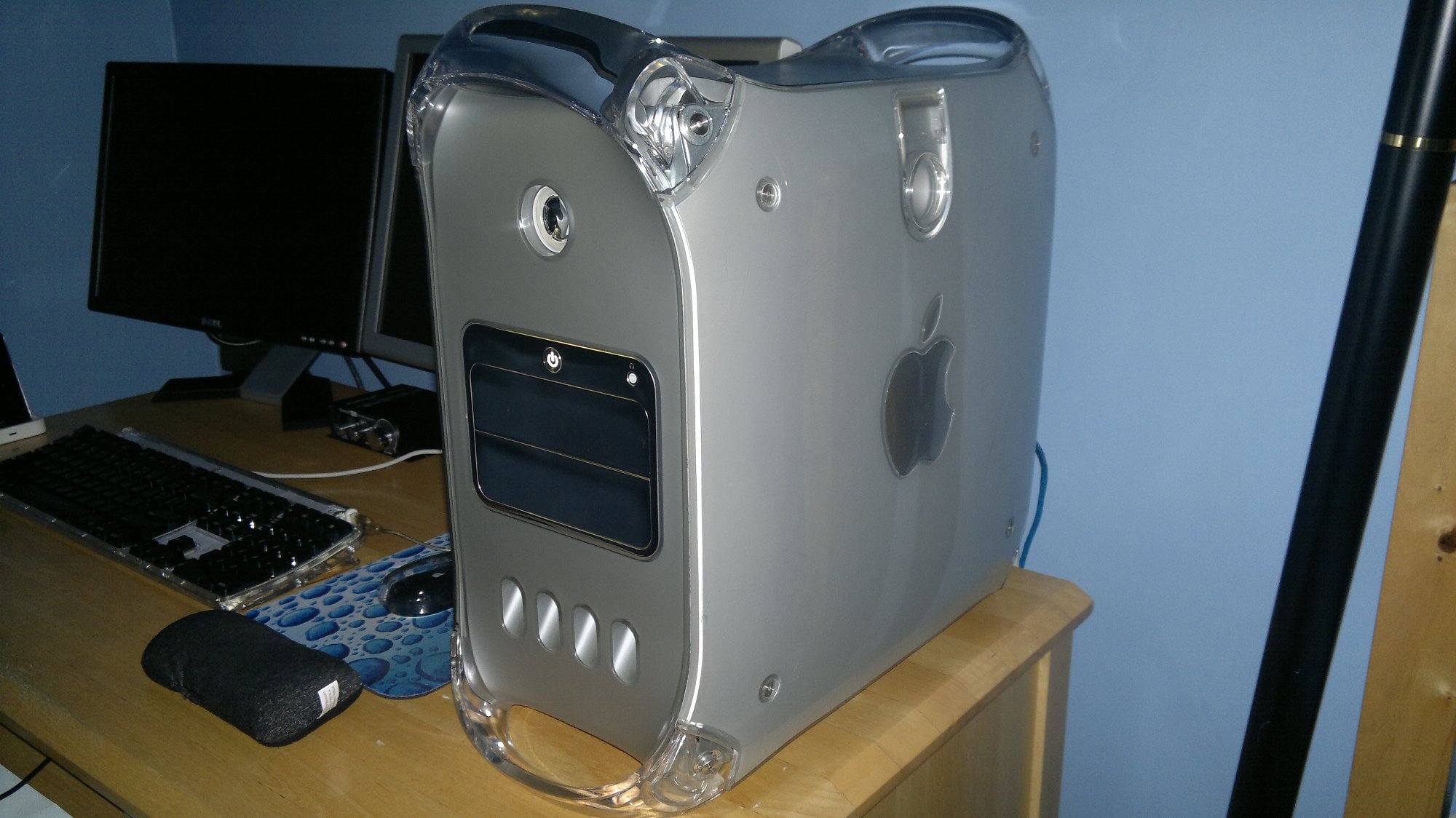

What a gorgeous machine; dare I say piece of art...

When you factor in the machinery inside the cases, they just get 10x sweeter.

Continuing from my initial post...

I've had my eye on the MDD ever since around 2016, when I saw one in person while visiting the local Mac fixit shop (had I known they were going to recycle everything "obsolete", I would have asked if they needed it). At the time, I instead opted for a G5 as I knew they were faster and more future-proofed, but I could never fully shake the idea, combing through eBay every once in a while to see if I could find any listings worth pursuit.

To cut a certain chain of events short, I found a rather good deal, decided to jump on it, and behold, the machine was filthy, neglected, and semi-rusted when it arrived. Had heavy tape residue on the drive doors, a crimped and crackling speaker, sand-like material on the fans, and choked with dust bunnies galore. The best I could gather was that the thing was stuffed into a garage for years and never revisited, which its slight smell and nature of layered dust confirmed. Had I not come across it, who knows what it might have faced in the future...





After giving it a quick blow over, I plugged it in, turned it on, and it booted right up, chime and all. After some examination of the OS (Tiger) file dates, I deduced that it was last in service during 2011, and likely spent about nine years - almost a decade dormant - probably in said garage.

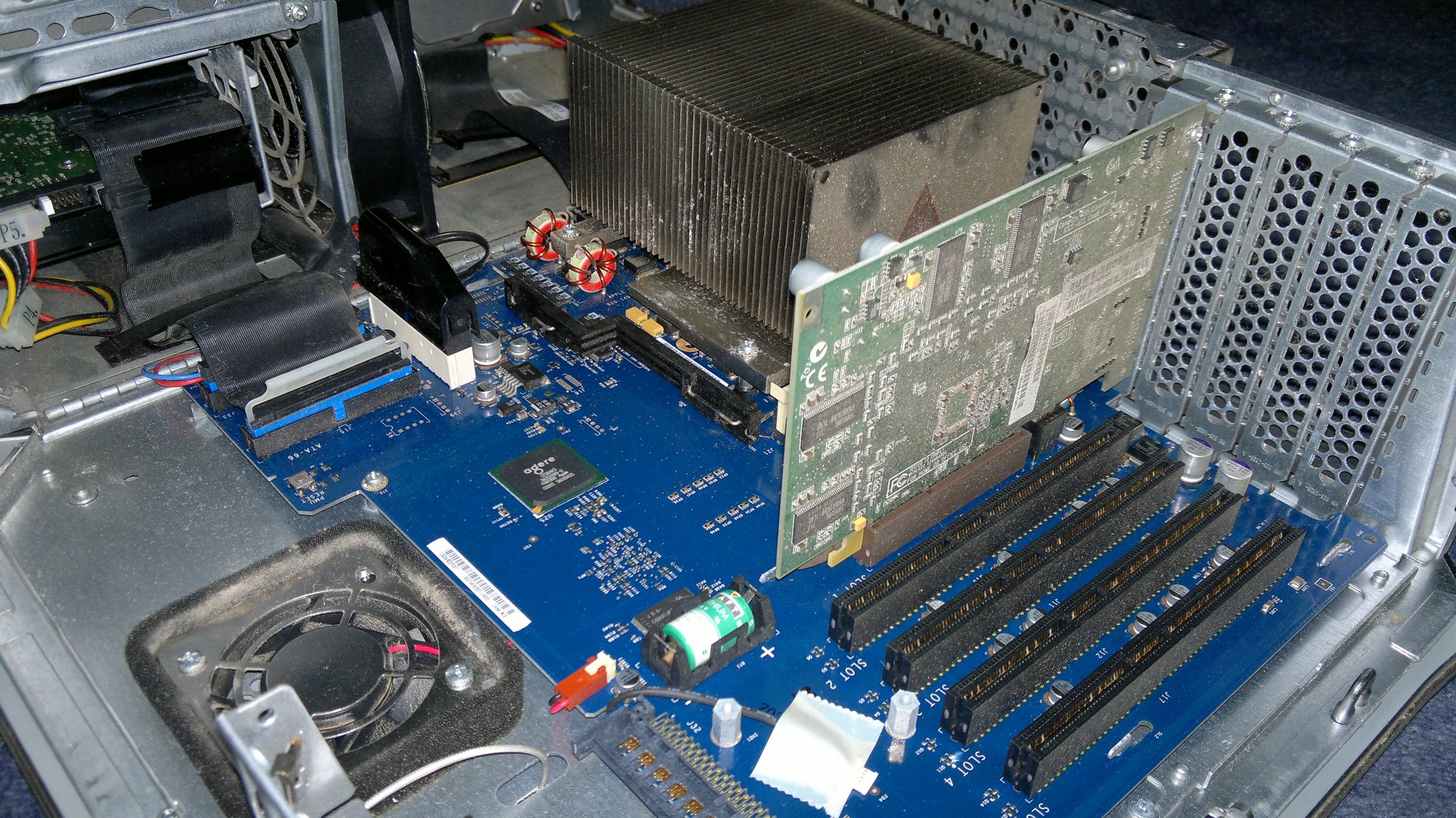

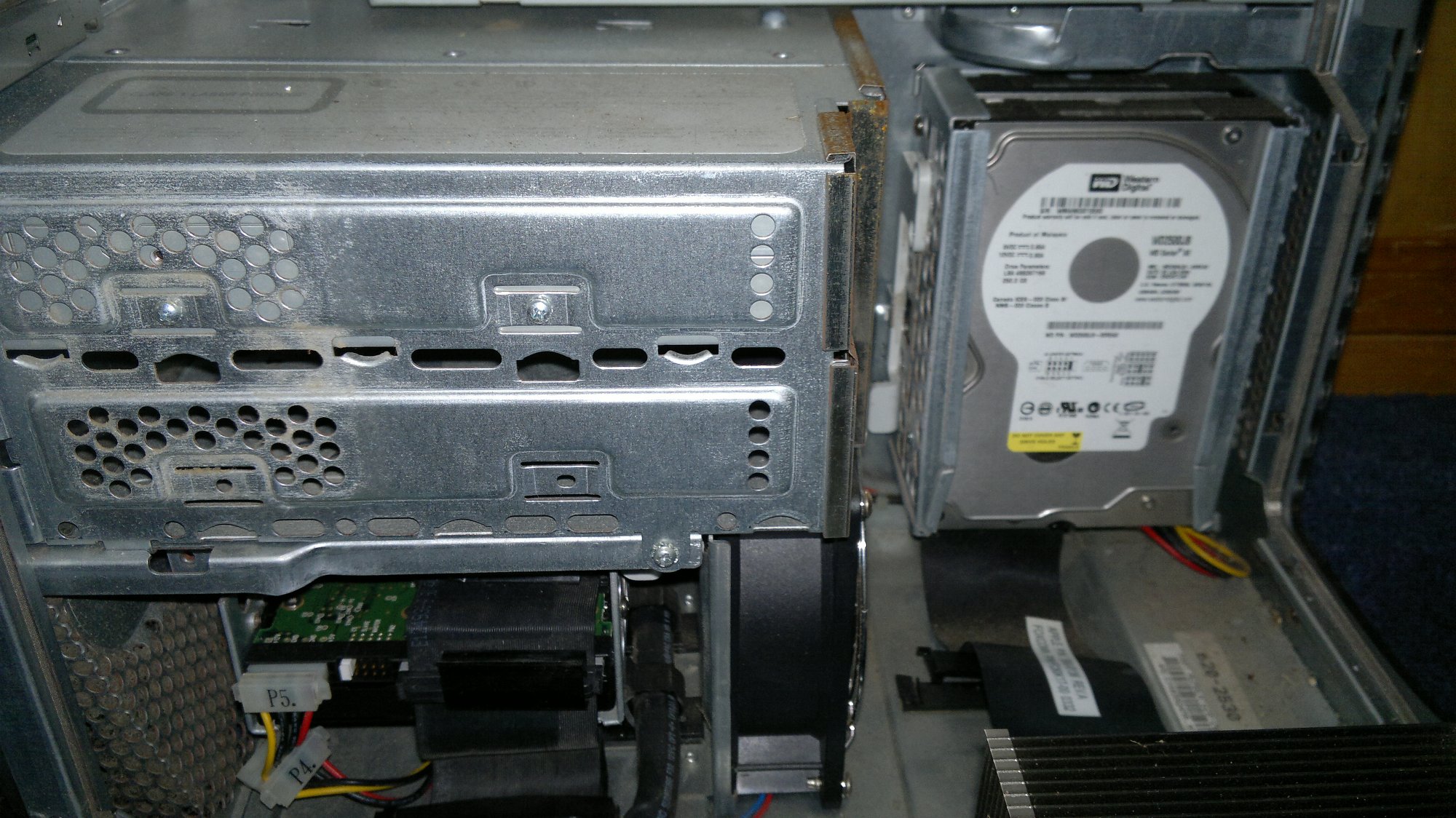

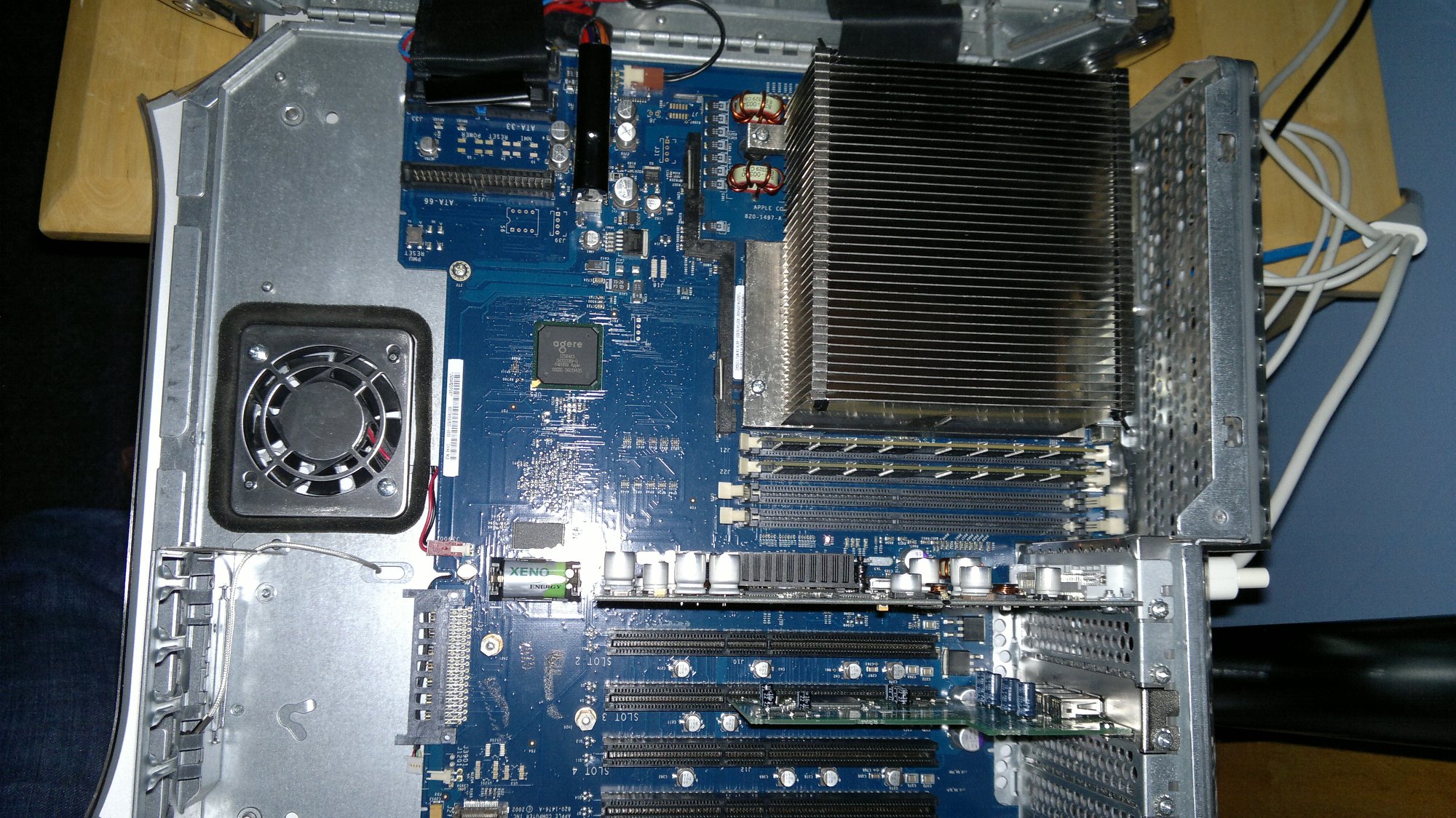

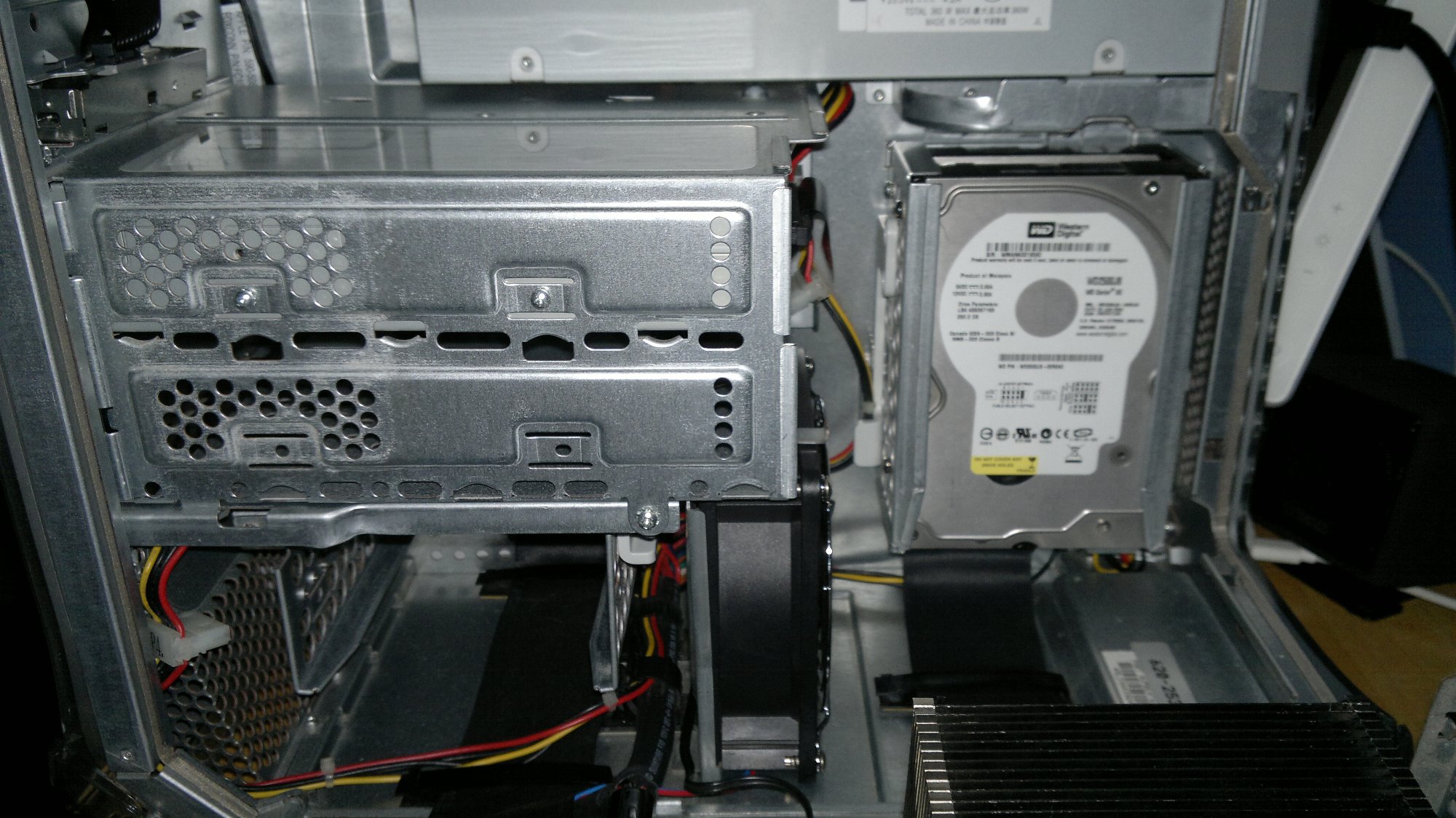

So over the past couple of weeks, I sanitized all surfaces, removed the rusted pieces (including the Airport caddy, ODD bay back cover, and front I/O board top cover), glued the speaker crimp gap, replaced its slightly yellowed, cloudier handles with my Quicksilver housing's pristine handles, polished the outer case and mirror doors, brushed and washed out all detachable plastic and metal pieces (including the handles, heatsink, etc.), cleaned out the entire front panel / dust underneath (back panel didn't need it), repasted the CPU, relubricated the fan bearings, replaced the PRAM battery... Essentially no different from 'the works' any one of us would have given.

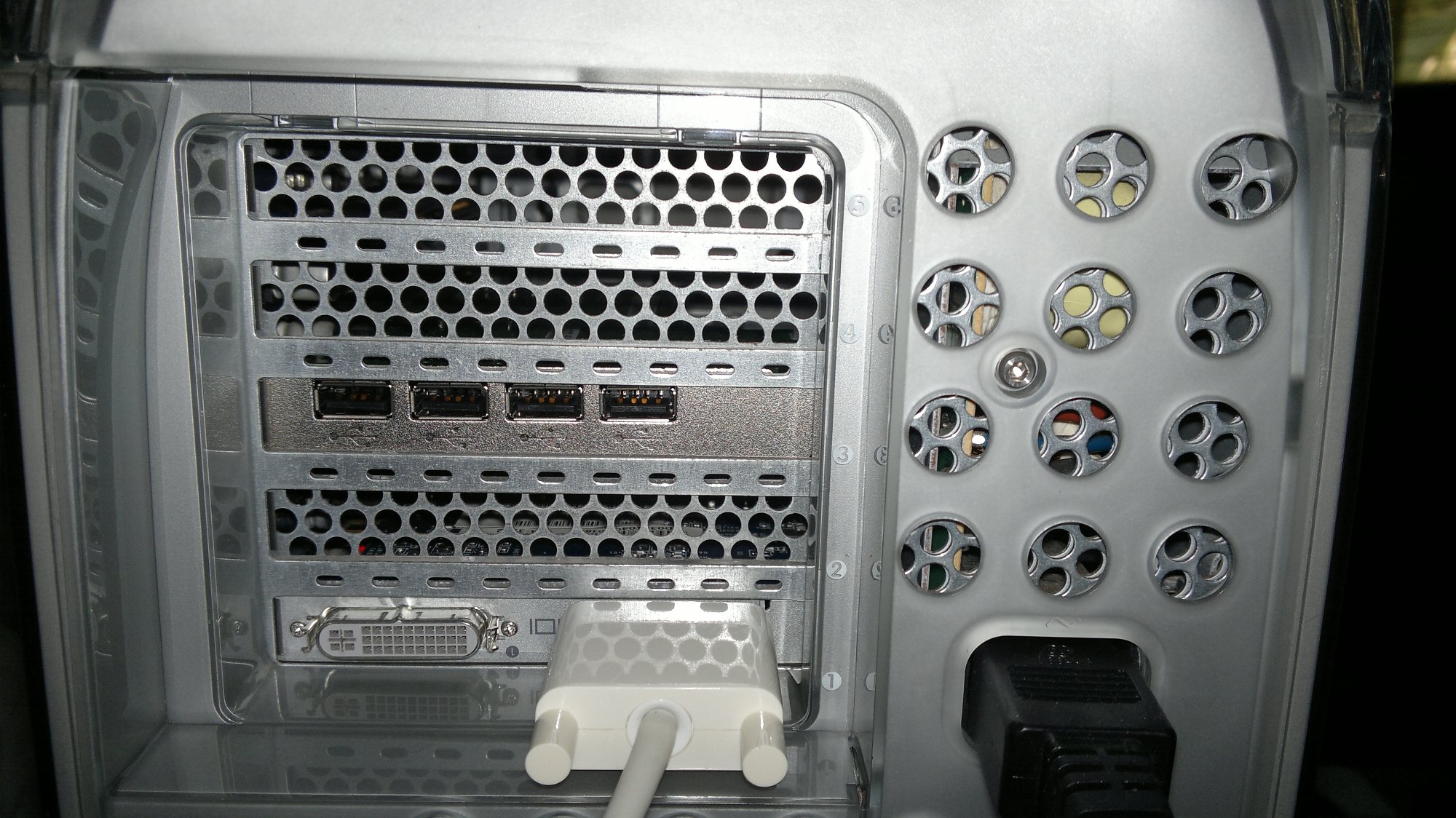

I also threw in a taped, cleaned, and repasted Radeon 9600, and Adaptec AUA-4000 USB 2.0 PCI Card. Will also be on the lookout for dual CPUs if the opportunity arises.

This machine is currently quad-booting Mac OS 9.2, 10.3, 10.5, and Debian Sid.

So... all things considering, looks like he's a happy Mac. :)

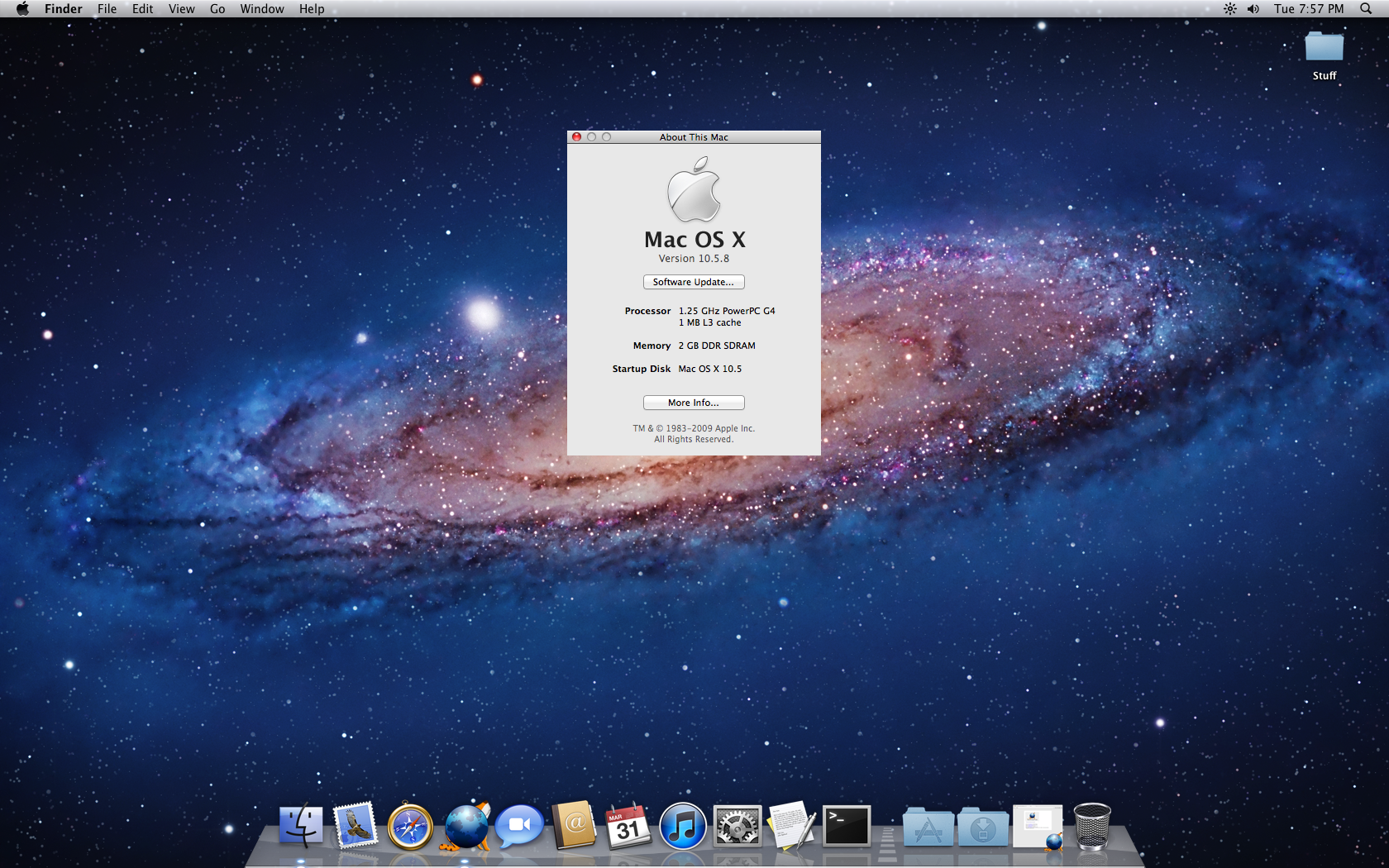

Picture 1.png


Not bad at all. :cool:

Last edited:
Touché. What about good ol' Jag?

I felt like Panther would be more compatible with a broader range of games for OS X.

And with what little, niche Internet use the midway OS will see, Panther has a slight advantage over Jaguar in that it simply has more options available to it. The newer libraries also help in this regard.

Plus it's way faster. :)

I felt like Panther would be more compatible with a broader range of games for OS X.

And with what little, niche Internet use the midway OS will see, Panther has a slight advantage over Jaguar in that it simply has more options available to it. The newer libraries also help in this regard.

Plus it's way faster. :)
I have always preferred Panther's stability over the rest, including Leopard. But there was a particular app I wanted once that had Tiger as it's minimum system requirement. At the time I was not in the spot to get Tiger and the availability of these older versions of OS X was not like it is today. I asked the dev if they would ever release a version compatible with Panther and the answer was a flat out no.

I remember this because it was both the motivation to upgrade my system as well as the first warning that the systems I used were starting to become dated. Up until that point I had been comfortable in Apple's ecosystem. Then came the Intel transition and suddenly I wasn't just stuck because I couldn't afford the latest OS, I was stuck because the hardware had changed,

Panther didn't get the same amount of attention from devs as Tiger/Leopard did, which is a shame, because I still like it.

With five (technically six) HD slots, it's more than possible!

The ultimate test bed!

I'd kill to see a video of OpenBSD 6.6 in action on that thing, showing Otter Browser usage. I have failed in all my attempts to get it on my Powerbook G4. Yes, I've followed the guide. Looking for a decently priced Titanium G4 to devote to OpenBSD exclusively.

What happened?
Hangs about halfway into the install, but it might be a hardware issue. Drive checks out in drive utility but I also tried install the 12 remix on it and it borked repeatedly as well. Gave up trying and decided its "Time for a Titanium" anyway, that will be my test machine. My Powerbook seems happy with a new drive and Leopard.

Nice work and recovery/rebuild. I dont think ive ever seen these before, when i first saw it, i thought it was a DA quicksilver, but then the mdd stood out. I may have a dual cpu board that fits in this. let me know what your looking for exactly and ill see if i have it in my pile of crap.

@VanneDC Thank you for the offer!

Would you happen to have anything from 1 GHz to 1.42 GHz?
