PowerBook G4 Titanium: 48bit addressing or not?

Project Alice

Project Alice

macrumors 68020
Original poster
Jul 13, 2008
2,226
2,298
Post Falls, ID
Hello PPC user's,
I am trying to figure out if I can put a large drive in my TiBook. It is the fastest one they made, 1Ghz DVI. I know most Macs after 2002 support large drives, however I'm finding conflicting answers about this one.
So, can I slap in a 256GB SSD in this thing or do I need to keep it below 128GB? IMG_20190226_211201.jpg IMG_20190226_211214.jpg

Intech has a tool called the ATA High Cap Driver. It allows you to format drives over 128GB with a second partition, therefore recognizing the remainder of the drive.

Unfortunately their website seems to have gone away.

eyoungren said:
Intech has a tool called the ATA High Cap Driver. It allows you to format drives over 128GB with a second partition, therefore recognizing the remainder of the drive.

Unfortunately their website seems to have gone away.
Click to expand...
Oh I know, I've been after it for over a year now. The people who have it aren't posting it to the Macintosh garden.
[doublepost=1551270319][/doublepost]
Hrududu said:
All TiBooks have an ATA-5 interface for the HDD which only supports up to 137GB drives.
Click to expand...
Low end mac states otherwise, that the DVI models (like mine) are ATA6. Again this is why I posted here, because I am seeing conflicting things all over. I may have to just stick a drive in there and find out, unless someone else has specifically done this.

Hrududu said:
All TiBooks have an ATA-5 interface for the HDD which only supports up to 137GB drives.
Click to expand...

that really blows, I thought the MDD cane out around the same time as the 1GHz model TI G4 ??? And THAT supported more than 128GB
[automerge]1592153362[/automerge]
Project Alice said:
Oh I know, I've been after it for over a year now. The people who have it aren't posting it to the Macintosh garden.
[doublepost=1551270319][/doublepost]
Low end mac states otherwise, that the DVI models (like mine) are ATA6. Again this is why I posted here, because I am seeing conflicting things all over. I may have to just stick a drive in there and find out, unless someone else has specifically done this.
Click to expand...

exactly, how can it be that the mighty MDD supports it and not the 1Ghz TI since they both are from 2002 - it would seem logical - I will try a 512GB MSATA M2.

I have hi-cap driver, but isn’t there a danger with it or something ? For instance, if I do a Pram reset or have to reset defaults to all in OF, won’t that wipe everything out ?? Now, what if I formatted the msata M2 drive on my Mac Pro ?
[automerge]1592154167[/automerge]
Also, did not the later quicksilver models support LBA-48 ? And those were around the time of the last ti book.

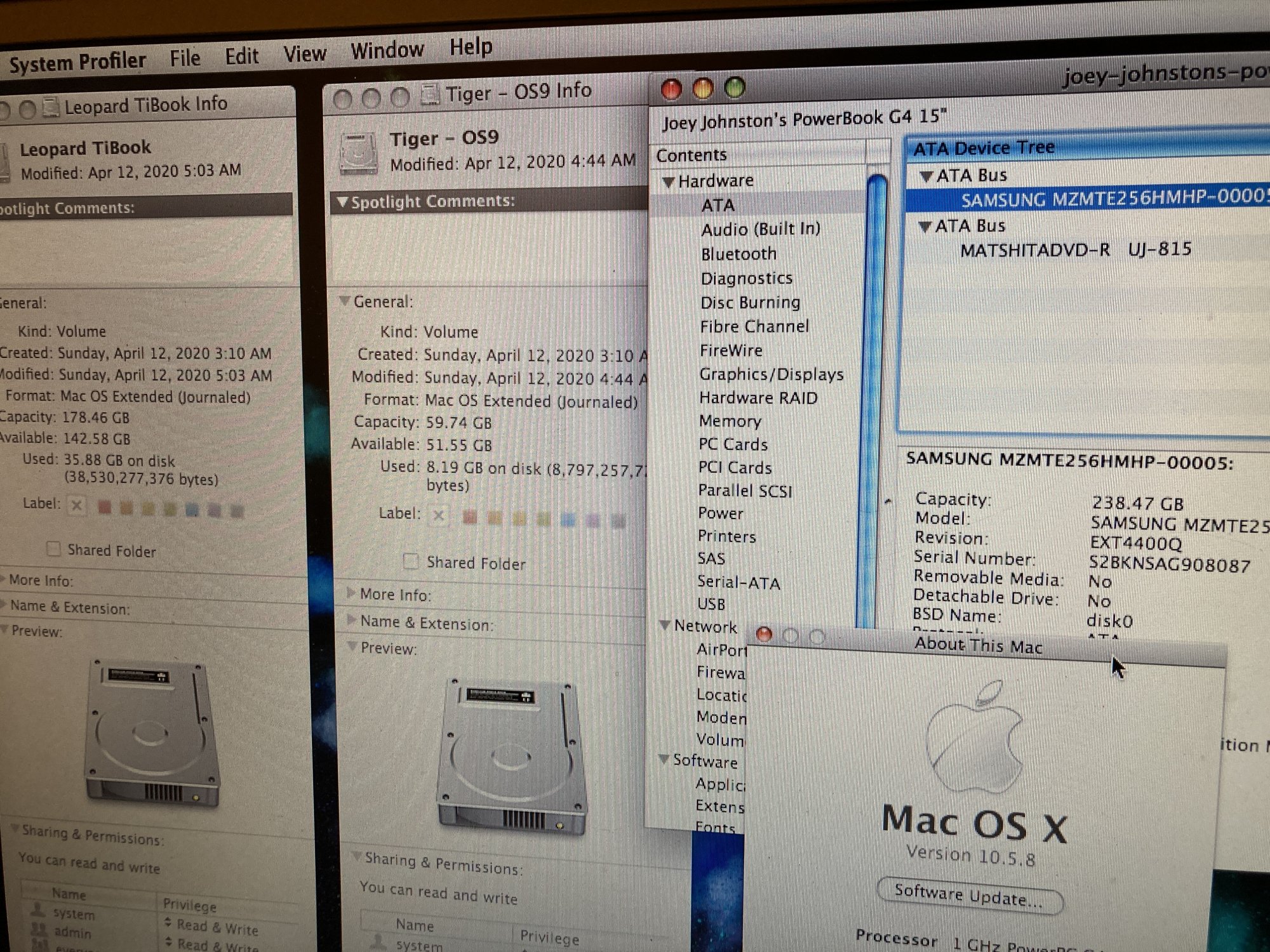

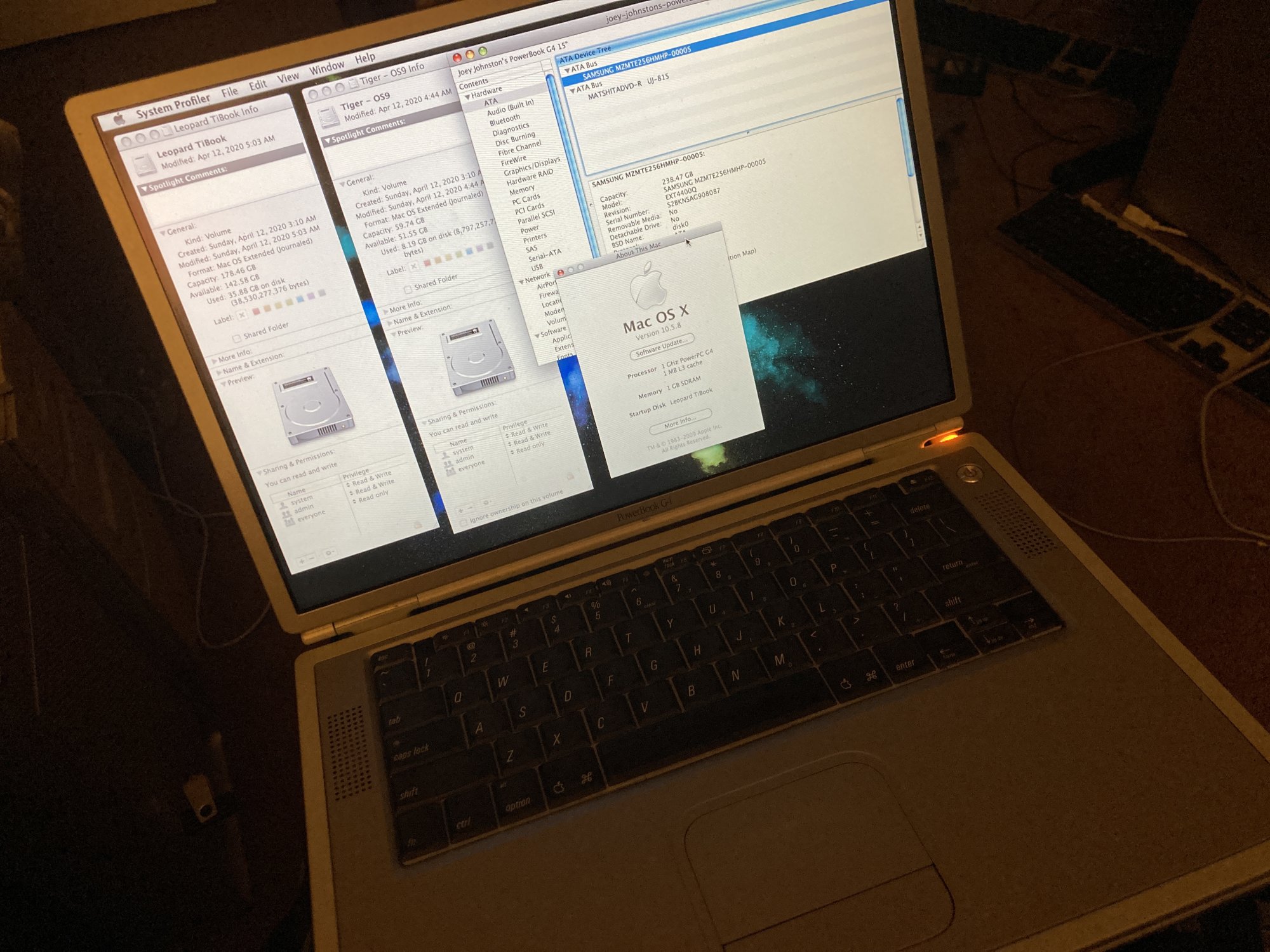

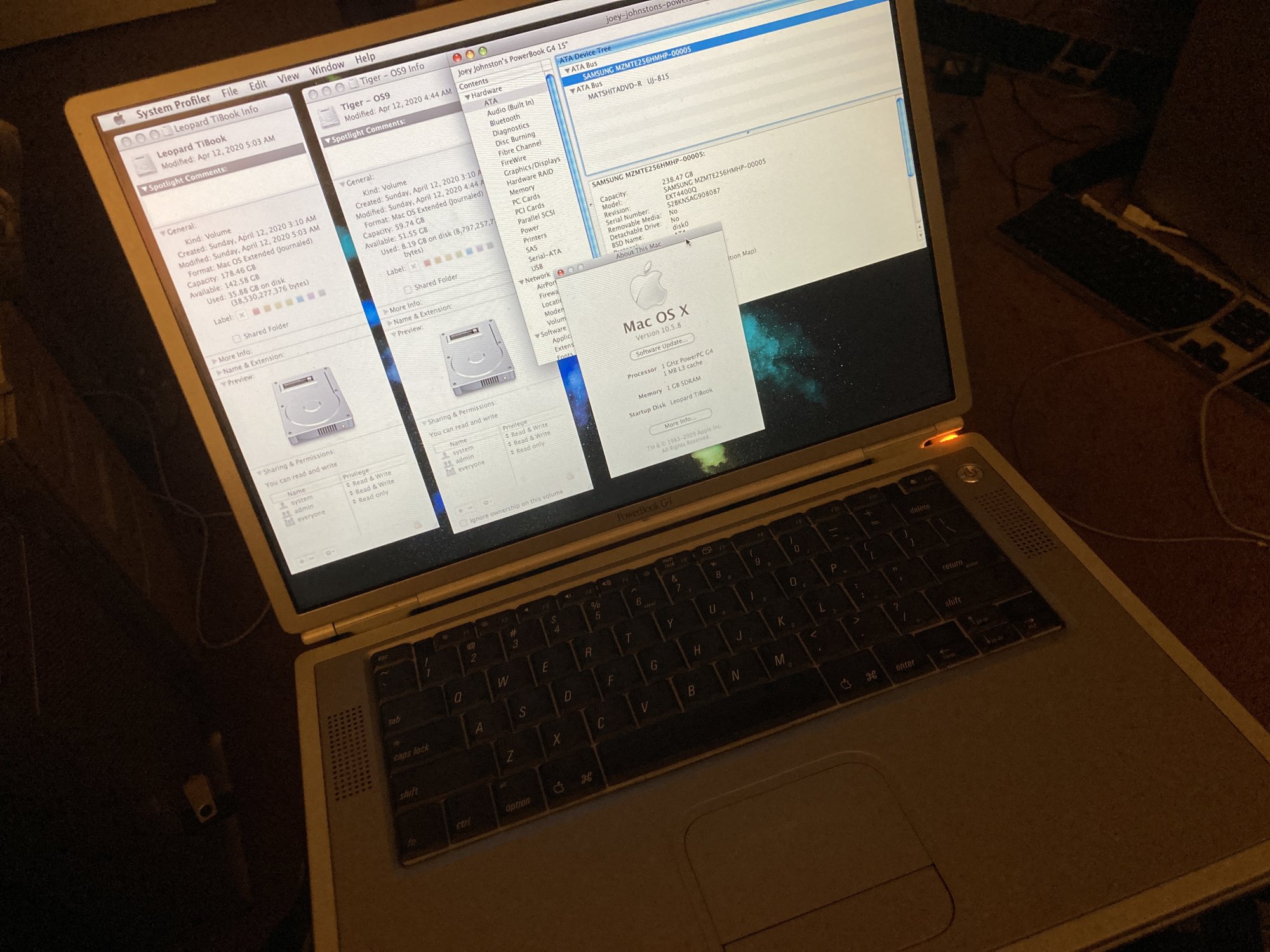

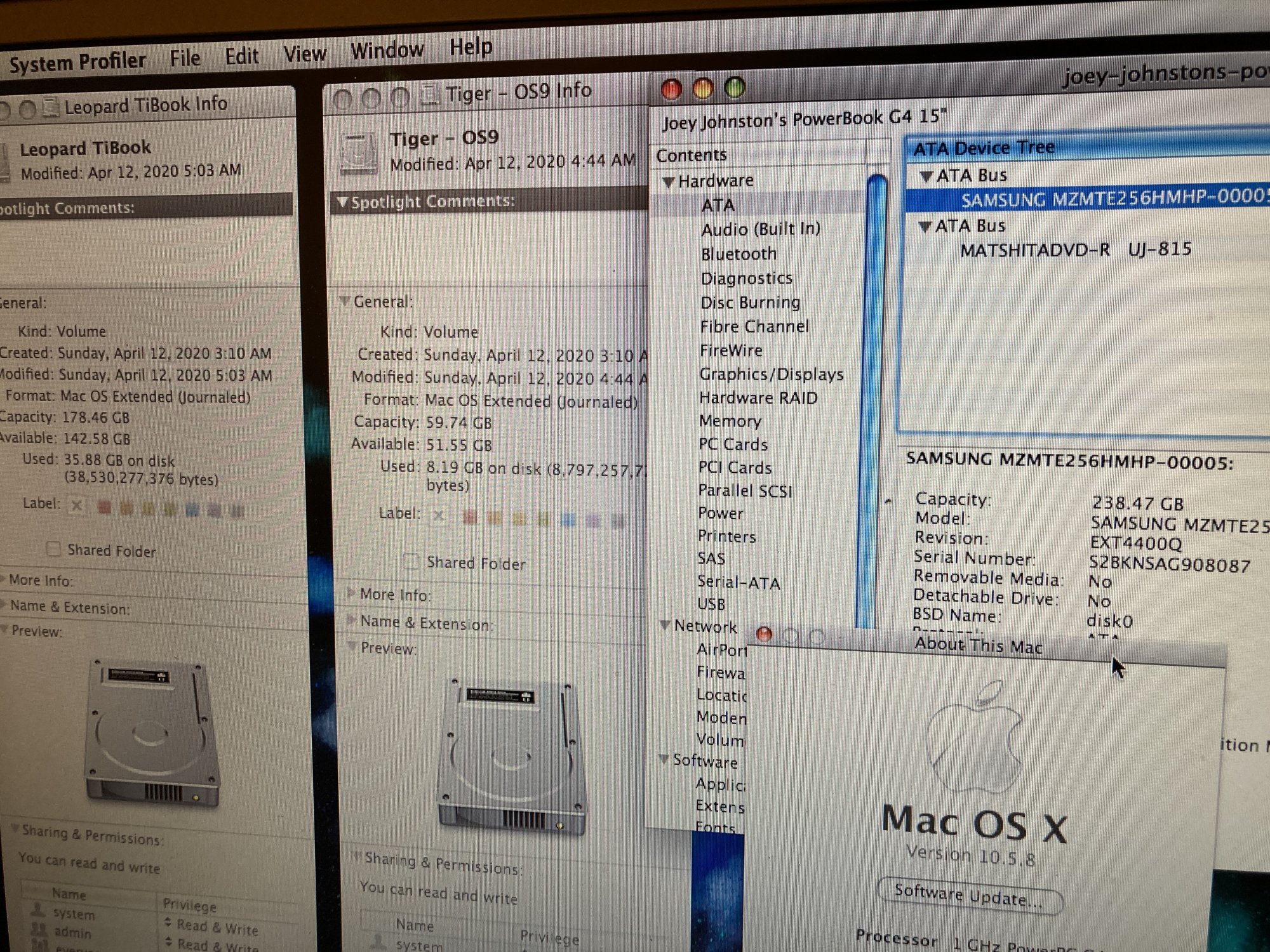

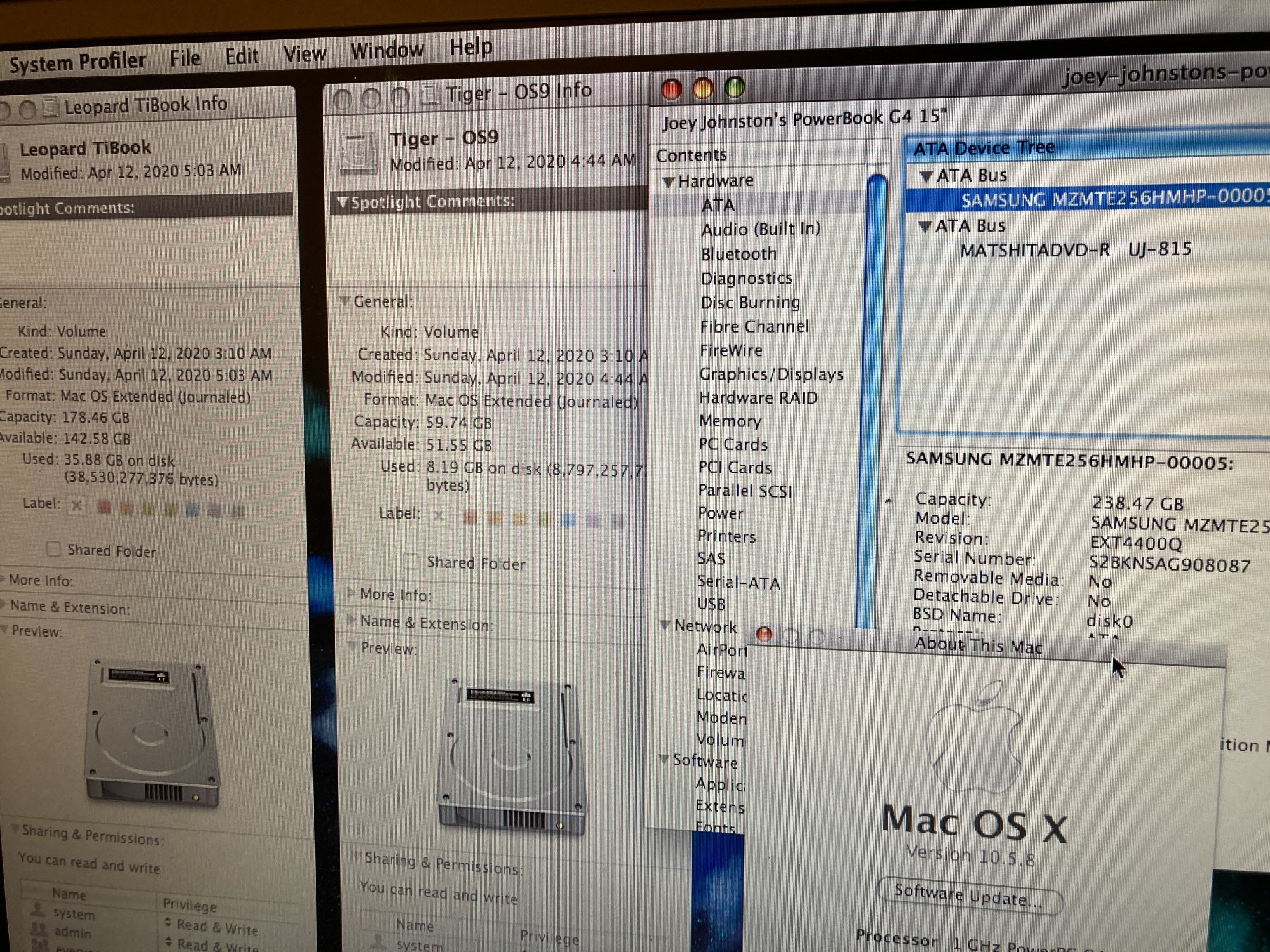

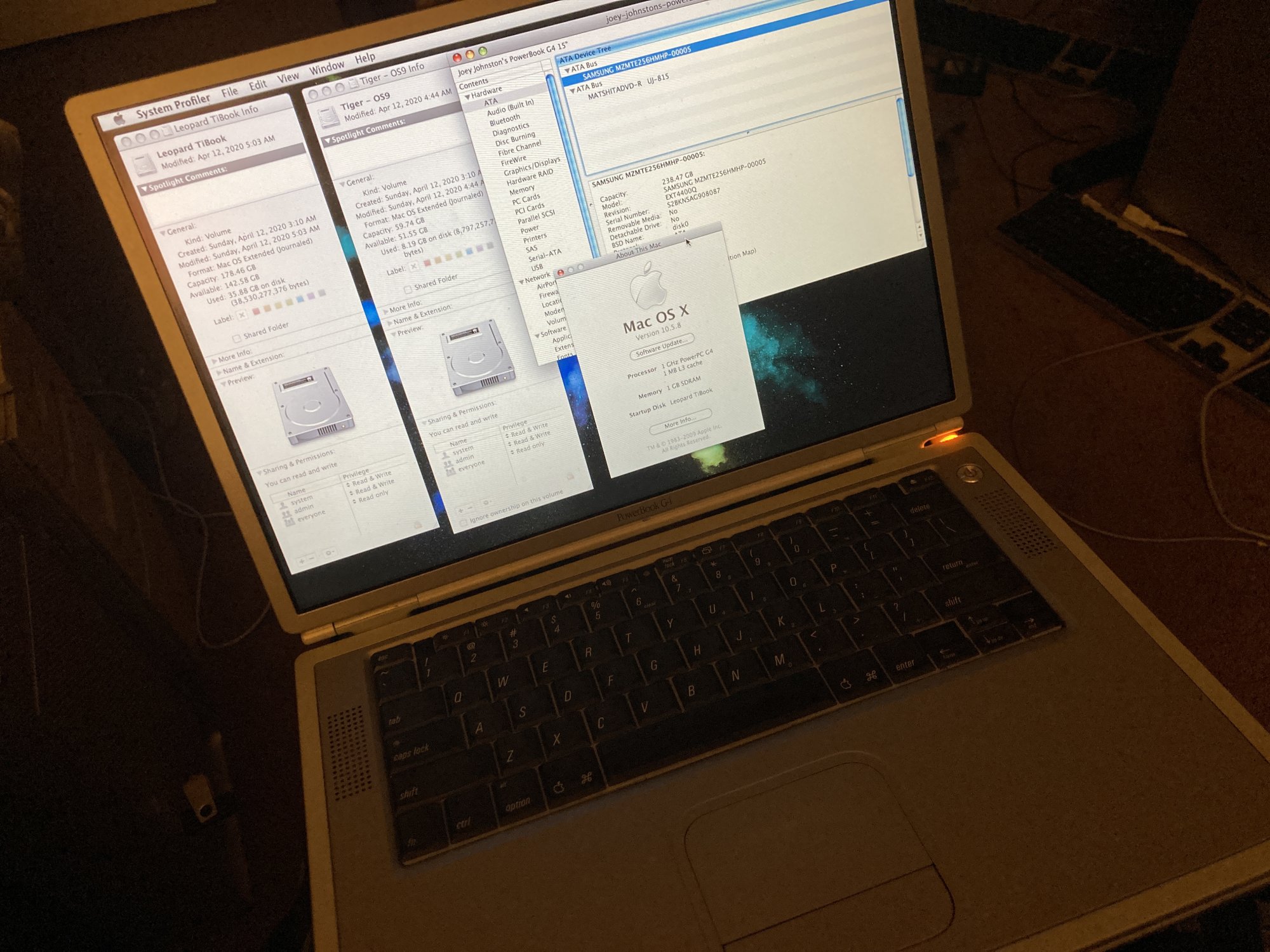

So, actually the 1GHz TiBook DOES support large drives.
Mine has a 256GB SSD in it now.
(Posted from mobile hence the photo instead of a screenshot..Faster that way)

No third party driver used. Just stuck it in, partitioned it and cloned my previous installations onto it.

  • Like
Reactions: Amethyst1
Ok, this is good news - that means I can get a 512GB msata M2 and use it with Leopard and 128GB for OS 9.2.2 nice !
[automerge]1592159705[/automerge]
Does your MSATA M2 allow boot to OS 9.2.2 ?

Macbookprodude said:
Ok, this is good news - that means I can get a 512GB msata M2 and use it with Leopard and 128GB for OS 9.2.2 nice !
[automerge]1592159705[/automerge]
Does your MSATA M2 allow boot to OS 9.2.2 ?
Click to expand...
It does, yes. I stuck OS 9 and Tiger on a 60GB partition because I use Leopard mainly. All three operating systems work flawlessly on it.

  • Like
Reactions: Macbookprodude
Project Alice said:
It does, yes. I stuck OS 9 and Tiger on a 60GB partition because I use Leopard mainly. All three operating systems work flawlessly on it.
Click to expand...

This is good news, now I can get a higher MSATA M2 drive for my 1GHZ Titanium. ALready since I got this, it has been an everyday machine. A beast of a laptop.. no real issues - it appears the system is working flawlessly. Also, I got a new top case for it - 50.00 bucks on ebay. The system is really nice. Its being used networked to my Mac Pro and 2015 Macbook Pro. Under webkit, 95 percent websites work.. I am not sure WHY 68mkla.org does not work under webkit.. where as os9lives.com does. Under tenfourfox it works perfectly. But, good to know we can use drives larger than 128GB.. So, I will get a 512GB MSATA M2(long stick) and just divide the partition into 2 - for OS 9.2.2 and Leopard, maybe I might try the rebuild of Snow Leopard on here thats still being worked on by those in the forum.
[automerge]1592172833[/automerge]
Project Alice said:
So, actually the 1GHz TiBook DOES support large drives.
Mine has a 256GB SSD in it now.
View attachment 924086
View attachment 924087
(Posted from mobile hence the photo instead of a screenshot..Faster that way)

No third party driver used. Just stuck it in, partitioned it and cloned my previous installations onto it.
Click to expand...

Does anyone know why when I try to load the pics under leopard webkit, the thing just crashes ? Is this a problem with Webkit ??? I tried with no java at all and it still crashes.. Seems like tenfourfox is going to be more reliable which is a damn shame because webkit is fast on this thing. Java just to load an "e"""" " picture imbeded in a message ?
