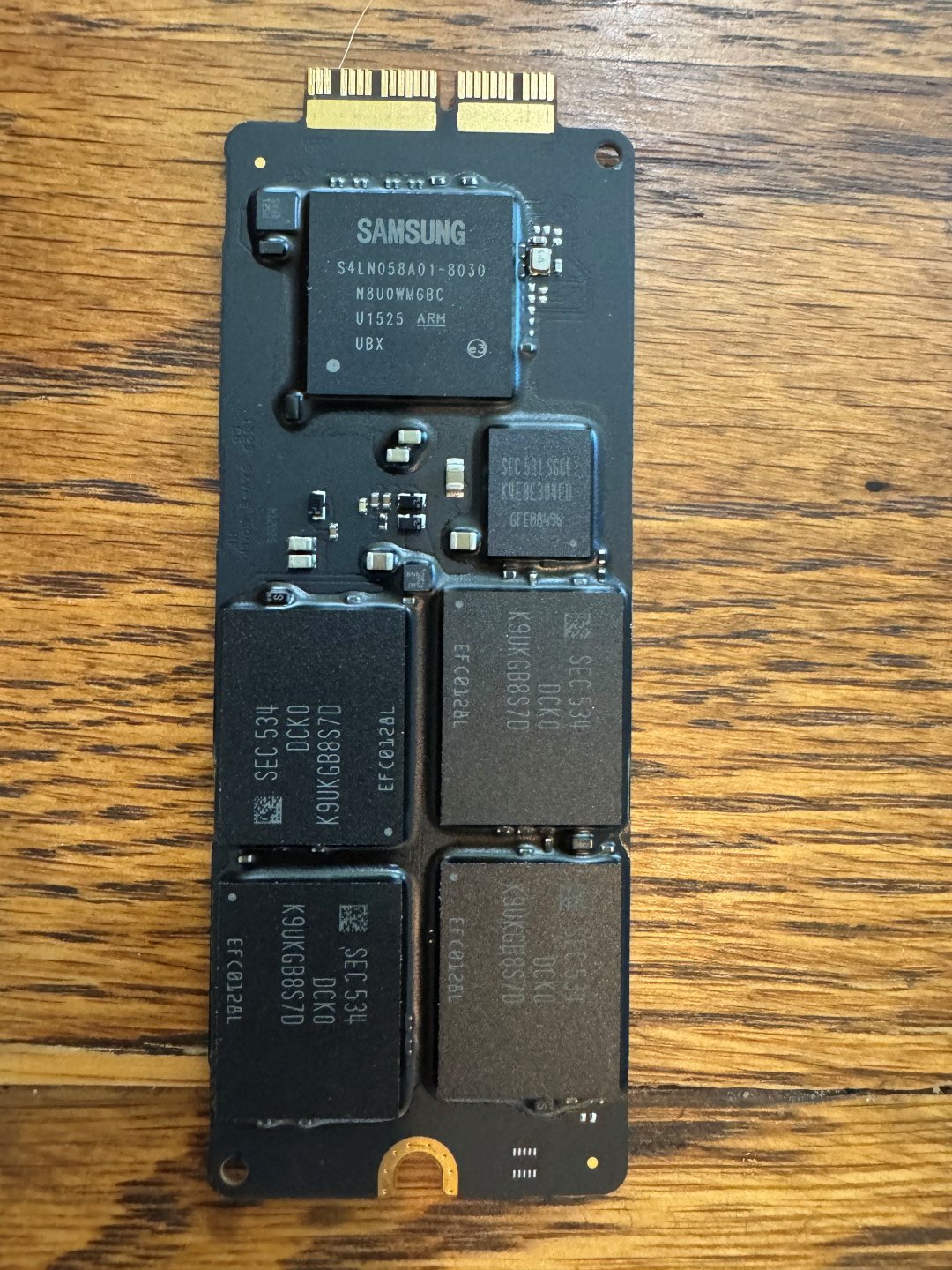

See attached images - can anyone confirm a laptop model that will connect this drive? Or any other data recovery service that might be able to help, if not? Thanks!
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Pulling data from iMac blade SSD, is it compatible with other computers?
- Thread starter cameronjpu
- Start date
- Sort by reaction score
OK so man... chatgpt to the rescue. Uploaded a picture and it told me it was a 12+16 connector and that you can buy an adapter on Amazon, so off I go!
MAIWO MacBook SSD Enclosure, 12+16 PIN AHCI SSD to Type-C Adapter, USB 3.2 GEN2x2 20Gbps, for 2013-2017 MacBook Pro, MacBook Air, Mac Pro, iMac from 2013 to 2017
MAIWO MacBook SSD Enclosure, Type-C to 12+16 PIN Apple Flash AHCI SSD Adapter, USB3.2 GEN2x2 Max 20Gbps, for 2013-2017 MacBook Pro Retina/MacBook Air/Mac Mini/Mac Pro 【Support Macbook SSD】This Macbook SSD Enclosure is compatible with original 12+16 PIN Apple Flash AHCI SSD including 2013-2017 Mac...
www.amazon.com
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
OP:
The blade SSD out of an iMac...
Was this the SSD portion of a fusion drive?
Or... was it a "standalone" SSD (NO fusion drive)?
Could you give us some background on what went wrong with the iMac?
REASON WHY I'm asking:
If it was the SSD portion of a (failed) fusion drive, the data on it may be un-recoverable without "the rest of" the fusion drive.
If it was a standalone SSD, you might be able to get data from it.
Be aware that data recovery companies can be VERY expensive.
Perhaps even moreso if it was part of a fusion drive.
We're talking up into the thousands of dollars.
Is the data on the drive really, REALLY worth that much to you?
The blade SSD out of an iMac...
Was this the SSD portion of a fusion drive?
Or... was it a "standalone" SSD (NO fusion drive)?
Could you give us some background on what went wrong with the iMac?
REASON WHY I'm asking:
If it was the SSD portion of a (failed) fusion drive, the data on it may be un-recoverable without "the rest of" the fusion drive.
If it was a standalone SSD, you might be able to get data from it.
Be aware that data recovery companies can be VERY expensive.
Perhaps even moreso if it was part of a fusion drive.
We're talking up into the thousands of dollars.
Is the data on the drive really, REALLY worth that much to you?
Take another look at the iMac that you have removed the SSD in the picture. Are you sure there is not a standard SATA HDD? It would probably be near the logic board (and not located on the logic board, like the SSD. (Fusion drive is two devices - one SATA HDD (not a blade, but normal, spinning platter Hard drive), and the second device is the one that you show in the picture, a blade-type storage. It's not just one device, but a software configuration of two different devices.
Just suggesting this, as it sounds like you want to try to retrieve data, and if you miss the second drive, you may be missing a chance for reccovery, if that's what you want to do.
Just suggesting this, as it sounds like you want to try to retrieve data, and if you miss the second drive, you may be missing a chance for reccovery, if that's what you want to do.
Unlikely for a 1TB SSD.

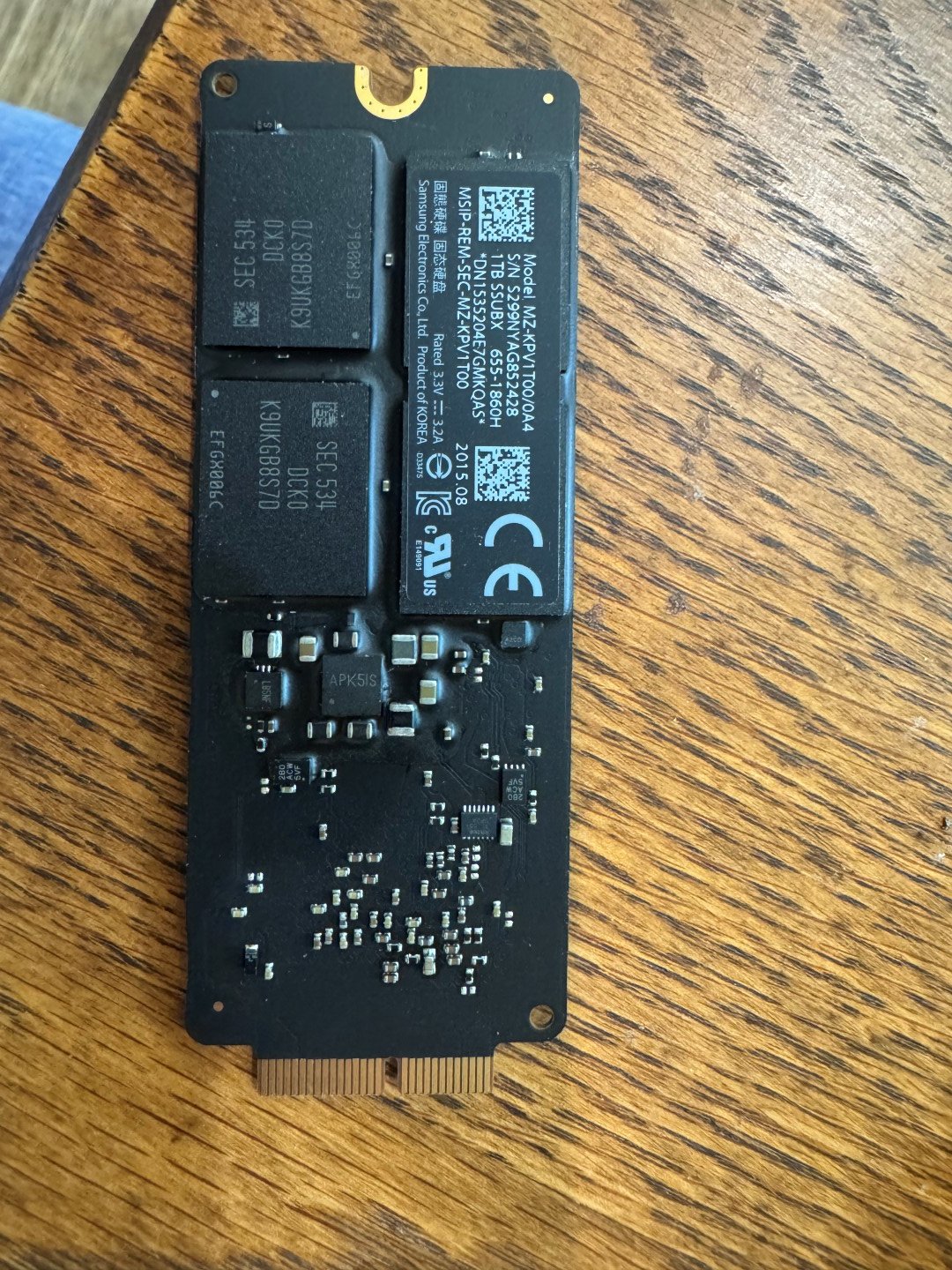

Web search for the model number MZ-KPV1T00/0A4 suggests this is from a 2013-2015 iMac or MBP. Here is someone selling them https://beetstech.com/product/solid-state-drive-1tb-655-1860. There are lots of others.
Physically it appears to have a standard connector, but all the sellers describe it as for a MBP. And ifixit says that for a 2015 MBP "This MacBook Pro uses a proprietary storage drive connector, and is therefore not compatible with common M.2 drives without the use of an adapter." So I don't think you will get far with a standard SSD enclosure.
I suggest you try a 2013 to 2015 MBP. Of course, you will need to remove the existing SSD from the MBP so that you can put this one in. So it might be best to configure the MBP to boot from an external SSD before inserting the one you have.
The ifixit guide may be useful https://www.ifixit.com/Guide/MacBook+Pro+15-Inch+Retina+Display+Mid+2015+SSD+Replacement/48251
Caveat: The above is all from web searches and not from practical experience.
I've taken apart 100 iMacs. This is my profession (and yes despite that, I have never once opened an iMac with only an SSD blade, I was just as surprised when I found no HDD in the computer). This iMac has no HDD, only this blade. I've received the drive reader and it cannot read the drive either, so I am sending it off for recovery. Fingers crossed!
Last edited:
Yes, the failure with the SSD enclosure is expected. But, hopefully your recovery team have a suitable MBP for this sort of eventuality. Or they know another way.
The hope was that the problem source was the old iMac, but nope. Given the failure of the drive in both places, no sense in trying a third, so it's going off to data recovery pros.
