Rebuilding iMac G3 PAV traces (model 661-2370)

[brian4120]

Hey all,

I'm currently working on bringing a brutally decommissioned iMac G3 DV/SE back from the dead. Short version is someone drilled through the logic board in multiple places and one hole extended through the PAV board near IC904 (Looks like a 12v LDO.) The logic board is a lost cause and I already bought a replacement.

Fortunately it looks like the only damaged component may be a ceramic capacitor but otherwise the PAV got very lucky. I was hoping to get either a picture or schematic of a model 661-2370 PAV (for LG CRTs) so I can rebuild the traces.

Thank you!

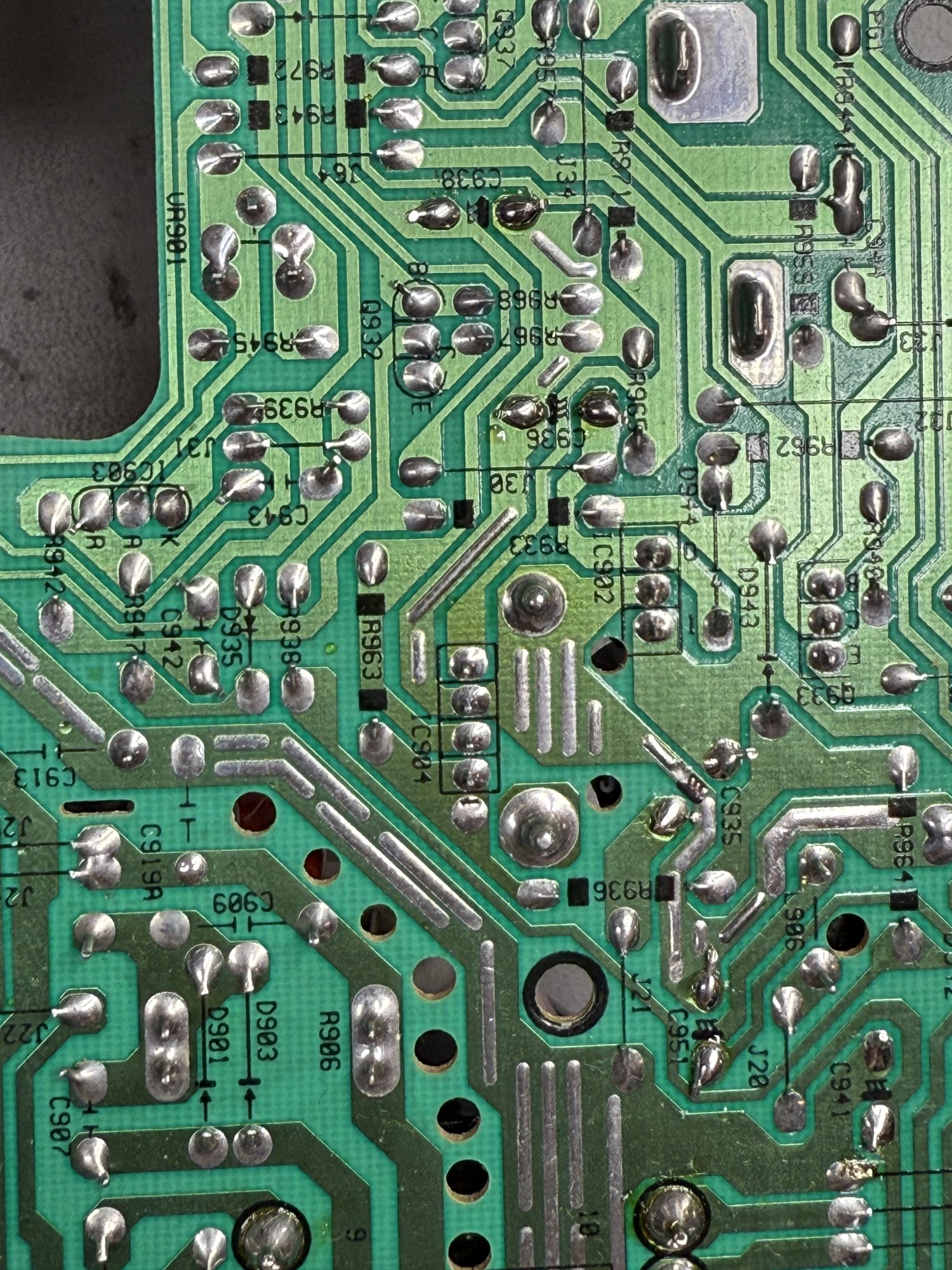

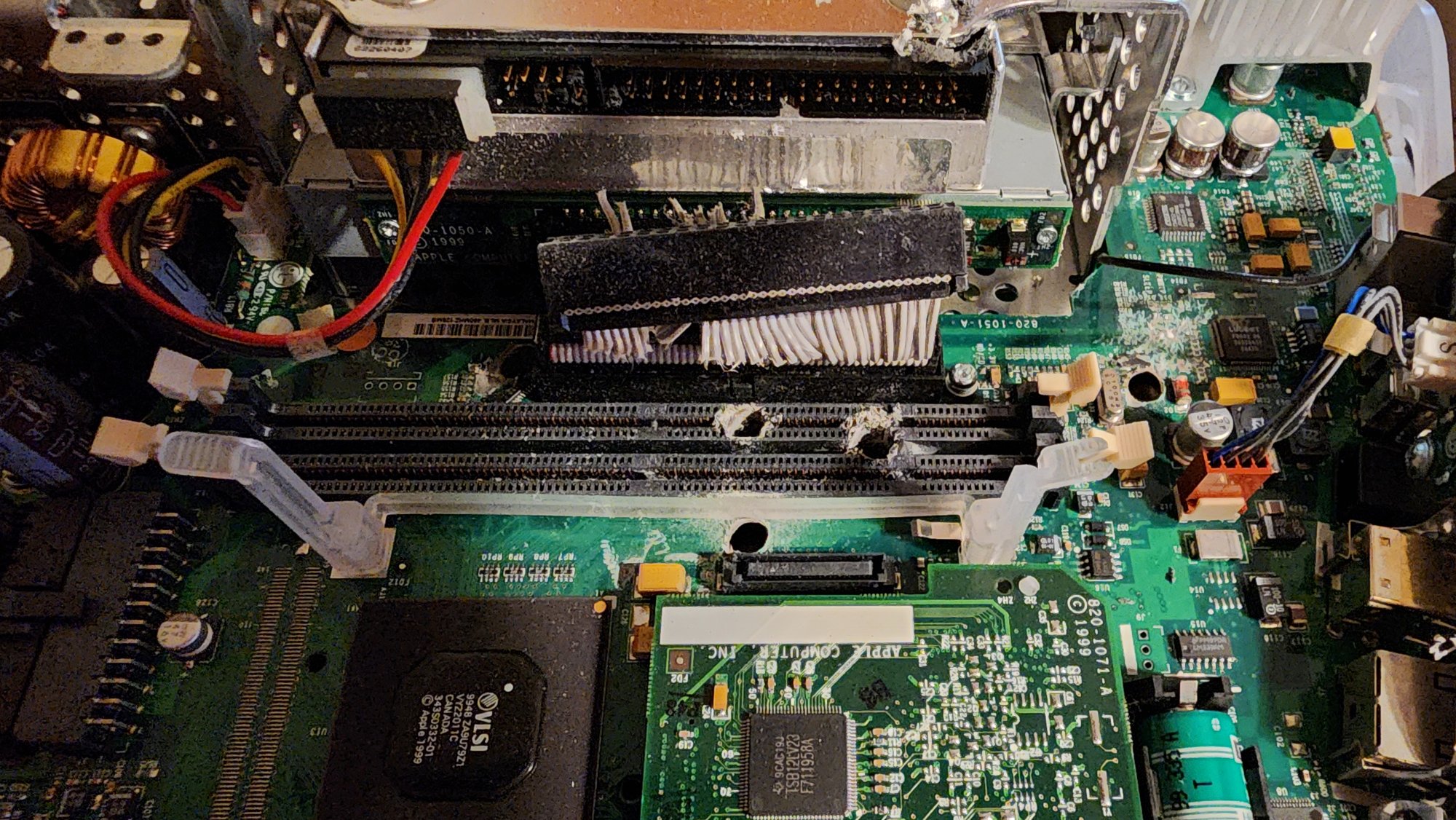

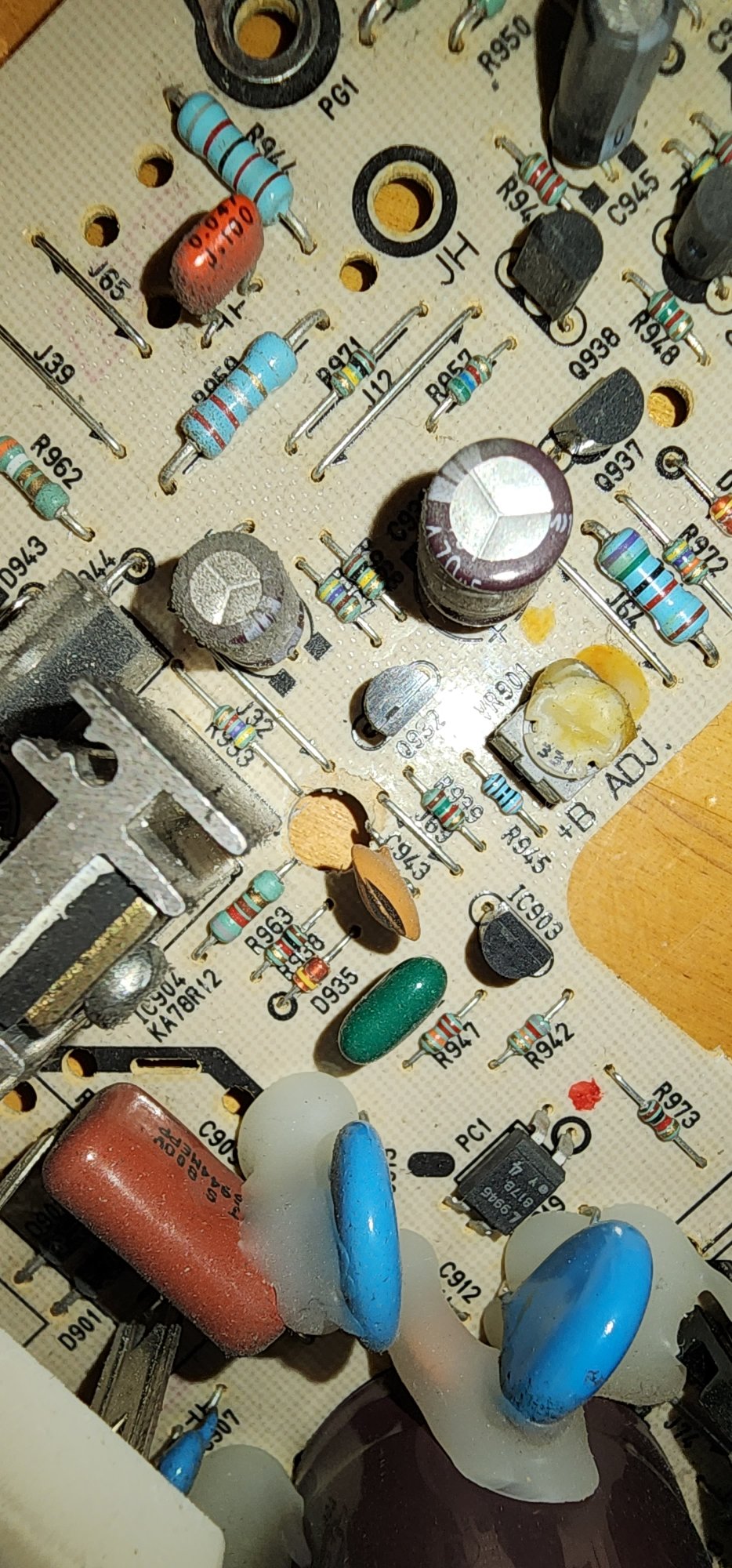

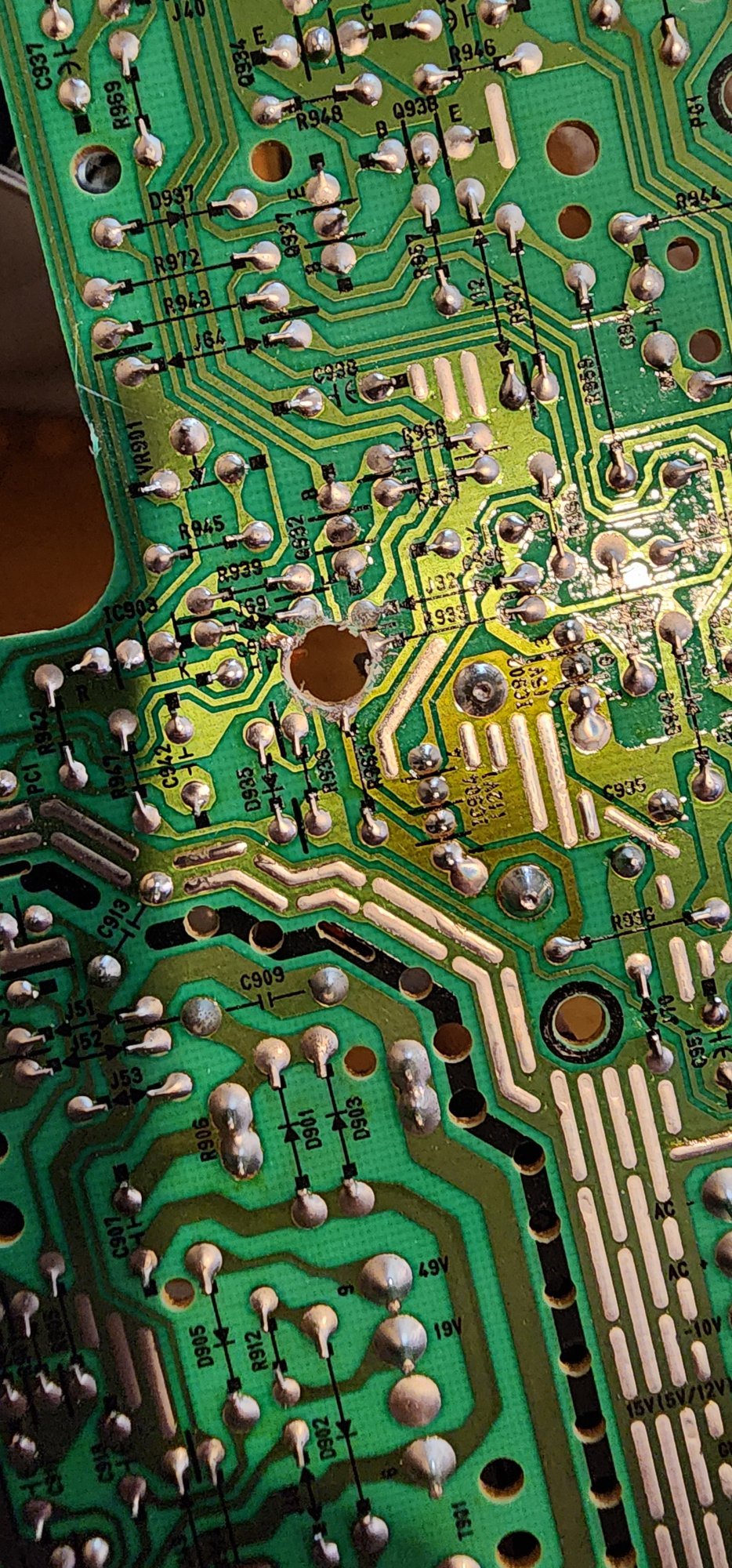

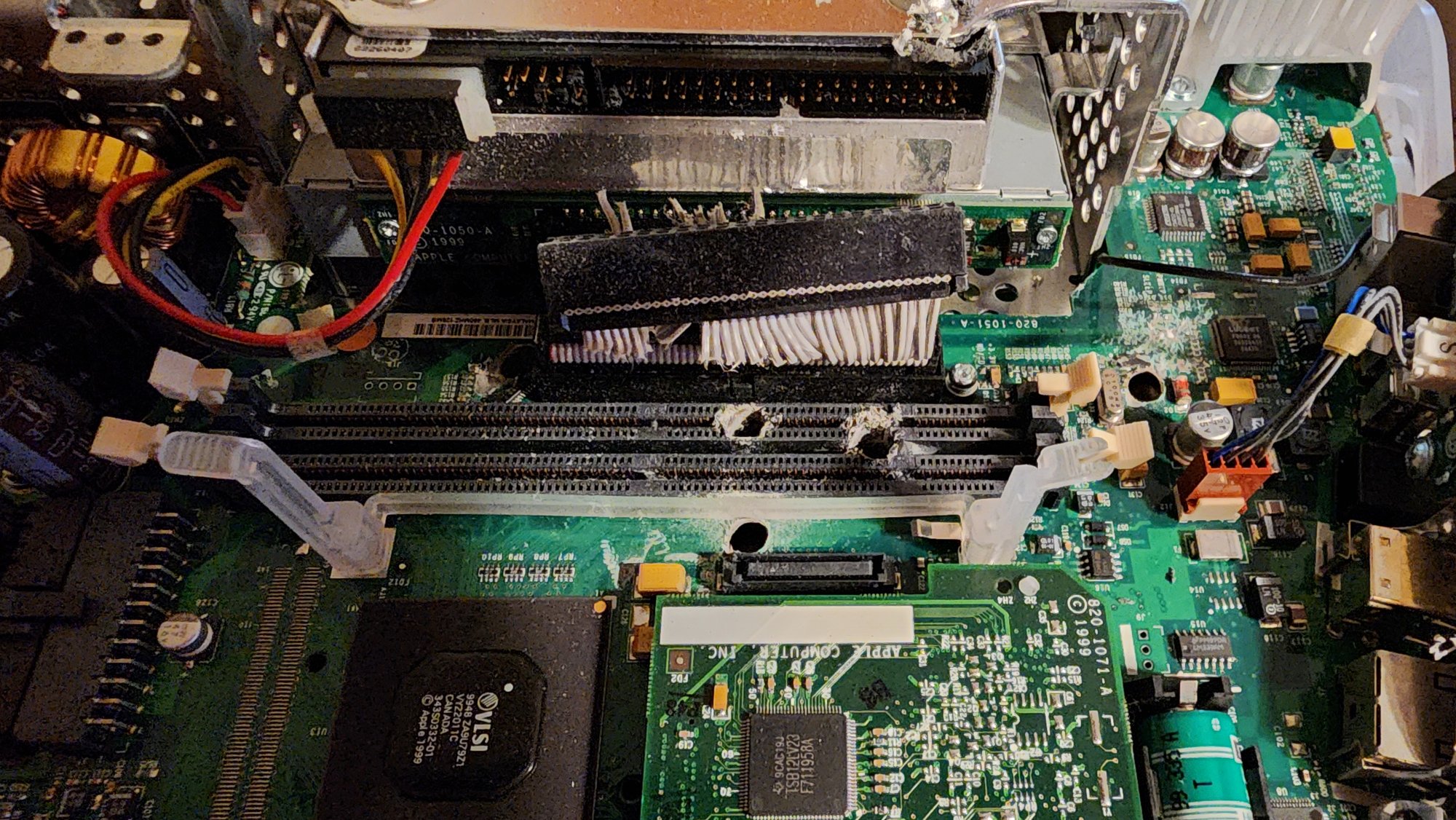

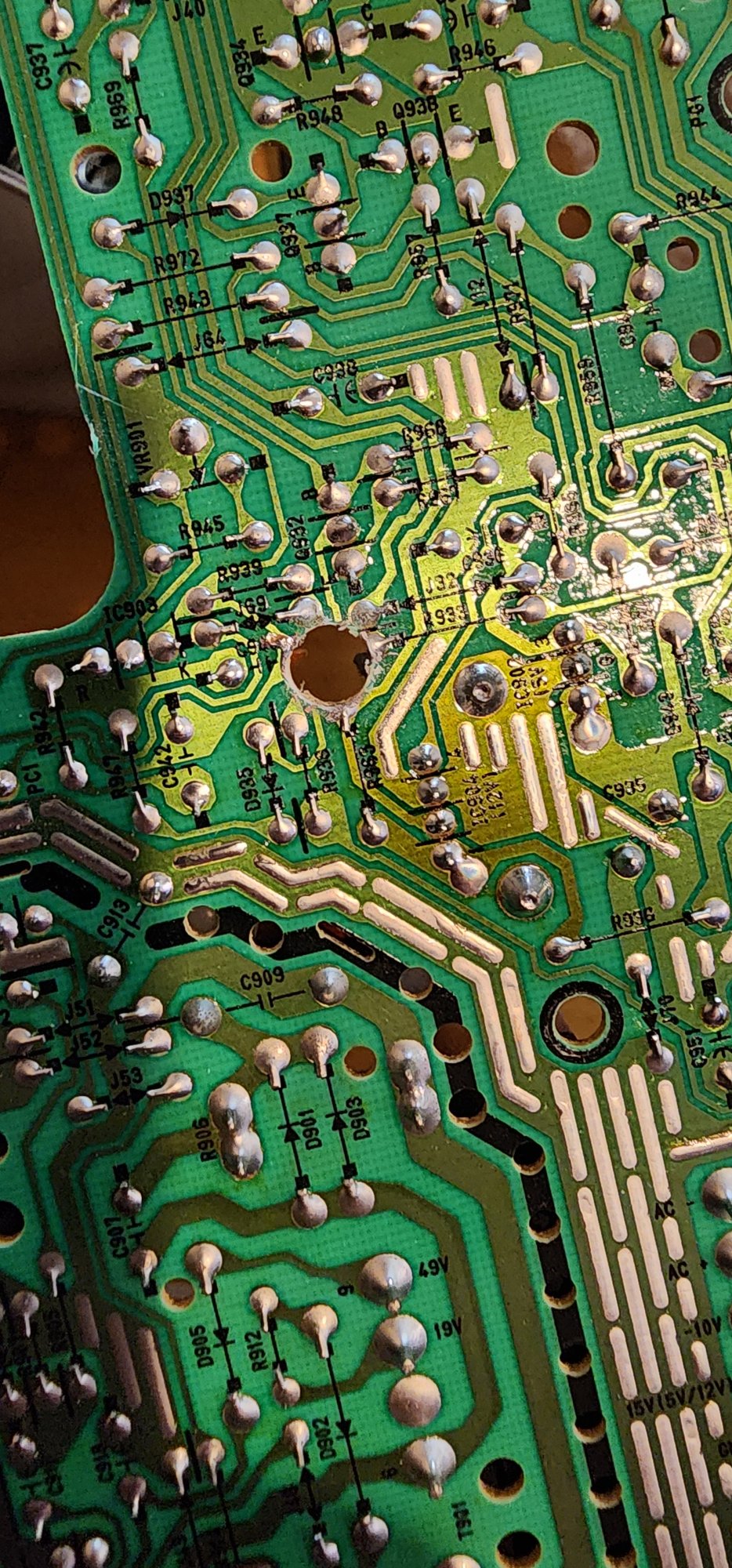

PAV top and bottom pics attached. Bonus logic board gore for the morbidly curious.



[mathias01]

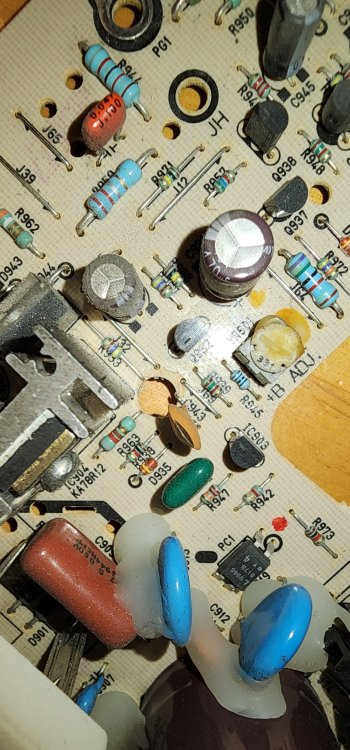

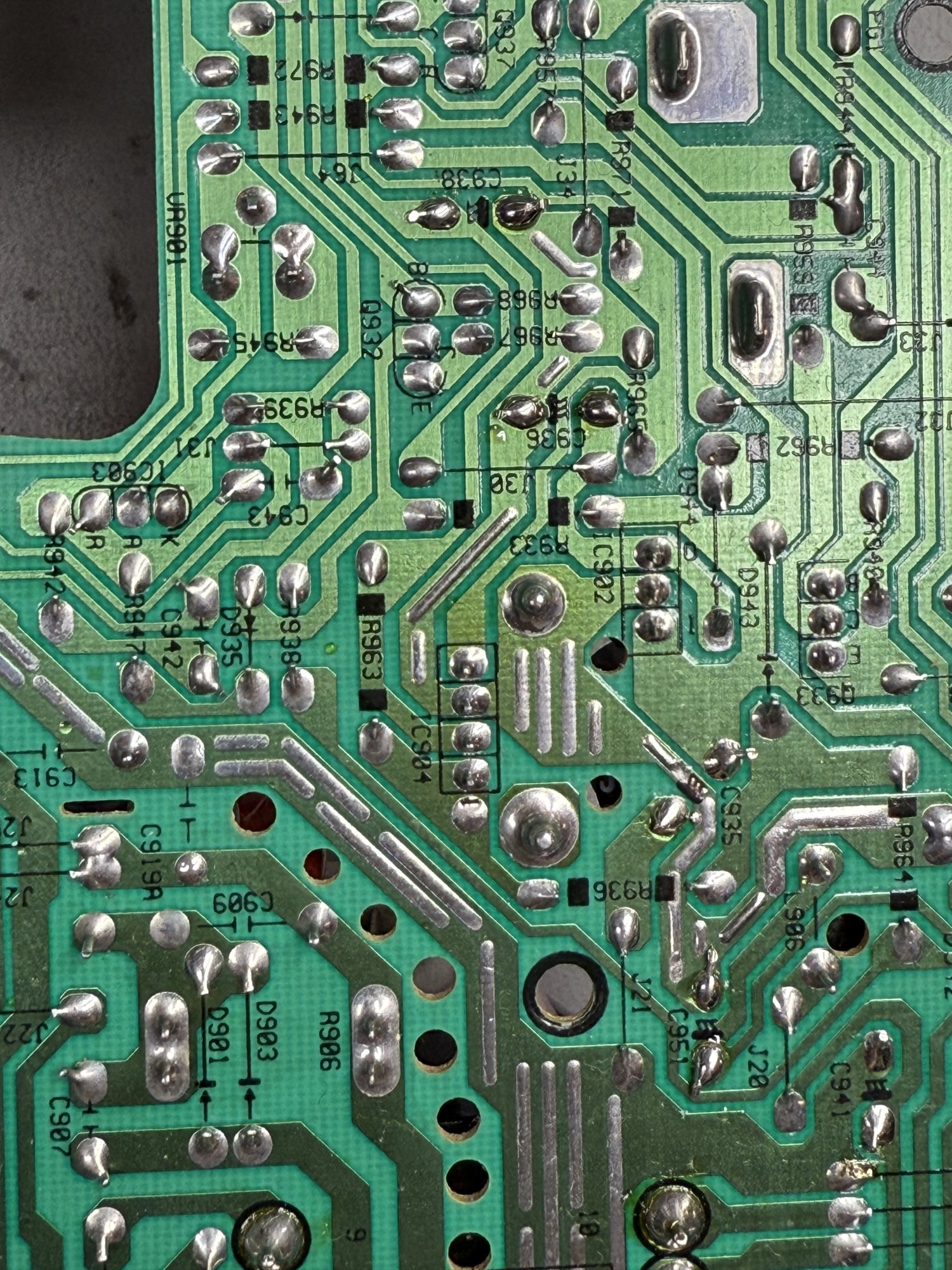

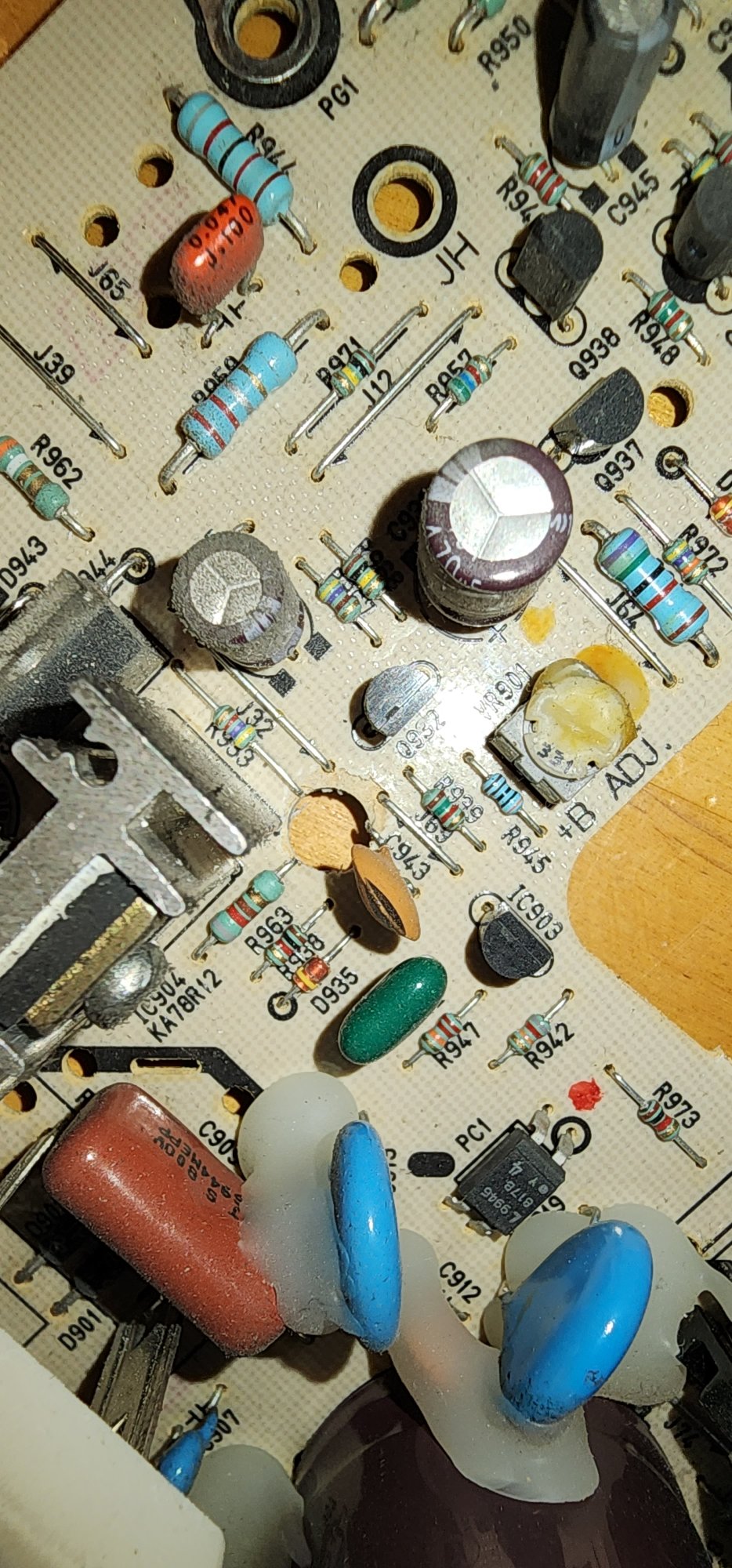

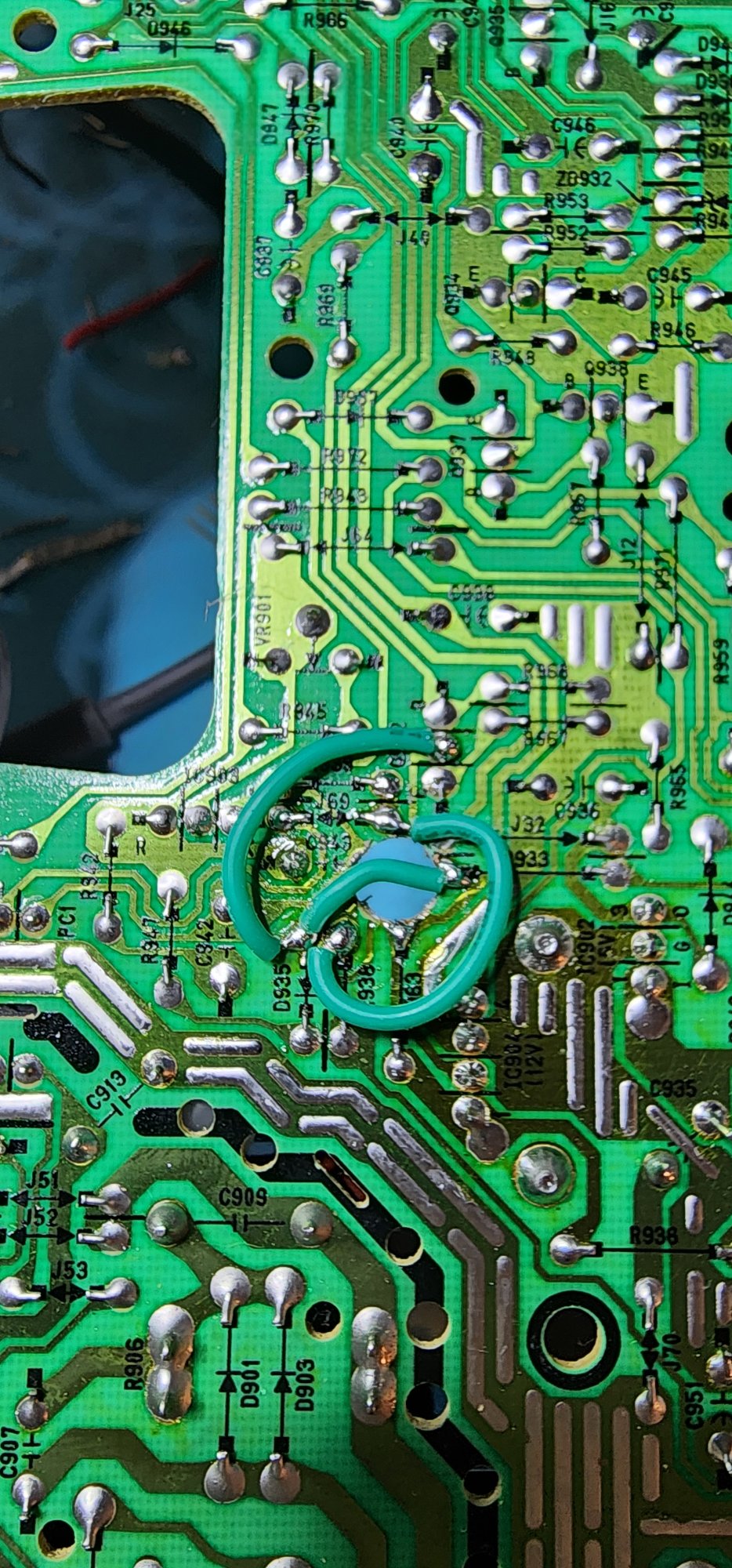

Not sure if you have sorted this out already or moved on, but here is an image of that section of a good board. Looking at your damaged photo and the board in front of me, I think it should be pretty straightforward to bodge. Good luck and let us know how it goes.



[brian4120]

Not sure if you have sorted this out already or moved on, but here is an image of that section of a good board. Looking at your damaged photo and the board in front of me, I think it should be pretty straightforward to bodge. Good luck and let us know how it goes.

Thank you kindly! I was going to try reverse engineering the section of the board but I haven't had the time to sit down and do it. This should get me going! I'll be sure to update this thread when I have more to show!
