Taptic Engine vs standard vibration motor
- Thread starter MoodyM
- Start date
- Sort by reaction score
...
You’ll also notice a new default vibration option for text tones in the Settings app. The new default vibration, called Synchronized, replaces the older Staccato default vibration from older devices. Synchronized allows for the Taptic Engine to sync with the sound of a selected text tone. This provides users with a unique vibration that matches each selected text tone, which is really cool.
...
With Apple’s new Taptic Engine found in the iPhone 6s, vibrations are now much more subtle, which will make it less likely that anyone besides the iPhone owners knows when a vibration alert is incoming.
iPhone 6 Plus (left) versus iPhone 6s Plus
Along with the new Synchronized vibration, you’ll find a new Accent vibration, which is the default for Ringtone vibration on the iPhone 6s. Apple’s motivations for using the new Taptic Engine likely stemmed from its inclusion of 3D Touch, a feature that heavily benefits from the nuanced vibration patterns that the old vibration motor couldn’t accommodate...
You’ll also notice a new default vibration option for text tones in the Settings app. The new default vibration, called Synchronized, replaces the older Staccato default vibration from older devices. Synchronized allows for the Taptic Engine to sync with the sound of a selected text tone. This provides users with a unique vibration that matches each selected text tone, which is really cool.
...
With Apple’s new Taptic Engine found in the iPhone 6s, vibrations are now much more subtle, which will make it less likely that anyone besides the iPhone owners knows when a vibration alert is incoming.
iPhone 6 Plus (left) versus iPhone 6s Plus
Along with the new Synchronized vibration, you’ll find a new Accent vibration, which is the default for Ringtone vibration on the iPhone 6s. Apple’s motivations for using the new Taptic Engine likely stemmed from its inclusion of 3D Touch, a feature that heavily benefits from the nuanced vibration patterns that the old vibration motor couldn’t accommodate...
Last edited:
Gets to full-speed instantly, which results in extremely precise feedback.
From a functional angle, it's quieter.
From a business angle, It can be patented, branded, marketed and protected. Notice how on the watch and 6s teardown photos, the Taptic Engine is prominently branded?
I believe the old one rotated where the Taptic motor is linear and goes back and forth on a single plane. Some will like and other will hate as you can not hear it, but that is the whole idea. I find it much more private as the old vibrator could be heard by anyone around you.
I find it a big improvement.
I find it a big improvement.
What Is Tapatic ENGINE
There are two basic types of vibration motor. An eccentric rotating mass vibration motor (ERM) uses a small unbalanced mass (we usually call it eccentric weight) on a DC motor, when it turns it creates a centrifugal force that translates to vibrations. A linear vibration motor contains a moving mass attached to a wave spring, which creates a force when driven.
ERM vibration motor

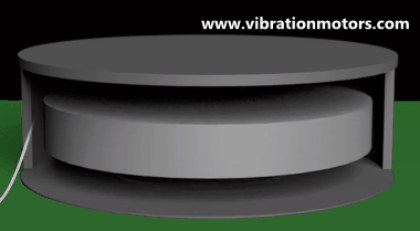

Z-axis Linear Vibration Motor
