Doq

macrumors 6502a
Original poster
Dec 8, 2019
662
902
The Lab DX

The KDX Living Thread - BBS meets a GUI​

From an archive of the official website: KDX is like a swiss army knife for internet and intranet communications. KDX is a powerful multi-OS "BBS"-style (Bulletin Board System) encrypted internet communications system that provides voice chat (Internet Telephone), text chat, messaging, news, file and folder transfer, remote access, trackers and more.

Unfortunately, not very many people knew about KDX, and it didn't get the universal success that the text-only BBS and IRC combination received. The last version of KDX released was 1.600, in 2004; and in 2009, Haxial (the developer of KDX) closed its doors for good.

A few enthusiasts and journeymen, however, have kept KDX alive and well, preventing it from being buried in the sands of time. One of those journeymen was me, searching for something that I thought would be better than text-mode Bulletin Board Systems. I used to be a BBS operator, using Synchronet's BBS server to present my port of the Smash scene-loved John Generator to the small corner of the internet that people knew me in, but the allure of the windowed KDX brought me in and never let me go.

I'm getting sidetracked. Here's some highlights of what KDX can do.

KDX Headlining Features​

  • Text communication
  • VOICE communication - that's right, KDX can do voice chat
  • News posts - (like a BBS)
  • File and folder sharing
  • Encryption all around - though I don't actually know how or what the encryption is
  • It runs on OS 9 and OS X - (except for OS X 10.7 or later, because KDX is a PowerPC executable on Mac*)
    OT: I've been digging deeper and I found Intel versions for Lion and later built using Wineskin and the Windows version, which can be found here. I did test it with my M1 though and it's not Rosetta2-compatible.
  • It's also cross-platform - with Windows NT and Linux i386 executables available (KDX 1.110 will run on Windows 9x; 1.230 should also run)
  • KDX Text channels can be bound to IRC channels - so we can still include those with even older machines
  • The entire interface is fully skinnable using the Haxial Appearance Editor or with downloadable skins

Getting KDX​

Since Haxial has closed their doors and their downloads are no longer accessible, you can find an Internet Archive page with the downloads. Alternately, Josh Anders (technowiki) hosts downloads on his KDX page (web 1.1 compliant!); though, you'll want to use the Internet Archive link to get AppearanceEdit, as the one on technowiki is broken on Mac.

Connecting to KDX Servers​

Now that you have KDX, it's time to connect to a server. With KDX open, you can see the Address Book, with one (or two, depending on where you got KDX) servers listed. You can try to connect to them, but in the case of the Official Haxial Server, it won't work. The Connect... box will bring up a dialog to enter in server information. A lot of KDX servers (such as RIPnet) don't require authentication, so a user + password may be optional. Below is a list of KDX servers that I know of that are alive and that you can connect to.

There is a lot of functionality to KDX, so I implore you to read the documentation or poke around and see what you can find.

KDX Screenshots​

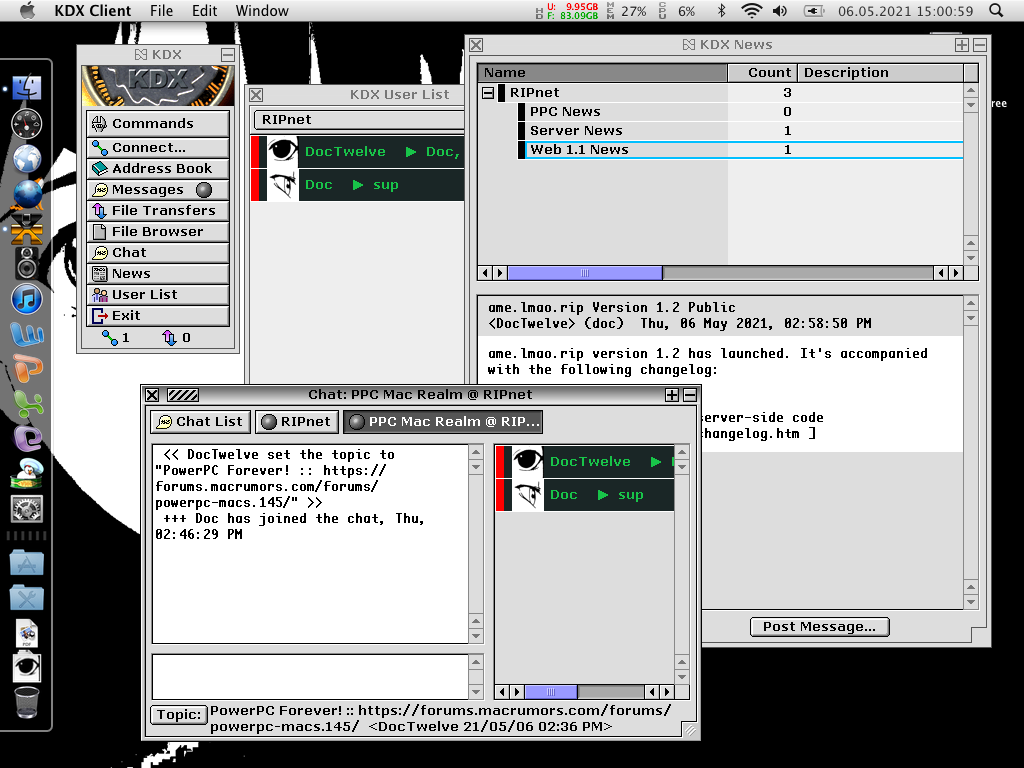

picture-2-png.1770938

KDX, with the Mach Lavender default theme applied.

List of KDX Servers​

  • kdx.lmao.rip - RIPnet KDX, operated by @Doq.
    Has a dedicated chat section for the MR PowerPC community, and a dedicated news section for Web 1.1.
    There is also a tracker server at this address, if you want to have an updated server list in your address book.
    The PowerPC Hub is also IRC-linked to #mr-ppc on irc.stormbit.net for communication with users on older machines or users who don't use KDX.
  • tracker.preterhuman.net - higherintellect tracker, operated by higherintellect. Has a few servers on it.
  • stickytack.com - stickytack, operated by technowiki (I think, citation needed on that one).
  • Your server here, if you want to spin one up.

This post is a Wikipost. You must have at least 20 posts before you can edit this Wikipost.​


Last edited:
I remenber trying the KDX demo years ago (early 2000s). But the interface was so unMac like and disconcerting to me , I thought "what the heck do i do with that"... And as the lazy monkey i am, didn't investigate further.
Maybe time to try again. Looks a bit like Hotline. I remenber reading somewhere it can do screen sharing ?
There is a page on the MacGarden, btw.

Sad to say the days of BBSing are all but gone.. except for a few.. I remember telneting to various BBSes throughout the world in early 2010s.. but not practical today.

I'm loving KDX again, long time user from the old days.

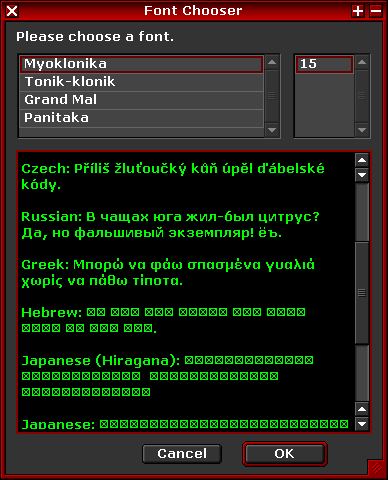

I just downloaded it again recently and I'd like to ask for some help with displaying characters. It won't display Japanese/Hebrew/Hindi/Thai/Korean characters at all.

Would anyone here be able to assist with this issue? I'd really like to get Japanese characters working again in particular.


I'm loving KDX again, long time user from the old days.
I just downloaded it again recently and I'd like to ask for some help with displaying characters. It won't display Japanese/Hebrew/Hindi/Thai/Korean characters at all.

Would anyone here be able to assist with this issue? I'd really like to get Japanese characters working again in particular.

View attachment 1803031
i believe you need to install a default japanese font. i'm not sure what OS you're using but on linux, noto sans cjk should contain chinese, japanese and korean fonts.

I'm loving KDX again, long time user from the old days.
I just downloaded it again recently and I'd like to ask for some help with displaying characters. It won't display Japanese/Hebrew/Hindi/Thai/Korean characters at all.

Would anyone here be able to assist with this issue? I'd really like to get Japanese characters working again in particular.

View attachment 1803031
Too bad they don't have it in Ukrainian.

i'll have to try this someday. always wanted to meet new friends while using one of my beloved powerpc macs... without using discord on lwk, let alone tenfourfox

Yeah, I know. I'm the operator of that one and it just came back up last night. There's not much on it after the restoration but I do plan on maintaining it for a long time.

Sounds great. If space allows, could be useful to have PPC software there. Some things are hard to find on the web nowadays.

Sounds great. If space allows, could be useful to have PPC software there. Some things are hard to find on the web nowadays.
I did plan on allocating a small space in the files section for what I considered to be "essential software", especially for OS 9. We'll see what happens.

  • Like
Reactions: barracuda156
Hopefully someone finds a way to run KDX on Big Sur too. I recall I saw more people in KDX chats just a couple of years ago. Obviously no one is gonna keep a PPC Mac or a partition with an old Mac OS on Intel Mac just for the sake of running KDX.

So can this kdx still be used ?

Yes, it is perfectly functional on PowerPC Macs and Intel Macs running OS 10.x.

Possibly it can run on Big Sur via CrossOver 20 or 21 (v. 19 does not work on Big Sur). I am downloading CrossOver 21 now and will try it.

There are not. Haxial made the KDX protocols proprietary and there haven't been any reverse-engineering operations on it.

  • Like
Reactions: barracuda156
