I still own a 27" Thunderbolt Display that I have hooked up to a M1 MBA via Apples TB3 to TB2 Adapter. After replacing the frayed TB/MagSafe cable the display performed great without any issues until recently when it started emitting a buzzing or ticking noise from the (integrated) power supply.
I found a post online hinting that a failed filter capacitor might cause this issue so I thought I might give a shot at replacing it.

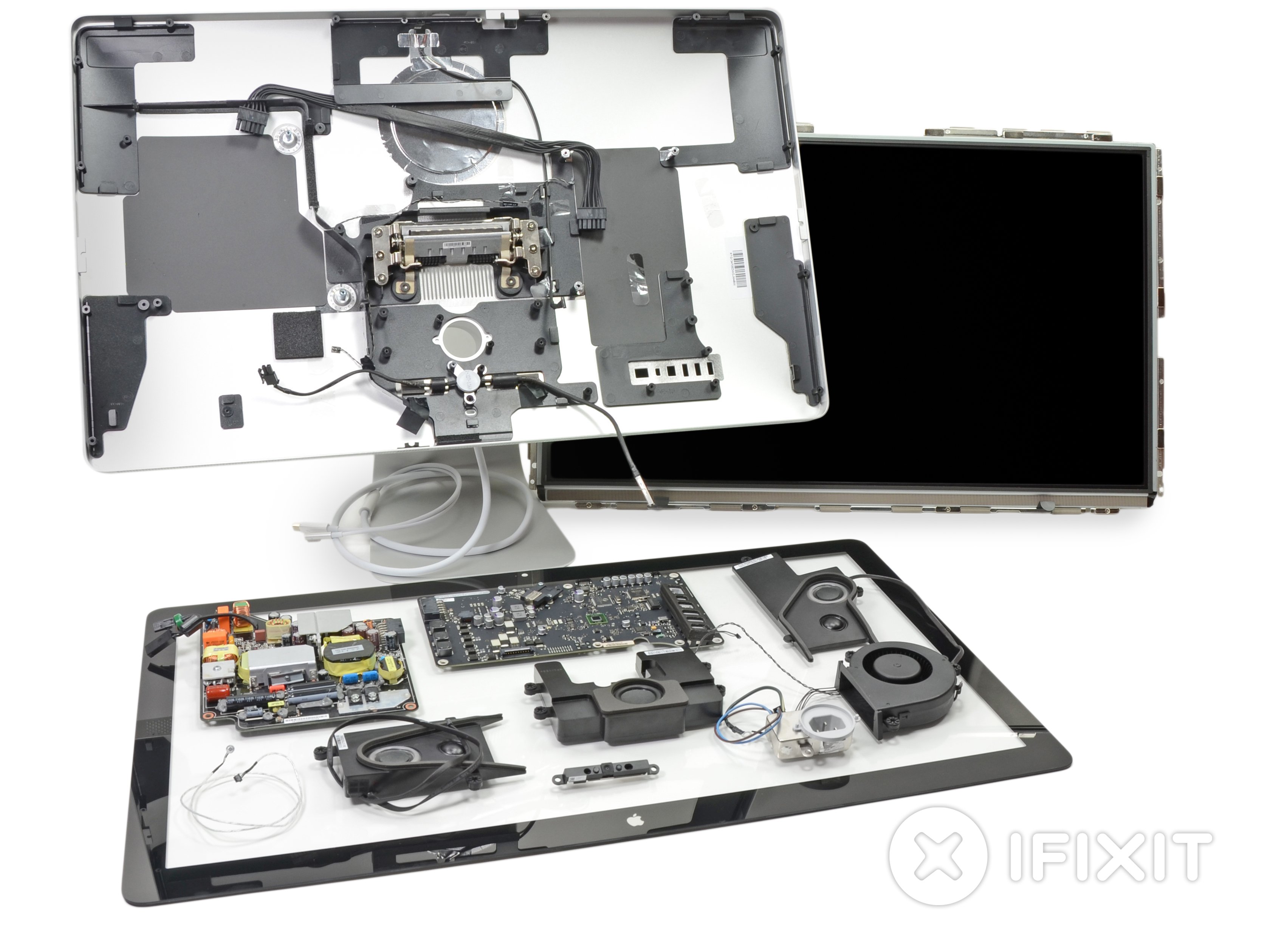

For me it wasn't the first time tearing open a TBD but if it is for you I can recommend the following guide at Ifixit:
ifixit.com

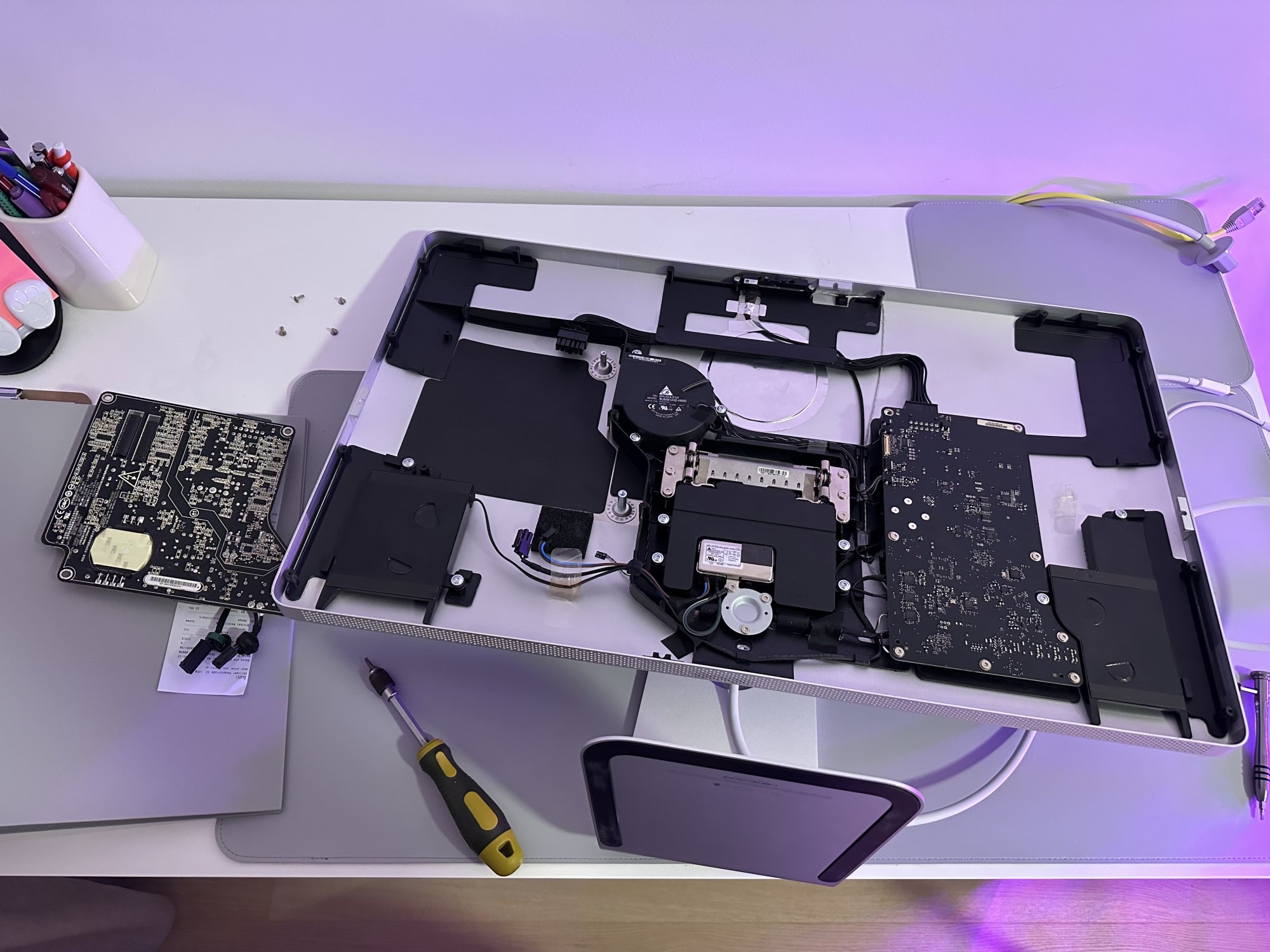

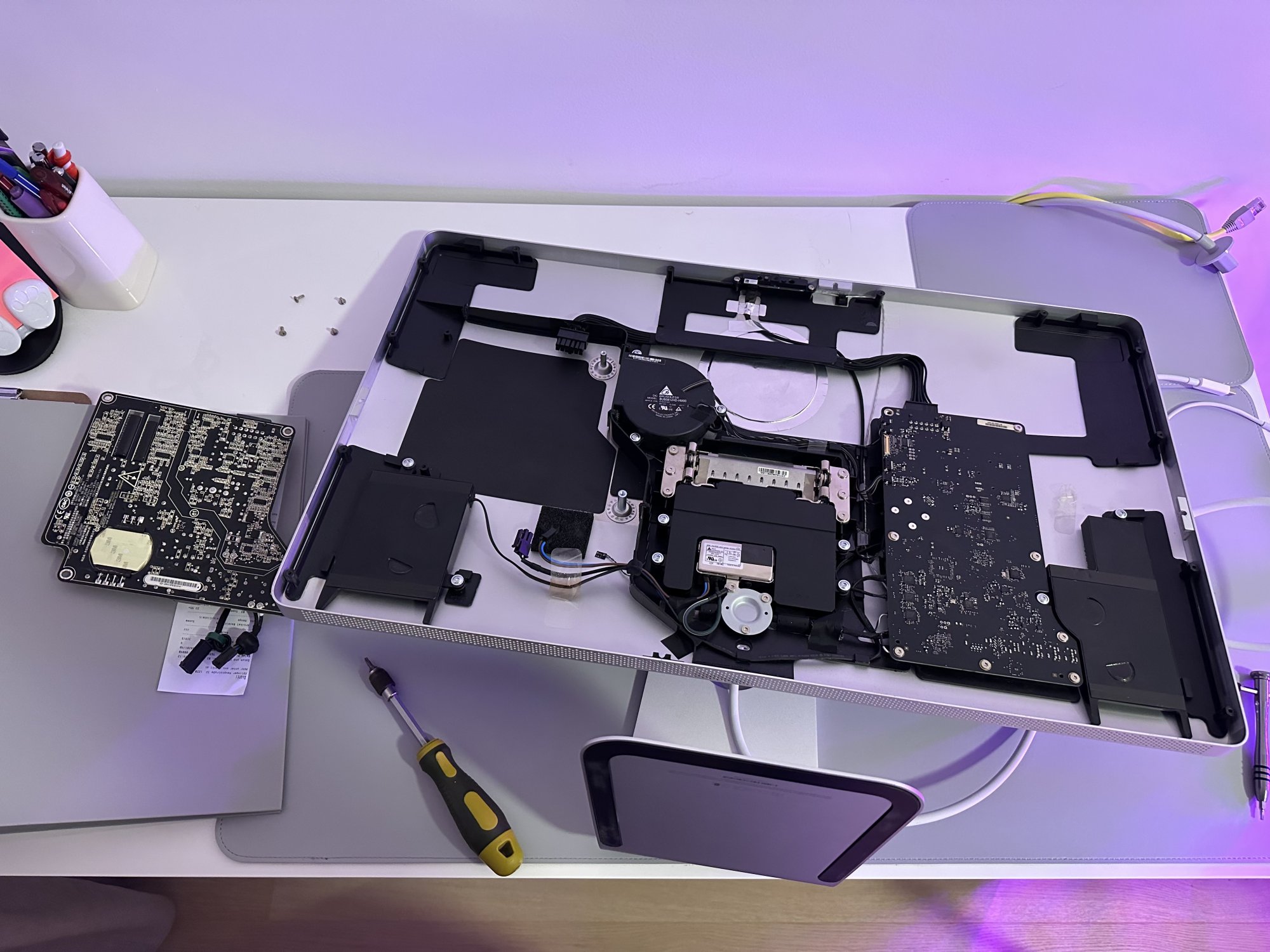

Here the PSU is out:

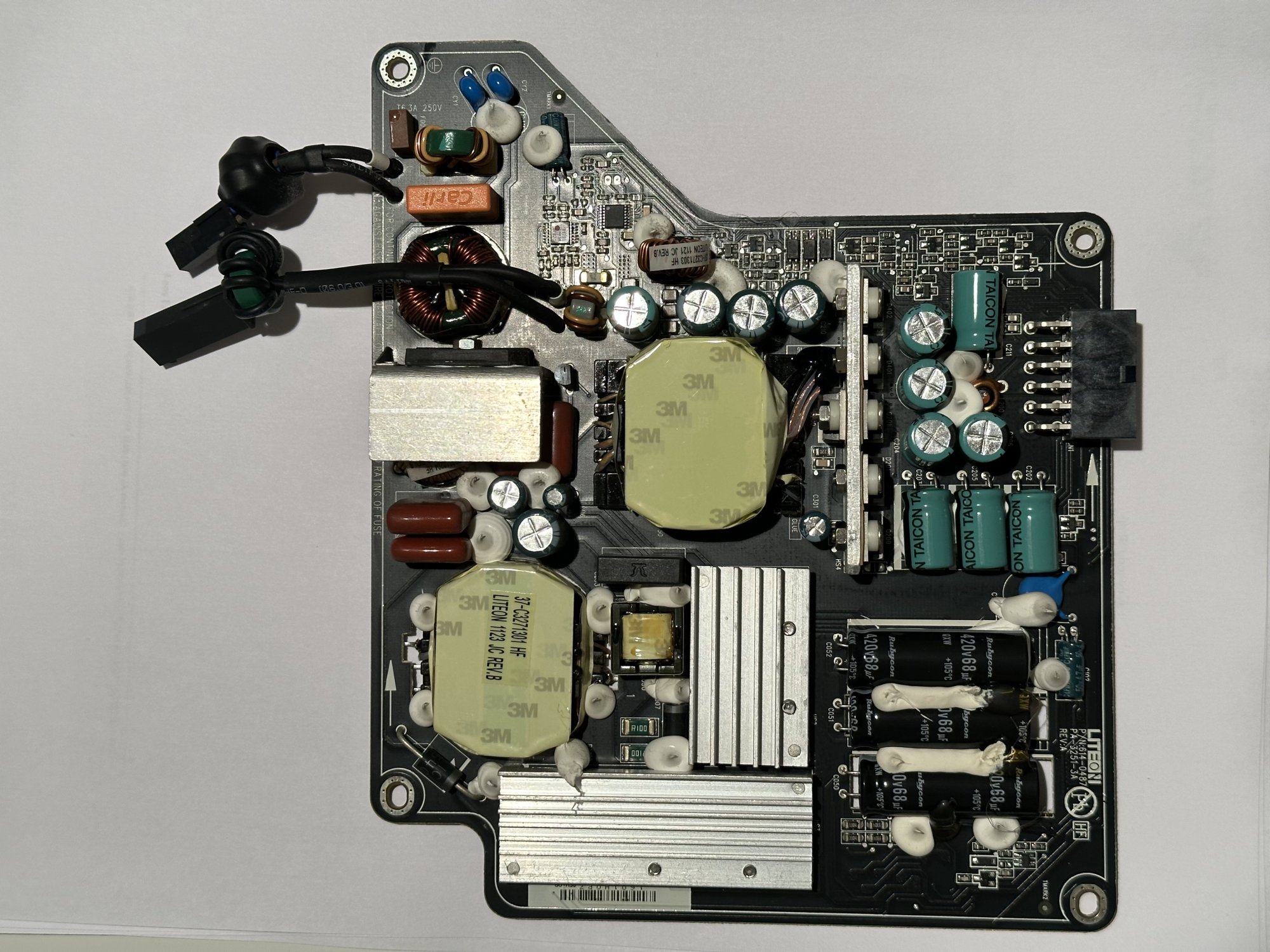

The orange capacitor on the top left next to the AC input is the suspect of our problem.

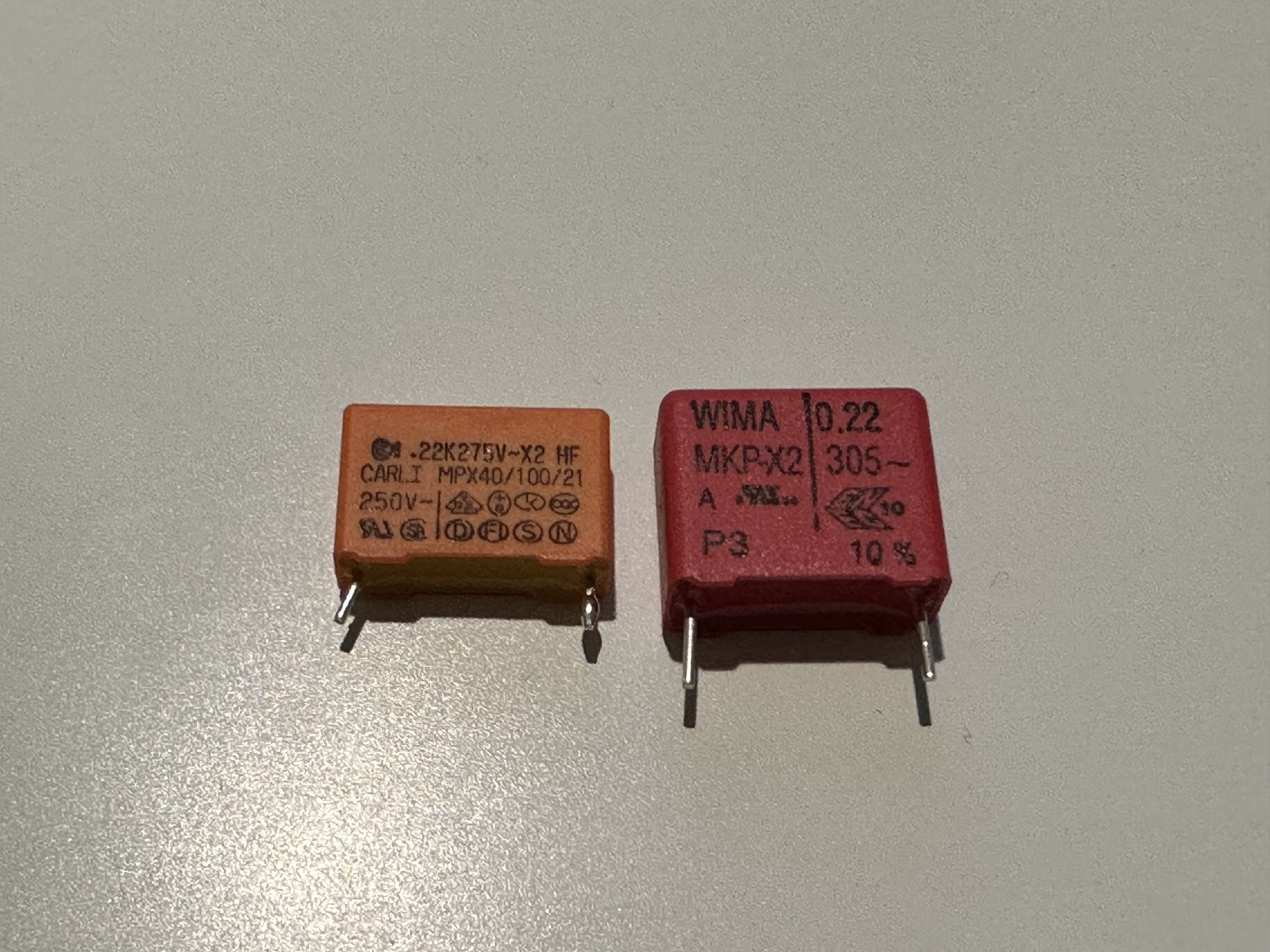

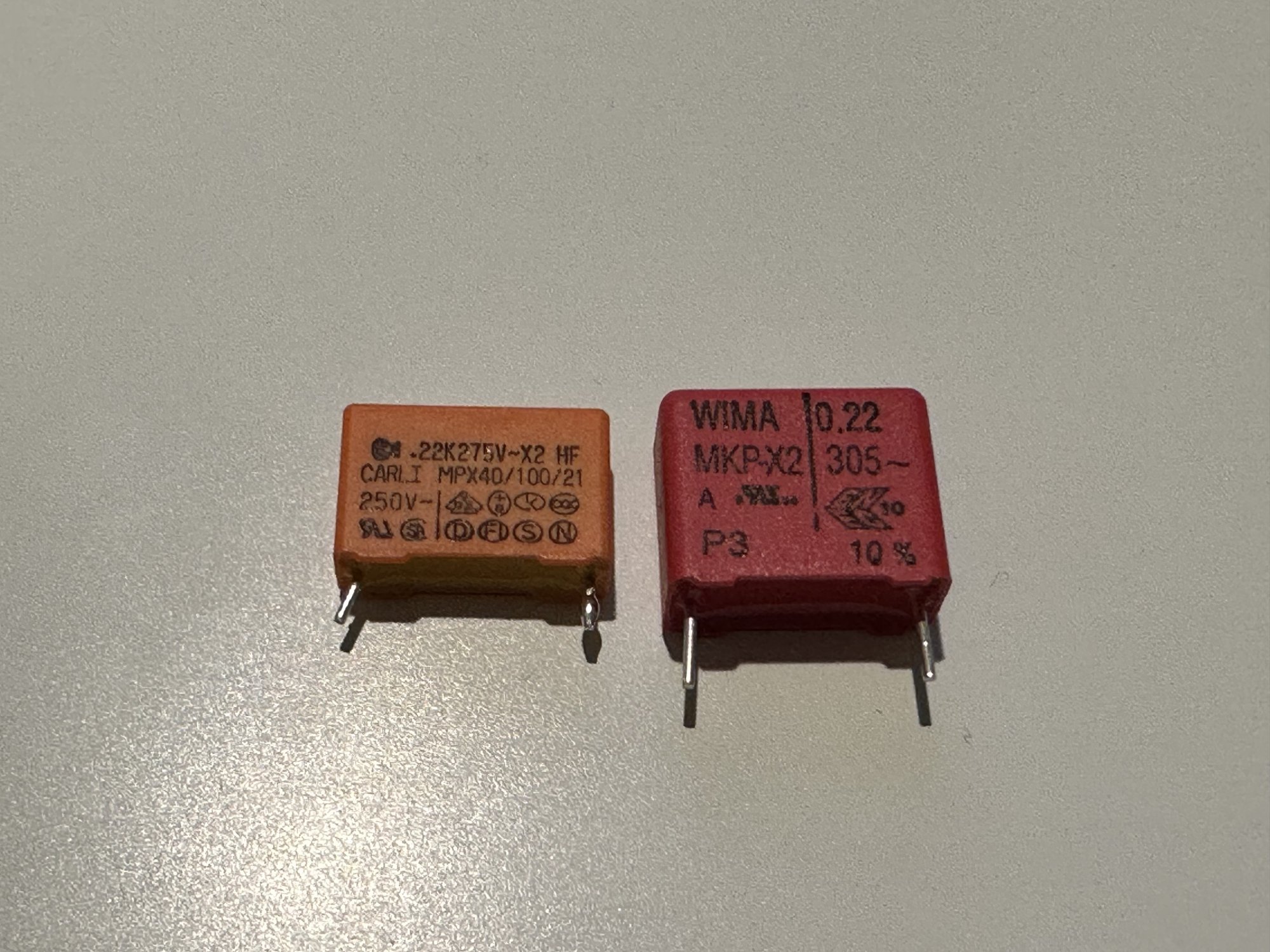

Old and new. It is a 275V 0.22µF X2 capacitor. I chose a Wima MKX21W32204F00KSSD as a replacement which cost me a whopping € 0.86.
It's been a couple of days after replacing the filter capacitor and there has been no buzzing noise since.
