joevt

macrumors 604
Original poster
Jun 21, 2012
7,349
4,469
I have a MacPro3,1 (2008) with EVGA Nvidia GTX 680 (Mac Edition). I am trying to boot Ubuntu 20.04 LTS after installing it to a partition on one of my internal hard drives.

The USB installer is bootable and I used that to do the installing. I can boot into the grub menu by selecting EFI Boot in the Mac's Startup Manager (hold option key at boot). I can boot into 18.04 LTS and 19.04.

When I select Ubuntu (for 20.04 LTS) the screen goes black and the keyboard is unresponsive (caps lock LED does not change).

The grub boot entry seems to have the correct uuid for the 20.04 partition. All the files appear to exist in the 20.04 partition.

Has anyone gotten this to work on the same computer? How can I determine where it is failing? Is there a log somewhere?

I reinstalled without third party software and without enabling auto login. Now it boots properly.

It installed EFI files to the EFI partition of a different disk (I had selected the EFI partition of the same disk that has the Ubuntu root and swap partitions). I manually moved the files from the BOOT folder and the ubuntu folder of the EFI partition to the same location on the EFI partition of the disk containing the Ubuntu partitions.

In Ubuntu, I used the Disks app to change which EFI partition gets mounted to /boot/efi (identify by partition uuid). In the Ubuntu terminal, I used efibootmgr -v to check the boot variables, and sudo efibootmgr -B -b NNNN to delete the ubuntu option that was pointing at the wrong EFI partition (using the partition uuid). I used sudo efibootmgr -o XXXX,YYYY to restore macOS as the default boot (but it's probably better to do that in macOS with Startup Disk preferences app or the bless command).

Is there any other place that could be pointing to the wrong EFI partition for Ubuntu boot?

The installer turned my GPT disk into a Hybrid GPT/MBR disk, placing the EFI partition and the first 3 other partitions (one HFS+ and two APFS) into the MBR. I have Ubuntu 18.04 LTS on the 7th partition and 20.04 LTS was installed to the 15th partition. I used iPartition.app in macOS to deselect the "Show in Windows" option for the HFS+ partition, which converts the disk back to GPT when no partition has the option selected (APFS partitions are unknown to iPartition and automatically have that option deselected -the option is not visible for APFS partitions).

I have a "System BootOrder not found. Initializing defaults." message whenever I select the EFI Boot option of the disk containing Ubuntu from the Mac's Startup Manager (hold the Option key at boot). I don't know what it means but it doesn't seem to affect the ability to boot Ubuntu.

...I cannot even get the USB installer to boot. :( (Updated)

I have Ubuntu 19.04 installed on an old hard drive in a Mac Pro 3,1 I use as a test rig. I recently flashed some video cards using a live Linux DVD. See How to Atiflash on a Mac Pro without Windows or boot screen. I managed to get a boot screen on an Radeon HD 7770. I left it in the Mac Pro 3,1 and moved the original Radeon HD 5870 Mac Edition to my second Mac Pro 1,1.

I also did some test on getting EFI shell to boot from an USB drive. This worked on the Mac Pro 3,1 with one of the 64-bit shell.efi files I found online. I even managed to add a .VolumeIcon.icns file to my USB drive that shows up on the boot screen.

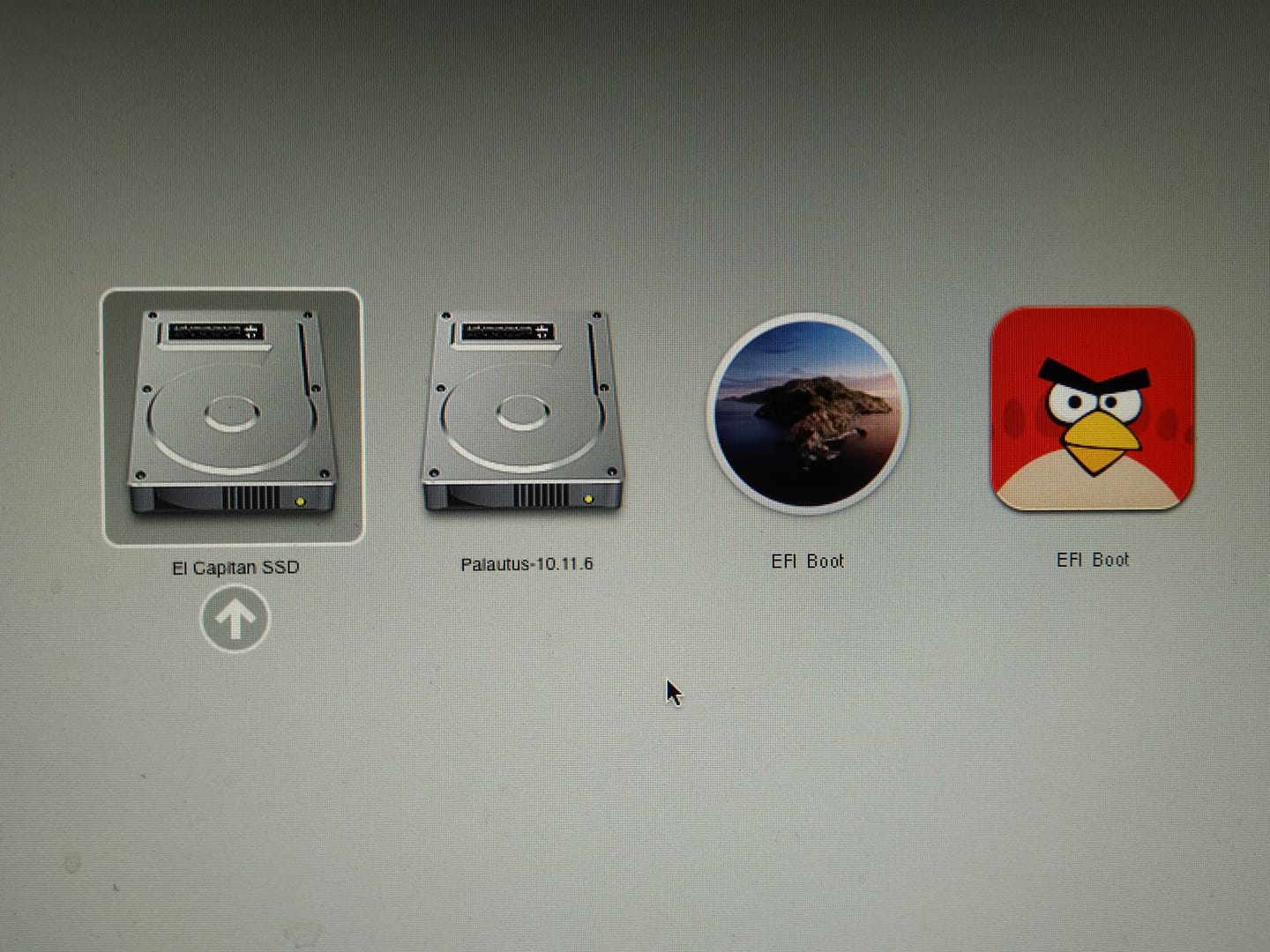

Angry Birds EFI.jpg


To do all the experimenting, I had pulled out my Ubuntu 19.04 drive. Now when I reinserted it I cannot get the Ubuntu desktop to load. All I see is a purple background and a cursor. To fix the situation I decided to install Ubuntu 20.04 LTS on top of the 19.04.

I downloaded the ubuntu-20.04.1-desktop-amd64.iso image and tried to flash it to a 16 GB SD card using balenaEtcher. I was immediately surprised by the result. I expected the drive to have FAT32 partition I could add a Ubuntu .VolumeIcon.icns file to. Instead it is totally weird! When looking at the drive with Disk Utility, it claims the drive has an Apple Partition Map and only a 4,1 MB FAT12 partition.

I did some searching and found that this is the expected result. The Ubuntu.iso image contains three different partition tables on top of each other. See The app creates apple partitions on a flash to boot Ubuntu #2073. I was kind of not surprised when the SD card USB drive fails to show up on the Mac Pro boot screen.

Update: While writing this I decided to test the .iso image on a Kingston DataTraveler USB 3 stick. The boot screen now shows two external USB drives. The first one boots GRUB and Ubuntu.

Is there something wrong with SD cards or my Sony card reader? I have successfully run OS installers from SD cards before. Maybe I need to buy some more USB sticks. But do I really need a 32 GB drive for a 2 GB .iso image?

Update 2: Original issue solved. The problem is my badly flashed HD 7770 graphics card with a "jumping" boot screen. To see the boot screen on DisplayPort 2 I need to connect another monitor to DP 1, in this case an unpowered Cinema HD Display. To see the login screen after an OS boots, I need to turn both displays on or unplug the unpowered display. The Radeon HD 7770 reference design I have uses a Dashimaki framebuffer, while the HD 7950 the EFI rom came from uses the Hamachi framebuffer. I was able to tweak the EFI, so that macOS recreates a RadeonFramefuffer after it boots. With Linux it does not work quite as well.

Last edited:
...I cannot even get the USB installer to boot. :( (Updated)

I have Ubuntu 19.04 installed on an old hard drive in a Mac Pro 3,1 I use a test rig. I recently flashed some video cards using a live Linux DVD. See How to Atiflash on a Mac Pro without Windows or boot screen. I managed to get a boot screen on an Radeon HD 7770. I left it in the Mac Pro 3,1 and moved the original Radeon HD 5870 Mac Edition to my second Mac Pro 1,1.

I also did some test on getting EFI shell to boot from an USB drive. This worked on the Mac Pro 3,1 with one of the 64-bit shell.efi files I found online. I even managed to add a .VolumeIcon.icns file to my USB drive that shows up on the boot screen.
For EFI Shell, maybe try the one from Clover build, as I believe it contains a later version of the shell which is compatible with MacPro3,1 EFI. Use the ver command to see the version of the EFI Shell. It will be 1 for early EFI Shell and 2 for a more modern version. For example, my Parallels VM has this version built-in:
Screen Shot 2020-09-13 at 2.49.36 AM.png

There are differences in the commands supported by each version, including the help text. I think in the later version you can do help * > help_a.txt to get all the help into a text file. For the earlier version of the Shell which does not accept the * pattern in the help command, I create a help.nsh EFI script containing commands to get help for each command separately like this:
Code:
echo > help_a.txt
help alias >> help_a.txt
help attrib >> help_a.txt
...
Then you can compare the help of each version of the shell to see what most of the differences are.

To do all the experimenting, I had pulled out my Ubuntu 19.04 drive. Now when I reinserted it I cannot get the Ubuntu desktop to load. All I see is a purple background and a cursor. To fix the situation I decided to install Ubuntu 20.04 LTS on top of the 19.04.

I downloaded the ubuntu-20.04.1-desktop-amd64.iso image and tried to flash it to a 16 GB SD card using balenaEtcher. I was immediately surprised by the result. I expected the drive to have FAT32 partition I could add a Ubuntu .VolumeIcon.icns file to. Instead it is totally weird! When looking at the drive with Disk Utility, it claims the drive has an Apple Partition Map and only a 4,1 MB FAT12 partition.

I do some searching and find that this is the expected result. The Ubuntu.iso image contains three different partition tables on top of each other. See The app creates apple partitions on a flash to boot Ubuntu #2073. I was kind of not surprised when the SD card USB drive fails to show up on the Mac Pro boot screen.
Yes, the partitioning is weird. diskutil says it's APM, but dd of the first few blocks looks more like MBR/GPT hybrid.
Code:
sudo dd if=/dev/disk10 count=34 | xxd # block size 512
sudo fdisk /dev/disk10 # block size 512
sudo pdisk /dev/disk10 # block size is 2048 (0x800) so APM starting at block 1 means byte 0x800
sudo gpt -r show -l /dev/disk10 # block size 512
Actually, it looks like it is MBR/GPT/APM hybrid as you said (block #0 is MBR, block #1 has GPT with a backup GPT at the end of the disk pointed to be the primary GPT, block #4 has APM). The GPT is not viewable by the above commands without editing the disk. However, you can parse the GPT manually to see that it does include info that corresponds to the partitions in the MBR and APM.
I suppose if you wanted to manually edit the EFI partition, you could dd it to a binary img file (without partition map, so it will just be a FAT image), mount it, make the changes, then dd it back to the USB disk.

Update: While writing this I decide to test the .iso image on a Kingston DataTraveler USB 3 stick. The boot screen now shows two external USB drives. The first one boots GRUB and Ubuntu.

Is there something wrong with SD cards or my Sony card reader? I have successfully ran OS installers from SD cards before. Maybe I need to buy some more USB sticks. But do I really need a 32 GB drive for a 2 GB .iso image?
I used balenaEtcher.app with a Kingston DataTraveller 100G3 (16 GB works). Maybe there's an issue with the type of USB interface. Maybe compare USB devices with USB Prober.app. I wonder if SD cards or SD card readers have some different behaviour that affects booting.

Update 2: Original issue solved. The problem is my badly flashed HD 7770 graphics card with a "jumping" boot screen. To see the boot screen on DisplayPort 2 I need to connect another monitor to DP 1, in this case an unpowered Cinema HD Display. To see the login screen after an OS boots, I need to turn both displays on or unplug the unpowered display. The Radeon HD 7770 reference design I have uses a Dashimaki framebuffer, while the HD 7950 the EFI rom came from uses the Hamachi framebuffer. I was able to tweak the EFI, so that macOS recreates a RadeonFramefuffer after it boots. With Linux it does not work quite as well.
I haven't tried other GPUs in a long time. My receipt for the Mac Pro 2008 in my e-mail from July 25, 2008 says I bought it with a "Graphics Card 065-7537 NVIDIA GeForce 8800 GT 512MB".
I bought a "ATI RADEON HD 4870 512MB-ZML" Mar 5, 2009. I have both of these cards lying around still.
I also got a 4870 for a Dell desktop soon after.
The "EVGA GeForce GTX 680 Mac Edition Graphics Card" is from Jan 16, 2014.
I had Boot Camp booting issues with various SATA PCIe cards depending on the GPU installed, so now I don't have any other storage except USB 3.1 Gen 2 and built-in SATA (bay 1 to 4). USB 3.1 Gen 2 is faster than the fastest SATA so there's no point using anything else - except for booting - maybe should make a USB XHC driver for MacPro3,1 efi.

I have a MacPro3,1 (2008) with EVGA Nvidia GTX 680 (Mac Edition). I am trying to boot Ubuntu 20.04 LTS after installing it to a partition on one of my internal hard drives.

The USB installer is bootable and I used that to do the installing. I can boot into the grub menu by selecting EFI Boot in the Mac's Startup Manager (hold option key at boot). I can boot into 18.04 LTS and 19.04.

When I select Ubuntu (for 20.04 LTS) the screen goes black and the keyboard is unresponsive (caps lock LED does not change).

The grub boot entry seems to have the correct uuid for the 20.04 partition. All the files appear to exist in the 20.04 partition.

Has anyone gotten this to work on the same computer? How can I determine where it is failing? Is there a log somewhere?
Dear joevt, the Live CD install does not recognize the OSX partition. Please tell me how do you install Ubuntu on another partition?

Dear joevt, the Live CD install does not recognize the OSX partition. Please tell me how do you install Ubuntu on another partition?
I do my partitioning in macOS. use Disk Utility.app to create a new partition. Disk Utility can shrink partitions. Or erase an existing partition. This is easier if you are booted into macOS using a different disk. Use iPartition.app to change the partition type to "Linux Ext2FS". If you want a Swap partition then create a partition of type "Linux Swap".

I do my partitioning in macOS. use Disk Utility.app to create a new partition. Disk Utility can shrink partitions. Or erase an existing partition. This is easier if you are booted into macOS using a different disk. Use iPartition.app to change the partition type to "Linux Ext2FS". If you want a Swap partition then create a partition of type "Linux Swap".
Thanks. I will try that although my Macbook is very erratic after EL Capitan upgrade.

Installing without third party software fixed my black screen issue. This with a late 2009 Macmini3,1 server, while installing Ubuntu 20.04. Surprisingly 20.10 installed with third party software with no problems. But I did a clean install of just 20.04 to get the LTS.

I have less trouble with Ubuntu 21.04 but it still installs grub to a random EFI partition instead of the one I select.

A new problem is that the nouveau driver has black screen on my Kepler GTX 680 if a Maxwell Titan X is installed and powered. The display connected to the GTX 680 has a visible working mouse cursor but the display is black. I can connect a display to the Titan X and disconnect the display from the GTX 680 to remove the problem and having a working display. If I want to use the GTX 680 then I need to shutdown and disconnect the Titan X - it's enough to remove the PCIe power cables - I don't need to remove the Titan X from the PCIe slot.

The Nvidia proprietary drivers (470.63.01 as pointed to by the Ubuntu software app) do not work with the GTX 680 even if I completely disconnect the Titan X. The Titan X and GTX 680 are both visible to the Nvidia Settings app but I can't get it to show an image on the display connected to the GTX 680 (that display is defaulted to Disconnected state). Saving the /etc/X11/xorg.conf file created by the Nvidia settings app may cause the OS not to boot. I can boot the Ubuntu installer or an earlier install of Ubuntu (I have 20.04.3 LTS and 18.04 LTS) and remove the Xorg.conf file to make it bootable again.
