Ultra wide screen support?
- Thread starter Pagemakers
- Start date
- Sort by reaction score
I have an LG 49” ultra wide curved, I haven’t been able to check it since updating, but can check in a few days.
it never worked at the full native resolution on my 13” MacBook Pro (but worked fine in boot camp).
I’ll let you know 👍
it never worked at the full native resolution on my 13” MacBook Pro (but worked fine in boot camp).
I’ll let you know 👍
You’re probably right and I should have been more specific.
I have the latest Mac mini and a 49” ultra wide monitor running at 5120x1440 and Catalina doesn’t support this resolution natively.
@Pagemakers I've had a chance to check, I can confirm that my 5120x1440 49" display finally works at full resolution! This is big news as it's never worked on my MacBook Pro 13" the whole time I've had the display. I could never even get it to work with SwitchResX (but worked fine in Windows via Bootcamp).
For reference, the display model is 49WL95C-W on Big Sur Beta 1.
For reference, the display model is 49WL95C-W on Big Sur Beta 1.
That is brilliant news. Thanks for taking the time to reply.
I’ve got the Samsung 49RG90 which runs in exactly the same resolution as your LG.
I’ve got the Samsung 49RG90 which runs in exactly the same resolution as your LG.
it’s no different than Catalina. Works fine supporting ultra wide native 5120x2160 in DisplayPort 1.2. But Big Sur has NOT improved external display HDR mode. It is still not optimized, the contrast is still washed out, and on my LG 34" 5K2K, HDR still lowers the max resolution to 3840 x 2160. Come on, Apple. What the hell? 👎
Let me just throw this in here:
Resolution support is most likely not the issue... Incompatibility of the screen is often related to HDMI/Displayport Standard, Bandwidth (!), Drivers, Refresh rate.
For example: My mac mini 2011 runs a 3440x1440 perfectly fine over HDMI, although only 30 Hz due to bandwidth constraints. If, however, such a screen insists on 60Hz input or the GPU/driver is not willing to output 30Hz to that screen it will not work.
As such, in the majority of cases the issue is software related and the failure is lack of options when negotiating settings between screen and gpu/driver. That said I hope we get rid of intel rather sooner than later because their GPU software is already bad in Windows, but in OSX its lacking even basics (Displayport MST so to speak).
Resolution support is most likely not the issue... Incompatibility of the screen is often related to HDMI/Displayport Standard, Bandwidth (!), Drivers, Refresh rate.
For example: My mac mini 2011 runs a 3440x1440 perfectly fine over HDMI, although only 30 Hz due to bandwidth constraints. If, however, such a screen insists on 60Hz input or the GPU/driver is not willing to output 30Hz to that screen it will not work.
As such, in the majority of cases the issue is software related and the failure is lack of options when negotiating settings between screen and gpu/driver. That said I hope we get rid of intel rather sooner than later because their GPU software is already bad in Windows, but in OSX its lacking even basics (Displayport MST so to speak).
Not sure if font smoothing removed or not. My personal feeling is that Big Sur's system font is clearer on my 3840x1080 ultrawide monitor. But I believe that's due to font change, not rendering method changed.

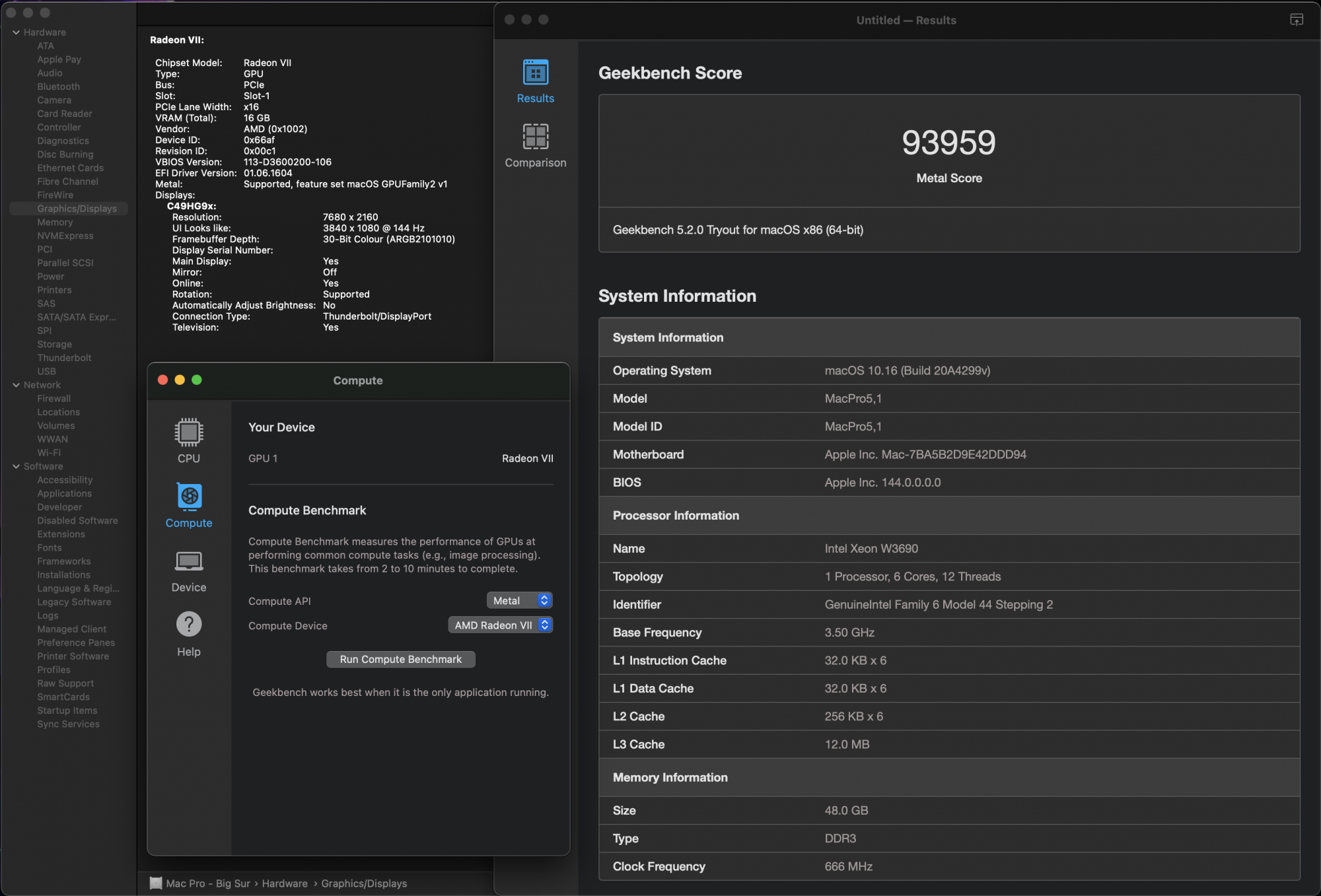

e.g. My GB5 result use the same font regardless OS version. And I can't see any difference in the GB result's font clarity.
Are you using a DisplayPort adapter for your connection to your ultrawide monitor? When I first bought my ultrawide monitor and running Catalina I couldn't get it to work. Then I contacted Apple support and found out that they only way that my MacBook Pro would support the resolution natively was if I plugged the monitor into the HDMI port on the computer instead of using the DisplayPort adapter on the other side of the mac. I hope that this is helpful.
I’ve bought almost every cable known to man and still I don’t get 5120x1440 from the latest Mac Mini.
Currently I’m running it as 2 monitors and not as a single monitor.
DP or HDMI give me the same results. I’ve not tried on Big Sur yet.
Currently I’m running it as 2 monitors and not as a single monitor.
DP or HDMI give me the same results. I’ve not tried on Big Sur yet.
@Pagemakers I think I have the same issue as you, and as I mentioned earlier in the thread, Big Sur is the first time I've been able to get my ultra wide running at 5120x1440 on my MacBook Pro 13".
I also tried all cables on previous versions of macOS and just settled on using a lower resolution. I also did the 2 monitor hack.... But finally, in Big Sur, it works perfectly and fonts look great on the external display (not fuzzy like it was before).
I also tried all cables on previous versions of macOS and just settled on using a lower resolution. I also did the 2 monitor hack.... But finally, in Big Sur, it works perfectly and fonts look great on the external display (not fuzzy like it was before).
I hope it’s not just specific to the MBP. Can any Mac Mini users confirm we now have native 5120x1440 resolution.
No luck with my i3 Mac mini 2018 (but works in Windows).
One person says Big Sur adds > 4096 width support to MacBook Air (Retina, 13-inch, 2018). Other success was with MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports).
If you test Big Sur with > 4096 width timing on Intel graphics, then please post results at https://forums.macrumors.com/threads/intel-graphics-and-5120x1440-testing-in-big-sur.2244174/
I want to narrow down where the support was added or not added (not just driver, but also ig-platform-id).
Pleased to say 5120x1440 is now supported on my Mac Mini 2020 and a single cable to my Samsung C49RG90 ultra-wide monitor in Big Sur.
Problem with my i3 Mac mini 2018 was with the monitor.
Turns out that while Big Sur added support for 5K width timings for Kaby Lake and Coffee Lake CPUs, it will not enable that feature for displays that do not have an EDID timing of wider than 4K. My 4K display can accept timings up to 8K wide.
This info is in the thread at
Intel Graphics and 5120x1440 testing in Big Sur
I am looking for confirmation of the following result: I believe Apple has enabled support for displays that are wider than 4096 pixels (at least up to 5120) on some Intel GPUs in Big Sur (Windows and Linux have supported this for awhile). One person reported success with Kaby Lake graphics...
forums.macrumors.com
With Mac mini M1 big sur does not detect 5120*1440 only 3840*1080. LG On screen control does not detect a monitor.
SwichtresX does get the screen to 5120*1440 but cannot use the split screen control.
HDR becomes really weird and has to be disabled
Any advice?
SwichtresX does get the screen to 5120*1440 but cannot use the split screen control.
HDR becomes really weird and has to be disabled
Any advice?
If you’re connecting by DisplayPort try changing it from version 1.4 to 1.2. That fixed it for me on my Samsung 49”
PS. Also set the refresh to 60.
Last edited:
Hey, I realize this is now an older thread, but what’s it like running an ultra wide on Mac?
Can I do side by side apps natively?
ultrawide seems to be the way to go, but I haven’t purchased one yet. I have two 1080p and the text is blurry and gives me a headache. I have a 2015 MBP 13”, runninternet Big Sur 11.2.
thanks for your help!
Can I do side by side apps natively?
ultrawide seems to be the way to go, but I haven’t purchased one yet. I have two 1080p and the text is blurry and gives me a headache. I have a 2015 MBP 13”, runninternet Big Sur 11.2.
thanks for your help!
