UMBP 17" + 2 new Samsung SSDs in RAID0 (BENCHMARK)

U

UNO

macrumors newbie
Original poster
Feb 8, 2008
29
0
UMBP 17" 2.66/2 MLC Samsung SSDs in RAID0 (OptiBay used)/8Gb RAM

Feels VERY fast, and absolutely silent. All programs start in no time.

Here's Xbench result:

Code:
Results	203.56
	System Info
		Xbench Version		1.3
		System Version		10.5.6 (9G2141)
		Physical RAM		8192 MB
		Model		MacBookPro5,2
		Drive Type		Boon Disk
	CPU Test	145.14
		GCD Loop	281.61	14.84 Mops/sec
		Floating Point Basic	121.26	2.88 Gflop/sec
		vecLib FFT	95.69	3.16 Gflop/sec
		Floating Point Library	188.26	32.78 Mops/sec
	Thread Test	295.03
		Computation	382.35	7.75 Mops/sec, 4 threads
		Lock Contention	240.18	10.33 Mlocks/sec, 4 threads
	Memory Test	183.24
		System	206.67
			Allocate	273.94	1.01 Malloc/sec
			Fill	173.56	8438.74 MB/sec
			Copy	195.94	4047.15 MB/sec
		Stream	164.58
			Copy	154.07	3182.17 MB/sec
			Scale	159.25	3290.13 MB/sec
			Add	174.26	3712.05 MB/sec
			Triad	172.56	3691.42 MB/sec
	Quartz Graphics Test	196.92
		Line	182.16	12.13 Klines/sec [50% alpha]
		Rectangle	230.98	68.96 Krects/sec [50% alpha]
		Circle	187.67	15.30 Kcircles/sec [50% alpha]
		Bezier	180.27	4.55 Kbeziers/sec [50% alpha]
		Text	212.94	13.32 Kchars/sec
	OpenGL Graphics Test	173.86
		Spinning Squares	173.86	220.55 frames/sec
	User Interface Test	435.78
		Elements	435.78	2.00 Krefresh/sec
	Disk Test	180.92
		Sequential	196.67
			Uncached Write	440.93	270.72 MB/sec [4K blocks]
			Uncached Write	414.71	234.64 MB/sec [256K blocks]
			Uncached Read	71.95	21.06 MB/sec [4K blocks]
			Uncached Read	568.20	285.58 MB/sec [256K blocks]
		Random	167.51
			Uncached Write	52.53	5.56 MB/sec [4K blocks]
			Uncached Write	299.07	95.74 MB/sec [256K blocks]
			Uncached Read	1471.93	10.43 MB/sec [4K blocks]
			Uncached Read	1220.93	226.55 MB/sec [256K blocks]

Timed startup with iPhone: from the moment of pushing the (I) button and until it's done doing everything - 34 sec.

Adokimus said:
PS: About two-grand to spend on SSDs... but went with the 2.66 model?
Click to expand...

Couldn't wait (travel plans), plus I believe that drives and RAM matter much more for my type of work.

Very impressive!!

Can I ask what the drives are? 128GB ones? What's the model numbers and how much did you pay?

Regards,
Simon

Crazy numbers. I'm new to SSDs - are there any 128GB SSDs out with similar speeds to that Samsung? I only need 128GB and don't want to spend almost 1K for one.

Arhh the new Samsung drives...

Those results are pretty bad though aren't they? Look at your random read/writes? They are pretty shocking?

Regards,
Simon

simonpickard said:
Arhh the new Samsung drives...

Those results are pretty bad though aren't they? Look at your random read/writes? They are pretty shocking?

Regards,
Simon
Click to expand...

those disc numbers kill my 7200RPM seagate.. those randoms look low but mine show even lower in xbench haha, blazing fast!

aznguyen316 said:
those disc numbers kill my 7200RPM seagate.. those randoms look low but mine show even lower in xbench haha, blazing fast!
Click to expand...

Arhh ok.. So those number are still good?
Just wondering what kind of speeds you see with a 7200RPM random wise?

Regards,
Simon

simonpickard said:
Arhh ok.. So those number are still good?
Just wondering what kind of speeds you see with a 7200RPM random wise?

Regards,
Simon
Click to expand...

here was my most recent xbench run..
attachment.php



and here was a run for the disc when I had a Western Digital 250GB Blue 5400RPM drive

Disk Test 58.12
Sequential 76.60
Uncached Write 93.93 57.67 MB/sec [4K blocks]
Uncached Write 85.36 48.30 MB/sec [256K blocks]
Uncached Read 47.48 13.90 MB/sec [4K blocks]
Uncached Read 113.67 57.13 MB/sec [256K blocks]
Random 46.83
Uncached Write 18.43 1.95 MB/sec [4K blocks]
Uncached Write 121.19 38.80 MB/sec [256K blocks]
Uncached Read 70.03 0.50 MB/sec [4K blocks]
Uncached Read 115.74 21.48 MB/sec [256K blocks]
Click to expand...

I did get a better random overall score w/ the 250GB 5400rpm

17" 4,1 280.36 w/ 1 X25-E running about 10 programs while testing

The 280.36 is the disk test only (the 1200+ is for ZFS - throw it out), but the full test is about 220 -- this is very interesting b/c I'm less that 24 hours away from ordering a 2.93 8GB (I'd install my X25-E in it of course); now I'm seriously reconsidering:

full test: http://db.xbench.com/merge.xhtml?doc1=349166

Here's a link to the disk test by itself:

http://db.xbench.com/merge.xhtml?doc1=344034


On the full test I show up twice on Page 1 of top MacBook Pro scores.

http://db.xbench.com/comparesubindex.xhtml?machineTypeID=40&sort=score&minVersion=1.3

Any point in upgrading? I'm no trying to be a smart a$$ -- I'd really like constructive opinions. TIA

my 17" unibody 2?94 with the apple 256 SSD and a X25 (boot disc) in place of the superdrive hit a 228 at xbench. why wouldn't those new samsung make better results?..


Attachments

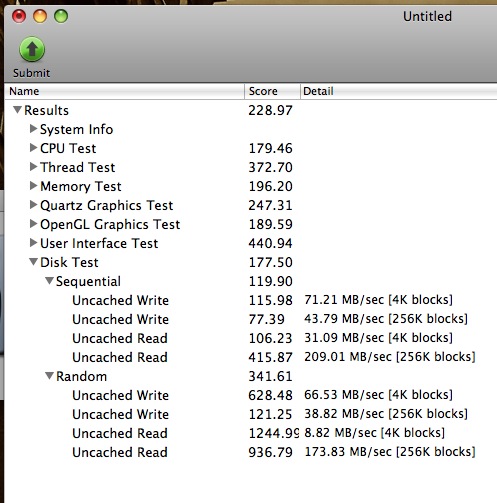

  • bench intel X25.jpg
    bench intel X25.jpg
    81.7 KB · Views: 92
enjoyapple said:
my 17" unibody 2?94 with the apple 256 SSD and a X25 (boot disc) in place of the superdrive hit a 228 at xbench. why wouldn't those new samsung make better results?..
Click to expand...

It's probably your CPU that affects the main score. Mine is 2.66 :). While working with Aperture, Photoshop (a few very large files), Mail and 20-30 Safari tabs I still don't see the CPU loading much, so I'm happy with the 2.66. :D

I've been wondering.. Did you try the speed tests on just 1 of the samsung drives? Just wondering how much faster 2 are? The specs of 1 seem pretty amazing.

How is raid done on the macbook pro anyhow? Is it hardware or software based?
Does the SATAII interface allow dual SSD speeds higher then a single one?

Regards,
Simon

simonpickard said:
I've been wondering.. Did you try the speed tests on just 1 of the samsung drives? Just wondering how much faster 2 are? The specs of 1 seem pretty amazing.

How is raid done on the macbook pro anyhow? Is it hardware or software based?
Does the SATAII interface allow dual SSD speeds higher then a single one?

Regards,
Simon
Click to expand...

Didn't try one. I use RAID0 on my MacPro and got used to it. Normally it gives speed advantage. Om MBP I did it by removing optical drive and installing second SSD instead with OptiBay caddy. RAID is created my OSX software... I'm not a pro in this, but I believe that simple mirror or stripe can be done by OS without problems.

Anyway, SSDs rock. Had a loaded day today and the MBP feels faster than MacPro.

UNO said:
Didn't try one. I use RAID0 on my MacPro and got used to it. Normally it gives speed advantage. Om MBP I did it by removing optical drive and installing second SSD instead with OptiBay caddy. RAID is created my OSX software... I'm not a pro in this, but I believe that simple mirror or stripe can be done by OS without problems.

Anyway, SSDs rock. Had a loaded day today and the MBP feels faster than MacPro.
Click to expand...

i have wanted screens of this "optibay" inside and out...i bought a cable to do the same thing for 15$ on ebay...im just wondering how the optibay looks and mounts drives.

seems like a solid unit, are you in canada or the states?

by the way...im super impressed with that raid0 setup...im going to be doing it myself with 2x128gb corsair's

Valmor said:
Crazy numbers. I'm new to SSDs - are there any 128GB SSDs out with similar speeds to that Samsung? I only need 128GB and don't want to spend almost 1K for one.
Click to expand...

get the corsair ssd 128gb , 400cnd and is a samsung drive rebranded.

great drive.

Is it possible to replace the superdrive in the 15" Unibody with another disk drive?

semitry said:
Is it possible to replace the superdrive in the 15" Unibody with another disk drive?
Click to expand...

i have done it :D, you can use the optibay, or a cable from ebay...same thing.

i have a 128 corsair in mine and a 500gb 7200rpm (soon to be a second corsair.)
