10-bit per Channel Video Output on the nMP?

Discussion in 'Mac Pro' started by tomvos, Oct 24, 2015.

  1. tomvos macrumors 6502

    tomvos

    Joined:
    Jul 7, 2005
    Location:
    In the Nexus.
    #1
    I just read today that the new and the previous iMac support 10-bit per channel video output, i.e. 30-bit color instead of 24-bit color.

    With Mac OS X 10.11.1 this should be indicated in the System Information under Hardware > Graphics/Displays. The iMac shows there "ARGB2101010".

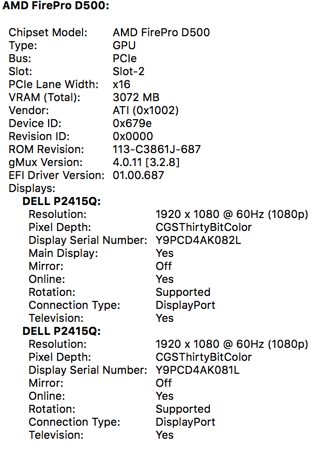

    I wonder if the nMP (with a 30-bit color display) supports this feature, too. If someone would be so kind to have a look? That would be great.

  2. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #3

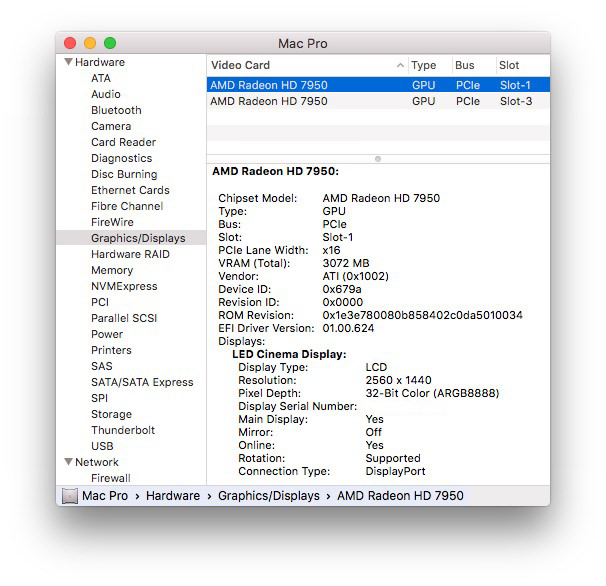

    Sorry, I am a bit confused. My cMP's 7950 always output 32 bit colour. Isn't the D700 should able to do the same (or better)? Or 30 bit is actually better than 32 bit? Screen Shot 2015-10-24 at 23.00.56.jpg Screen Shot 2015-10-24 at 23.00.45.jpg

  3. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #4
    I guess 32-Bit means 4x8-Bit whereas 30-Bit means 3x10-Bit. not sure though...

  4. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #5
    That make sense. I just wonder why from 24 to 30, but not 32. And how that related to 8 or 10 bit.

    So the ARGB8888 actually means 8+8+8+8, and the ARGB2101010 mean 10+10+10.

  5. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #6
    8 bits per colour gives 256 gradients and 10 bits give 1024 gradients per color (RGB). so instead of 16.7 millions of colours you're getting +/- a billion colors.

  6. edanuff macrumors 6502

    Joined:
    Oct 30, 2008
  7. PowerMike G5 macrumors 6502

    Joined:
    Oct 22, 2005
    Location:
    New York, NY
    #8
    Correct. Mac systems before this were 8-bit (8-bits per R+G+B and another 8-bits to a dedicated alpha channel - 32-bit). It seems now with 10.11.1, we have true 10-bit output now... which is exciting!

  8. fuchsdh macrumors 6502a

    Joined:
    Jun 19, 2014
    #9
    Yeah 30 bit color has been on the wishlist for many pros for a while, so it's good to see it coming to OS X (I believe W8+ have had it built-in.)

  9. VAGDesign macrumors 6502

    VAGDesign

    Joined:
    Feb 1, 2014
    Location:
    Greece
    #10
    To enable 30-Bit Color (ARGB2101010) on my cMP with 7950 and Dell P2715Q I did the following:

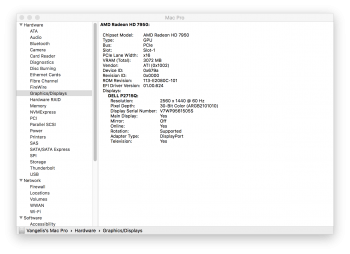

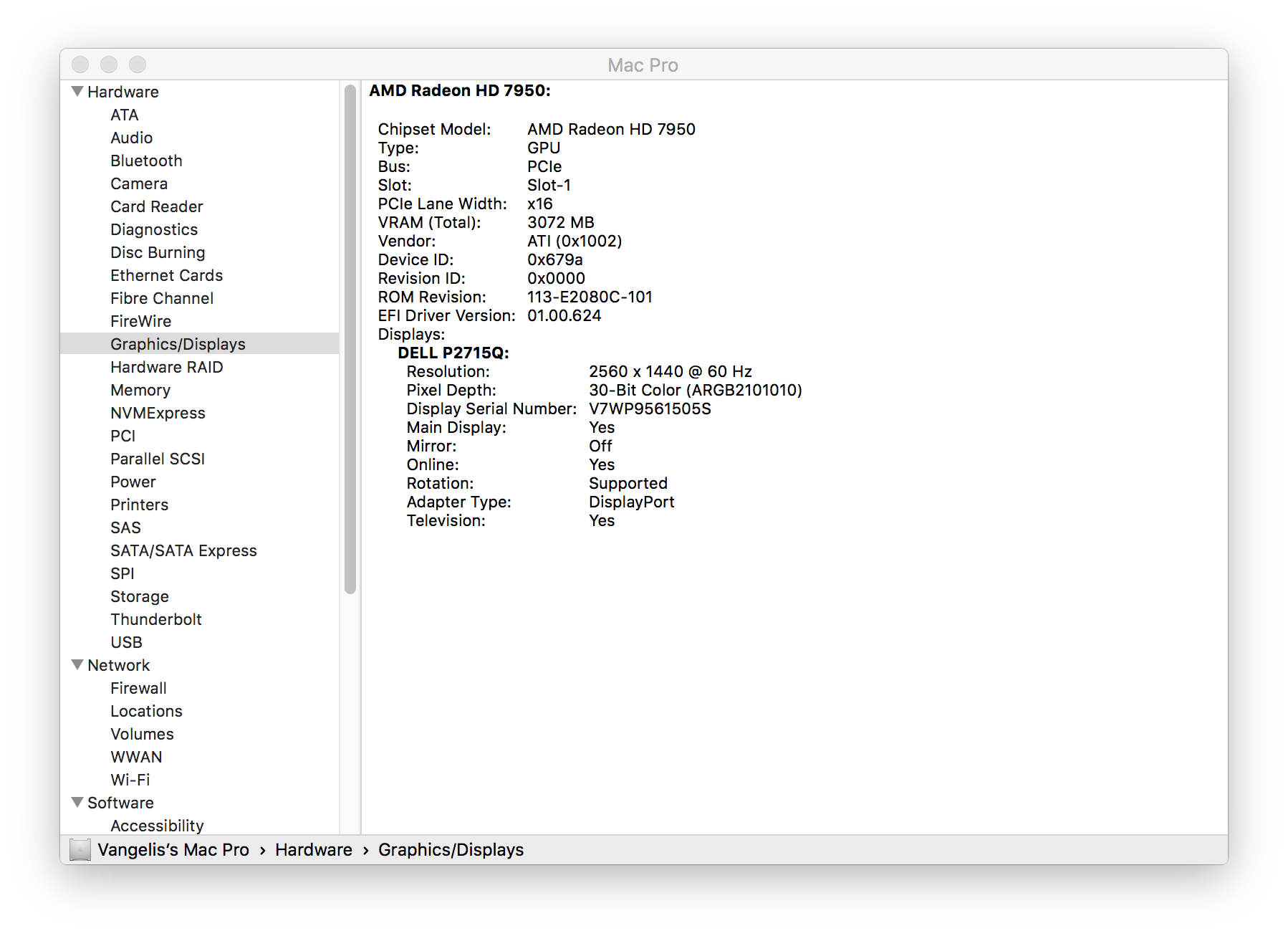

    Installed SwitchResX and on the top bar icon-button where you display resolutions etc. set the color to Billions instead of Millions. Then on the System Profiler you will see the following image.

    I hope this helps to setup the same ARGB2101010 if you work along with a nMP ;)


    Attached Files:

  10. SoyCapitanSoyCapitan, Oct 25, 2015
    Last edited: Oct 25, 2015

    SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #11

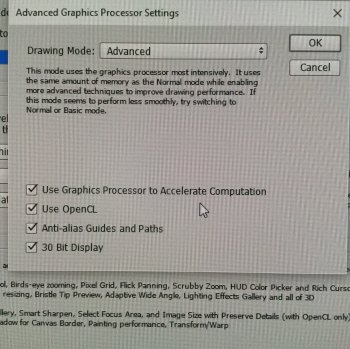

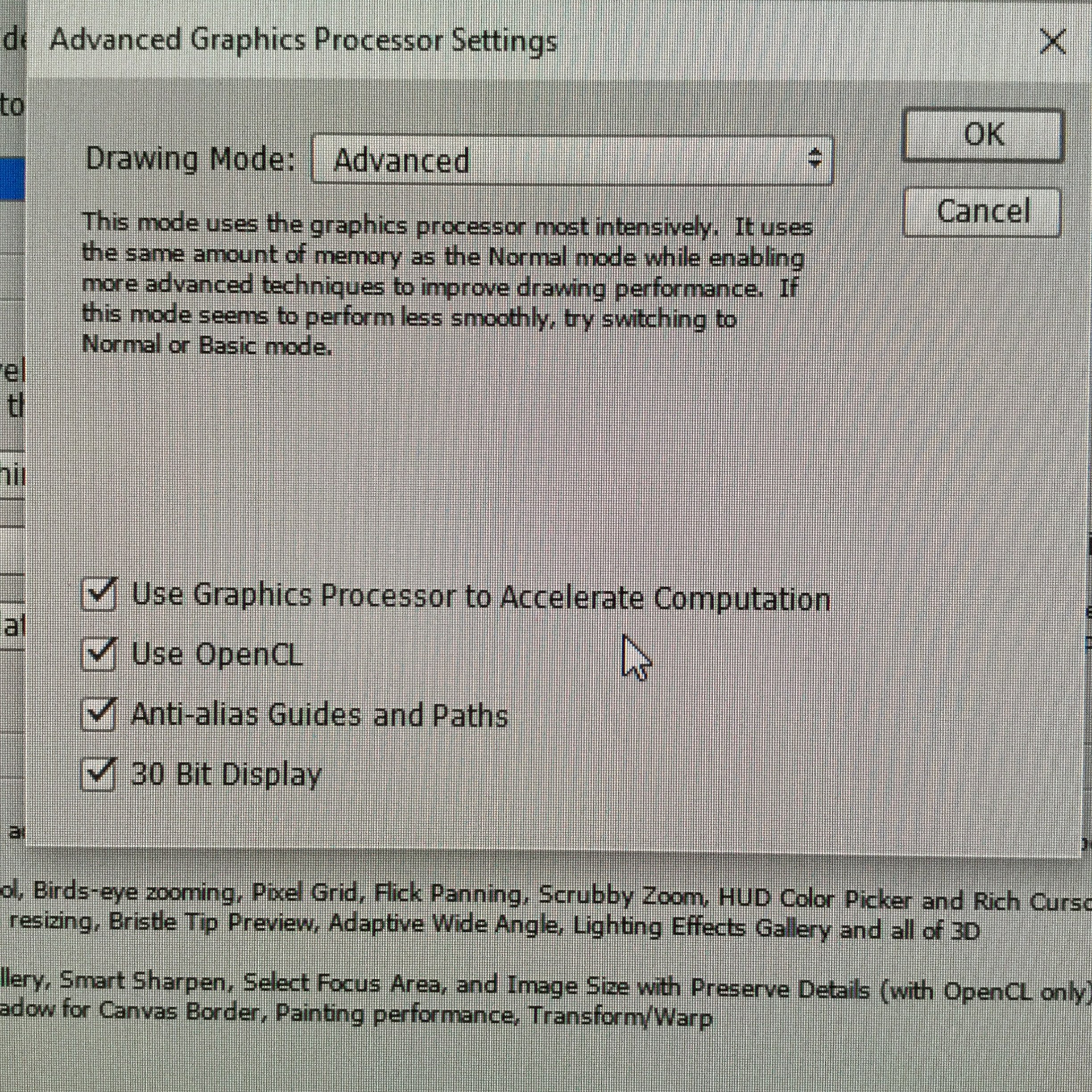

    Cool, but only useful when you are working with media that has such high color depth. Some apps don't support 30bit output in their viewport or you have to enable it, even if you have set 10bit color in your display properties. For example, Photoshop by default shows an 8bit/32bit viewport. To enable 30bit you have to check the box in the Performance>Advanced section of the app's preferences. But this option only exists in the Windows version and probably won't come to the Mac version until Adobe sees it's worth activating now that the OS supports it.

    I see SIP has to be disabled for SwitchResX erggghh

  11. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #12

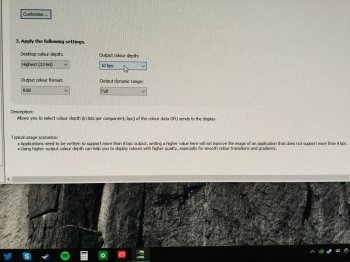

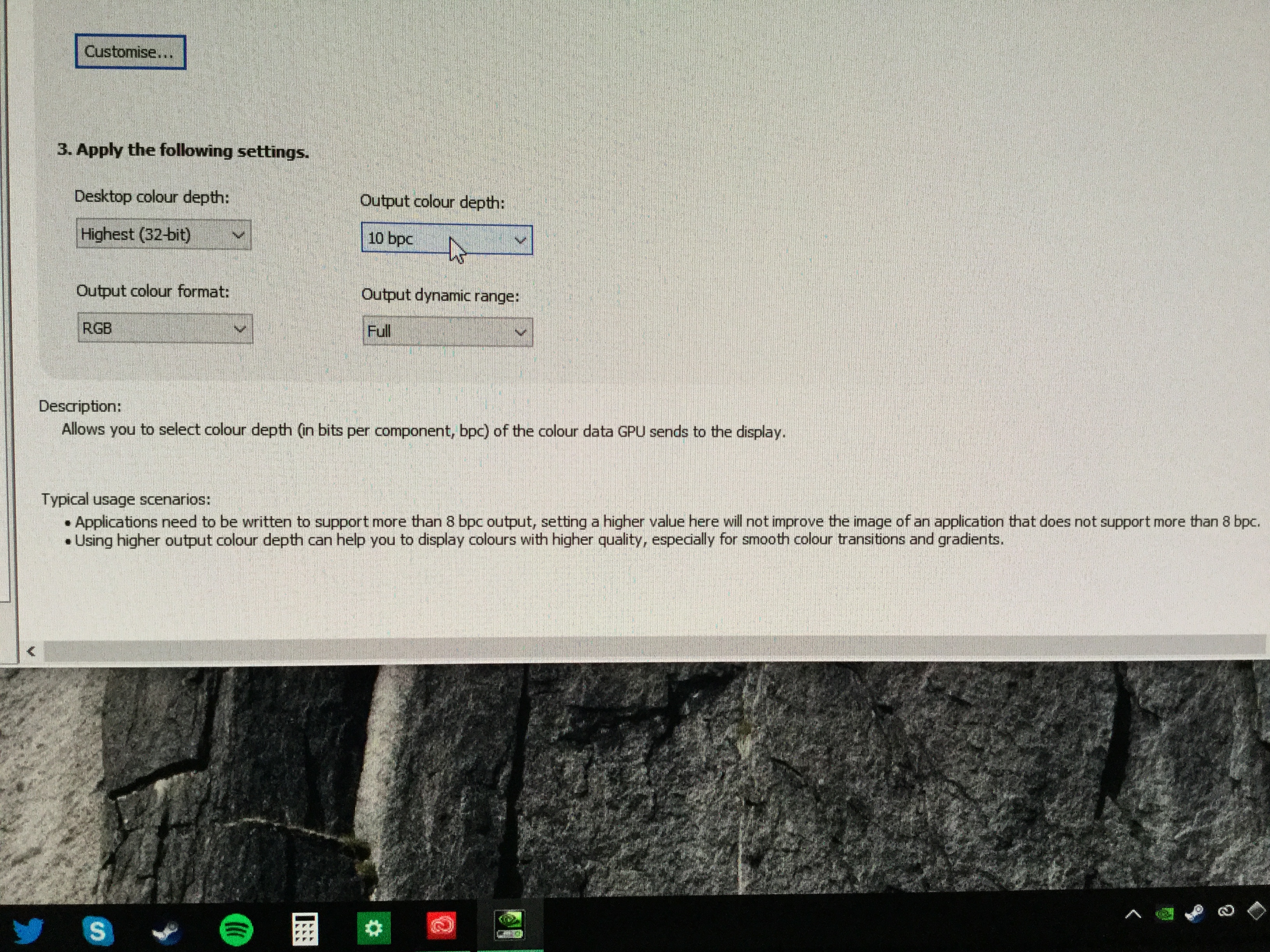

    More info from the Windows side to show how apps need to be written to take advantage of 10bit color. It's probably the same on the Mac side, but if Apple doesn't enable 10bit on all capable GPUs or doesn't offer the setting officially then it will be a while before apps make use of it.


    Attached Files:

  12. fuchsdh macrumors 6502a

    Joined:
    Jun 19, 2014
    #13
    I'm going to try this tonight, we'll see how it goes.

  13. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #14
    Photoshop now supports 10bit viewport on OSX.

  14. netkas, Dec 5, 2015
    Last edited: Dec 5, 2015

    netkas macrumors 65816

    Joined:
    Oct 2, 2007
  15. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #16
    If anybody can test with different GPUs and Macs, the setting is in Photoshop prefs under Performance/Advanced. I don't have El Capitan anymore to test.

  16. VAGDesign macrumors 6502

    VAGDesign

    Joined:
    Feb 1, 2014
    Location:
    Greece
  17. fabric17, Dec 6, 2015
    Last edited: Dec 6, 2015

    fabric17 macrumors newbie

    Joined:
    Aug 3, 2011
  18. fabric17, Dec 6, 2015
    Last edited: Dec 6, 2015

    fabric17 macrumors newbie

    Joined:
    Aug 3, 2011
    #19
    2 ^ (8+8+8) = milions colors
    2 ^ (10+10+10) = billion colors

  19. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #20
    Billion = 1000 million (short scale)

    But that doesn't mean your image files will ever have that many colours.

  20. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #21
  21. fabric17 macrumors newbie

    Joined:
    Aug 3, 2011
    #22

    right! corrected the mistake thanks

  22. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #23
    Aside from the fact that an image with less than a billion pixels can't have a billion colours :p, when we are talking about colour accuracy and using it in our workflows, it is mostly in the cyans and magentas where colour matching across different screens and media becomes inconsistent, as many of you know. Fluorescent materials are also tricky to match on screen as their appearance quickly changes depending on how much light and what kind of light is bouncing off the material.

    Most people are trichromatic. We can only see around 10 million colours. That means we can't even see the full palette of an 8bit screen. Then there are colour blind people who see far less. They are the ZX Spectrum of computer users :)) Then there are a tiny minority of people who are tetrachromats. They can see about 100 million colours. They sometimes become wacky psychedelic artists who don't need drugs to see richer tones and subtle details.

    Nevertheless, we have been able to work quite well with 8bit screens for years and achieve satisfactory results as long as we calibrate our screens to match our final media. Hell, we had better tools for colour accuracy than telecine artists were using and they didn't complain much. So don't worry too much about the 10bit issue. The human eye can't perceive anything close to a billion. It just helps to have that palette available for a limited range of aforementioned colours.

  23. Skrocki macrumors newbie

    Skrocki

    Joined:
    Aug 21, 2015
    #24

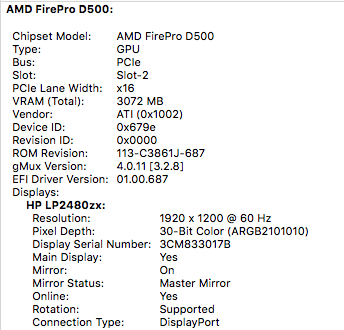

    30 bit color is now available on the MacPro 6,1 using El Capitan and the Photoshop CC 2015.1 release. Of course you must have a monitor that displays 30 bit. 30 bit color is also utilized in Apple Photo and Preview apps.

    Screen Shot 2015-12-07 at 9.40.09 PM.png

  24. joelypolly macrumors 6502

    Joined:
    Sep 14, 2003
    Location:
    Melbourne & Shanghai
    #25
    Using the iMac (2013) in target display mode connected to the nMP enables 30 bit colour on the iMac display which is pretty nice if you have an old iMac sitting around. The iMac on its own does not support 30 bit colour probably due to the gfx card
