2.5 to 3.5 that fits mac pro NO ADAPTERS

Discussion in 'Mac Pro' started by Vic Damone Jr, Aug 26, 2015.

  1. Vic Damone Jr macrumors newbie

    Joined:
    Apr 9, 2015
    #1

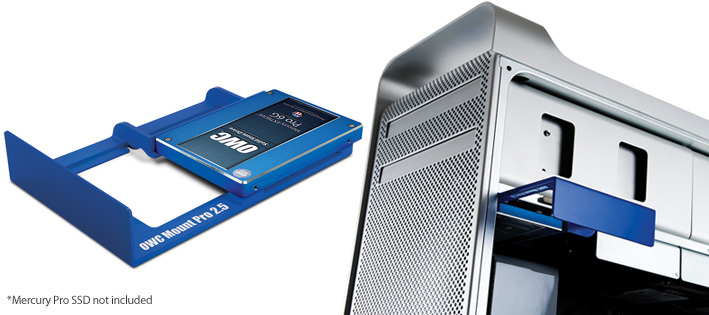

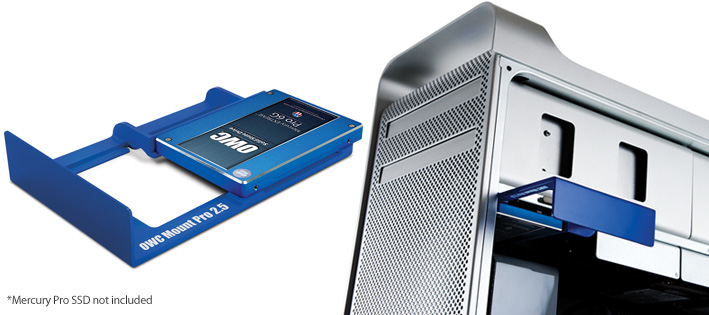

    i cant seem to find any bracket that makes a 2.5 properly aligned like a 3.5 hard drive. I have a icy dock that does this but the sata connector on the inside to one that would connect to the mac pro sled would cause freezes and lag so im looking to skip the middle man and just try to find a bracket. I know the mount pro from owc does this but i don't want an entirely new sled.

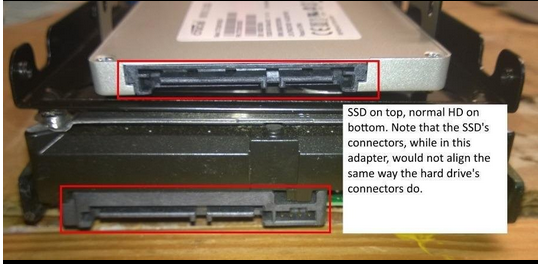

    Ive attached a picture down below to a problem that im having with adapter not aligning correctly.

    Maybe someone who deals with hot swappable servers that use the bottom of the 3.5 hard drive screws can provide some input.


    Attached Files:

  2. mikeboss macrumors 65816

    mikeboss

    Joined:
    Aug 13, 2009
    Location:
    switzerland
    #2
    I like the SSD mounting kit from Apple. the part number is 922-9629

  3. SoyCapitanSoyCapitan macrumors 68040

    SoyCapitanSoyCapitan

    Joined:
    Jul 4, 2015
    #5
    I have two of those. They are very good but I wish they were cMP aluminium.

  4. Fangio, Aug 27, 2015
    Last edited: Aug 27, 2015

    Fangio macrumors 6502

    Joined:
    Jan 25, 2011
    #6
  5. BillyBobBongo macrumors 68020

    BillyBobBongo

    Joined:
    Jun 21, 2007
    Location:
    On The Interweb Thingy!
    #7
    I ended up going with an Angelbird SSD's as they came with an adapter that I could just put on the standard Mac Pro sled, couldn't handle the thought of blue sleds in my Mac! :)

    Yes, my wife tells me quite often that I'm 'A bit weird'.

  6. The-Pro macrumors 65816

    Joined:
    Dec 2, 2010
    Location:
    Germany
    #8
    you could always just put the SSD into the spare cd drive slot (if you have a spare one)

  7. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #9
    If you are talking about 2.5" SSD, just put that in the optical bay without any mount is the easiest and cheapest option (I am doing that right now).

    Or you can just plug it into any of the bay. Since the SSD is so light, the SATA port is strong enough to support the SSD at there. Quite a few of my friends doing that, no one even has any issue. However, I personally will recommend you at least tape it to the case (again, another cheap, dirty, but practical solution). Just a little piece of strong tape will hang the SSD at there forever.

  8. Draeconis macrumors 6502a

    Joined:
    May 6, 2008
    #10
    A heat-sink mount from a Raptor drive would do it, they're probably quite cheap on eBay these days.

  9. crjackson2134, Aug 27, 2015
    Last edited: Aug 27, 2015
  10. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #12
    Your the first member here that I have heard has Angelbird's. How are they working for you?

    Lou

  11. BillyBobBongo macrumors 68020

    BillyBobBongo

    Joined:
    Jun 21, 2007
    Location:
    On The Interweb Thingy!
    #13
    Great bit of kit! Lighting fast boot up, about 8 seconds, and built in TRIM support. I'm aware that Apple will most likely be finally allowing native TRIM support for third party SSD's in el Capitan, but for now it's all fine and dandy for me.

    One of the things that sold me, as I mentioned earlier, is the adapter that comes with the drive so I can use my standard drive sleds. I'm a bit of a neat freak and I have having parts lying around the place. All I now have to store is the four screws that are usually housed on the drive bay.

    I ordered my drives from the Angelbird website itself, they came from Austria to the Netherlands in two days. My RAM took three times as long to travel 50 Km. Online registration for warranty was nice an easy. The drives come with a code, you just enter that code along with the email you used to order and the drive(s) and their system creates an account, logs the date of purchase, and it's job done. It all gives me the feeling that I have purchased a quality product and not just some random SSD from the electronics store where I have to hold on to a receipt in case it all goes south.

    The drive is of course silent, which is both good and bad..since now whenever my 2TB Western Digital Black spins up it really grabs my attention. Think I might just have to order another one! ;)

  12. JamesPDX macrumors 65816

    JamesPDX

    Joined:
    Aug 26, 2014
    Location:
    USA
    #14
    I use two 512's inside my 2012 Mini. Awesome little drives.

  13. JamesPDX macrumors 65816

    JamesPDX

    Joined:
    Aug 26, 2014
    Location:
    USA
    #15
    Yep. Bare aluminum is a better heat sink than painted aluminum. I'm a heatsink enthusiast, among other things.

  14. flowrider, Aug 27, 2015
    Last edited: Aug 27, 2015

    flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #16
    Very Good to hear. FYI TRIM is available on 3rd party SSDs in the current Yosemite OS 10.10.5 using the same Terminal Command that will be used in El Cap.


    Lou

  15. BillyBobBongo macrumors 68020

    BillyBobBongo

    Joined:
    Jun 21, 2007
    Location:
    On The Interweb Thingy!
    #17
    Worth noting is that I'm a ridiculously lazy man! ;)

    In other news, I've got a friend who's just put a Samsung Evo in his MacBook Pro, I'll be sure to pass on that information.

  16. BlueWaterVA macrumors member

    Joined:
    May 25, 2012
    Location:
    SouthWest Virginia
    #18
    I have 3 SSDs in my 2010 Mac Pro. They are in bays 2-4. I found 80GB WD Velociraptors on eBay for $8.00 each so l purchased 3 of them. I removed the 80 GB HDDs and mounted my SSDs using the WD mount and installed them on the stock Apple HDD sleds. They work perfectly and are definitely the cheapest solution you can find.

  17. BillyBobBongo macrumors 68020

    BillyBobBongo

    Joined:
    Jun 21, 2007
    Location:
    On The Interweb Thingy!
    #19
    This is genius! May I present you with...


    Attached Files:

  18. pastrychef macrumors 601

    pastrychef

    Joined:
    Sep 15, 2006
    Location:
    New York City, NY
    #20
    $8 is an awesome deal. The fact that they act as huge heatsinks makes it even better.

  19. crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #21
    Nice... I really like this solution. I don't need this since I don't put my SSDs in the SATAII bays anymore, but I love the solution.

  20. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #22
    WD Velociraptors don't seem to be SSDs, looks like they are 10K RPM fast HDDs? Also looks like a 2½" HDD installed in a large heatsink with the outputs in the same spot as a 3½" HDD. Am I missing something?

    Lou

  21. crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #23
    Nope, remove the 2.5" 10k spinner and replace it with an SSD. You now have a giant heatsink/adapter,that lets you mount your SSD in an SATA drive bay using the stock sled (very cheaply), and with an incredible heatsink.

  22. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #24
    OK, now I understand, I went back and reread BlueWater's post - Makes sense now:)

    Lou

  23. mbosse macrumors regular

    Joined:
    Apr 29, 2015
    Location:
    Vienna, Austria
    #25
    There's no electronics in any of these adapters as well. Just a circuit board (with no circuit other than necessary to position the SATA port correctly).
