2006 Mac Pro Processor Upgrade Options

Discussion in 'Mac Pro' started by raeshao, Oct 4, 2010.

  1. raeshao macrumors newbie

    Joined:
    Oct 4, 2010
    #1
    After searching the site for an hour, I'll just ask the question directly. What are the processors worth looking at that will swap into a first gen Mac Pro?

    I'm adding RAM and faster hard drives, as well as at least an ATI HD5770. Possibly even a SSD boot drive. That said, I originally bought this mac with the thought of swapping processors at some point, turning the ol' 2.66GHz quad into an octo. I know the clovertown chips will swap in, but my research hasn't moved past that. Will any Xeon that fits into a LGA 771 socket work? And if so, where are the sweet spots?

    Anyone who has upgraded their 2006 vintage Mac Pros feel free to post some specs or ideas as well as bench scores. Thanks!

  2. Umbongo macrumors 601

    Umbongo

    Joined:
    Sep 14, 2006
    Location:
    England
    #2
    Xeon X5365 (3.0GHz quad core) and XXeon 5355 (2.66GHz quad core) are the only ones really worth considering.

  3. jmaa macrumors newbie

    Joined:
    Mar 24, 2010
    #3
    Upgrading to 5160 (dual 3.0) is good for practice. 12,5 % difference won't make it fast, but it's very cheap and you gain experience. I got a good deal some time ago, a pair of 5160s for 100 €, and sold the pair of 5150s for the same 100 €.

  4. lloyd709 macrumors 6502

    Joined:
    Jan 10, 2008
    #4
    Will these work perfectly or are there any side effects? In particular, will bootcamp and windows 7 work in exactly the same way. I'd love to upgrade my processors but it would be a nightmare if I some things didn't work anymore.

    I thought the original Mac Pros with these processors in had different firmware. Is that the case?

    Another question, can you put a single X5355 processor in next to an original dual core 2.66GHz processor. Alternately, can you put a single X5355 processor in and take both the original 2.66 processors out (I'm only asking this because Windows will only use one processor so it would be better if it was a quad core processor).

  5. Hellhammer Moderator

    Hellhammer

    Staff Member

    Joined:
    Dec 10, 2008
    Location:
    Finland
    #5
    Apple offered two X5365s as an option in 2007, so yes, they will work fine. So do X5355s.

    Since people have upgraded their 1,1 Mac Pros with these CPUs they should carry the same firmware (or an update was released).

    No. Both CPUs have to be the same

    Yes, but the gain would be little (you currently have 4 cores). How would Windows use only one CPU? AFAIK both CPUs and all 8 cores are utilized

  6. lloyd709 macrumors 6502

    Joined:
    Jan 10, 2008
    #6
    Many thanks for you answers. But regarding Windows use of multiple cores I'm only going by what I can see.

    Resource Monitor shows two CPUs in action but there doesn't seem to be a way to show what's going on for each core.

    I downloaded a program called System Monitor II that claims to show all cores but it only show two cores being used so I assumed that Resource Monitor was in fact only showing the cores of one of the processors.

    Also the System Properties says: 'Processor: Intel(R)Xeon(R) CPU'. I would have thought that it would state 2 processors here if it was using/seeing them.

    Do you know of a way I can check for sure how many cores are being used?

  7. Hellhammer Moderator

    Hellhammer

    Staff Member

    Joined:
    Dec 10, 2008
    Location:
    Finland
    #7
    Try CPU-Z and see if it can recognize both CPUs.

  8. lloyd709 macrumors 6502

    Joined:
    Jan 10, 2008
    #8
    Update on my last post regarding Windows use of only one processor.

    I've just downloaded something called CPU-Z which quite clearly shows only one processor with 2 cores being used!

    Is there something wrong with my system - both processors are being used under OSX

  9. iBookG4user macrumors 604

    iBookG4user

    Joined:
    Jun 27, 2006
    Location:
    Seattle, WA
    #9
    You might want to check out this and this.

  10. Hellhammer Moderator

    Hellhammer

    Staff Member

    Joined:
    Dec 10, 2008
    Location:
    Finland
    #10

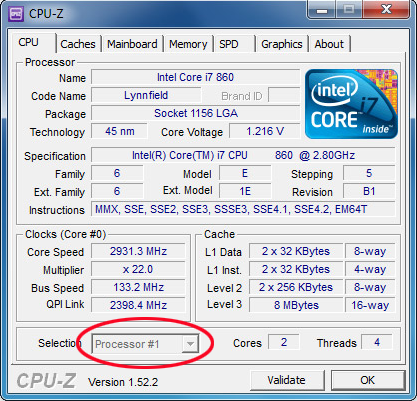

    Can you change the CPU (see the attachment)? BTW, what version of Windows are you using? At least Starter and Home basic versions of Vista and 7 only support ONE physical CPU.


    Attached Files:

  11. lloyd709 macrumors 6502

    Joined:
    Jan 10, 2008
    #11
    I can't change the option at the bottom on CPU-Z. I just also ran Cinebench under both Windows 7 and OSX and it reports 2 processors (4 cores) under OSx and only 1 processor (2 cores) under Windows 7.

    I'm running Windows 7 Home Premium. I would guess this is the problem - what do you think?

    The only reason I'm really worried about it is because I'm thinking about buying another 5770 to run 2 under cross fire and I don't want the graphics to become CPU bound.

  12. lloyd709 macrumors 6502

    Joined:
    Jan 10, 2008
    #12
    Just found this on Microsofts website:

    'Windows 7 Professional, Enterprise, and Ultimate allow for two physical processors, providing the best performance on these computers. Windows 7 Starter, Home Basic, and Home Premium will recognize only one physical processor.'

    That be the problem then!!!
