iM 4,1-14,4 2011 iMac Graphics Card Upgrade
- Thread starter MichaelDT
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
The Mini M1. And no, you don't have to flash it. It comes with the OS pre-installed.
madvinegar
macrumors regular
I see that the modded Vbioses provided in this forum have been created by various forum members (making alterations to the original Vbioses of the cards). Thanks for the fantastic work.
Are these Vbioses modded to their full potential or could there be any improvement?
Meaning, could the Vbioses be modded/improved further? (i.e. to a specific iMac type) so as to perform better, more stable, fix sleep/wake issues etc.?
Or the modifications done to the original VBios is only to make the card recognisable by macOS, and nothing further can be done?
Unfortunately I don't have the knowledge for this.
Are these Vbioses modded to their full potential or could there be any improvement?
Meaning, could the Vbioses be modded/improved further? (i.e. to a specific iMac type) so as to perform better, more stable, fix sleep/wake issues etc.?
Or the modifications done to the original VBios is only to make the card recognisable by macOS, and nothing further can be done?
Unfortunately I don't have the knowledge for this.
Last edited:
madvinegar
macrumors regular

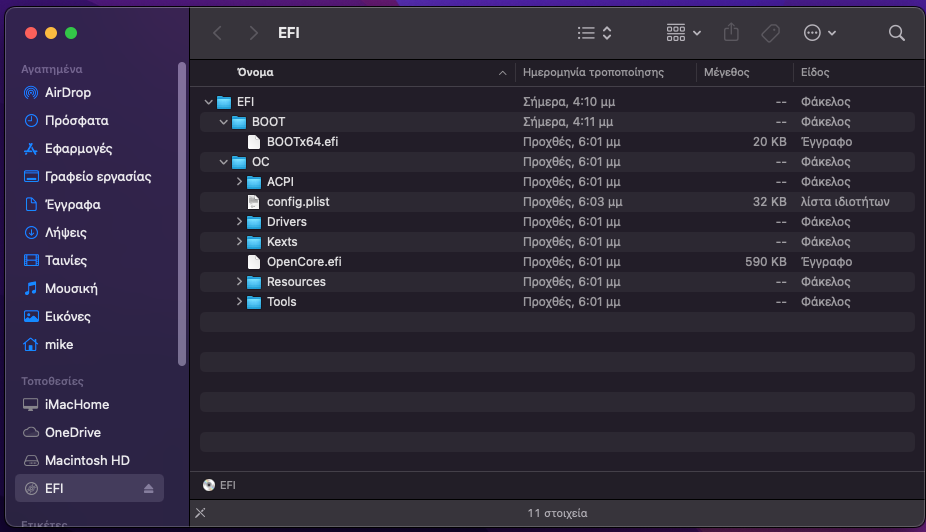

Also, can someone confirm this is the correct layout for the recovery CD? I cannot get the iMAc to boot from the recovery CD (pressing "C" right after switching on the iMac). I only get a black screen. Is there something I missed?
Attachments
Last edited:
ber404
macrumors member
Did anyone already order the K3100M from that guy ?
Apple iMac 27 A1312 2009 2011 upgrade NVIDIA Quadro K3100M 4GB GDD metal support en vente | eBay
Visitez eBay pour une grande sélection de Apple iMac 27 A1312 2009 2011 upgrade NVIDIA Quadro K3100M 4GB GDD metal support. Achetez en toute sécurité et au meilleur prix sur eBay, la livraison est rapide.
www.befr.ebay.be
trying to flash a K2100 but i get a "write protect" error in asprogrammer. how do you get around this?
madvinegar
macrumors regular
I know how to do this only when flashing the card via ssh and terminal commands.
You need to run ./nvflash_linux --protectoff before you flash the new rom.
I have not used the asprogrammer. Does it have any option or check box that says "off protect before programming" or is there any "unprotect" button that you need to press before flashing the new rom?
using asprogrammer V2.1.0.13. i have the box labeled "off-protect" checked, as well as the erase, write, verify. but when i click the program button this show in the message window and only the cancel X is lit up (all others greyed out).
Current programmer: CH341
Old SREG: 11111111(0xFF), 11111111(0xFF)
Current programmer: CH341
Old SREG: 11111111(0xFF), 11111111(0xFF)
i have clicked the cancel button, which seems to have acknowleged the message above. green progress bar is roving back and forth with the following message, so ill wait awhile and see what happens.
Old SREG: 11111111(0xFF), 11111111(0xFF)
Canceled by user
Current programmer: CH341
11:45:29
Possible protection is enabled. Press "Unprotect" and check datasheet
Erasing memory...
The process can take more than a minute on large flash memories!
Old SREG: 11111111(0xFF), 11111111(0xFF)
Canceled by user
Current programmer: CH341
11:45:29
Possible protection is enabled. Press "Unprotect" and check datasheet
Erasing memory...
The process can take more than a minute on large flash memories!
no luck, something to do with the registers i think. now i have upset it and everything i click on brings up a "choose item in the list" dialog box. very frustrating.
is there a different version or software i should try?
is there a different version or software i should try?
madvinegar
macrumors regular
i think i got it! turns out the clip is extremely fussy. and has to be on just so. even when it looks like it connected it wont detect the chip. so after about 35 tries it finally detected and walked right thru the process of flashing Nicks K2100 bios. now i can reinstall into my 2010 imac and see if she boots up with Big Sur!
that would be too easy, i couldnt ssh in for some reason, only had two mb lights. thats why i had to go with the external flash option.
madvinegar
macrumors regular
It's true, the CH341 clamp needs to be put perfectly on the chip. But I thought that you had got that right since if not, you cannot even read the contents of the chip.
Jimmy-Chivas
macrumors member
Anyone else running Linux on a mid 2011 iMac 21.5"? It currently has a Radeon 6750. What is the best 'drop-in' GPU I can upgrade to if I don't care about Mac OS compatibility?
madvinegar
macrumors regular
Have you tried running linux with the amd 6750? Is it not working?
Personally I tried ubuntu with the k2100m (was not working OK), and now with the AMD m5100 (which works well).
Ofcourse I only tried with a live usb of Ubuntu 22.04. I have not actually istalled ubuntu. But everything was working good with m5100.
Also I suspect that you will need to flash the cards with the amended vBios.
Last edited:
madvinegar
macrumors regular
Anyone kindly assist with this? I cannot understand why I cannot get the iMac to boot off the CD. I believe that I have done everything correctly. Did I miss something?
Attachments
Jimmy-Chivas
macrumors member
Yes, the 6750 is fine with Linux (Using Zorin OS) Sorry if I made it sound like it wasn't. I'm going to upgrade the CPU soon and figured I might try a better GPU since it will be tore down. But maybe only the 6770 is the only suitable replacement? Which wouldn't be much of an upgrade I suppose.
Good job jocaju!
Has there been an update to this method? I upgraded Nick [D]vB earlier and would like to upgrade the GTX 770M ROOM to 770M_BR+OC.ROM. How can I do this process through Windows?
madvinegar
macrumors regular
If you want a plug n play solution (not flashing Vbios, keeping the oem boot menu etc.) better stick with the available options for the specific imac. Indeed I think that 6770m was the highest card for the 12.1 iMac. (I have the same iMac as you and it came with that card - 6770m).
If you will update the CPU make sure that it is an "s" variant. For example i7-2600s.
The "s" variants are the low wattage CPUs which is needed for the 21.5" iMacs due to the smaller PSU.
Ausdauersportler
macrumors 603
Check the FAQ, use the GRML Linux tool!
Since you have a working internal display you can enter all commands directly sitting at your iMac. No second system needed, no ssh, no network trouble...
Jimmy-Chivas
macrumors member
Okay, thanks for the GPU info! I think what it has is fine as is for Linux. I will just re-apply thermal paste and call it good for another 5 years hopefully. I'm definitely keeping my eyes open for other 2011's that pop up on the local used market for spare parts on the cheap.
Regarding the CPU details you've mentioned; I looked at the TDP for Sandy Bridge Procs and saw that i7-2600s fits comfortably in the same range as the i5 this unit originally came with. Heat is always an important consideration. Especially with everything crammed in there. I guess maybe these 2011's do a decent enough job with heat dissipation being that they last so long, but I wouldn't want to stress the unit beyond reasonable tolerances.
Mid 2011 iMac 27 inch
AMD 6970M failed, upgraded to AMD WX3200 from Ali express, preflashed.
Installed in system, preinstalled with High Sierra. Ran but could only get to background & cursor after boot, no icons.
Upgraded to Big Sur 11.3 with OCLP, booted fine but did not have Wi-Fi/Ethernet. Chalked it up to a bad install.
Installed fresh Big Sur 11.5 using OCLP. Not sure if install was interrupted but I now have just a black screen on boot. Did not have boot chime until PRAM.
I realized the patch settings i made on my MacBook were right for the 12,2 but i did not pick the correct card family in the GUI as I was unable. I have downloaded TUI and can make change to GPU polaris but I still cannot access boot menu. ODD is disconnected. Did I f#%* my firmware? I did not backup my firmware originally as I was unable. I do not have a way to burn an OCLP recovery CD at this time.
AMD 6970M failed, upgraded to AMD WX3200 from Ali express, preflashed.
Installed in system, preinstalled with High Sierra. Ran but could only get to background & cursor after boot, no icons.
Upgraded to Big Sur 11.3 with OCLP, booted fine but did not have Wi-Fi/Ethernet. Chalked it up to a bad install.
Installed fresh Big Sur 11.5 using OCLP. Not sure if install was interrupted but I now have just a black screen on boot. Did not have boot chime until PRAM.
I realized the patch settings i made on my MacBook were right for the 12,2 but i did not pick the correct card family in the GUI as I was unable. I have downloaded TUI and can make change to GPU polaris but I still cannot access boot menu. ODD is disconnected. Did I f#%* my firmware? I did not backup my firmware originally as I was unable. I do not have a way to burn an OCLP recovery CD at this time.
No native boot menu using Polaris cards yet (the machine will just hang when trying to display the boot menu) - you have to use OCLP or disconnect any other bootable drives in order to force booting from the desired one.
I still have my OCLP/macOS installer usb drive connected, thought I could boot into that but no luck. The person I bought the card from also included EFI folders, so I have the one for Monterrey/Big Sur on a separate usb drive as well
