I havnt installed OCLP at all, shouldnt this card load HS also? I can not enter recovery as like the image on my first post, I think I will surrender for now, I do not have the knoledge I would like to, maybe in a future give it a try again with a new gpu... just installed the amd card again and its kind of broke but ater as while the system is usable.
Thanks for all your advices
I don't know

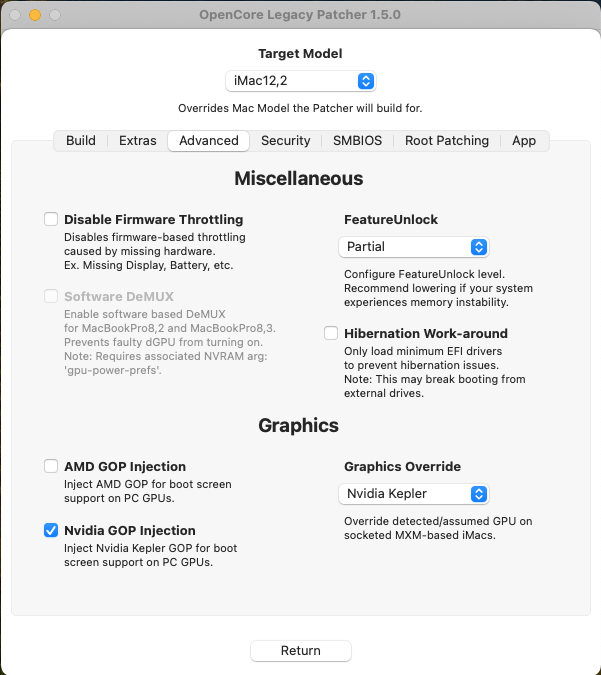

Before you give up, here is a simple easy step to check if not installing OC is your problem. You already did the hardest part (flash GPU ROM) haha
- unplug your HS SATA drive
- build a USB macOS install stick (say Big Sur for Kepler GPU) and also install OC on the stick.
- plug in USB install stick and boot, you will see boot options to install macOS
Last edited:
alberbrando
macrumors newbie
I´ve been using the new graphic card, an amd 5100 and I realize how the temperature has dropped down in the iMac. Watching YouTube videos pushed my old graphic card to 51ºC and now it heats up to 41-42ºC.
In win 11 with out boot camp my set up is fully stable and good drivers for my s7100x only had to use drivers from apple for isight camera and sound.
In still testing the install of boot camp on windows because it corrupts win 11 , it boots start but within 30secs image gets all gibberish and imac reboots, already removing parts of the bootcamp install drivers but so far i’ve been unable to get it to work. With out bootcamp win11 de-bloated works brilliantly
Upgraded both 21" and 27" 10,1 (both late 2009 27" C2D) with AMD M4000 (eDP VBIOS for 27" LVDS EG2 VBIOS for 21") and SSDs with OCLP macOS Monterey (UPDATE : Moved to Big Sur which ran on some dual core / 4 threads rMB core Ms). Surprisingly usable! Good enough for most casual users. C2D's 2 cores (no threads) probably shouldn't run the post M1 macOS Ventura/Sonoma with its 8 core/thread demands.
Upgrade process same as all others in my signature link.

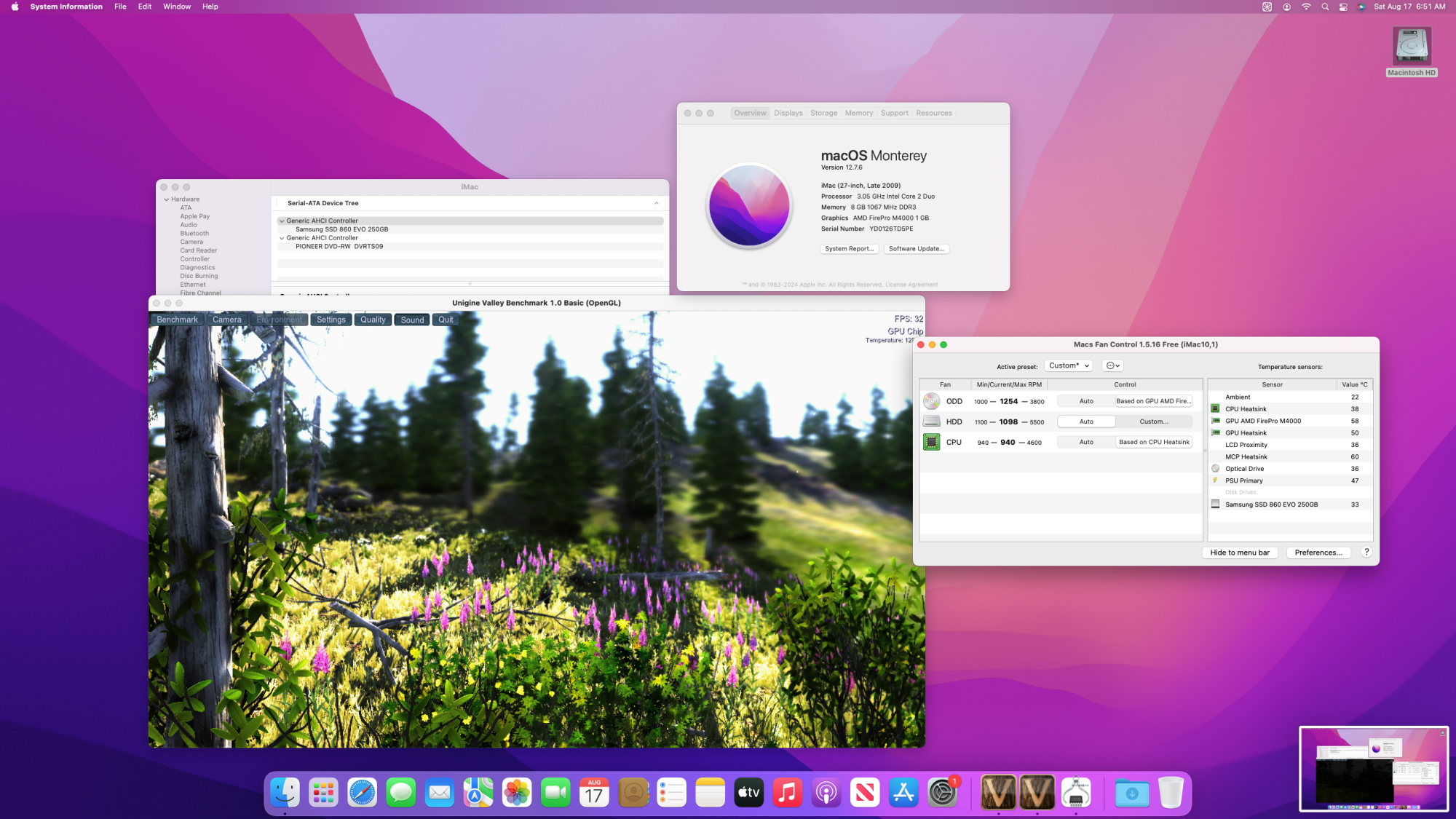

GPU shim was 0.3mm. Runs amazingly cool! 1/4 screen Valley stabilize at ~60C on 27"
Upgrade process same as all others in my signature link.

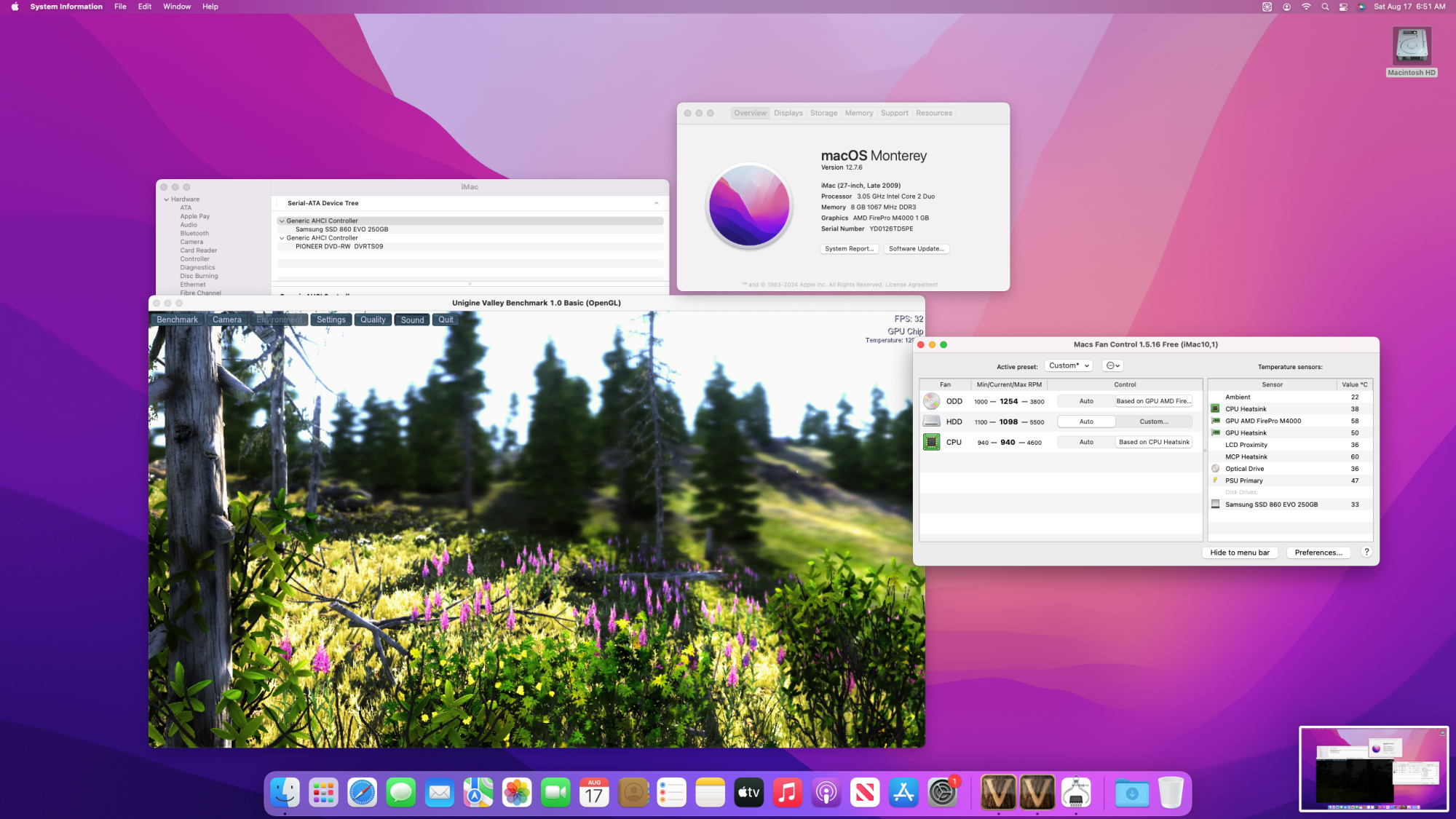

GPU shim was 0.3mm. Runs amazingly cool! 1/4 screen Valley stabilize at ~60C on 27"
Last edited:
Hi, you could try the following (helped me several times):
In windows got to windows/system32/drivers and rename (or delete) the driver MacHALdriver.sys (you have to do that in safe mode or command line in repair mode), see:
[macOS] Windows 10 1903 with Boot Camp - Apple | DSLReports Forums
Forum discussion: I had no problems running 1809 via Boot Camp, but I tried 1903 today and it seemingly went well until it booted into Windows and after about 10 seconds I get a BSOD with a WDF Violation that I can't fix, so I rolled back to 1809. Has anyone else had
www.dslreports.com
Might help
Thank you, will give it a try and then report backHi, you could try the following (helped me several times):
In windows got to windows/system32/drivers and rename (or delete) the driver MacHALdriver.sys (you have to do that in safe mode or command line in repair mode), see:
[macOS] Windows 10 1903 with Boot Camp - Apple | DSLReports Forums
Forum discussion: I had no problems running 1809 via Boot Camp, but I tried 1903 today and it seemingly went well until it booted into Windows and after about 10 seconds I get a BSOD with a WDF Violation that I can't fix, so I rolled back to 1809. Has anyone else had
Might help
Just a short comment for all how consider installing NVIDIA GTX 880M or GTX 870M:
don't use it if you want to use Sonoma. It is mentioned on page 1:
Please read the issues section first! Most of these cards hit the street 2012 and are considered as old cards. Optimal for macOS up to Big Sur, some non fixed issues on Monterey, serious problems with Ventura 13.3+. If you plan to use Ventura do not buy a Kepler card these days!
I can sadly confirm this: I have an 12,2 iMac with GTX880 and an 12,1 iMac with GTX870, both worked fine with Monterey but after upgrade to Sonoma I have many strange small problems: sporadically display freez after a few minutes, HDD not responding sometimes (I checked the HDD it is ok), sound not working sometimes, "flippy" display after long pause (I turned off automatic sleep), and more.
I ordered 2 WX4150 cards and will replace the Nvidia cards.
don't use it if you want to use Sonoma. It is mentioned on page 1:
Please read the issues section first! Most of these cards hit the street 2012 and are considered as old cards. Optimal for macOS up to Big Sur, some non fixed issues on Monterey, serious problems with Ventura 13.3+. If you plan to use Ventura do not buy a Kepler card these days!
I can sadly confirm this: I have an 12,2 iMac with GTX880 and an 12,1 iMac with GTX870, both worked fine with Monterey but after upgrade to Sonoma I have many strange small problems: sporadically display freez after a few minutes, HDD not responding sometimes (I checked the HDD it is ok), sound not working sometimes, "flippy" display after long pause (I turned off automatic sleep), and more.
I ordered 2 WX4150 cards and will replace the Nvidia cards.
Running 2x 12,2 with WX4130 on Sonoma + 1.5.0 OCLP as daily driver and have random hangs
14.6.1 hangs multiple times a day. Annoying enough to be not usable.
14.6 was most stable. Every 2-3 days and generally acceptable
14.5 was worse than 14.6
Reverting to Monterey and will report results after use.
oh, that doesn't sound good....
I already installed 5 WX4130 cards in iMacs 12,2 and sold them... So far no calls from customers... but might happen. If so I will report. And I will also report after installing the WX4150 into my iMacs.
Thanks, howardc64, for the reply.
what adapter cable are you talking about? an external cable for an external display or something else?
I have a small problem using an external display using a miniDP to 2 HDMI 4K splitter cable that I bought on Aliexpress and I couldn't get it to work with a second 2K Display. So I periodically look through this thread looking for a solution (maybe this is the only problem that can't be solved with a splitter for an iMAc 11.3 with a miniDP interface for a peripheral monitor.
Encountered 4x OCLP 1.5.0 + metal GPU upgrade installation hangs on 3 different machines all in the same way. Wondering if anyone else see the following pattern
In all cases, solution was to format the SSD again to FAT/exFAT and do OCLP install again without any problems.
For #1, its a EG2 VBIOS, when booting after the hang, screen shows a bunch of scrolling text output text before showing can't boot. Was able to startup Original boot picker (option key) to boot an El Capitan USB partition to format SSD.
For #2/#3/#4 without EG2 VBIOS (Have since then shifted to EG2 M4000 VBIOS), iMac just shows blank screen. Need to pull the screen to format the SSD.
On #4 tried formatting to FAT->exFAT->APFS and still hung.
So it seems a long power down (which is just an SMC reset) is likely required on install over prior OCLP macOS. And do EG2 always whenever possible to rescue bad installs.
Wondering if anyone else encountering this.
- iMac 12,1 + k610m on OCLP 1.5.0 + Big Sur. Reinstall Big Sur with a OC USB installer and hangs during install
- iMac 10,1 27" + M4000 eDP VBIOS on OCLP 1.5.0 + Monterey. Reinstall Big Sur with OC USB installer and hangs during install
- iMac 12,2 + WX4130 on OCLP 1.5.0 + Sonoma. Reinstall Monterey with OC USB installer and hangs during install
- iMac 10,1 21" + M4000 LVDS VBIOS on OCLP 1.5.0 + Monterey. Reinstall Big Sur with OC USB installer and hang during install.
In all cases, solution was to format the SSD again to FAT/exFAT and do OCLP install again without any problems.
For #1, its a EG2 VBIOS, when booting after the hang, screen shows a bunch of scrolling text output text before showing can't boot. Was able to startup Original boot picker (option key) to boot an El Capitan USB partition to format SSD.
For #2/#3/#4 without EG2 VBIOS (Have since then shifted to EG2 M4000 VBIOS), iMac just shows blank screen. Need to pull the screen to format the SSD.
On #4 tried formatting to FAT->exFAT->APFS and still hung.
So it seems a long power down (which is just an SMC reset) is likely required on install over prior OCLP macOS. And do EG2 always whenever possible to rescue bad installs.
Wondering if anyone else encountering this.
Last edited:
alberbrando
macrumors newbie
I´ve installed an flashed M4100 one month ago and neither hangs nor problems.
This hang was a "reinstall" OCLP problem. It doesn't happen on the first installation which most people experience.
Reinstallation hang issue appear when iMac already running OCLP macOS, then re-installing OCLP macOS (for example, change to different macOS) all 4 systems hung after initial install phase when it reboots.
The solution was to do SMC reset
- Boot OCLP installer
- Erase + Format (eg APFS) SATA drive as an example for clean install. Be sure to show device and select device to format rather than just volumes or containers.
- SMC reset ( https://discussions.apple.com/docs/DOC-3603 )
- Boot OCLP installer again
- Proceed with install
Actually doing 3+4 is probably always a good idea as some macOS was previously installed and OCLP install seems to have some interactions.
Last edited:
Anyone know why post #1 AMD VBIOS tables defaults the none EnableGOP (EG*) VBIOS repository? Just going through to GRML flash all my iMacs to EG2. Great when OCLP install goes wrong messes up and have recovery method without pulling the LCD.
alberbrando
macrumors newbie
Ok, it´s good to know it.I haven´t faced this problem but if I do I will know how to solve it.Thanks.
I all !
I'm new here, searching for information to complete my project:
I'm the happy owner of an earlry 2011 21,5 inch iMac (12,1 IIRC) and would like to give it some boost.
I already bumped its ram, and have an SSD ready to replace the stock HDD and I am now searching for the best (as best (performace * quality of life) / (cost * upgrade difficulty) ratio) GPU and as I understand it from this thread's first post and other readings, it should be Dell's 4130 WX AMD card.
First of all, am I correct about my assumption ?
Then, is that right the only mod needed is the addition of the copper plate so that the GPU touches the heatsink ?
About software compatibility, I understood it should be enough to insall macOS using OCLPP and that it would be OK to run Ventura, is that right or is there a better option ?
And finally, where do you all buy them from ? I'm in France and the only place I could find such cards was on AliExpress, but I'm quite worried when it comes to buy things from this site.
Thanks for your kind help !
I'm new here, searching for information to complete my project:
I'm the happy owner of an earlry 2011 21,5 inch iMac (12,1 IIRC) and would like to give it some boost.
I already bumped its ram, and have an SSD ready to replace the stock HDD and I am now searching for the best (as best (performace * quality of life) / (cost * upgrade difficulty) ratio) GPU and as I understand it from this thread's first post and other readings, it should be Dell's 4130 WX AMD card.
First of all, am I correct about my assumption ?
Then, is that right the only mod needed is the addition of the copper plate so that the GPU touches the heatsink ?
About software compatibility, I understood it should be enough to insall macOS using OCLPP and that it would be OK to run Ventura, is that right or is there a better option ?
And finally, where do you all buy them from ? I'm in France and the only place I could find such cards was on AliExpress, but I'm quite worried when it comes to buy things from this site.
Thanks for your kind help !
alberbrando
macrumors newbie
First of all hello and welcome.All your assumptions are right about the graphic card,OCLP and best OS you may install with no worries.
And about buying in Aliexpress...well I have bought the graphic card and the WiFi card (and adapter) to upgrade my iMac late 2009 27" to the same buyer and no problem at all.It was fast and painless.
Yes perfect understanding
Correct
I think many people run Sonoma with WX4130. I had some hangs in Sonoma (post #21936) and tested Monterey and was perfect stable. Now testing Ventura...
I was using none EG2 VBIOS ( post #1 directs to this VBIOS ) but now shifted to EG2 VBIOS ( link ) and gradually moving up macOS (Monterey -> Ventura -> Sonoma) to determine stability given my prior hang issues.
USA ebay. Probably costly to ship to FR? Will need to flash vBIOS. Use GRML method. Info in my signature linked websites.
Aliexpress is okay source. Buy from higher volume seller ( link ) Will get money back easily (Aliexpress usually favor buyer in disputes)
Ok, thanks for your feedback.
Thank you too.
I hoped I would not need to flash VBIOS, last time I did such things was to fit a 3DFX 4 card into a PowerMac 7500, it has been ages 🙂 !
Looking into US eBay to compare prices with AliExpress...
VBIOS flashing sounds scary but is trivial. No burning hardware necessary as experts have already made it easy. Look at the GRML section in signature link website.
- Put premade file set on USB key
- Put vBIOS file on USB key
- Disconnect or erase internal SSD so bootrom can't boot from there
- Insert USB key into iMac
- Power on
- Connect via ethernet
- remote login from another computer to iMac running GRML with blank screen
- run a few terminal commands to flash the GPU VBIOS. Done
The low volume GPU card seller from aliexpress 1) flash the wrong VBIOS 2) reused the old X bracket which cause bolt to contact logic board. Experience listed in signature link website.
Sounds easy enough indeed, no need to find a host PC with same bus to flash the card like it did in the past 😉 !
Looking at your links I see that some of the folks behind all this are the same that were already developing XPostFacto, fond memories 🙂 !
That's frightning. I looked at the high volume AliExpress reseller found in your links but they don't have the WX 4130 right now.
On US eBay I found https://www.ebay.com/itm/3554844885...7UTofu17ARAG3CTnoMOGC7QNsOXJ|tkp:BFBMsIH8xLBk, which is cheaper than what I can found on low volume AliExpress resellers, even when including shipping cost.
I think I'll go for that card.
Anyone know of a way, or a bios, to unlock overclocking (under Windows?) for the WX7100? I've tried under Afterburner to unlock unofficial overclocking. When applying the overclock, the settings just revert.
I finally bought a WX 4130 card from the eBay account I linked yesterday.
I was a bit hesitating but I just received a notification from an application I'm using that they'll stop working on September the 1st on my browser, and I cannot install anything more recent on High Sierra, so it's definitely time to upgrade !
Thank you all for your help, I'll post something once the upgrade is done (or if it fails 😛 ).
I was a bit hesitating but I just received a notification from an application I'm using that they'll stop working on September the 1st on my browser, and I cannot install anything more recent on High Sierra, so it's definitely time to upgrade !
Thank you all for your help, I'll post something once the upgrade is done (or if it fails 😛 ).
