2011 Macbook Air 11" LCD screen (not full assembly) replacement - DIY help

Cortland15B

macrumors newbie
Original poster
Mar 3, 2014
3
0
A remote hit my macbook air screen a few months ago and cracked part of the lcd screen and it created a circle of dead pixels about the size of a dime and has spidered out a little bit. The backlight is still fine though. I just bought a replacement lcd screen off of ebay along with a tool kit. I will be having a friend who went to school for IT and has had a good amount of experience repairing broken computers, iPods, etc help me but he hasn't done a laptop screen before. They have a video on youtube of how to do it but it doesn't to show you how they put it all back together, do you have to replace the adhesive around the bezel or not? Then is there anything that you have to be really careful of? Step by step instructions would be awesome. I would greatly appreciate any tips you can give me too.

Thanks,
Cortland15B.

Last edited:

TheRealDamager

macrumors 65816
Jan 5, 2011
1,043
11
Did you buy the entire upper assembly (screen and laptop lid), or just the screen? If you bought only the screen, your friend better be world-class, because there are TONS of adhesive and very fragile layers involved in replacing the screen. I've seen about 15 people try this repair - I've seen 1 do it successfully.


alphaod

macrumors Core
Feb 9, 2008
22,087
1,133
NYC
If you only bought the LCD like TheRealDamager said, you need a heat gun to melt the adhesive before slowly prying it off the bezel.

The big issue is the aluminium trim very easily get bent and there really isn't much you can do to smooth it back into place.

If it's the whole top lid, then it's easy to do and requires removing the bottom cover.


Cortland15B

macrumors newbie
Original poster
Mar 3, 2014
3
0
It is the inner component not the entire screen. I have a heat gun. Do I need to buy new adhesive or do you not have to replace it? If so what type is the best? Is there anything else besides the screen and the toolkit I have to buy? Tips and instructions would be greatly appreciated. I know its not going to be easy, but worse case scenario I have to replace the entire thing which is close to 300$. To have a repair shop replace just the inside (what I'm doing) is still close to 300$. Its obviously not impossible to do. Just have to take it slow and be very patient. Giving me tips will help me a lot more than just criticizing.

Last edited:

TheRealDamager

macrumors 65816
Jan 5, 2011
1,043
11
I would pay to have it done. Really good $$$ value for the $$$ spent. If you decide to do it yourself, please update this thread.


Cortland15B

macrumors newbie
Original poster
Mar 3, 2014
3
0
I decided to do it myself, thats why I created this. Update it? In what way?

I just watched 2 videos where they used a razor blade instead of heat and the plastic tool to pry most of the bezel up, what if you used the plastic tool around where the wires are at and the blade for everywhere else? The only wire locations are at the camera and along the bottom bezel right?

Last edited:

Cityhall89

macrumors newbie
Oct 24, 2012
2
0
How did the repair go? I'm about to attempt the same repair. $70 for screen vs $500 for assembly... no brainer.


l.a.rossmann

macrumors 65816
May 15, 2009
1,054
162
Brooklyn
I decided to do it myself, thats why I created this. Update it? In what way?

I just watched 2 videos where they used a razor blade instead of heat and the plastic tool to pry most of the bezel up, what if you used the plastic tool around where the wires are at and the blade for everywhere else? The only wire locations are at the camera and along the bottom bezel right?
Get a utrecht art supply store spatula. I can take the bezel off in 90 seconds or less now.


l.a.rossmann

macrumors 65816
May 15, 2009
1,054
162
Brooklyn
It is the inner component not the entire screen. I have a heat gun. Do I need to buy new adhesive or do you not have to replace it? If so what type is the best? Is there anything else besides the screen and the toolkit I have to buy? Tips and instructions would be greatly appreciated. I know its not going to be easy, but worse case scenario I have to replace the entire thing which is close to 300$. To have a repair shop replace just the inside (what I'm doing) is still close to 300$. Its obviously not impossible to do. Just have to take it slow and be very patient. Giving me tips will help me a lot more than just criticizing.
You need new adhesive.

https://www.youtube.com/watch?v=BwMKK0P5_IY&index=7&list=UUl2mFZoRqjw_ELax4Yisf6w

http://www.rossmanngroup.com/blog/adhesives-separate-failures-professionals/

This is total self wankery as I sell this adhesive, but I don't sell it to make money. I sell it because people beg me, five to ten private messages per day, to sell them it... and at ten bucks with free shipping, it's just charity.

There are three types of adhesive. Actually, four.

a) Superglue. DO NOT USE THIS.

b) Adhesive that barely sticks. DO NOT USE THIS.

c) Adhesive that sticks and NEVER COMES OFF. Use if you have confidence.

d) Adhesive that sticks, but only comes off if you try to use the tool to pry it off. This is what I use and sell, because it makes my life easy.

There are tons of different 3M Core series adhesives. I spent years torturing myself using crap adhesive before I found this. I take this as seriously as the type of underwear I put on, my choice in a home recliner, it has that much of an effect on my daily misery/stress level.


kcrunchone

macrumors newbie
May 23, 2014
4
0
I am reading along with many of the people her because I am attempting a repair myself. I ordered the screen and the glass only parts that were damaged. But if you haven't done it already do not use a razor or sharp tool, the camera wire runs along the right side around the bezel and is recessed in the framing. It is not buried deep in the niche but rather surface flush and could be nicked with a blade or sharp instrument.


DonGarrio

macrumors newbie
Jun 6, 2014
1
0

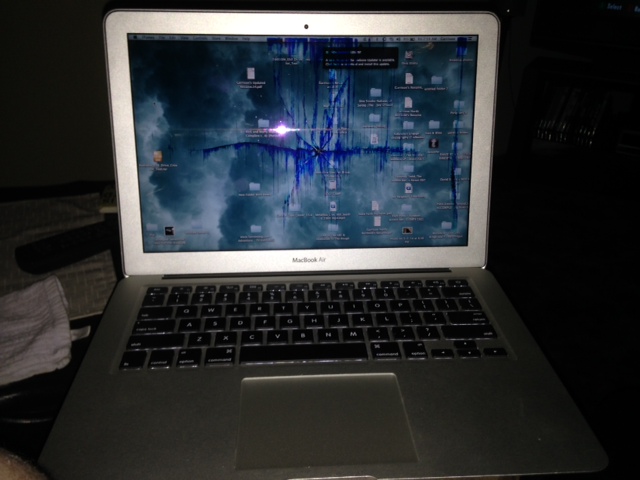

2011 Macbook Air Screen!

You said you got your replacement on Ebay? Can you send me the link to the sell or something? I saw someone say their replacement was $70 and ya that is a no brainer however I cannot find the correct part to replace mine..If you can help it would be much appreciated. Thanks again and good luck on your repairs. :D


Attachments

kcrunchone

macrumors newbie
May 23, 2014
4
0
Don't use any type of glues or adhesive the actual glass replacement comes with the double sided tape adhered in place when ordered. I did my repair and ordered from a laptop screen website and the glass I picked up from amazon it was cheaper that all other sites and it's original MacBook pro glass.

So I actually did this repair on the 13 and a 15 and both are up and running smooth. The purchase of the screen and glass were more than worth the investment. $130 for both to be repaired and new glass but the second one the glass was not cracked it was ordered as a precaution to me breaking it, but I got lucky.

----------

You said you got your replacement on Ebay? Can you send me the link to the sell or something? I saw someone say their replacement was $70 and ya that is a no brainer however I cannot find the correct part to replace mine..If you can help it would be much appreciated. Thanks again and good luck on your repairs. :D
try
www.laptopscreens.com
BTW the MacBook air screen is more than the MBP

Last edited:

FindYourLane007

macrumors newbie
May 28, 2014
8
0
Display Screen Seeker

Hey there guys! Do you have any advice on where I could by a cheap replacement screen for my Mac Air 13"?? Please help, I cant do this much longer and I am new to Mac:confused:
