2012 mini 840 SSD Blackmagic speed test

Discussion in 'Mac mini' started by jwjsr, Jul 20, 2013.

  1. jwjsr macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #1

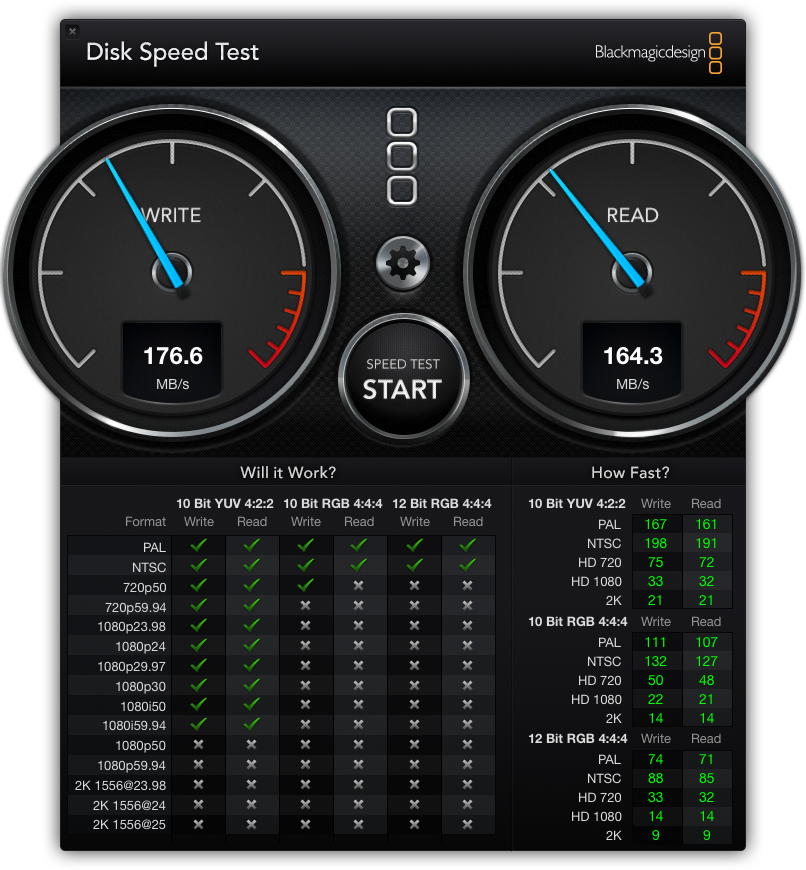

    2012 mac mini w/ samsung 840 SSD setup as fusion black magic @ 5GB stress level results.
    Anybody have this same setup, what are your speeds?
    My writes test can vary from 50mb to 160mb
    Reads can vary from 300 to 480
    I havent been able to update the Samsung 840 firmware to the latest version as I don't have an optical drive, I have seen posts that it can be done via USB but I can't figure it out.


    Attached Files:

  2. SandboxGeneral Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #2
    Without an optical drive on the main SATA bus of the computer you cannot update the firmware via OS X. The only other way will be to install Windows in BootCamp and run the Samsung Magician software to do it.

  3. jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #3

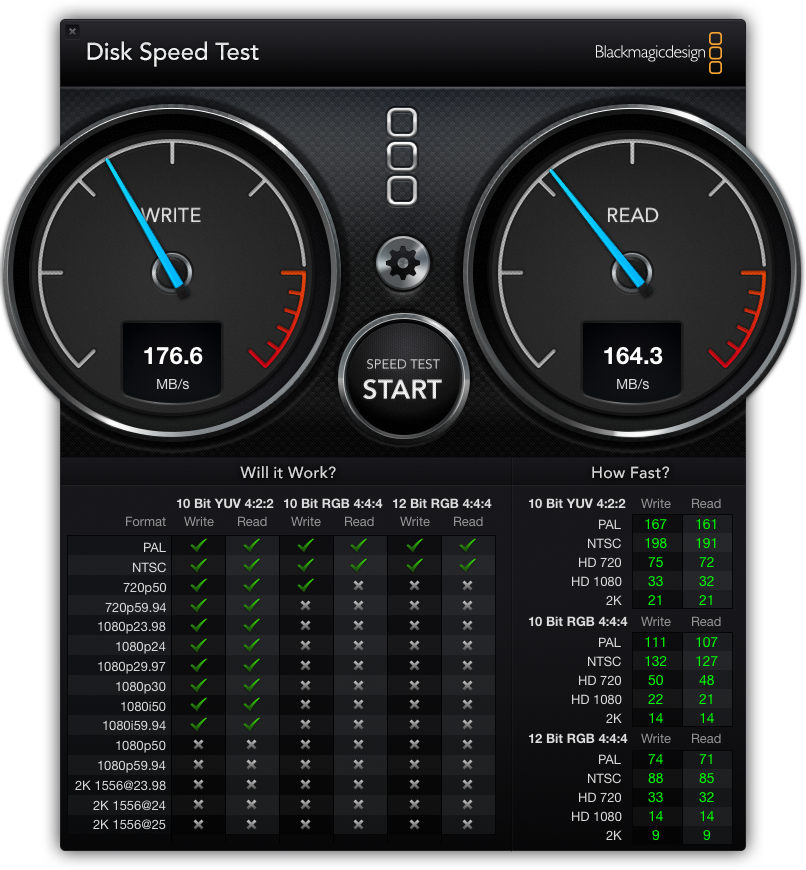

    Thanks sandbox, look at this BM test to my Lacie TB external.


    Attached Files:

  4. SandboxGeneral Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
  5. jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #5
    When choosing a target disk from blackmagic the sd is not an option so i chose ether fusion or downlaods as the target but I am not sure which disk BM is writing to?

  6. SandboxGeneral Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #6
  7. jwjsr, Jul 20, 2013
    Last edited by a moderator: Jul 20, 2013

    jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #7
    I forget how to look that up but this is what its not DXT07B0Q,

  8. SandboxGeneral Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #8
    :apple: --> About This Mac --> System Report --> Serial-ATA --> Revision:_____

  9. jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #9
    DXT06B0Q
    I've been following that 830/840 thread for months and i think my write speeds may be low
    I think Hellhammer or someone said this update should not matter but I do remember the 07 firmware update had something to do with write functions.

    ----------

    Yeah, I am running win8 under parallels and I think my original win8 was on a usb stick and i might have erased it. Can i install the win 8 that is on the mini running under parallels under bootcamp? I do have the win8 product key.

  10. SandboxGeneral Moderator

    SandboxGeneral

    Staff Member

    Joined:
    Sep 8, 2010
    Location:
    Orbiting a G-type Main Sequence Star
    #10
    Should be able to.

  11. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #11
    I found that I had the exact issue last night ... same computer, same SSD, same benchmark app. I was getting the same speeds you show.

    I enabled trim with Trim Enabler, disabled last access time stamps, rebooted and tried again.

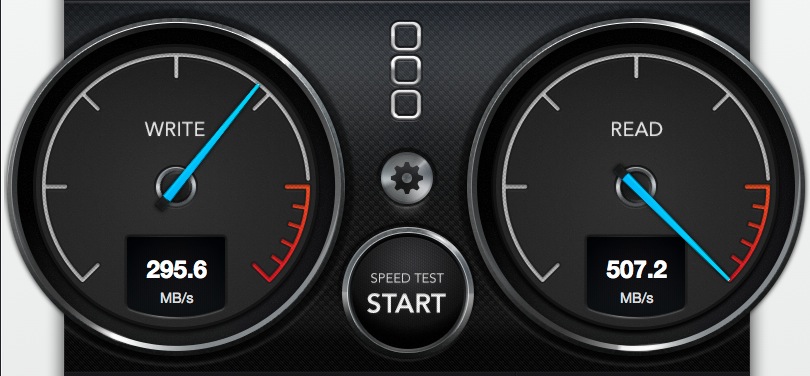

    Screenshot of results attached.

    -Doc


    Attached Files:

  12. jwjsr, Aug 26, 2013
    Last edited: Aug 26, 2013

    jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #12
    "disabled last access times stamps", why and how?
    I have never gotten those write speeds, mine range from about 80 to 190

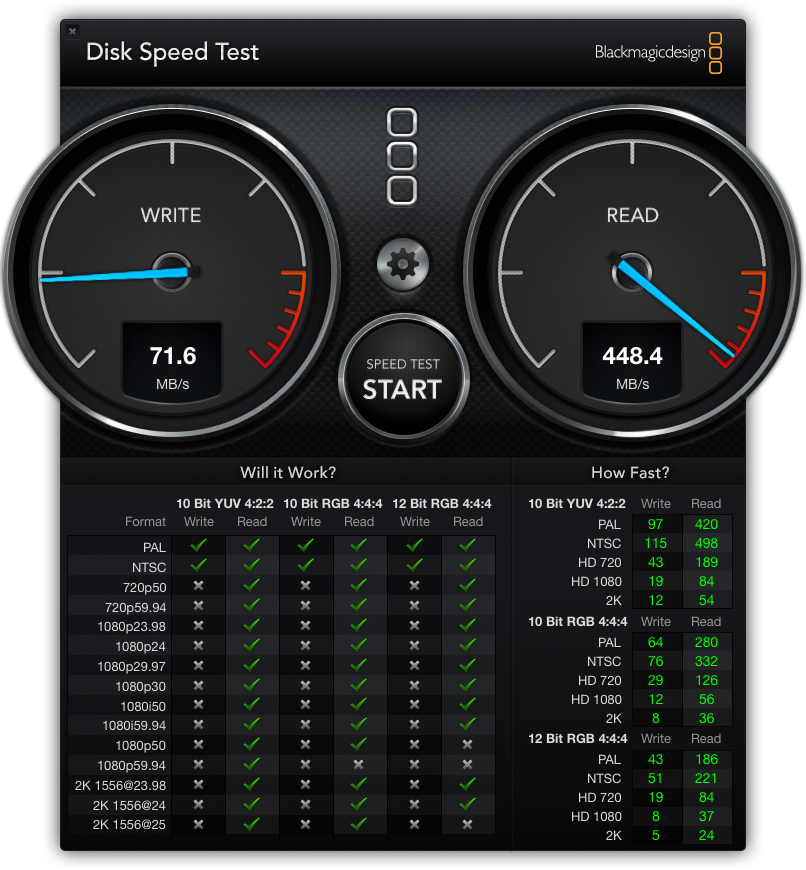

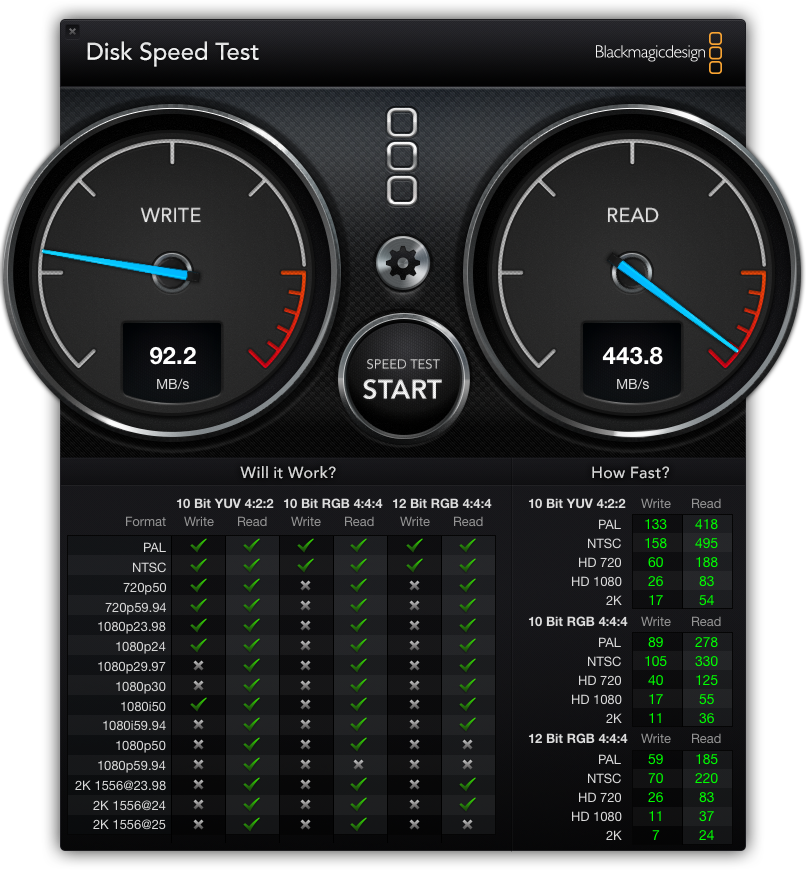

    I just udated trim enabler and this is what i am getting


    Attached Files:

  13. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #13
    I disabled it because it causes constant access to the drive for a feature that I don't have a use for ... "Updated" is more important to me than "Accessed", so it's unnecessary wear on the drive and performance overhead, however slight either might be.

    I used the paid version of Trim Enabler ($10) to do it, but you can also do it via the command line.

    See step 4 in this thread.

    I used step 1 (Trim Enabler) and step 4 (via Trim Enabler) and my benchmarks returned to the expected results that I get with the same drive on my MBP.

    Best,

    -Doc

  14. elolaugesen macrumors regular

    Joined:
    Aug 1, 2008
    #14
    Last time stamp

    I believe this is a microsoft window option?

    Forget this question

  15. jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #15
    Thanks, I'll give that a whirl

  16. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #16
    I assume that NTFS has an equivalent option, but this was all done in OS X for me.

    -Doc

    EDIT: My config appears to be the same as the OP. 2012 Mini, Samsung 840 SSD.

  17. jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
  18. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #18
    I was wondering that myself. How can I tell? And can it be updated via a USB stick as someone mentioned?

    Away from the computer for an hour or two ... I'll check back here when I return.

    -Doc

  19. jwjsr, Aug 26, 2013
    Last edited: Aug 26, 2013

    jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #19
    See sandbox earlier post on the thread for finding version.
    I'm dumb but i have tried everything mentioned on these threads for about 5 months and haven't gotten it to update. tried usb stick it can't find the 840, finally installed windows under bootcamp and it went a step or 2 further but still encountered some kind of error that ended it. IMHO we would have to remove it to update it. one MR member, maybe it was Hellhammer posted the update probably very minor and might not even affect us.
    I think it would might work via win8 bottcamp on non-fusion. is your setup fusion? mine is.

  20. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #20
    You bring up a good point; that the update might not even make a difference that we'd notice.

    I've got the 840 and a spindle drive installed ... no fusion. I just deleted my BC partition about a month ago because I never used it, so I probably won't bother going that route. I could add it as another drive to my gaming PC and see if that works ... again though, I'd have to read something promising about the firmware update to really bother. The speeds I am seeing now are what I expect, so I think all is well.

    -Doc

  21. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #21
  22. jwjsr thread starter macrumors 6502

    jwjsr

    Joined:
    Mar 15, 2012
    Location:
    Fairhope, Alabama
    #22
    In chameleon to disable noatime, do you select on or off?

  23. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #23
    "Off"

    -Doc

  24. Marvin16 macrumors member

    Joined:
    Jul 8, 2013
    #24
    128Gb

    i have this drive but the 500Gb version i also know that the 128gb version is alot slower i mean alot so that will be your problem!

  25. Doc. Caliban macrumors member

    Joined:
    May 16, 2011
    #25
    Ah, mine is 500GB as well.

    I did manage to update my firmware but did not see any performance difference in the benchmarks.

    -Doc
