2014 mac mini boot from SD drive?

Discussion in 'Mac mini' started by APPLENEWBIE, Oct 4, 2017.

  1. APPLENEWBIE macrumors 6502a

    Joined:
    May 8, 2006
    Location:
    The high desert, USA
    #1
    I bought a 2014 Mac Mini with spinning hard drive a couple years ago... dog slow. painfully slow. unusable. I have been running it mostly from an external USB3 SSD boot drive which is pretty fast, much better than the hard drive was.

    Question: Would it be possible/efficient to run it from an SD card - SDXC (Secure Digital Extended Capacity) drive? The specs say it will accept 32 gb and larger cards in that slot. Anyone have an idea if that is worth doing? A 128 gb SDXC card is about $67 from Amazon.

    Thanks!

  2. Boyd01 macrumors 601

    Boyd01

    Joined:
    Feb 21, 2012
    Location:
    New Jersey Pine Barrens
    #2
    Check the speed of the SD card you are considering, they are usually much slower than hard drives. For example, the 5400 RPM mini hard drive has a write speed of about 100MB/sec and you know how slow that feels.

  3. APPLENEWBIE thread starter macrumors 6502a

    Joined:
    May 8, 2006
    Location:
    The high desert, USA
    #3
    Thanks. It looks like they are rated at about 50MBs... so... not good.

    I probably should bite the bullet and swap a new ssd internally.. kinda scary process though

  4. Boyd01 macrumors 601

    Boyd01

    Joined:
    Feb 21, 2012
    Location:
    New Jersey Pine Barrens
    #4
    Why not just continue using the external SSD? That's what I do on my 2012 Mini with a 1TB Samsung T3 SSD, I use this machine exclusively for video editing and it is very fast.

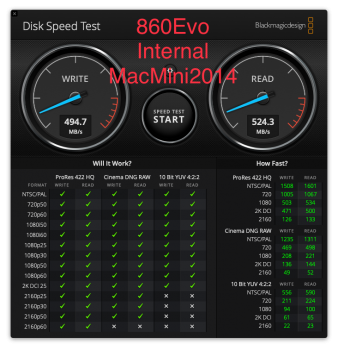

    [​IMG]

  5. PhyreMe macrumors newbie

    Joined:
    Mar 18, 2019
    #5

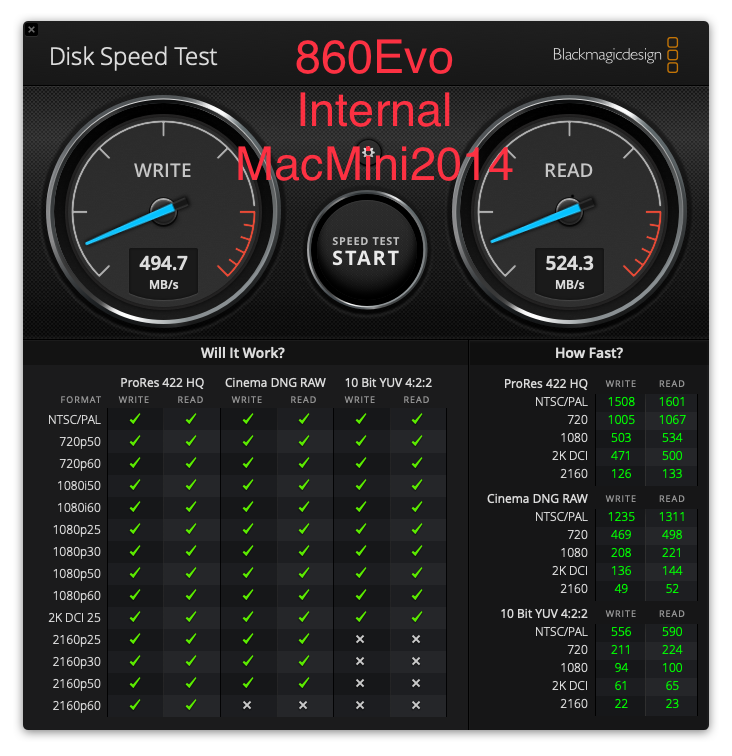

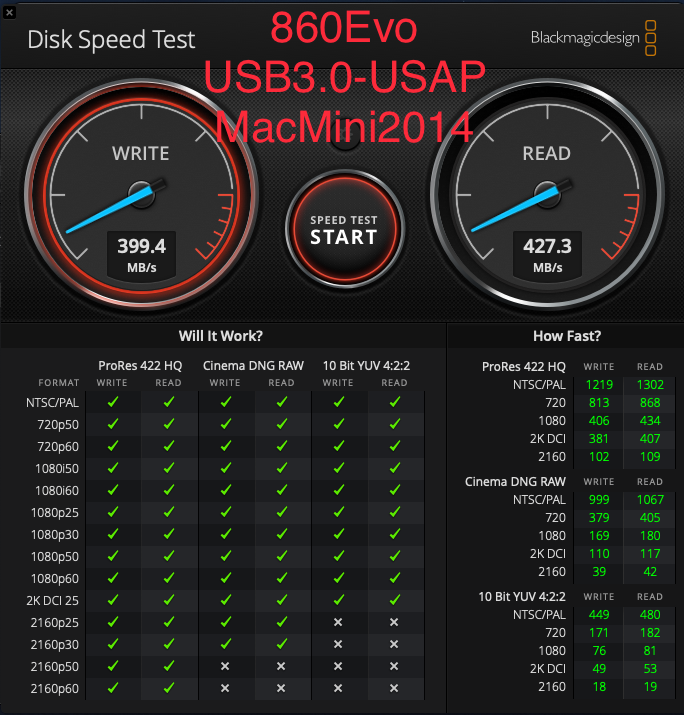

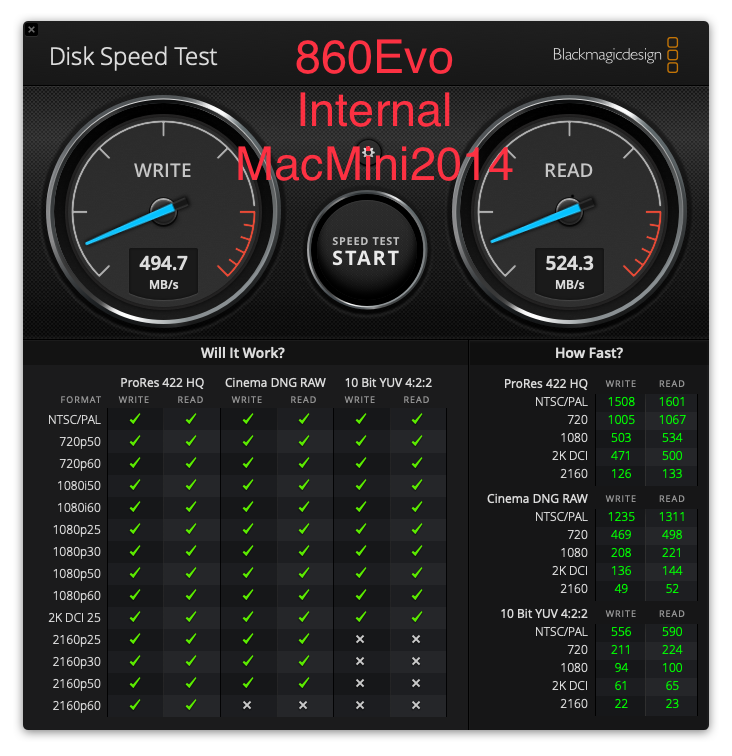

    Here's the performance difference between a USAP USB3 cable and internally putting the same SSD in the device (and in both cases, booting off the HDD to get a clear performance indication).

    You decide if that's enough significance for you. Note the 860 is limited by SATA3 interface sadly.


    Attached Files:
