Frekedech

macrumors newbie
Original poster
Jul 15, 2013
6
0
I'm not sure whether this has been posted before. I happened to purchased two Macbook Air 11" with 128GB Storage this year, one in late June and another recently. Surprisingly, the later one uses the updated NVMe SSD just like the 12" Macbook (only in a blade form) as opposed to the AHCI PCI-e SSD.

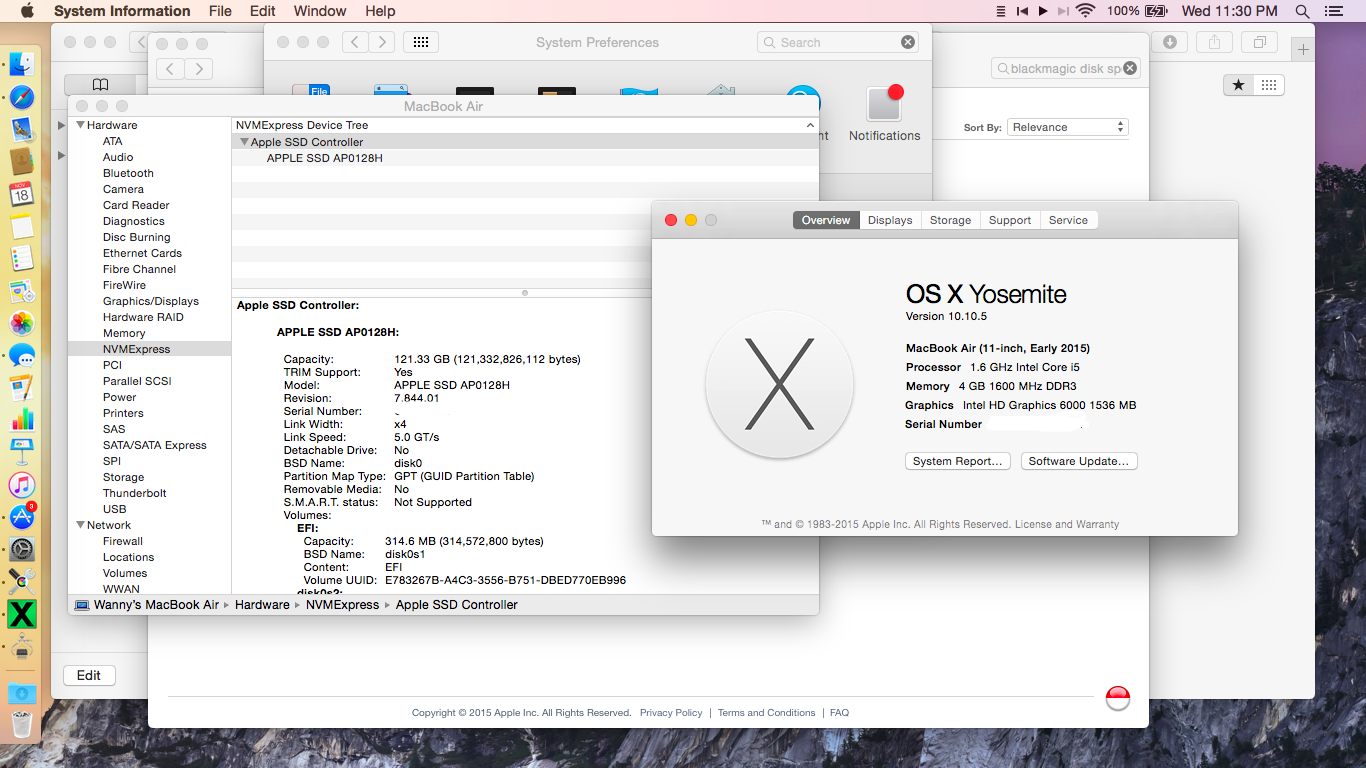

Screen Shot 2015-11-18 at 11.30.56 PM.png


Tested it with Blackmagic and here's the result:
Screen Shot 2015-11-18 at 11.31.54 PM.png

The verdict: Although the write speed is equal to the PCI-e ranging from 270MBps to 300MBps. Write speed is almost 45% improvement compared to the ~700MBps on late June model.

The PCI-e on 11" 256GB model may have Read and Write speed at ~700MBps while the 13" 256GB has to be ~1400MBps.

Anyone with the 256GB NVMe to confirm and add in the reading? =)

Cheers!


SmOgER

macrumors 6502a
Jun 2, 2014
805
89
Not that those sequential speeds differences in 200-800MBps range are noticeable in day-to-day use (except when you are copying huge files from one storage into another which is super fast as well), but yeah, those write speeds are no better than on mSATA mid-2011 MBA.

Last edited:

bizzle

macrumors 6502a
Jun 29, 2008
937
37
Not that those sequential speeds differences in 200-800MBps range are noticeable in day-to-day use (except when you are copying huge files from one storage into another which is super fast as well), but yeah, those read speeds are no better than on mSATA mid-2011 MBA.
Really? This is why MR cracks me up. A 2011 MBA only has SATA 2, which is a hell of a lot slower than 1020 MEGABYTES per second, like 3 times slower.


Erdbeertorte

Suspended
May 20, 2015
1,180
500
Write speed should be between 600-700 MB/s for the 128GB SSD. I get 600 MB/s even on a MBA from 2013, but reading is not much faster than writing because it only has x2 link width and the new ones have x4. Is the disk very full?


Frekedech

macrumors newbie
Original poster
Jul 15, 2013
6
0
Oh, 128GB usually only has half the write speed of the 256GB model. There are some benchmark on Youtube, if I'm not wrong this bottleneck caused by the limited lane or chips inside.


Fancuku

macrumors 65816
Oct 8, 2015
1,018
2,628
PA, USA
Write speeds are very low indeed. Something is not right. Write speeds should be at least 600.


MultiFinder17

macrumors 68030
Jan 8, 2008
2,565
1,701
Tampa, Florida

Attachments

  • Screen Shot 2015-11-21 at 12.35.36 PM.png
    Screen Shot 2015-11-21 at 12.35.36 PM.png
    138.9 KB · Views: 484

navaira

macrumors 68040
May 28, 2015
3,905
5,115
Amsterdam, Netherlands
My new 13" Air tests read speeds around 800 MB/s. Not that it feels slow ;) but all reviews say it's rocking 1000-1200 MB/s read speeds tested with Blackmagic? How come mine is slower? I got it today so it's not like old age is affecting it... ;)

Edit: I switched off FileVault and hey presto, 1300 MB/s.

Last edited:
