2016 MacBook 12'' Retina display --SSD replacement--

JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
3 years of light use and this MacBook die .I believe the SSD is fry because I can't find it any more in the disk utilities or holding command +R same think, according to many users this MacBook have the same issue ,the problem is the SSD is weld it in the logic board the only way to fix it is replace the logic board and looks that is very difficult to do it, any ideas or any solutions for this problem..The logic boards are very expensive please share thank you...


Mike Boreham

macrumors 68000
Aug 10, 2006
1,668
360
UK
3 years of light use and this MacBook die .I believe the SSD is fry because I can't find it any more in the disk utilities or holding command +R same think, according to many users this MacBook have the same issue ,the problem is the SSD is weld it in the logic board the only way to fix it is replace the logic board and looks that is very difficult to do it, any ideas or any solutions for this problem..The logic boards are very expensive please share thank you...
If you can open Disk Utility, it sounds like the Mac is able to boot up....or are you booting and running Disk Utility from an external drive? I wouldn't assume the SSD is dead at this point.

What actually happens when you boot up, both normally and in Recovery?

Without understanding quite what is happening, you could try non specific steps like:

-Safe booting (hold shift key while starting up until the Apple appears)
-Reset SMC and PRAM


JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
If you can open Disk Utility, it sounds like the Mac is able to boot up....or are you booting and running Disk Utility from an external drive? I wouldn't assume the SSD is dead at this point.

What actually happens when you boot up, both normally and in Recovery?

Without understanding quite what is happening, you could try non specific steps like:

-Safe booting (hold shift key while starting up until the Apple appears)
-Reset SMC and PRAM
Thank you for your reply actually I can boot just holding the command +R and
Boot with the option of reinstall the osx or
Also disk utilities but the SSD is not listed is not showing only a boot partition of 2.06GB that all any suggestions.


Mike Boreham

macrumors 68000
Aug 10, 2006
1,668
360
UK
Thank you for your reply actually I can boot just holding the command +R and
Boot with the option of reinstall the osx or
Also disk utilities but the SSD is not listed is not showing only a boot partition of 2.06GB that all any suggestions.
Maybe some screenshots or photos would help understand better what you are seeing.

What happens if you select Reinstall OSX....does it show you the internal drive as an option to install onto?

If you run Reinstall OSX (from Recovery) on top of existing, ie without erasing, it will not lose any data or apps, and solves problems sometimes.
[doublepost=1568787239][/doublepost]
Maybe some screenshots or photos would help understand better what you are seeing.

What happens if you select Reinstall OSX....does it show you the internal drive as an option to install onto?

If you run Reinstall OSX (from Recovery) on top of existing, ie without erasing, it will not lose any data or apps, and solves problems sometimes.
Another suggestion to help understand.....in Disk Utility menubar "View" do you have "Show all Devices" or "Show only volumes". If your internal drive volume is corrupt it maybe wont show with "Show all Volumes" but should with "Show all devices".


JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
Maybe some screenshots or photos would help understand better what you are seeing.

What happens if you select Reinstall OSX....does it show you the internal drive as an option to install onto?

If you run Reinstall OSX (from Recovery) on top of existing, ie without erasing, it will not lose any data or apps, and solves problems sometimes.
[doublepost=1568787239][/doublepost]

Another suggestion to help understand.....in Disk Utility menubar "View" do you have "Show all Devices" or "Show only volumes". If your internal drive volume is corrupt it maybe wont show with "Show all Volumes" but should with "Show all devices".

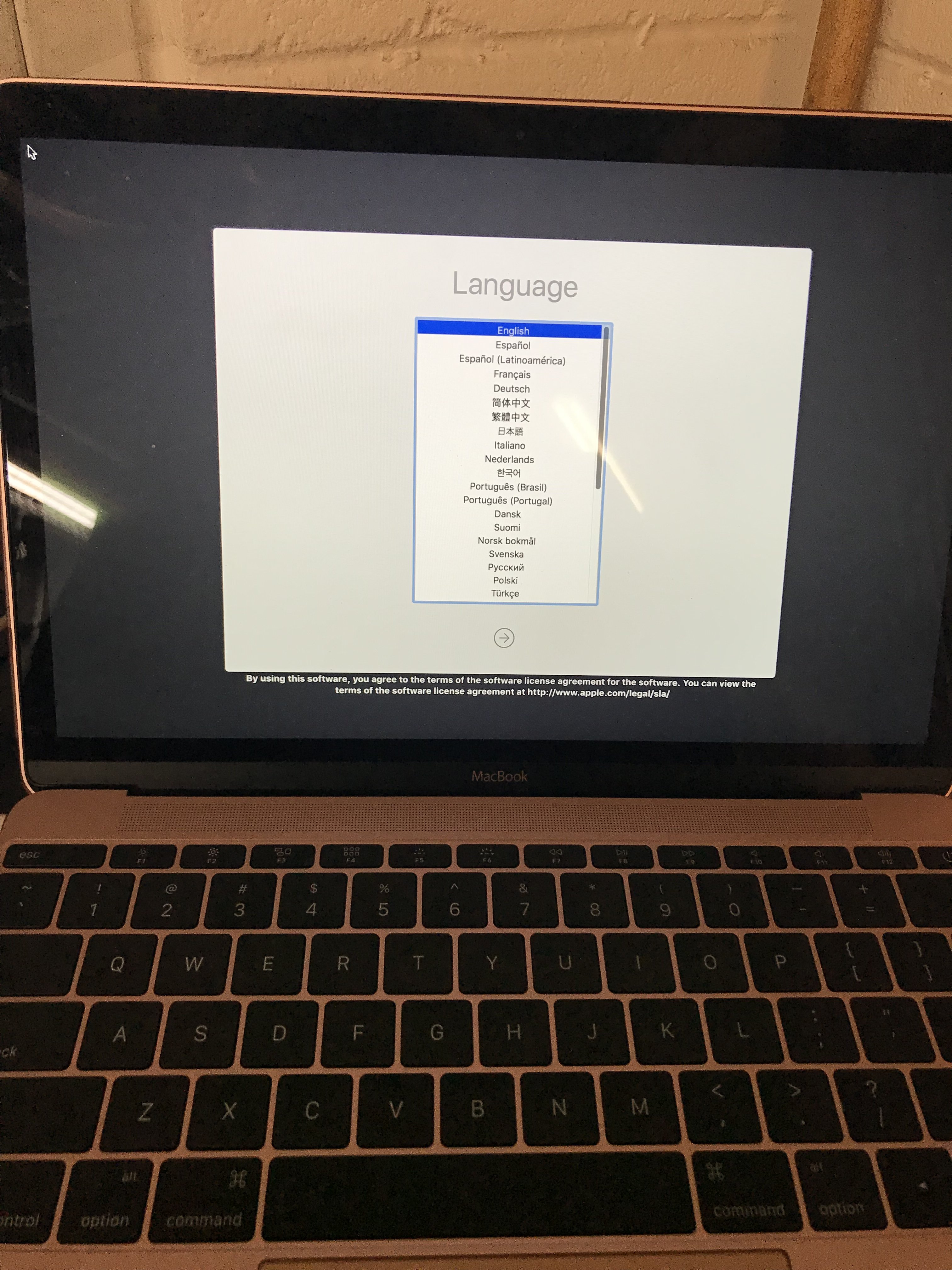

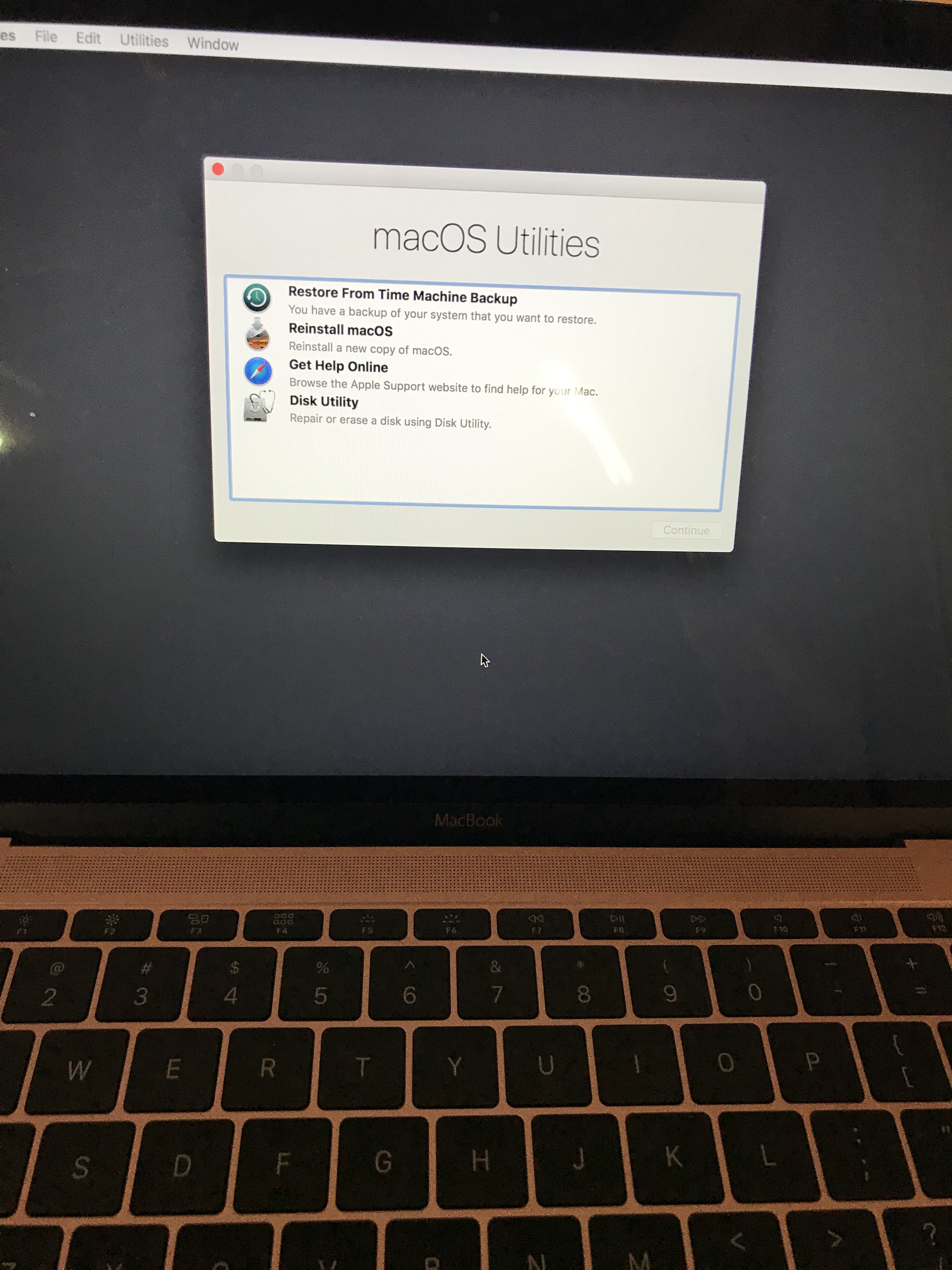

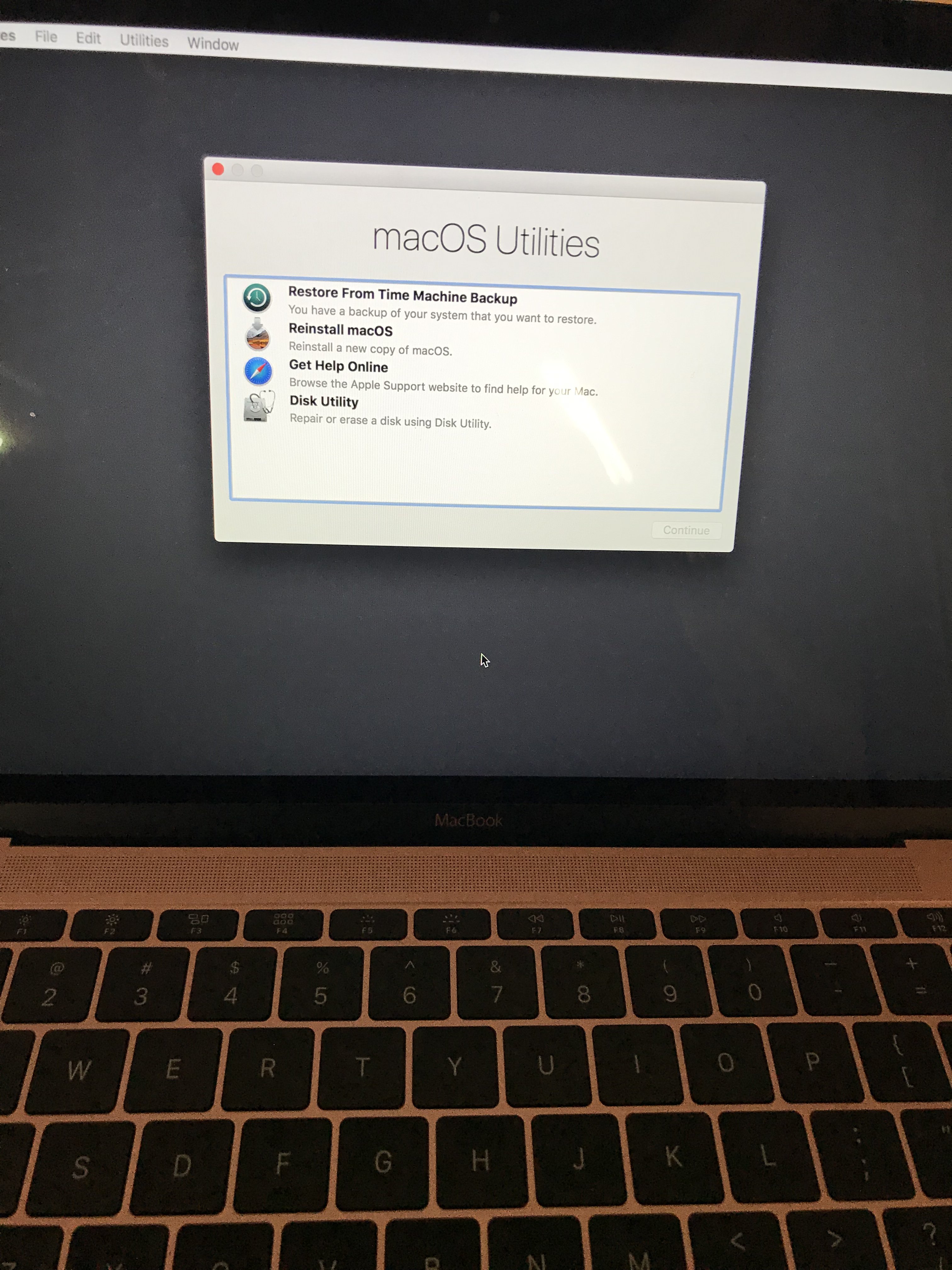

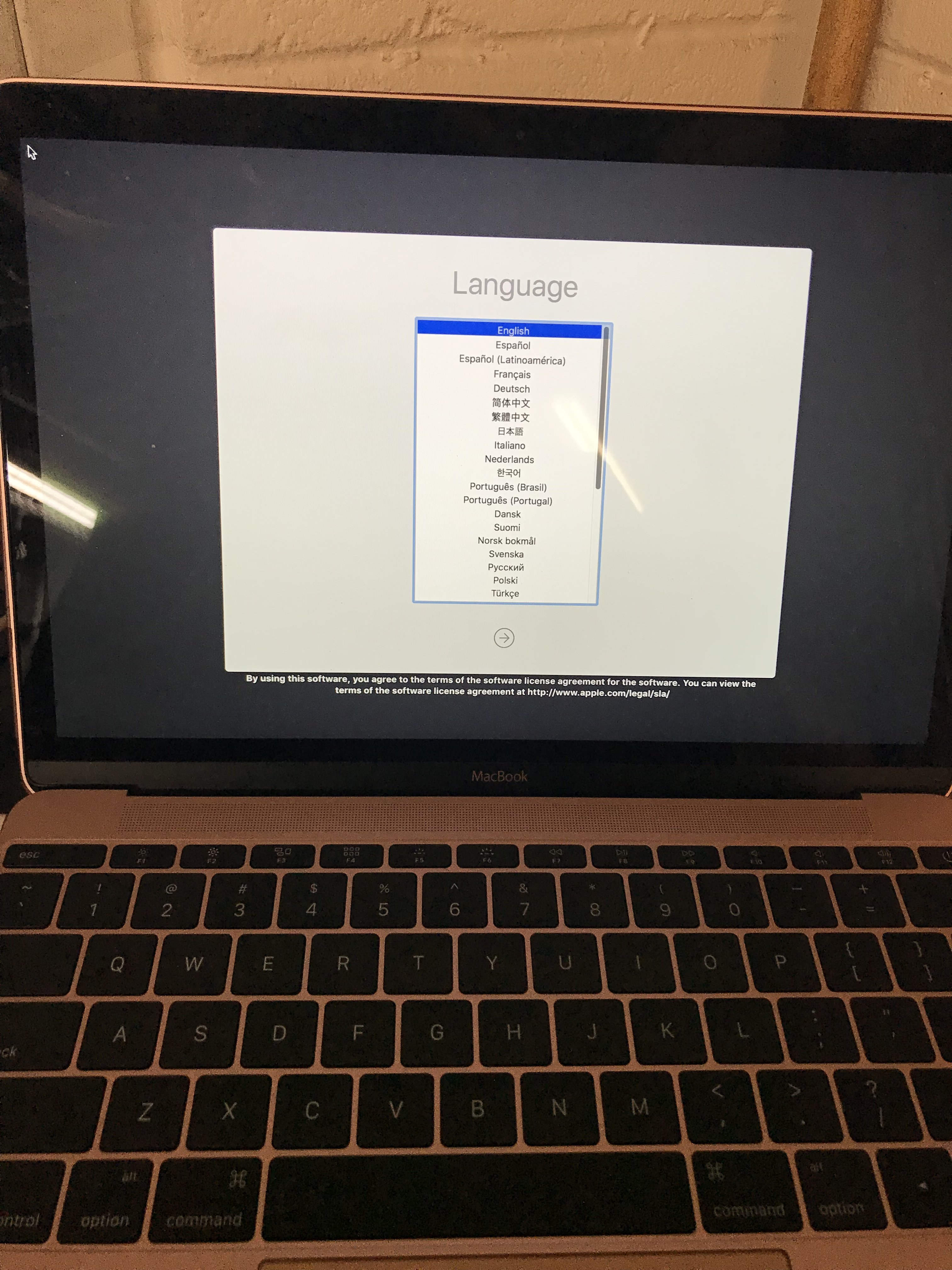

Thank you for help me here are some pictures


Attachments

Mike Boreham

macrumors 68000
Aug 10, 2006
1,668
360
UK
Thank you for help me here are some pictures

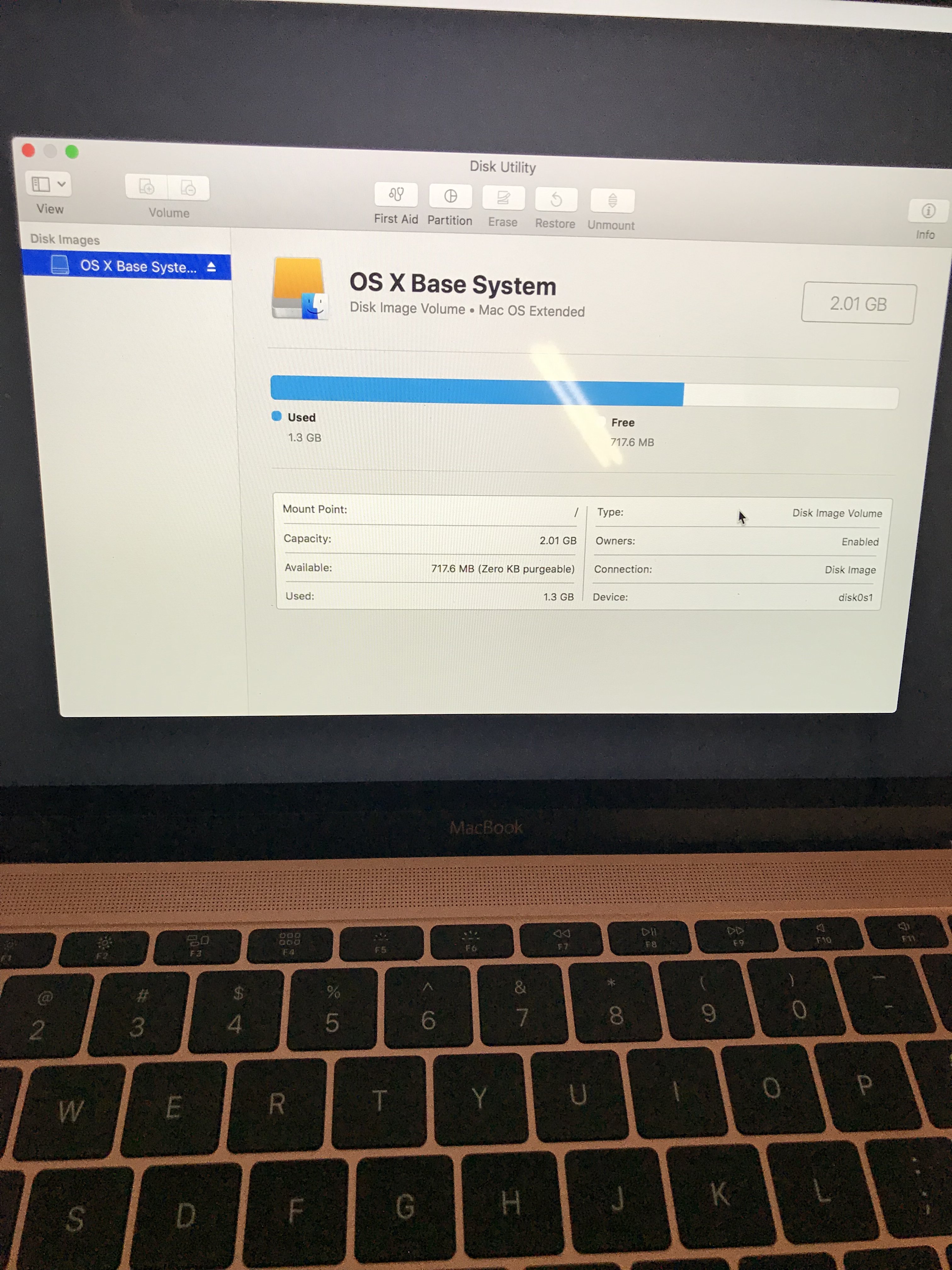

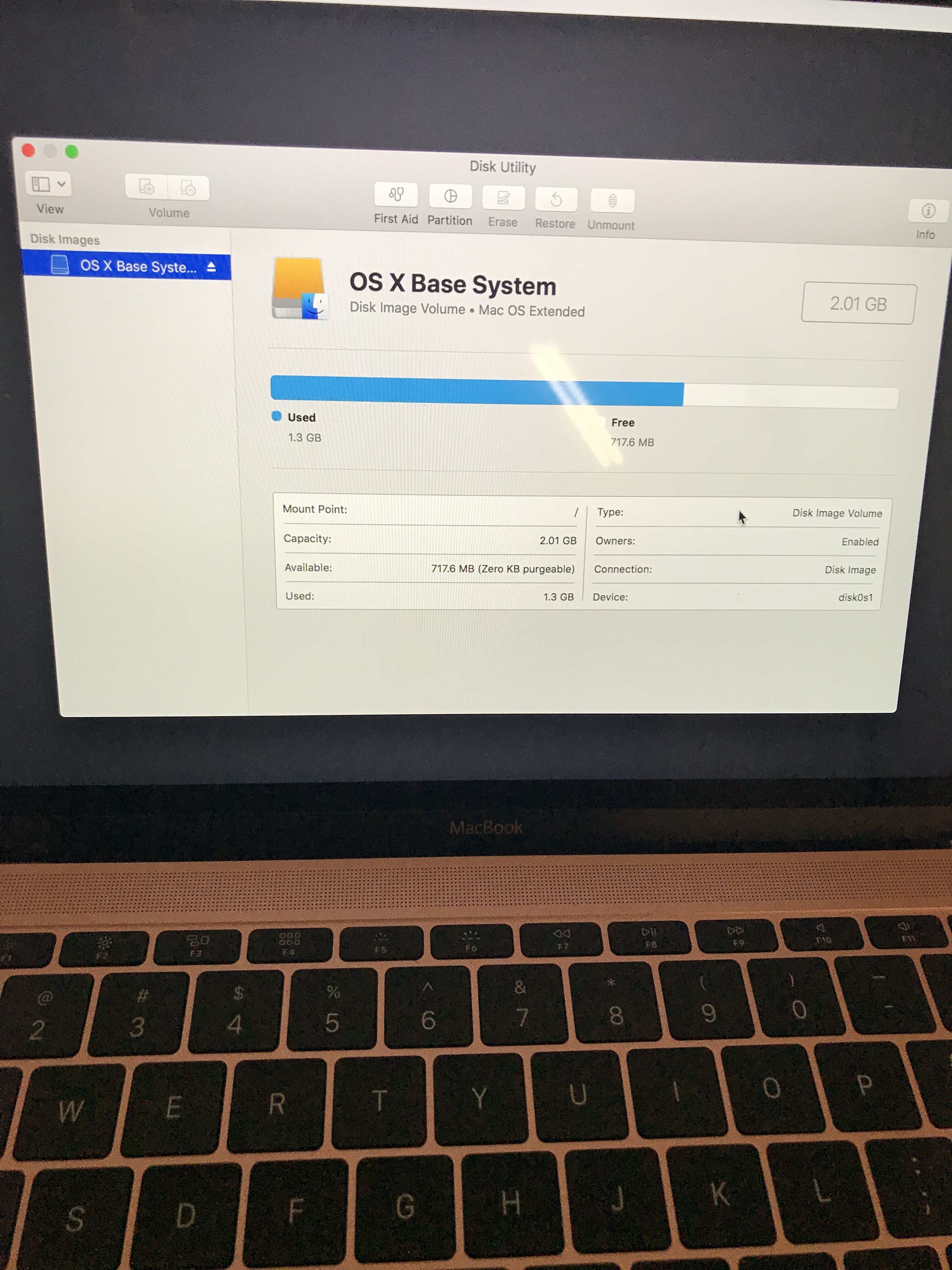

That Disk Utility pic is odd...cant explain that.

What happens when you boot the computer normally?

When booted from Recovery if you select "Reinstall macOS" does it show the internal as an option to install onto?

Remember that the Recovery Portion is on the internal, so the fact that you can boot to Recovery must mean the SSD is not completely fried.


JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
That Disk Utility pic is odd...cant explain that.

What happens when you boot the computer normally?

When booted from Recovery if you select "Reinstall macOS" does it show the internal as an option to install onto?

Remember that the Recovery Portion is on the internal, so the fact that you can boot to Recovery must mean the SSD is not completely fried.

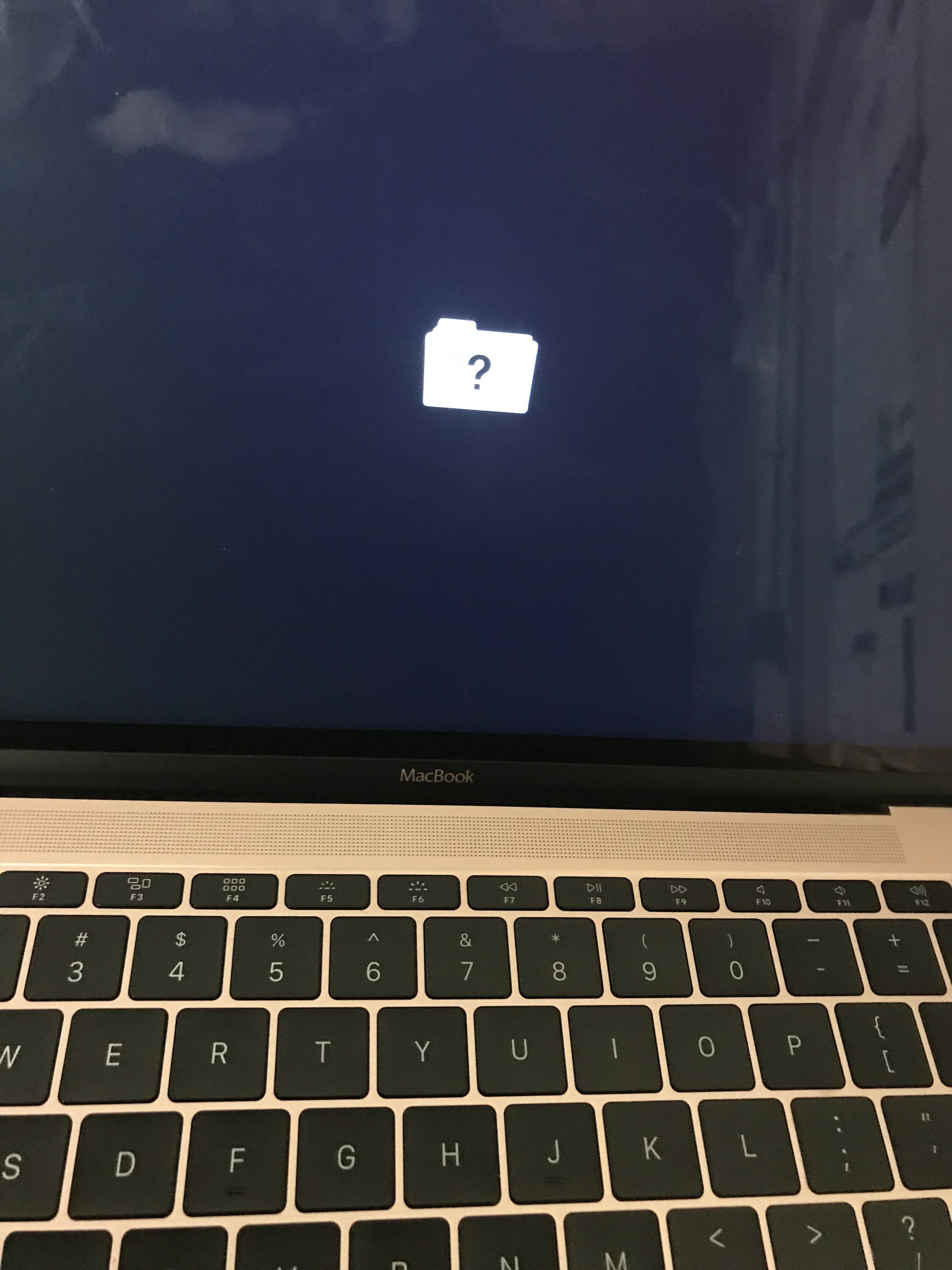

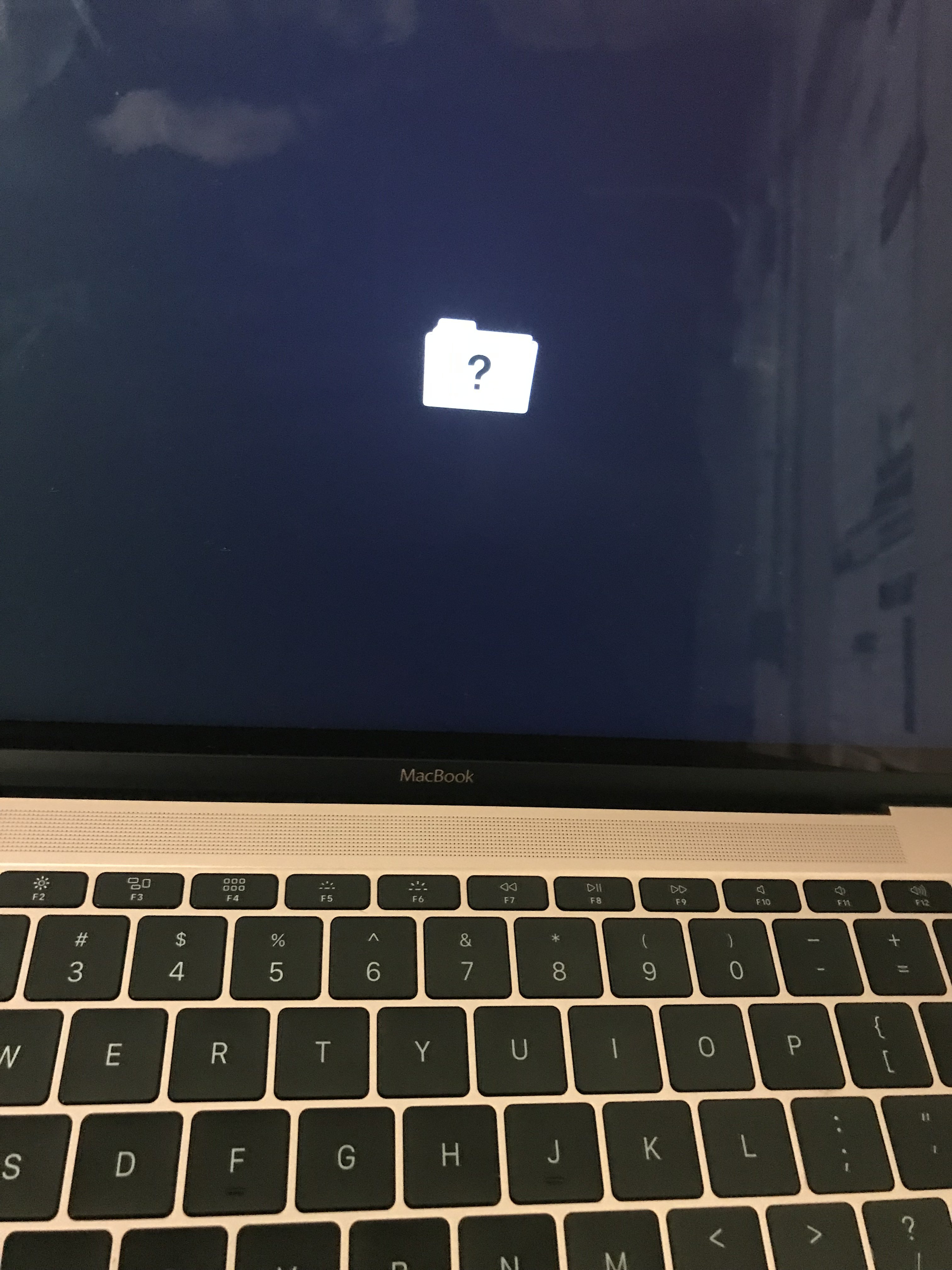

Here is what I have if I boot normally or holding the shift key


Attachments

Mike Boreham

macrumors 68000
Aug 10, 2006
1,668
360
UK
Here is what I have if I boot normally or holding the shift key
At least that’s consistent with DU not showing any bootable volume.
The internal SSD may be fried but the fact that you can boot from Recovery gives some hope that it is only the software fried not hardware.
The only things I can suggest now are:
Reset SMC
Reset PRAM
“Reinstall macOS” from Recovery
“Reinstall macOS” from Internet Recovery.


JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
At least that’s consistent with DU not showing any bootable volume.
The internal SSD may be fried but the fact that you can boot from Recovery gives some hope that it is only the software fried not hardware.
The only things I can suggest now are:
Reset SMC
Reset PRAM
“Reinstall macOS” from Recovery
“Reinstall macOS” from Internet Recovery.
That’s the problem I already tried to install from internet but again it can’t find the SSD and the other issue is the SSD is weld into the logic board


DeltaMac

macrumors G3
Jul 30, 2003
9,734
2,419
Delaware
I am guessing that OP is booting to internet recovery, not the local recovery partition.
The boot would show the rotating globe, and not the usual Apple icon.
That would explain why only the boot system shows in Disk Utility, and nothing about the internal storage.

I would usually try booting to a full system on a USB drive, just to see if there is anything visible about the storage device.
I suspect that device is simply dead/fried. Not much you can do, except replace the logic board.


Mike Boreham

macrumors 68000
Aug 10, 2006
1,668
360
UK
I am guessing that OP is booting to internet recovery, not the local recovery partition.
The boot would show the rotating globe, and not the usual Apple icon.
That would explain why only the boot system shows in Disk Utility, and nothing about the internal storage.

I would usually try booting to a full system on a USB drive, just to see if there is anything visible about the storage device.
I suspect that device is simply dead/fried. Not much you can do, except replace the logic board.
You are probably right that he may already have been booting to Internet Recovery. I think it automatically goes to Internet Recovery if it cant boot to regular Recovery.

Jerezano, as Deltamac says, you will see a spinning globe when booting to Internet Recovery and it can take a while. Is that what happened? If it is booting to Internet Recovery it makes it more likely that the internal SSD is physically dead, not just software.

I usually boot to a USB Installer as well to give external visibility, and ability to erase the whole of the internal, but the OP may not have the necessary to create a bootable installer.

Last edited:

Mike Boreham

macrumors 68000
Aug 10, 2006
1,668
360
UK
That’s the problem I already tried to install from internet but again it can’t find the SSD and the other issue is the SSD is weld into the logic board
Did you try running the Reinstall macOS from Internet Recovery? Did it find anything to install onto?


JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
Did you try running the Reinstall macOS from Internet Recovery? Did it find anything to install onto?
That is going to be my next step, also I have an idea I found some USB-C 3.1 flash drive at amazon I was thinking to use one of those , do you think can be boot fast or very slow, if is not slow I may leave the flash connect all the time because the logic board is around $400 dollars and is used not new very expensive what do you think. than you for all your comments very helpful


DeltaMac

macrumors G3
Jul 30, 2003
9,734
2,419
Delaware
Your MacBook has only the one USB port, so you would need a USB-C hub or dock, assuming you would want to charge the battery while you are booted to the USB drive.


JEREZANO

macrumors member
Original poster
Mar 17, 2014
40
2
Thank you Mike and DeltaMac I just finish to install the OS X on external hard drive, defenily the internal SSD is fry I need to replace the logic board the memory is fine everything is ok excep
the SSD, I'm going to look for a logic board with calm thank you for your comments.
