2018 MacBook Air Teardown Confirms Improving Repairability With Adhesive Pull-Tabs Under Battery and Speakers

Discussion in 'MacRumors.com News Discussion' started by MacRumors, Nov 8, 2018.

  1. MacRumors macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    The repair experts at iFixit have completed their teardown of the new MacBook Air, providing a closer look inside the notebook.

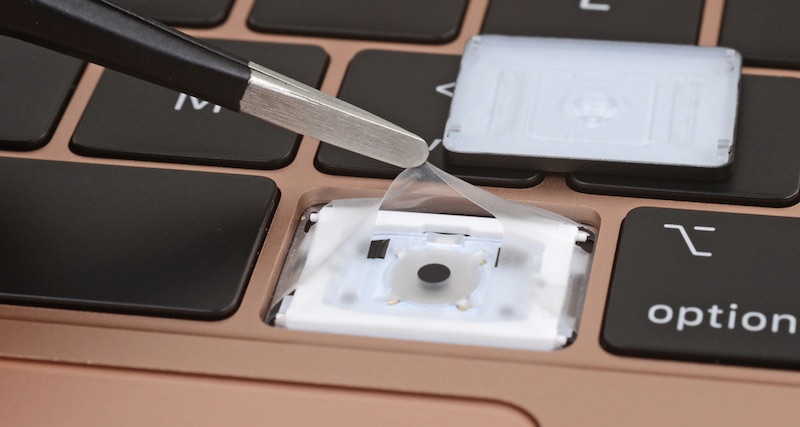

    iFixit started by confirming the keyboard on the new MacBook Air has the same silicone membrane under the keycaps as the latest MacBook Pro, as expected since they both use Apple's third-generation butterfly keyboard.

    [​IMG]

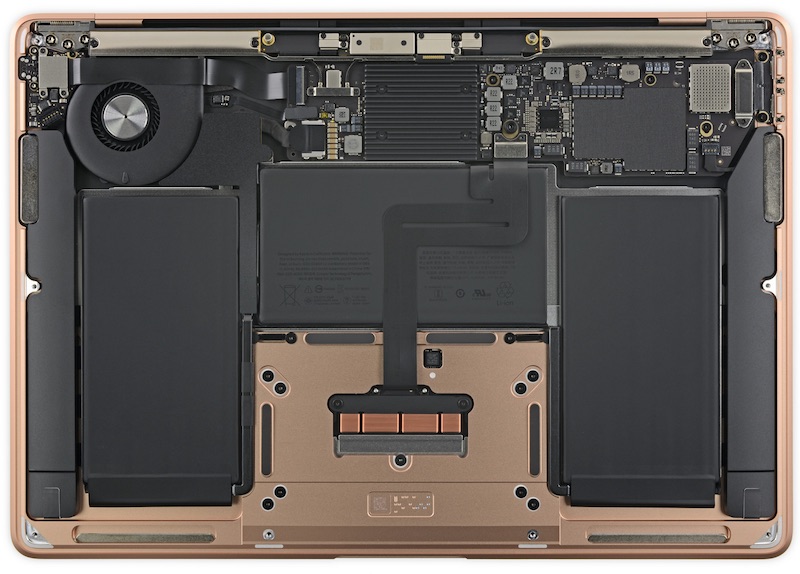

    Next, they flipped the notebook onto its bottom side and encountered Apple's usual pentalobe screws that require a special screwdriver to unfasten. On the inside, there is a compact array of components, including a small logic board, a fan, a pair of large speakers, and a "radiator-esque heat sink."

    [​IMG]

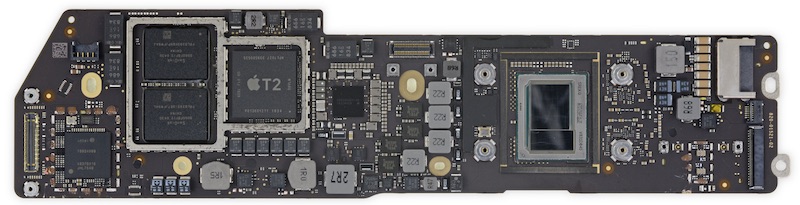

    iFixit proceeded to remove the logic board, providing a glimpse at the Apple T2 security chip, along with a Thunderbolt 3 controller from Intel, 128GB of flash storage from SanDisk, and 8GB of LPDDR3 RAM from SK Hynix.

    [​IMG]

    Diving deeper, iFixit discovered that the two Thunderbolt 3 ports in the new MacBook Air are modular, and applauded Apple for this repair-friendly design consideration. "This MacBook is off to a good start as far as we're concerned," they wrote. "All the ports sit on their own boards and are easily replaceable."

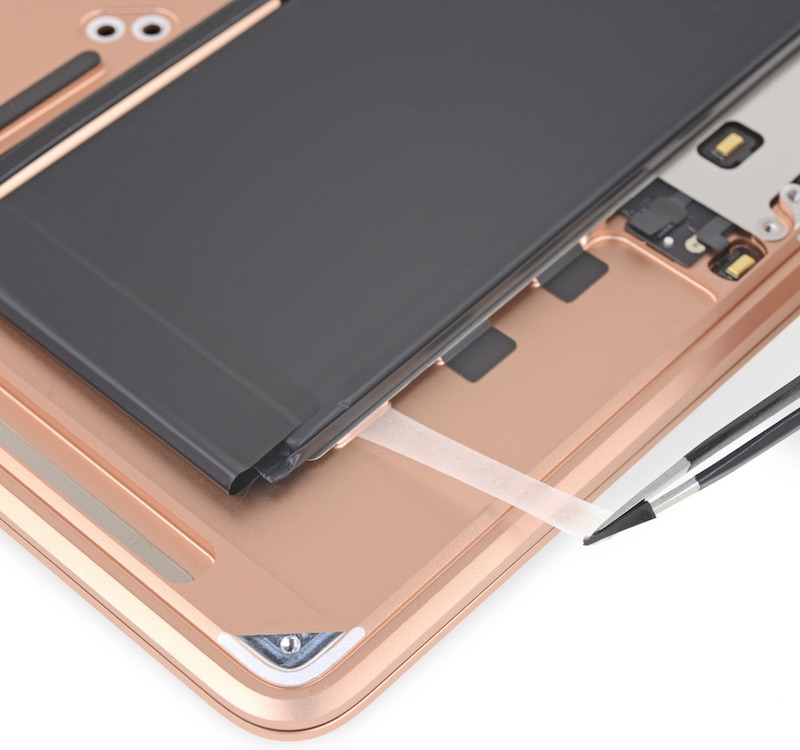

    Continuing the repair-friendly trend, iFixit uncovered ten pull-to-remove adhesive tabs securing the 49.9 Wh battery and speakers.

    "The mere presence of stretch-release adhesive generally means that someone at least thought about possible repair and disassembly situations," the teardown says. "Are you there, Apple? It's us, iFixit. Have you heard our pleas?"

    [​IMG]

    As first reported by MacRumors, the battery in the new MacBook Air is still glued into the top case -- the aluminum enclosure that houses the keyboard and trackpad -- but Apple will be providing Apple Authorized Service Providers with tools to remove the battery and reinstall a new one with no top case replacement required.

    In all other MacBook and MacBook Pro models with a Retina display released since 2012, Apple has replaced the entire top case when a customer requires a new battery, so the change is good news for both repairability and the environment.

    Last, iFixit confirmed that the Touch ID sensor is also modular in the new MacBook Air. According to the new MacBook Air's service guide obtained by MacRumors, the Touch ID button does not require a logic board replacement, but the notebook must pass Apple diagnostics in order for the repair to be completed.

    While the new MacBook Air has improved repairability relative to Apple's standards, the notebook earned a low 3/10 repairability score from iFixit.

    "The Air still uses external pentalobes to keep you out, requires lots of component removal for common fixes, and both RAM and storage are soldered to the logic board," said iFixit. "All together, that means Apple has an easy time with their knowledge and tools, but the average DIYer is left out to dry when it comes to upgrades."

    Nevertheless, iFixit said it hopes this is "just the beginning of an upswing in repairable design" for Apple products.

    Article Link: 2018 MacBook Air Teardown Confirms Improving Repairability With Adhesive Pull-Tabs Under Battery and Speakers

  2. Elijahg, Nov 8, 2018
    Last edited: Nov 8, 2018

    Elijahg macrumors 6502

    Joined:
    May 23, 2005
    Location:
    Bath, UK
    #2
    What with this and non-soldered RAM in the Mini, maybe Apple realised replacing half the computer for one failed module was causing repair costs to spiral. I’m pleased to see greater repairability, now stop glueing on iMac displays!

  3. -hh macrumors 68020

    -hh

    Joined:
    Jul 17, 2001
    Location:
    NJ Highlands, Earth
    #3
    Exactly correct:

    This isn't about Apple making things better for their customers, but is just Apple playing “defense” for their own cost benefit: this change reduces their internal costs for warranty service.

    Case in point: has the price of Applecare been lowered to pass this benefit along to customers?

  4. Return Zero macrumors 6502a

    Return Zero

    Joined:
    Oct 2, 2013
    Location:
    Kentucky
    #4
    This is a beautiful machine. It's a shame they couldn't keep the base price at $999, considering the Y-series chip and 128GB storage. I'll probably pick one up to replace my old Air whenever refurb units start to show up.

  5. magicschoolbus macrumors 6502a

    magicschoolbus

    Joined:
    May 27, 2014
    #5
    The lack of repairability and user upgradeable products is why I have not purchased a laptop from them since 2012. My Classic MacBook Pro is a trooper. it's logged serious miles.. and I can still open it up and fix whatever may go wrong.

  6. nt5672 macrumors 68000

    Joined:
    Jun 30, 2007
    #6
    Yep, I refuse to buy an Apple laptop with glued in batteries, soldered in RAM, and non-replaceable SSD. No reason for this except Apple greed. Now that the iPhone is a commodity (not growing by leaps and bounds), maybe Apple will take the time to make some of their long term customers happy again. Not counting on it with a finance guy in charge, but one can hope.

  7. _Kiki_ macrumors 6502a

    Joined:
    Aug 13, 2017
    #7
    repairability should be 0/10 because no parts for this model

  8. magicschoolbus macrumors 6502a

    magicschoolbus

    Joined:
    May 27, 2014
    #8
    Lol.. he's not just a finance guy, he's a bean counter.. even worse.

  9. DrJohnnyN Suspended

    DrJohnnyN

    Joined:
    Jan 27, 2010
    #9
    Ah, good to see that the keyboards include the condoms.

  10. steve jr. macrumors 6502

    Joined:
    Jul 4, 2005
    Location:
    Akron, OH
    #10
    Nice to see 3M strips holding my $1,149+ laptop together, hahaha

  11. Jsameds macrumors 68040

    Joined:
    Apr 22, 2008
    #11
    That thing is a work of art on the inside and out.

  12. casperghst42 macrumors member

    Joined:
    Jan 11, 2006
    #12
    Soldered SSD is a no-go, they do not always last for ever, and having to replace the logicboard to get the SSD changed ... nop.

  13. sunapple macrumors 65816

    sunapple

    Joined:
    Jul 16, 2013
    Location:
    The Netherlands
    #13
    You're still limited to the components that you can actually buy right? I mean, SSD and RAM or even battery can be installed from third parties, but what about the rest?

  14. Gudi macrumors 68030

    Gudi

    Joined:
    May 3, 2013
    Location:
    Berlin, Berlin
    #14
    Imagine: If the size of the speakers is a hint at their quality ... wow!

  15. Sasparilla macrumors 6502a

    Joined:
    Jul 6, 2012
    #15
    While I'd like to see more replaceable components, this change is nice to see (also in the Mini, also in the Xs (and presumably the Xr for battery and screen replacement being easier, hopefully the new iPad's)).

    It definitely marks a shift that's good to see. Probably because Apple knows this will save themselves money when they have to replace and fix things (not using as much time / money)...but the consumers benefit too. I think I remember iFixit say the screen replacement on the Pixel 3 would basically be impossible compared to the relatively (for todays smartphones) easy fix for the Xs.

  16. citysnaps macrumors 601

    Joined:
    Oct 10, 2011
    Location:
    San Francisco
    #16
    He's neither.

  17. makingdots macrumors 6502

    Joined:
    Aug 14, 2008
    #17
    So you're just saying that you're not belong in their target market for yearssssss?
    Just man up, stop whining and moved on.

  18. 840quadra Moderator

    840quadra

    Staff Member

    Joined:
    Feb 1, 2005
    Location:
    Twin Cities Minnesota
    #18
    Hoping the USB-C ports on the new iPads are also modular. I can see lots of those being broken. Great reversible design, but not as resilient as Lightning ports from what I have seen at our company.

  19. Glockworkorange macrumors 65816

    Glockworkorange

    Joined:
    Feb 10, 2015
    Location:
    Chicago, Illinois
    #19
    So much for the fan controversy.

    Yes, it has a fan.

  20. WoodpeckerBaby macrumors regular

    WoodpeckerBaby

    Joined:
    Aug 17, 2016
    #20
    SSD will last longer than the lifespan of the mac

  21. citysnaps macrumors 601

    Joined:
    Oct 10, 2011
    Location:
    San Francisco
    #21
    It is. And another engineering marvel from Apple.

  22. sk2sep2304 macrumors regular

    sk2sep2304

    Joined:
    Jun 18, 2009
    #22
    same same...if I can wait it out. My 2013 MBA is running fine, even after a few drops.

  23. Kobayagi macrumors 6502a

    Kobayagi

    Joined:
    Dec 18, 2012
    #23
    Wow, I didn't pay attention during the keynote, since the Air is not the type of computer I need anymore. But the base configuration is still has a 1.6GHz cpu, 8gb ram and 128gb of storage. I remember buying a Air in 2012 and it also had those numbers...

    I know, it's a faster cpu, ram and storage, but that's to be expected from the latest tech. Still kinda baffling they're not equipped with at least 16gb ram and 256gb storage. I mean, at least do the storage part, since 128gb after the OS and a couple necessary apps really isn't enough for anyone.

  24. CihanKaygusuz macrumors newbie

    Joined:
    Jul 6, 2013
    #24
    Wait whaaaaat! 4,379 mAh battery? Are you kidding, right?!


  25. BigJohno macrumors 65816

    Joined:
    Jan 1, 2007
    Location:
    San Francisco
    #25
    Is there even a heat pipe connected to the cpu? I can’t tell what the fan is there for.
