Hi guys,
My 13 inch MBA has a problem - the display shrinks into two lines, then one line and at the end into a dot.

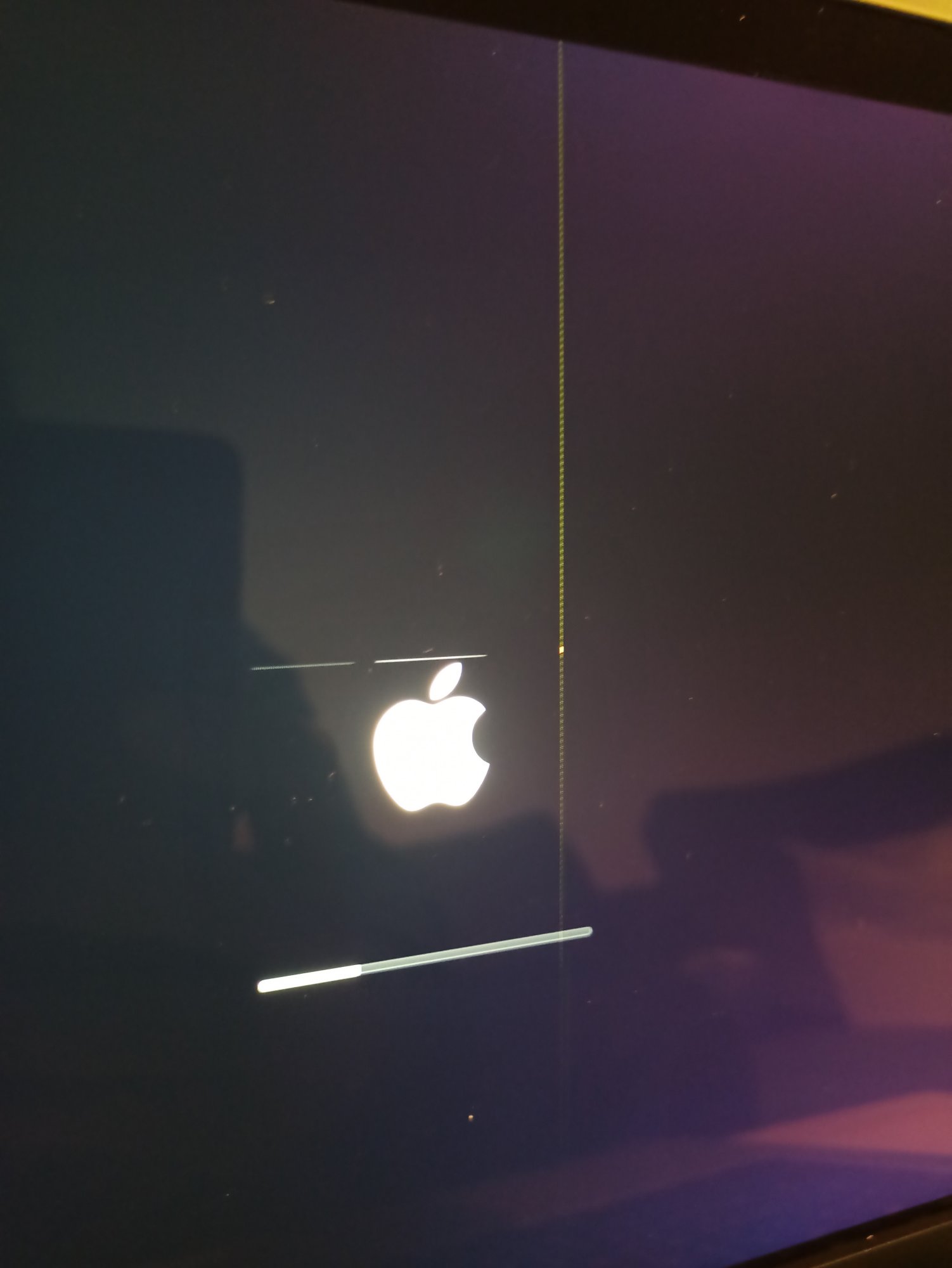

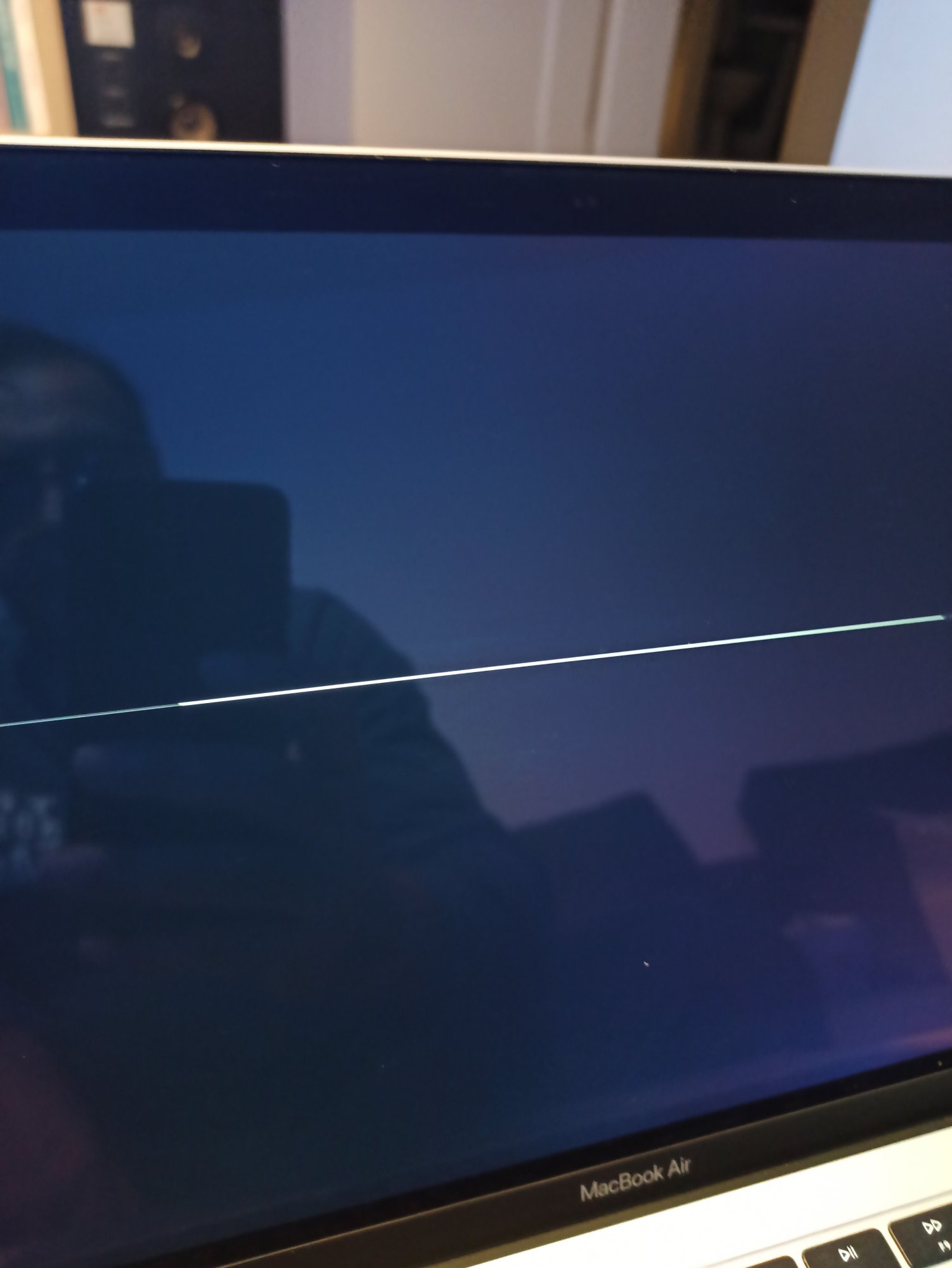

When starting, I can see the logo and progress bar together with the two lines - one vertical and one horizontal. After that only one horizontal line and at the end just a dot.
I opened the bottom and unclipped/clipped the screen cable but this did not help.
Also did all resets.

Do you have any idea what might be wrong and what can I do to fix it?

Thank you in advance!

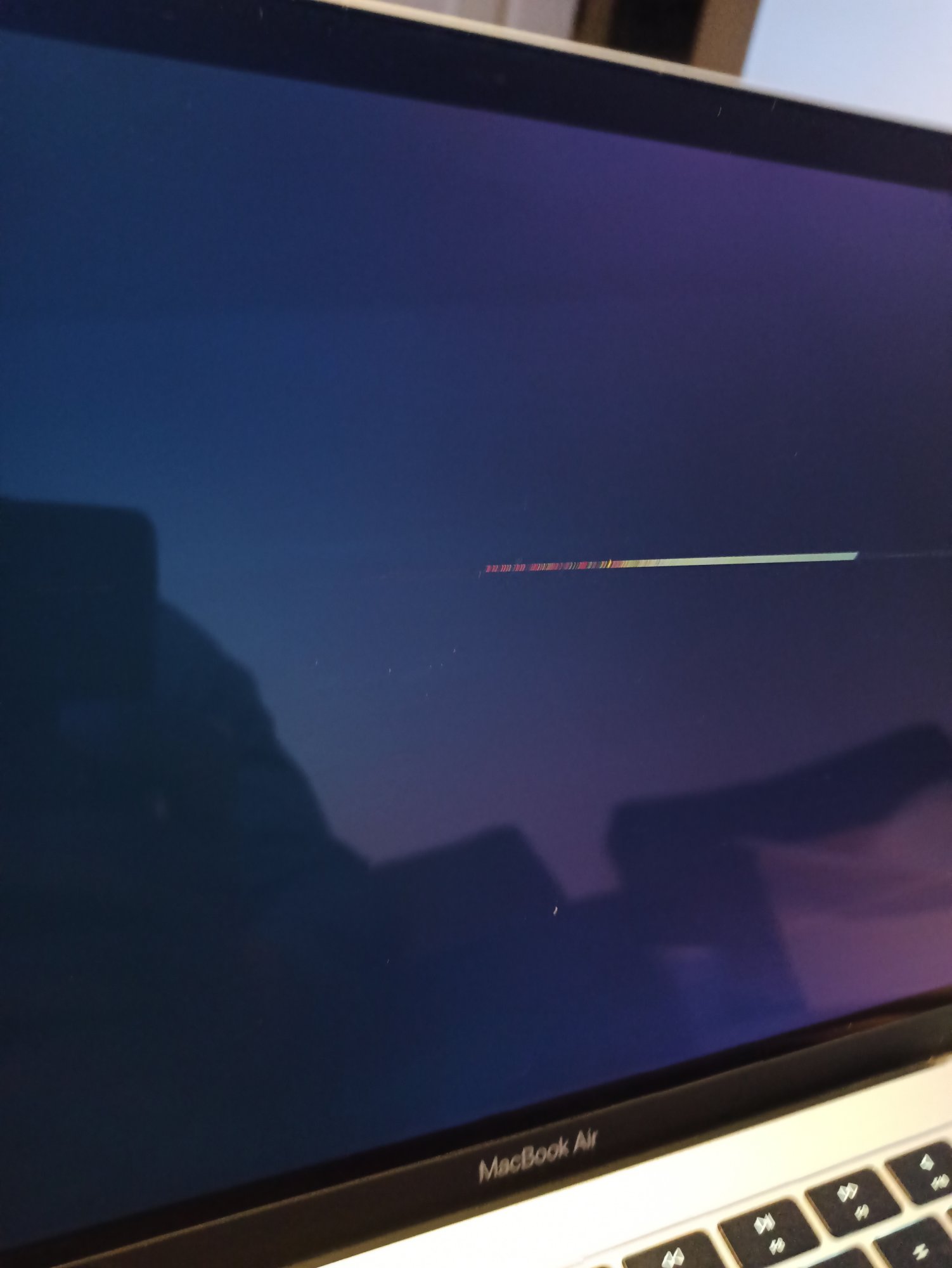

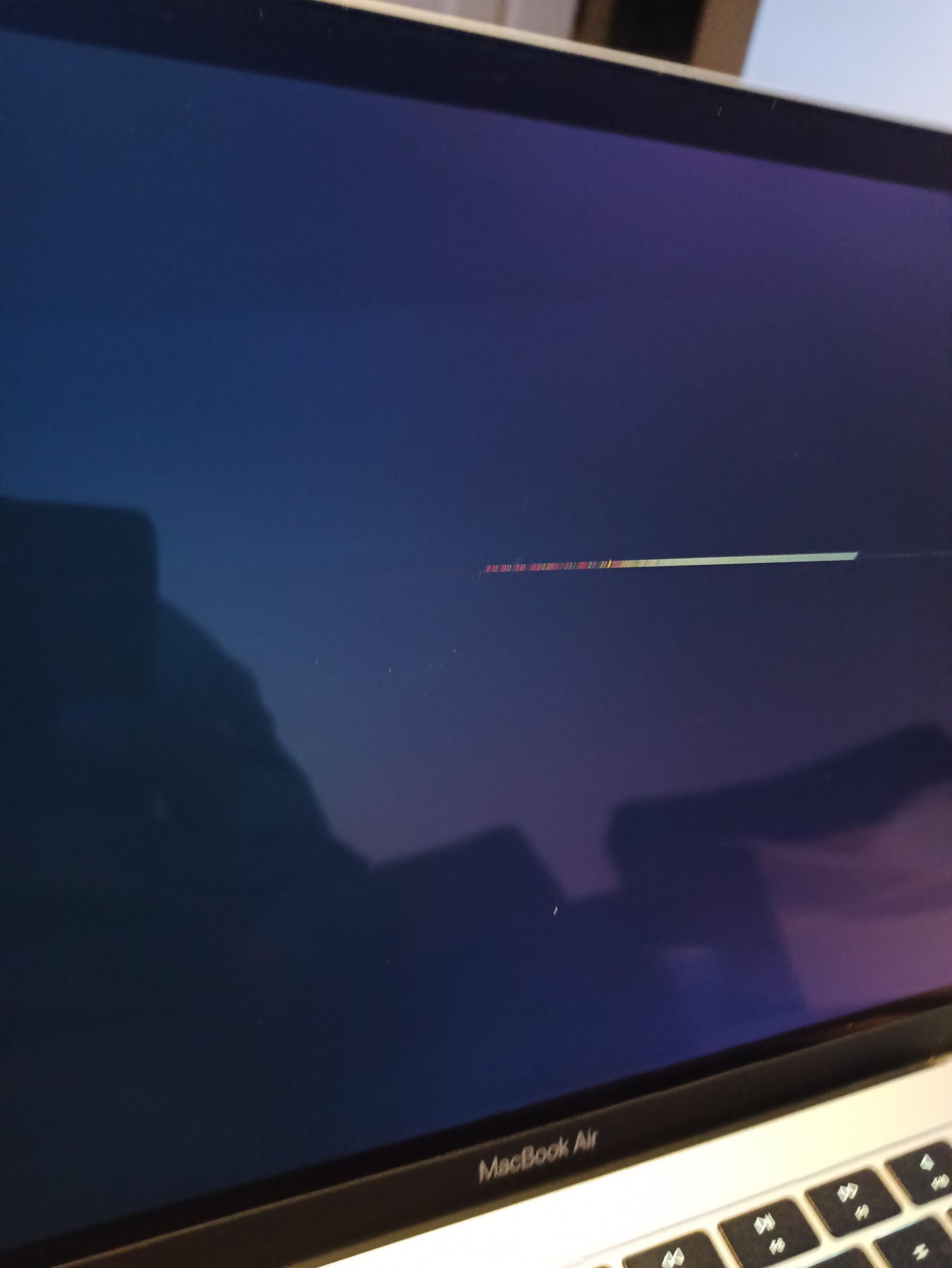

IMG_20221009_205754.jpg IMG_20221009_205714.jpg


Attachments

  • IMG_20221009_205749.jpg
    132.1 KB · Views: 47

velocityg4

macrumors 604
Dec 19, 2004
7,330
4,719
Georgia
I'd say a faulty TCON or display cable. But that's all integrated into a glued together display. So, that means a display replacement. Which is generally way too expensive to be worth doing. Especially on a model with the defective butterfly keyboard design. I'd just sell it for parts or repair only on eBay. You'll probably get $200 for it.


AAT55

macrumors newbie
Original poster
Oct 9, 2022
3
0
Thank you, velocityg4, for the prompt reply!

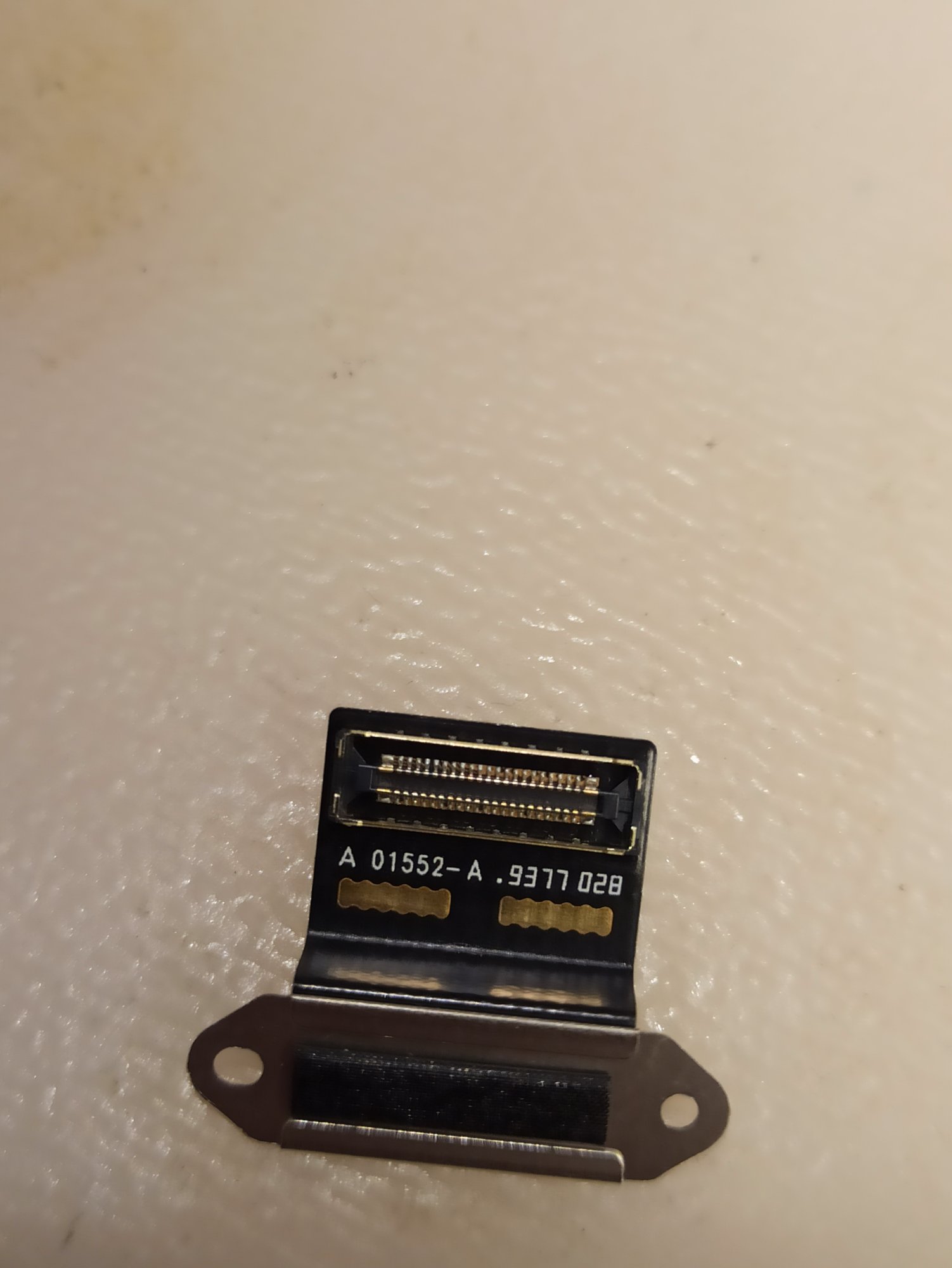

In the meantime I disassembled it and checked the screen cable between the motherboard and the display. Looks good.


I still would like to try to rescue the MBA, as it has very little usage time (even though I know these are not quite loved by purists).
So, if I understand you correct, a new screen, right?


velocityg4

macrumors 604
Dec 19, 2004
7,330
4,719
Georgia
Yes, but I’d plug it into an external monitor or TV first. Just to be certain it isn’t the motherboard. But I think it’s the display.

  • Like
Reactions: AAT55

AAT55

macrumors newbie
Original poster
Oct 9, 2022
3
0
Super happy!

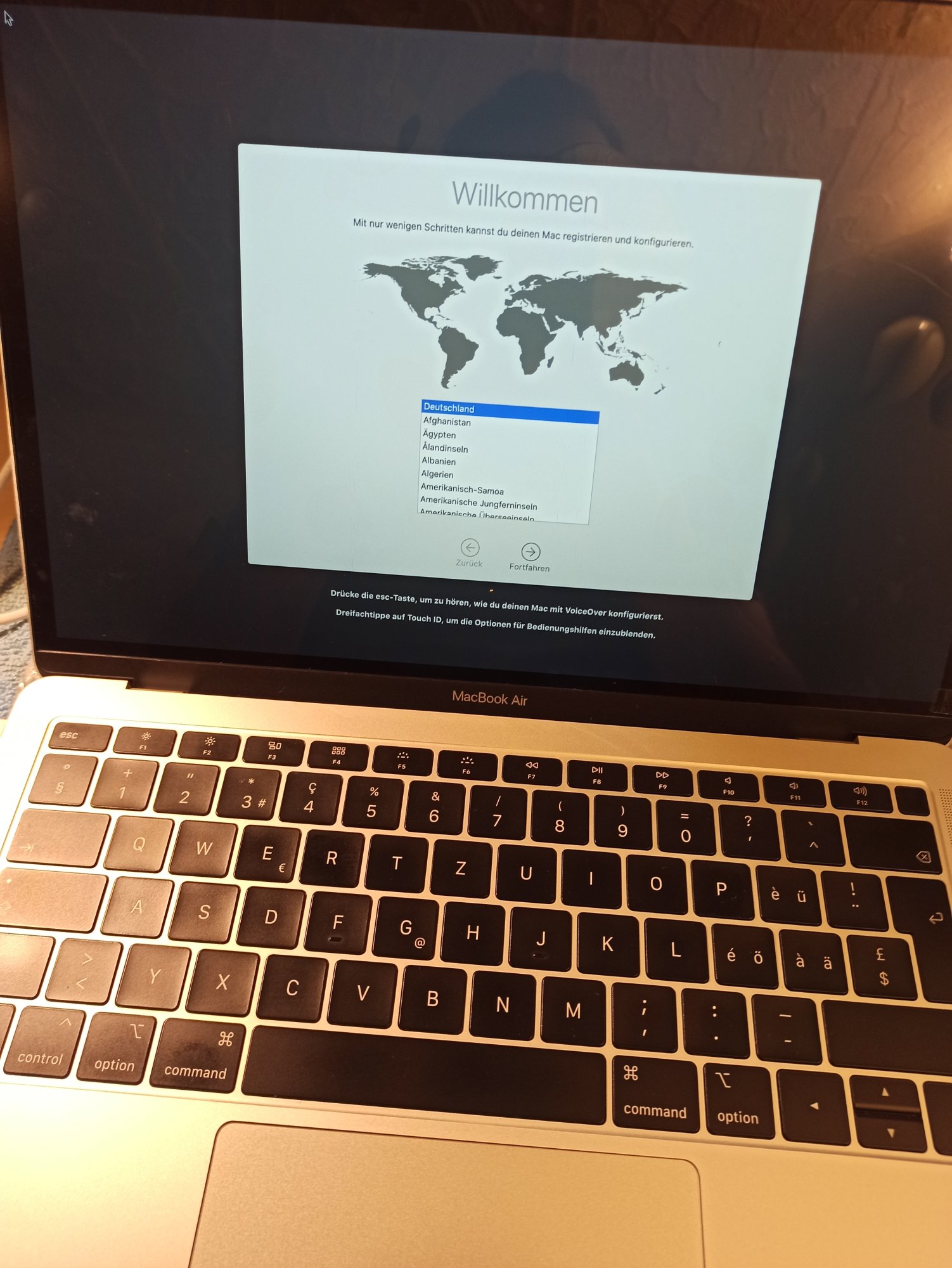

The replacement monitor came and just replaced it.
Thanks for the support!


Attachments

  • IMG_20221020_171504.jpg
    346.3 KB · Views: 61
