27 iMac 2011: Graphics Card Upgrade "Curious"

Discussion in 'iMac' started by Asubach07, Nov 30, 2011.

  1. Asubach07 macrumors newbie

    Joined:
    Mar 25, 2009
    #1
    Okay so heres the deal. I know that upgrading the GPU inside of an iMac isn't a questions but I think this could work. I've been doing some research on this but I haven't read anything about it but if it works it'll be awesome!

    Here's what I'm thinking:

    1) Upgrade my Radion HD 6770M 512MB GPU to a Nvidia Quadro 4000M 2GB.

    Link: http://www.ebay.com/itm/NVIDIA-Quadro-FX-4000M-faster-than-GTX-285M-3800M-/140557347017?pt=UK_Computing_Computer_Components_Graphics_Video_TV_Cards_TW&hash=item20b9dee8c9#ht_3791wt_1104

    2) Both cards are MXM 3.0 modules. So they'll match.

    3) Nvidia has drivers for the Quadro 4000 for the MacPro.

    Link: http://store.apple.com/us/product/H3314LL/A?fnode=MTY1NDA5OQ

    Link: http://www.nvidia.com/object/quadro-macosx-256.02.25f01-driver.html



    I know one is mobile and the other is desktop but MXM 3.0 is identical to PCIe 16x. So my question is will this work!? Ideas?

    -Adam

  2. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #2
    While it might work, make sure the GPU heatpipe matches the location of the chip on the new board.

  3. Asubach07 thread starter macrumors newbie

    Joined:
    Mar 25, 2009
    #3

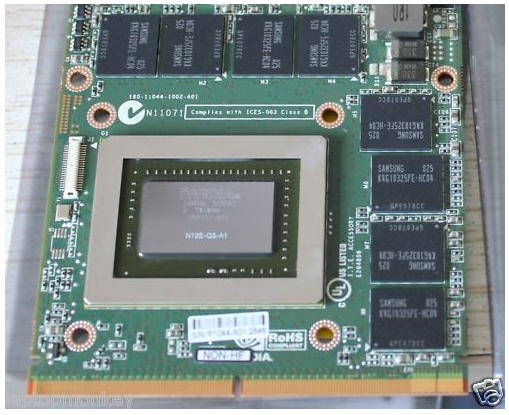

    By just comparing from the images below I think they would align if you were to flip the Quadro upside down. If not there might be some engineering involved...


    Attached Files:

  4. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #4
    Could work. If you do try it, take pictures and document it. It'd make a good read.

  5. flash88, Dec 2, 2011
    Last edited: Dec 2, 2011

    flash88 macrumors newbie

    Joined:
    Nov 30, 2011
    #5
    I hope this really works! i'm going to keep track of this thread.

    I'm really unsure about the parts, late 2009/mid 2010.
    How does that effect these main core parts and the other hardware involved, i realise the part numbers are different but does this massively effect power usage and cooling etc? or does the year manufactured make them totally incompatible.
    As you can tell i'm not very knowledgable about Apple hardware, wish i was.

    i saw a thread on the official apple forum saying generally upgrading is possible.
    https://discussions.apple.com/thread/3029120?start=0&tstart=0

    I'm pretty worried that for it to work i would have to solder a $500 graphics card.

    Plug and go?


    http://www.ifixit.com/Teardown/iMac-Intel-27-Inch-Teardown/1236/3

  6. Bl0ckHe1d macrumors 6502

    Bl0ckHe1d

    Joined:
    Nov 19, 2009
    Location:
    Caledonia
    #6
    have you taken the plunge yet...itching to know how you got on!!

  7. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #7
    While this is a VERY interesting project, I think that there is a rather big roadblock that nobody has mentioned.

    The Quadro would need an EFI ROM on it to boot.

    It is possible that if you install Netkas' "ATY_Init" that you MIGHT get it to work after the desktop loads, but you would NEVER , EVER get the grey boot screens without EFI in the EEPROM.

    It MIGHT be possible to write an EFI ROM for the card based on the non-mobile one that can be purchased for Mac Pros, but :

    A: Somebody rather clever would need to write this EFI ROM. Currently there are only 2 people I know of who could possibly do this, myself and Netkas.

    B: It may not be straightforward thing to write, the internal screen may be defined in a very different way from an external DVI or MDP as exists on the Mac Pro card.

    C: The EEPROM would need to be large enough to hold the Mac EFI and PC BIOS. So, for most Nvidia cards this means that a double sized EEPROM needs to be soldered on. Not for beginners.

    D: The device id for the card would either need to exist in the drivers, or be added to the drivers. There is an excellent post at InsanelyMac that lists ALL of the device id's currently supported by the NVHalDF100 kext, which is the one that drives the Fermi cards.

    Also keep in mind that you are dealing with a Mobile GPU. This typically means that it is about half as powerful as it's desktop equivalent. And the desktop Quadro 4000 doesn't set anything on fire speed wise. For all of this effort, you may wish to set your sights a little higher up the Fermi GPU chain. The real issue here ends up being how much heat can be removed from the GPU by existing systems. The Fermi chips run hotter than any previous cards, in a closed in space like an iMac, this could lead to either roaring fans or burned up GPUs. Now if Apple were to offer up the info on how much heat can be removed via these systems, that might help.

    I have been able to get MANY Fermi GPUs working. I am about to announce that I have gotten a Tesla C2050 working perfectly in Mac Pro. But the process that led to this ability frequently requires multiple flashes of the EEPROM with testing of minor changes to get something that functions perfectly. When this "bricks" the card I can move it into a PC, or even connect the EEPROM directly to my Willem programmer to erase and reflash the chip. Not so easy when the GPU and it's EEPROM are buried deep in the iMac. I have not taken apart one of these newer iMacs but my understanding is that you need to remove the front glass and that it is nearly impossible to keep all of the dust out when reassembling.

    So, all told I have often wondered what might be possible in terms of iMac GPUs, but with the lack of trailblazers out there and all of the roadblocks, I have never gone beyond "wouldn't it be neat to try a ....."
