Resolved 27" iMac half dim. LCD or inverter? UPDATE: SOLVED WITH PICTURE TUTORIAL!

Discussion in 'iMac' started by h4lp m3, Jul 13, 2015.

  1. h4lp m3 macrumors 6502

    Joined:
    Jun 29, 2011
    Location:
    New Orleans
    #1

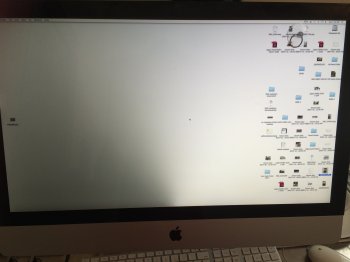

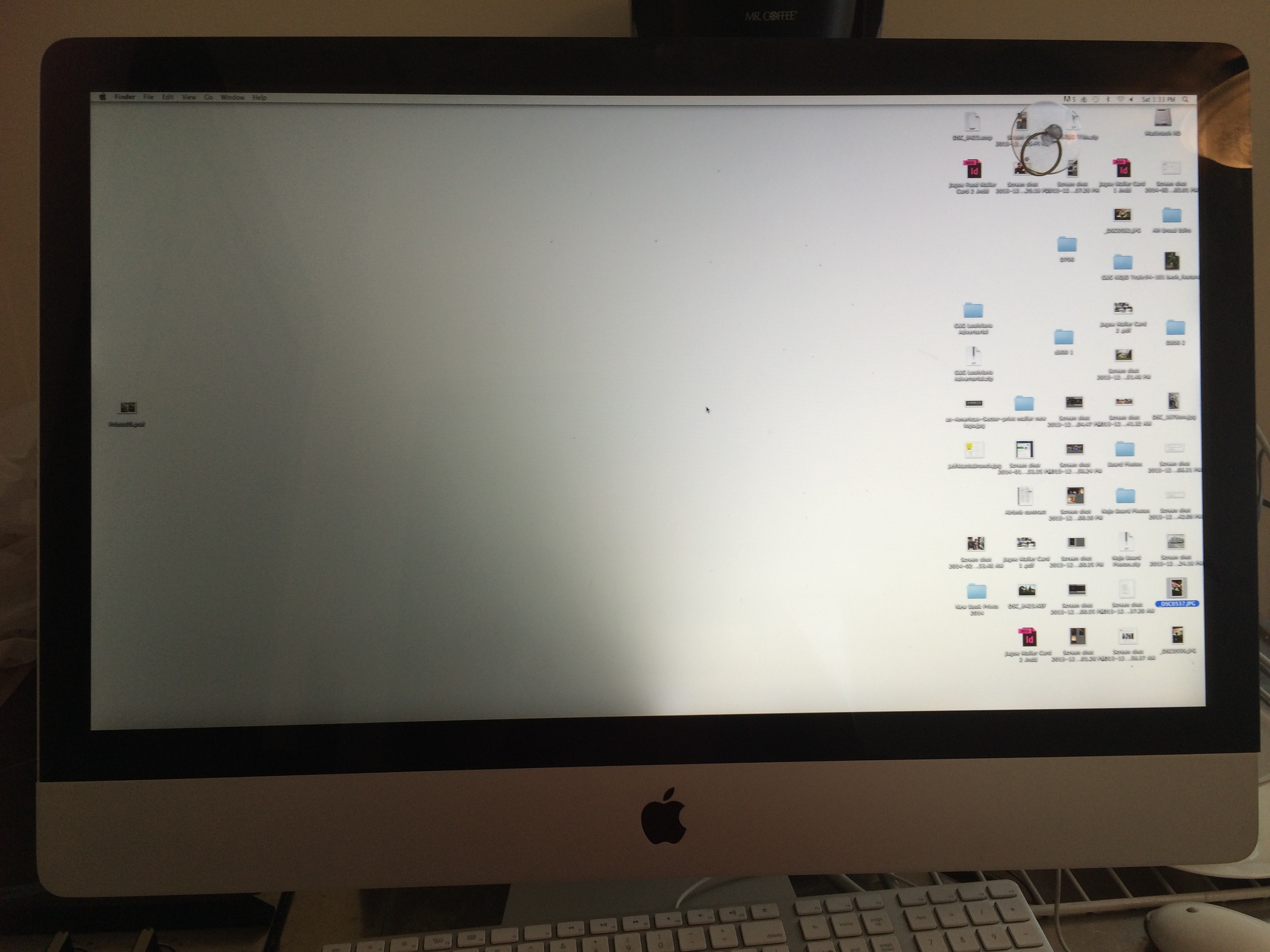

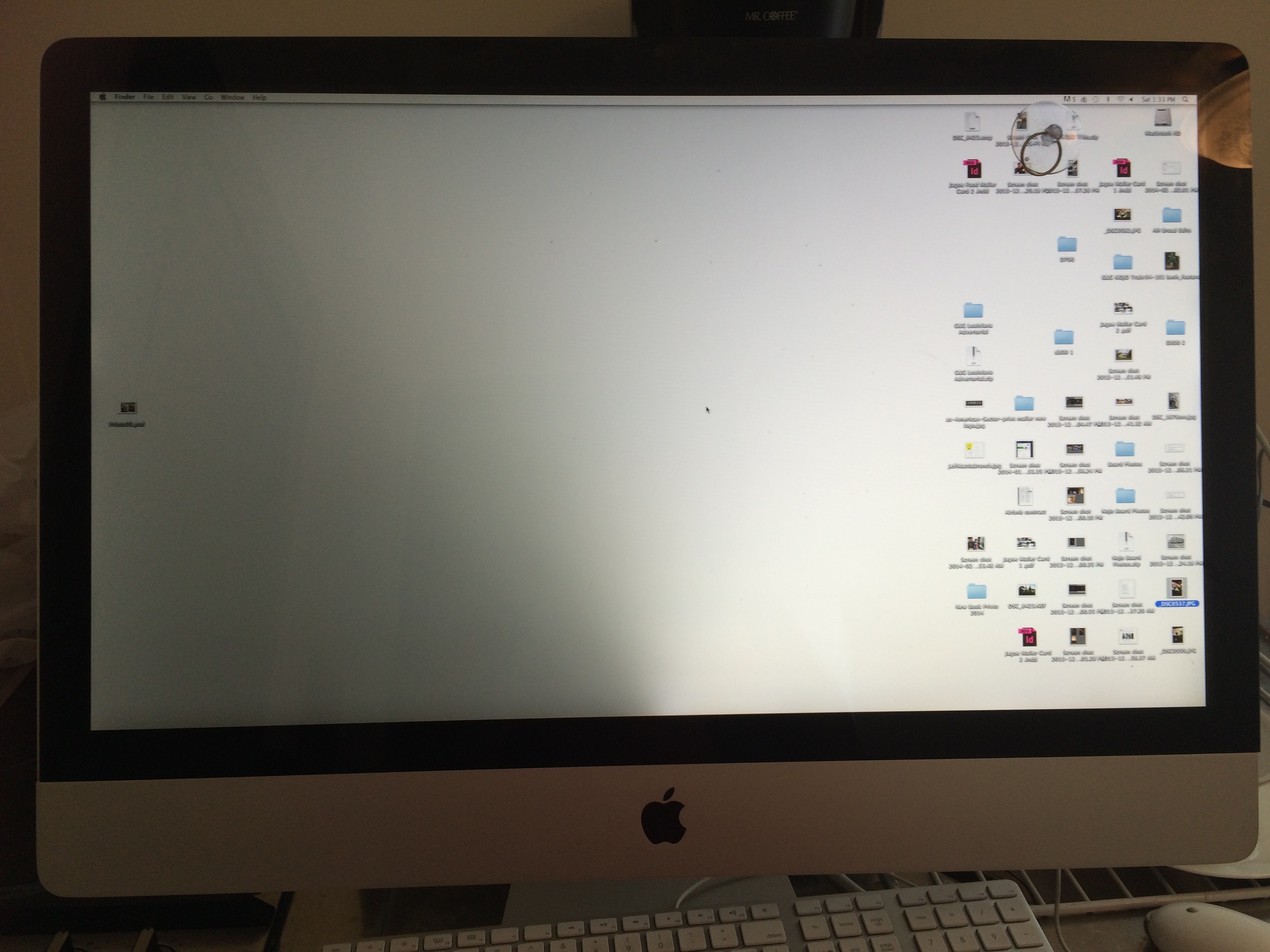

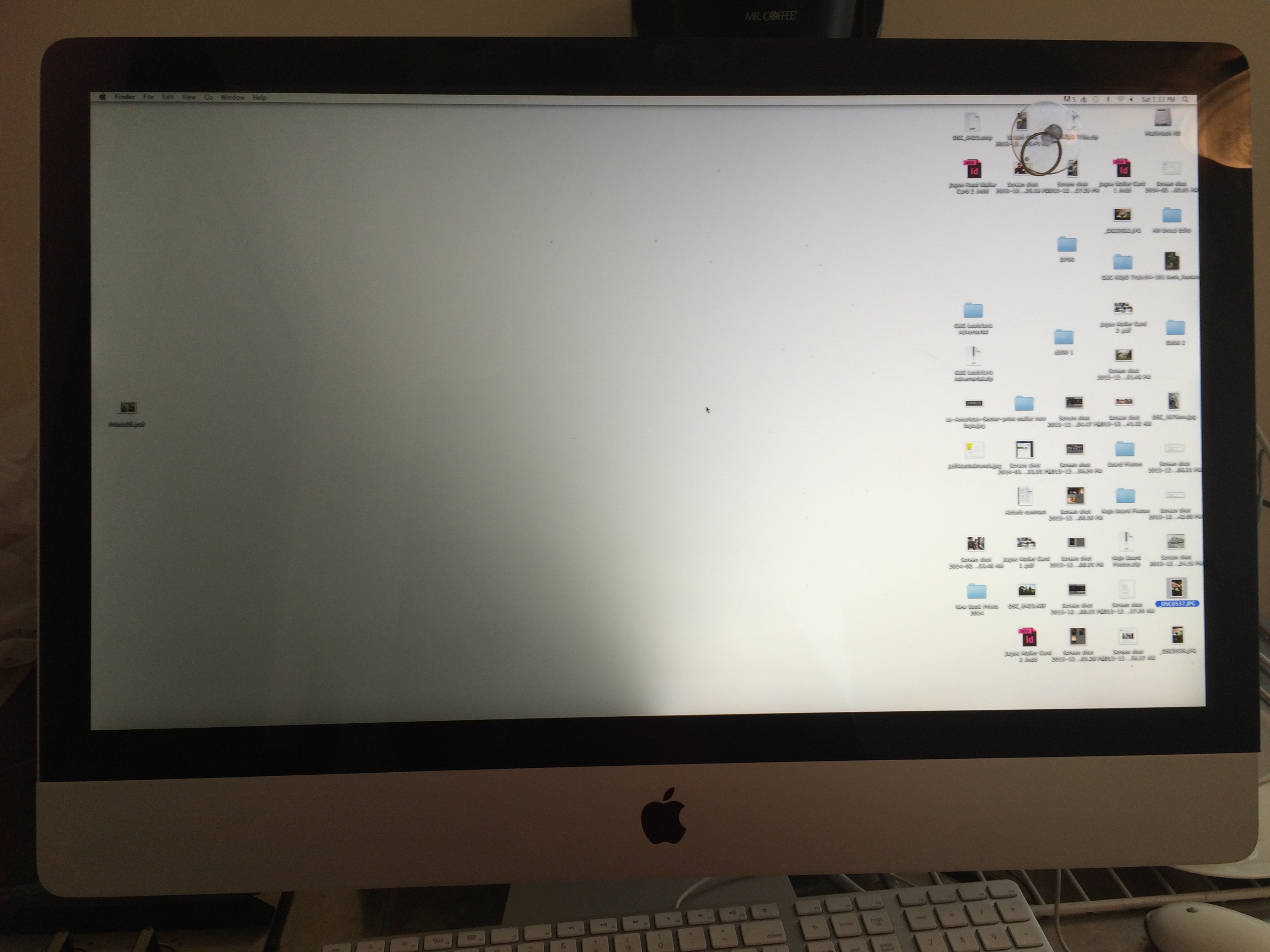

    Half of my screen is dim on my 27" iMac A1312 and I want to know if it's the LCD or the inverter or something else. IMG_6096.JPG IMG_6096.JPG


    Attached Files:

  2. rkaufmann87 macrumors 68000

    rkaufmann87

    Joined:
    Dec 17, 2009
    Location:
    Folsom, CA
    #2

    Likely the LCD, take it in to be professionally diagnosed if you still aren't sure.

  3. h4lp m3 thread starter macrumors 6502

    Joined:
    Jun 29, 2011
    Location:
    New Orleans
    #3
    Why? I can order LCD on ebay for $150 and install it with help of iFixit guide. If that doesn't work, send it back and buy inverter. If I wanted to go to a pro, I wouldn't have asked here.

  4. rkaufmann87 macrumors 68000

    rkaufmann87

    Joined:
    Dec 17, 2009
    Location:
    Folsom, CA
    #4
    Sorry, had my mind reading license not just expired I would have known why you posted here.

    Good luck.

  5. h4lp m3 thread starter macrumors 6502

    Joined:
    Jun 29, 2011
    Location:
    New Orleans
    #5
    UPDATE: Once again i have pwn3d the genius bar and the n00bs at MR, and proved the world wronk...

    Because I am a cheap bastard and didn't want to shell out $150 for a new screen, I removed the LCD to see what was going on an what (if anything) I could do.

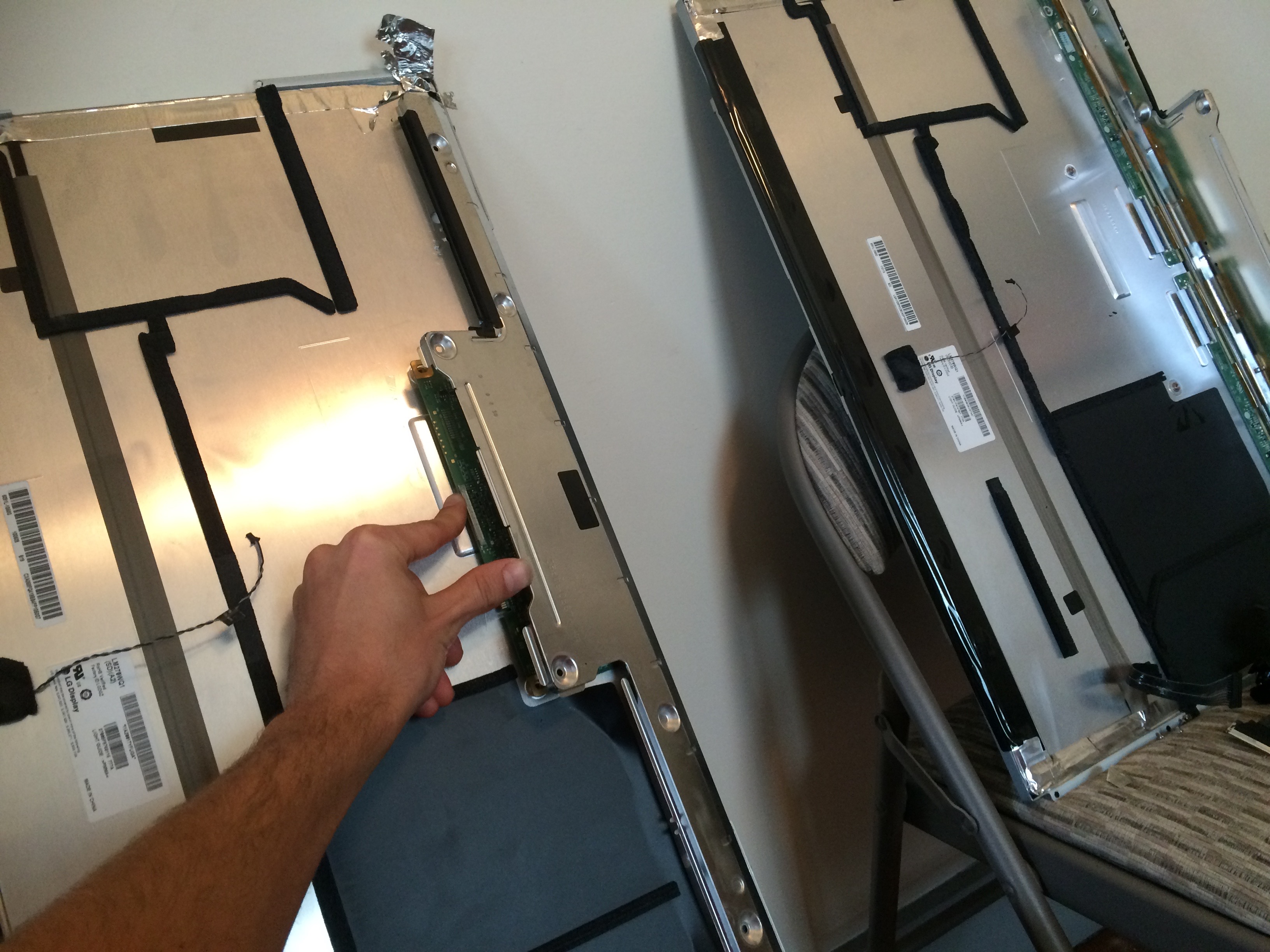

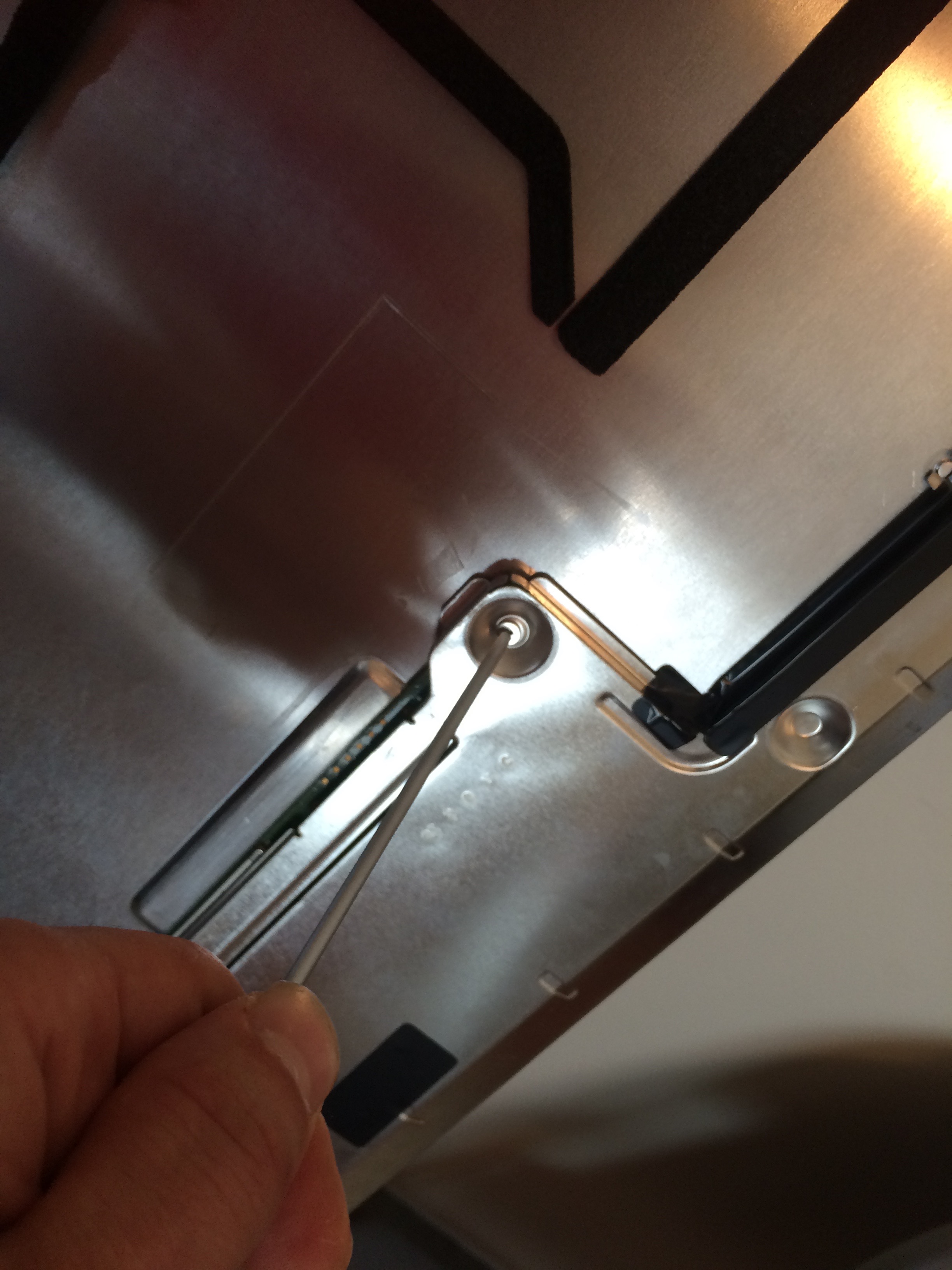

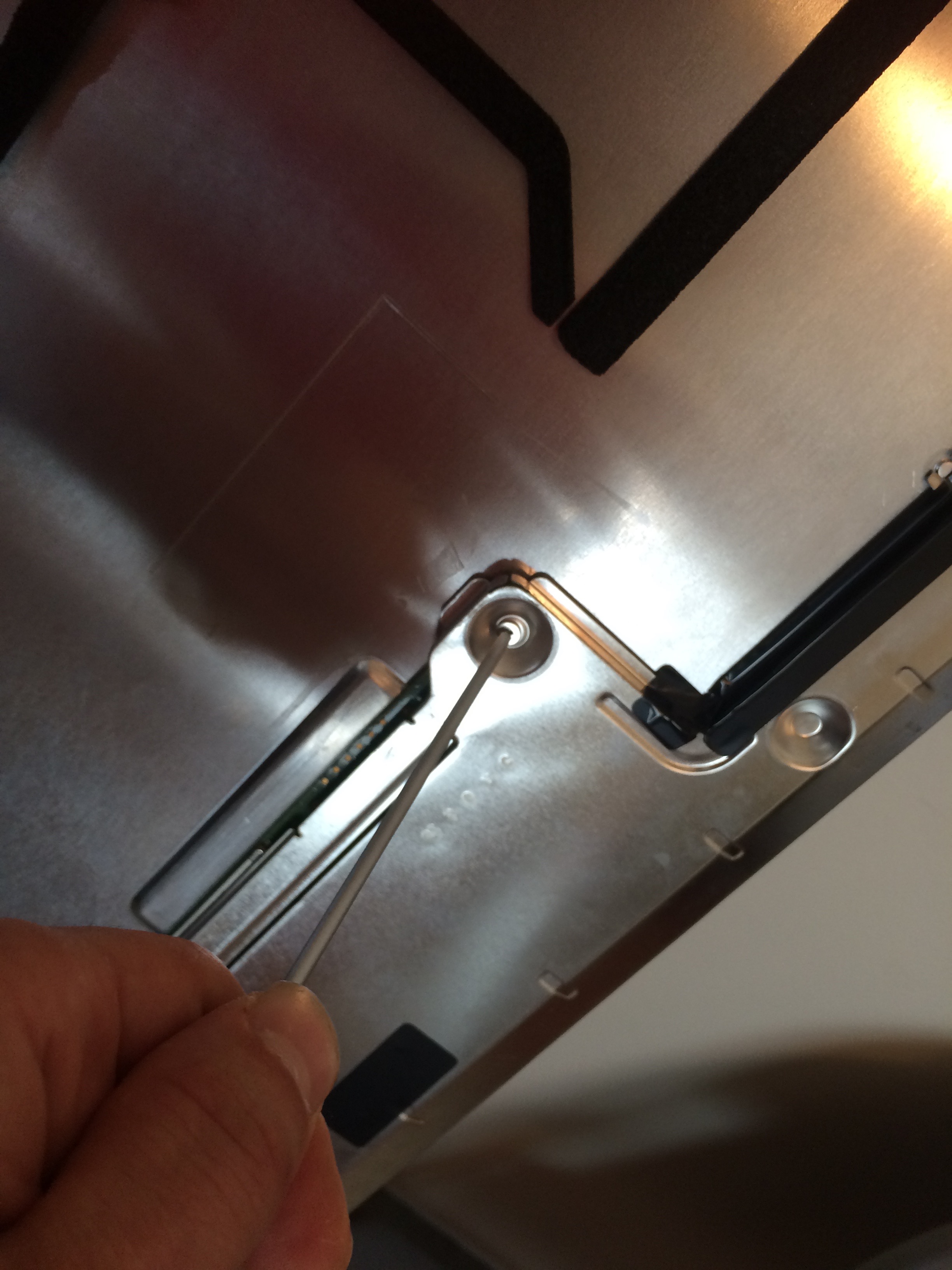

    The one thing that caught my eye was the 4 large screws on the back of the panel. Knowing that I had nothing to lose and everything to gain, I removed those screws and both the black and silver metal tape allowing me to lift up the metal cover.

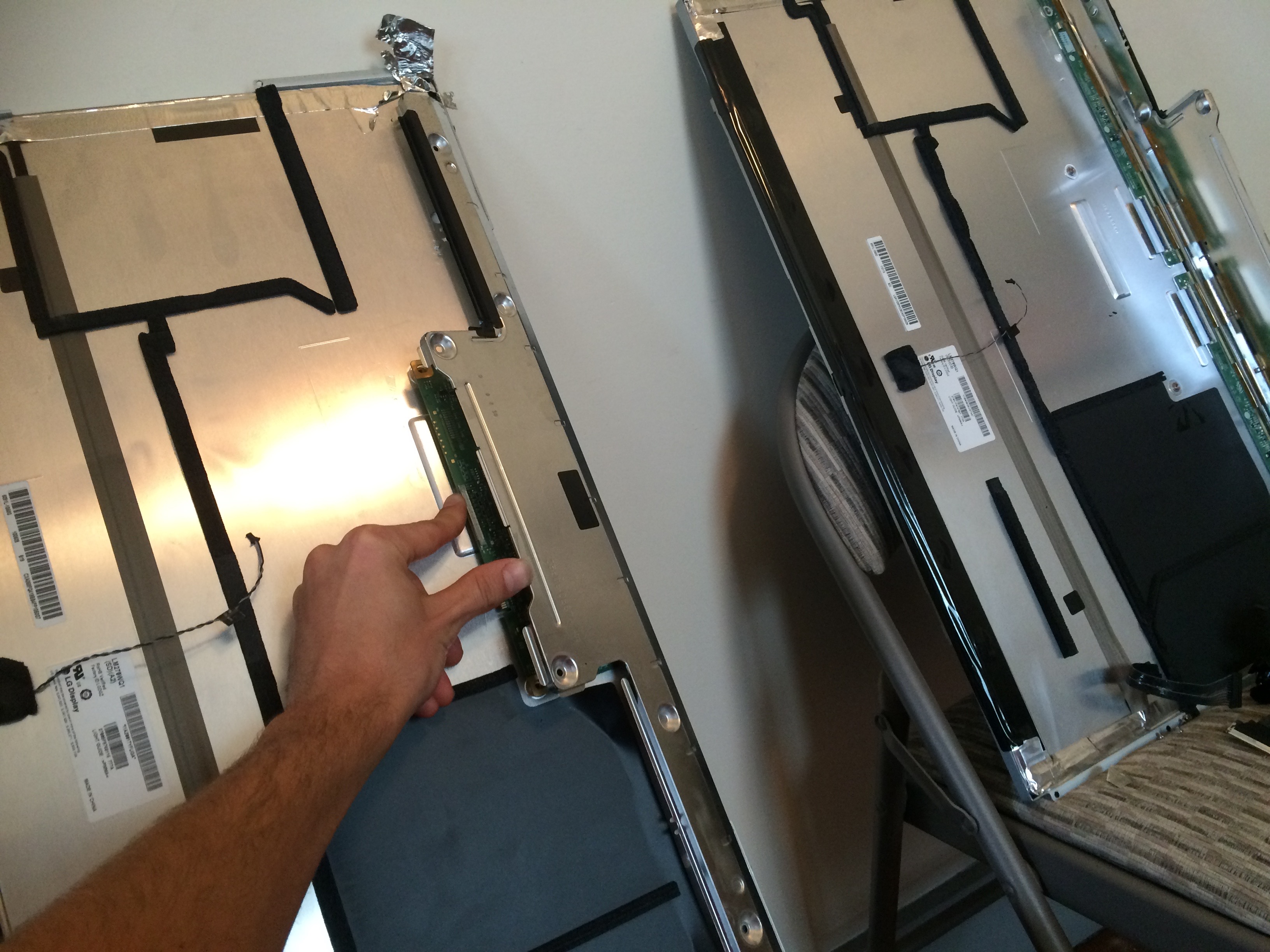

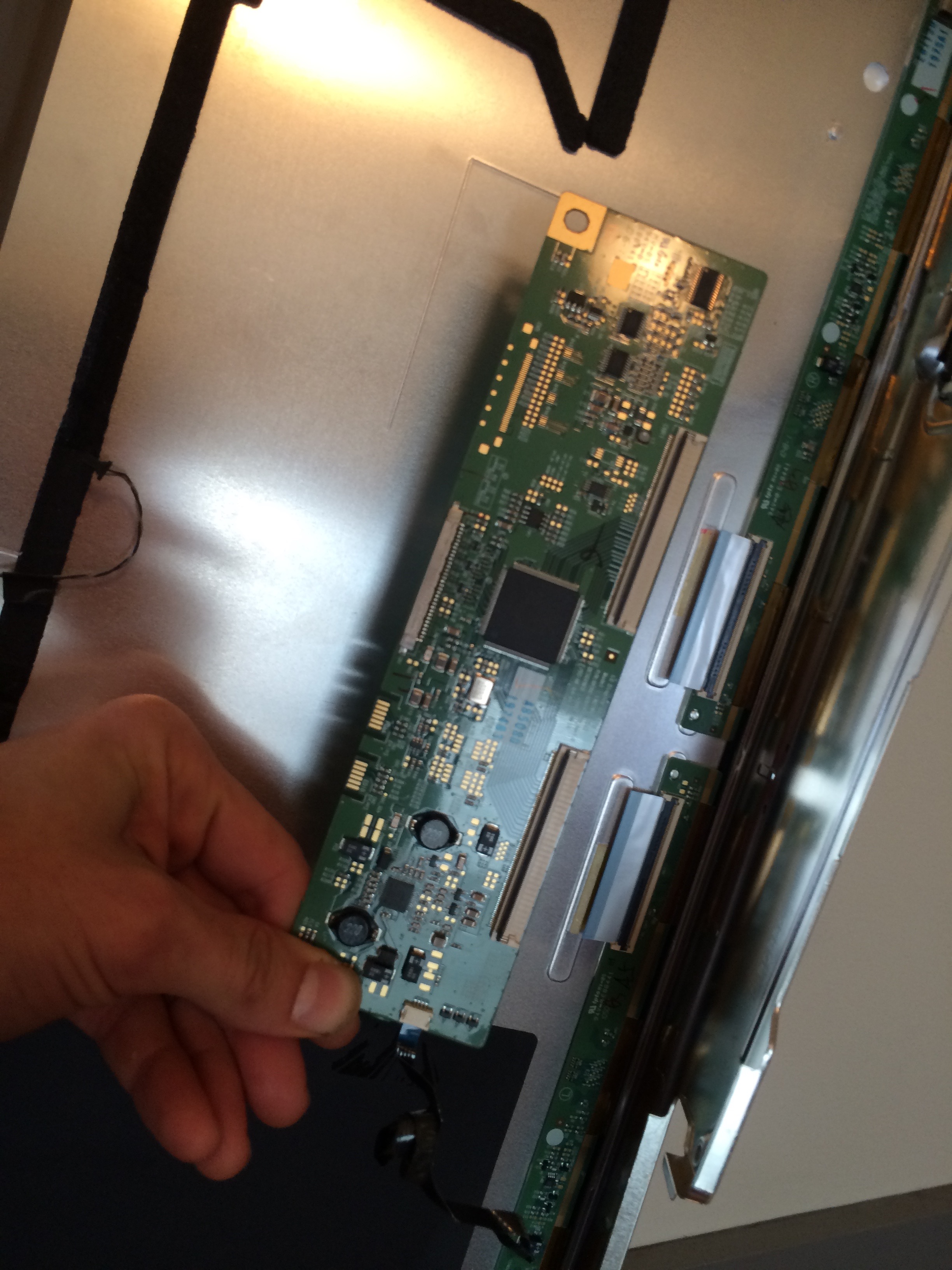

    Underneath the metal cover, lies the LCD's logic board or as it is commonly called by TV repair PROFESSIONALS the "T-Con board". It's super easy to remove and it held on with two little alligator clips. Simply lift them up and slide it out.

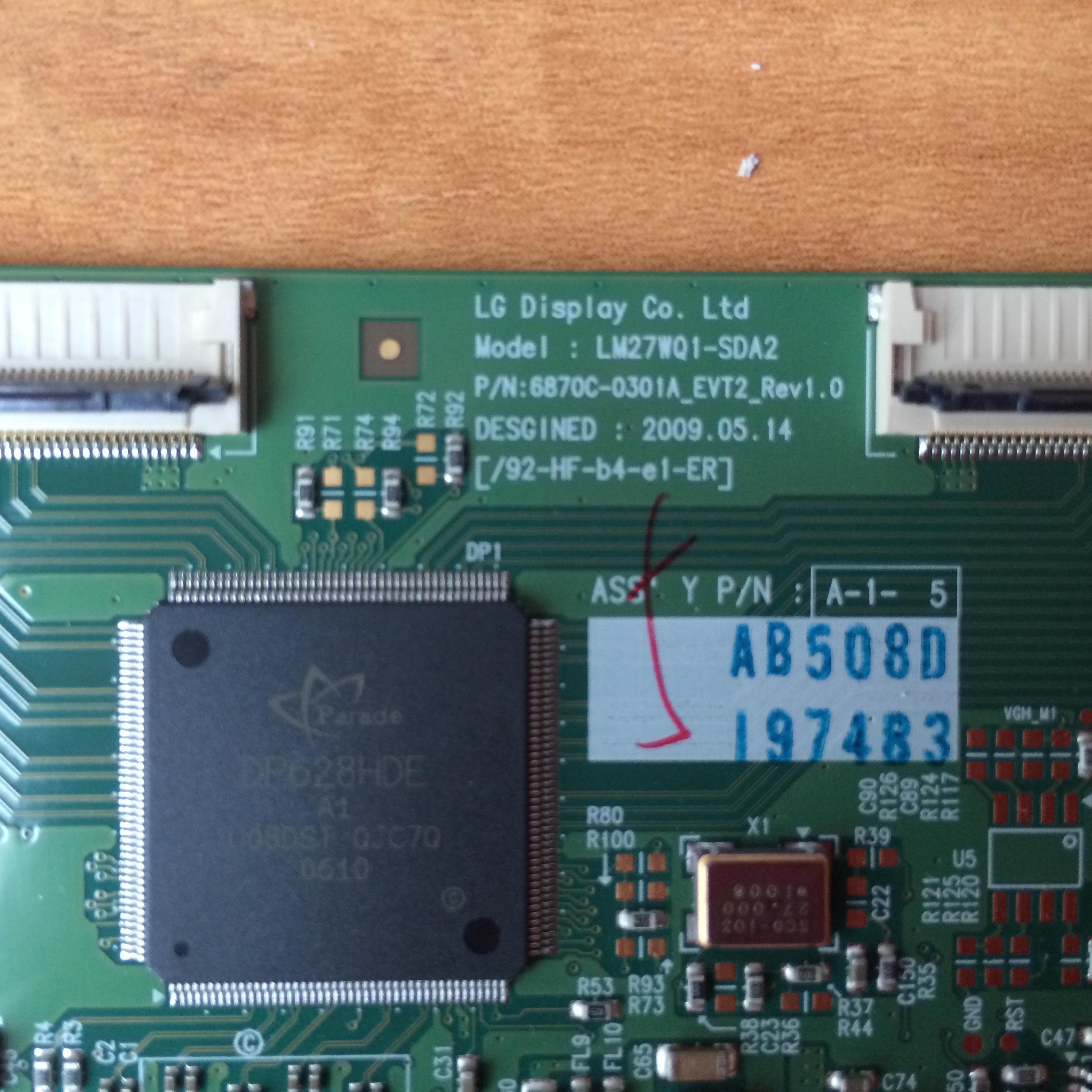

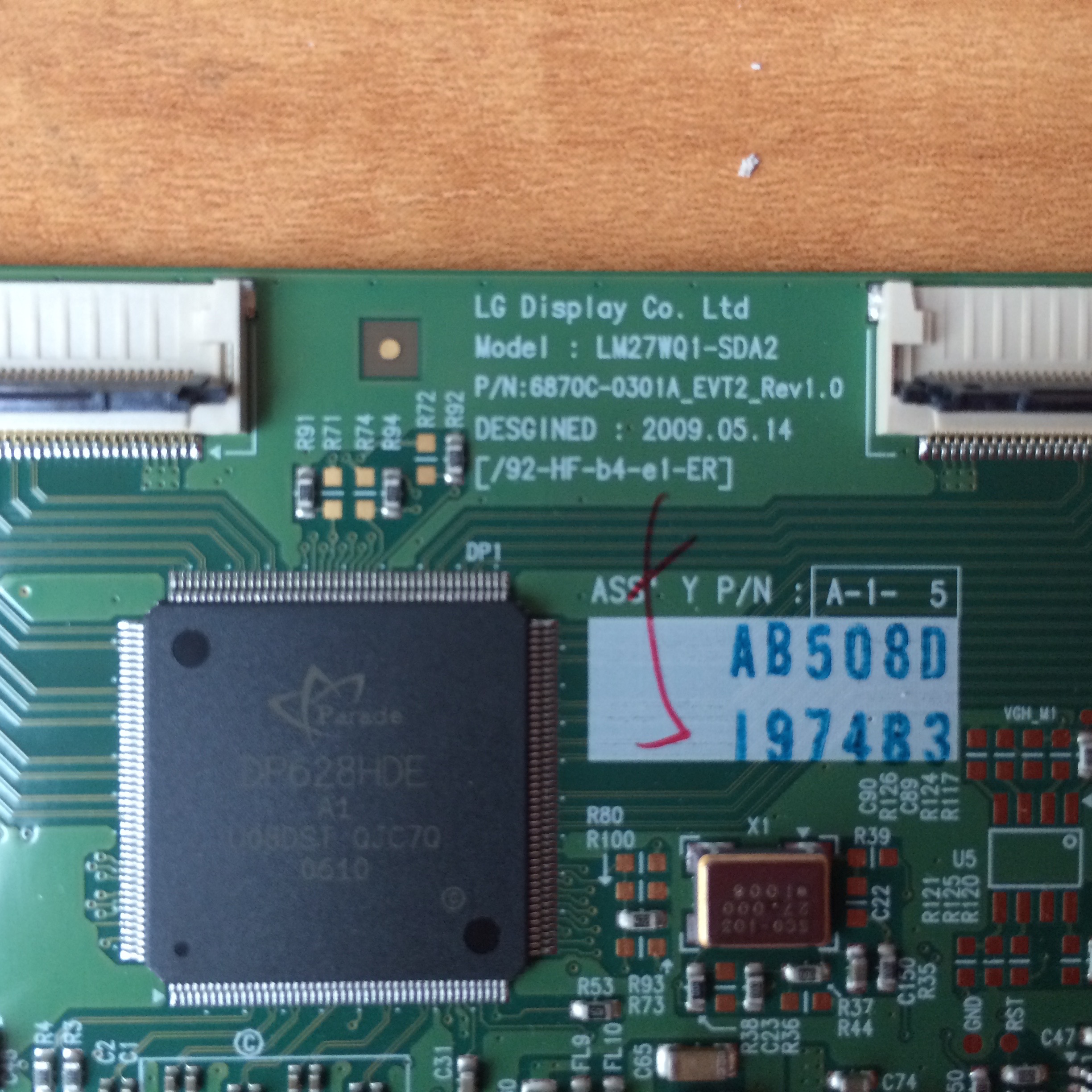

    Part numbers on this board are:

    LM27WQ1-SDA2
    6870C-0301A_EVT2_Rev1.0
    E88441
    AB508D
    197483


    Because I couldn't find one for sale anywhere in the US, I purchased a cracked 27"-iMac on eBay for $45 and swapped the boards out.




    Replaced the panel and boom. No more dimness and I can watch HD pr0n again.


    Attached Files:

  6. steve23094 macrumors 68000

    steve23094

    Joined:
    Apr 23, 2013
    #6

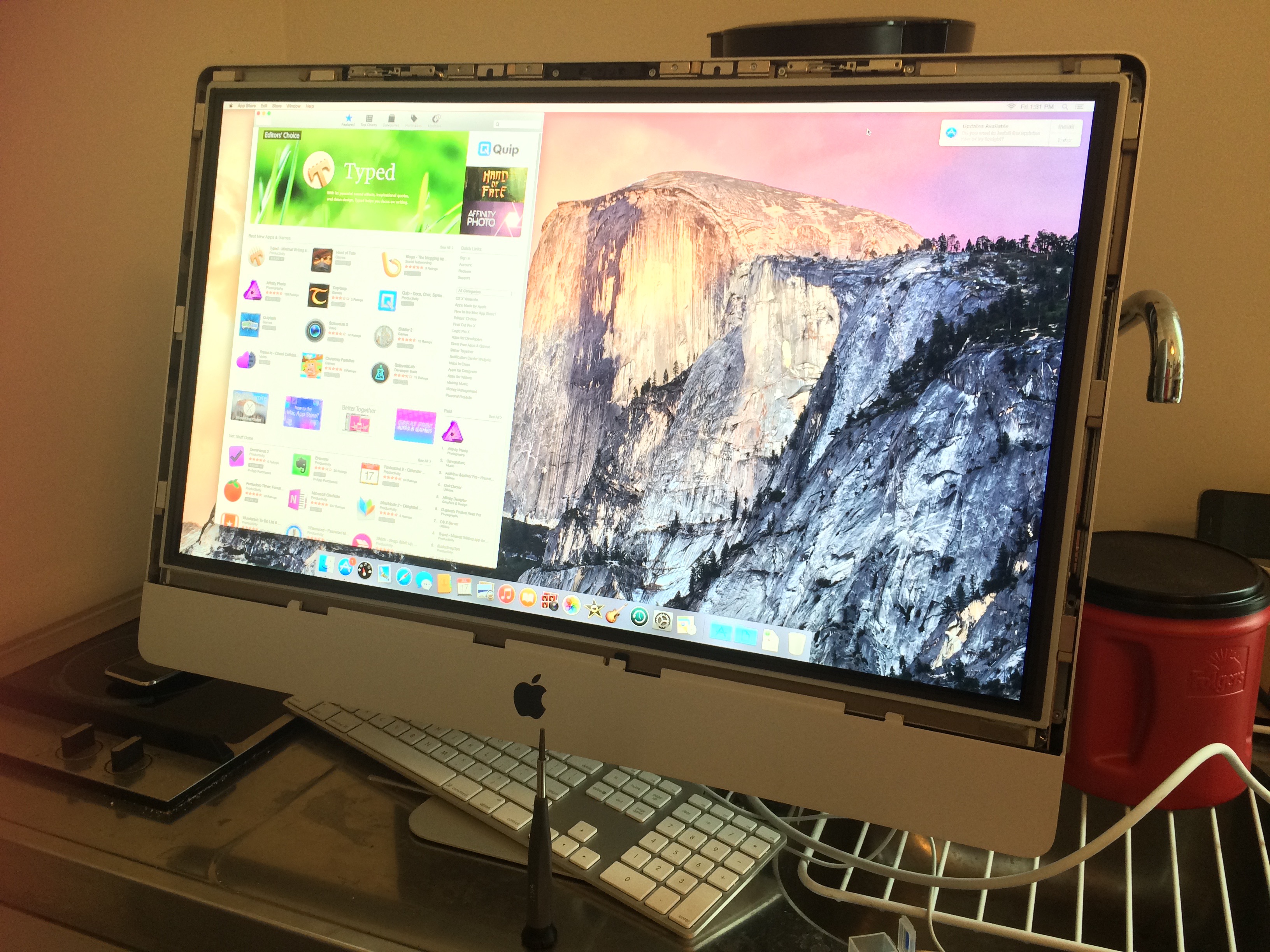

    Looks like you forgot to put your glass back in.

  7. h4lp m3 thread starter macrumors 6502

    Joined:
    Jun 29, 2011
    Location:
    New Orleans
    #7

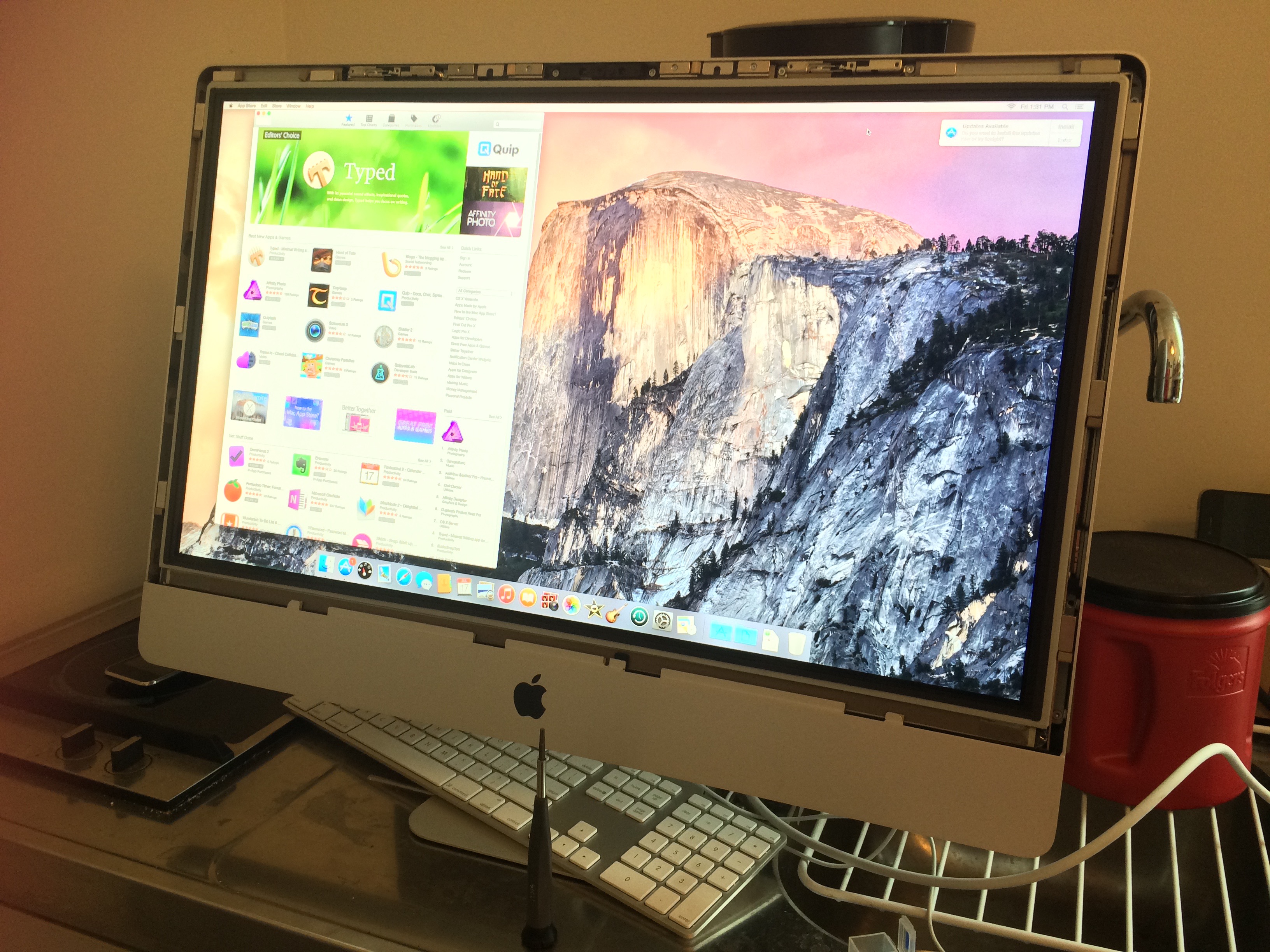

    Whoops, that totally slipped my mind. All better now.
