30in Cinema Display going BONKERS - Pics attached.

Discussion in 'Mac Accessories' started by shaodeee, Nov 11, 2009.

  1. shaodeee macrumors newbie

    Joined:
    Nov 11, 2009
    #1

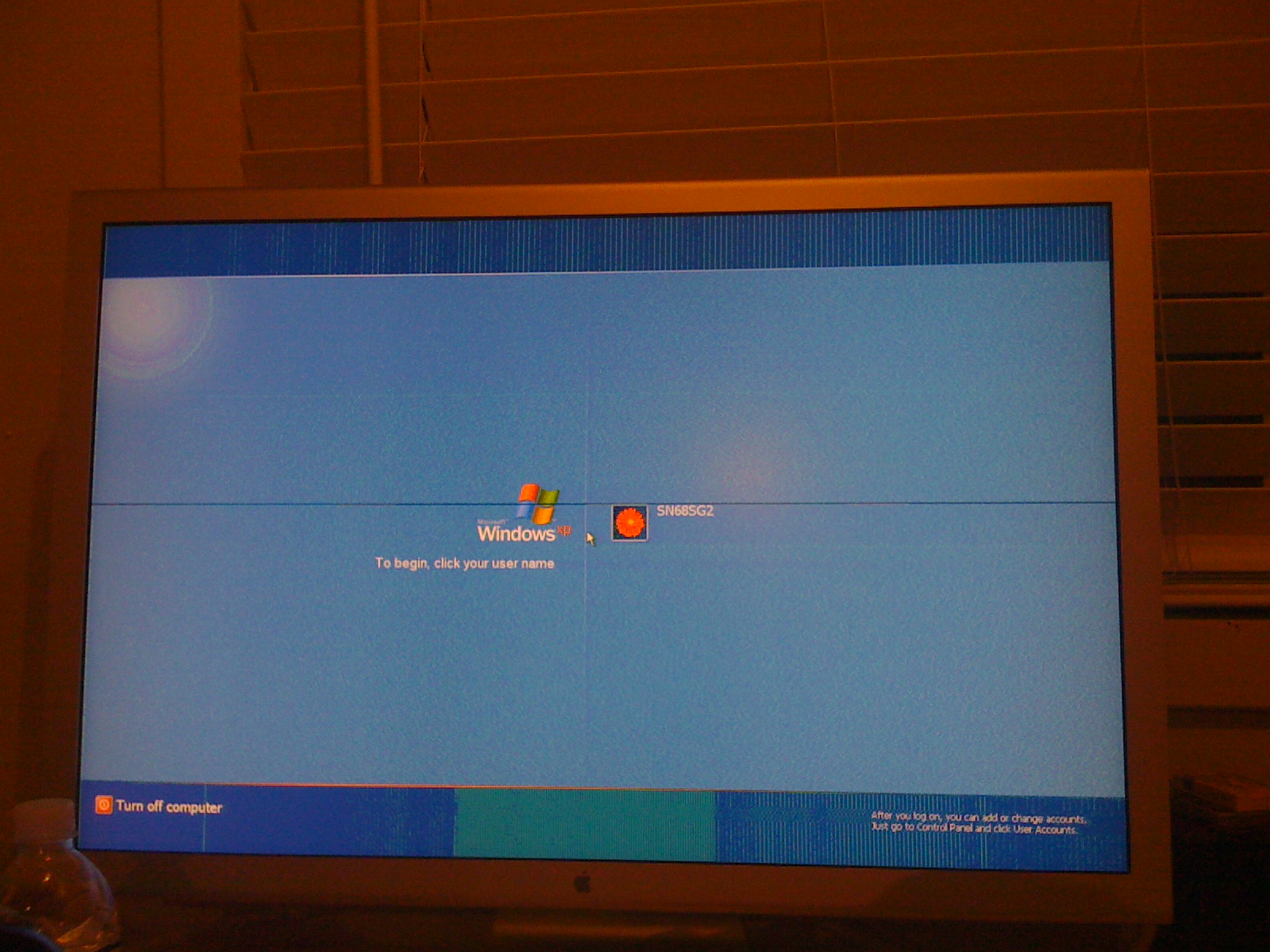

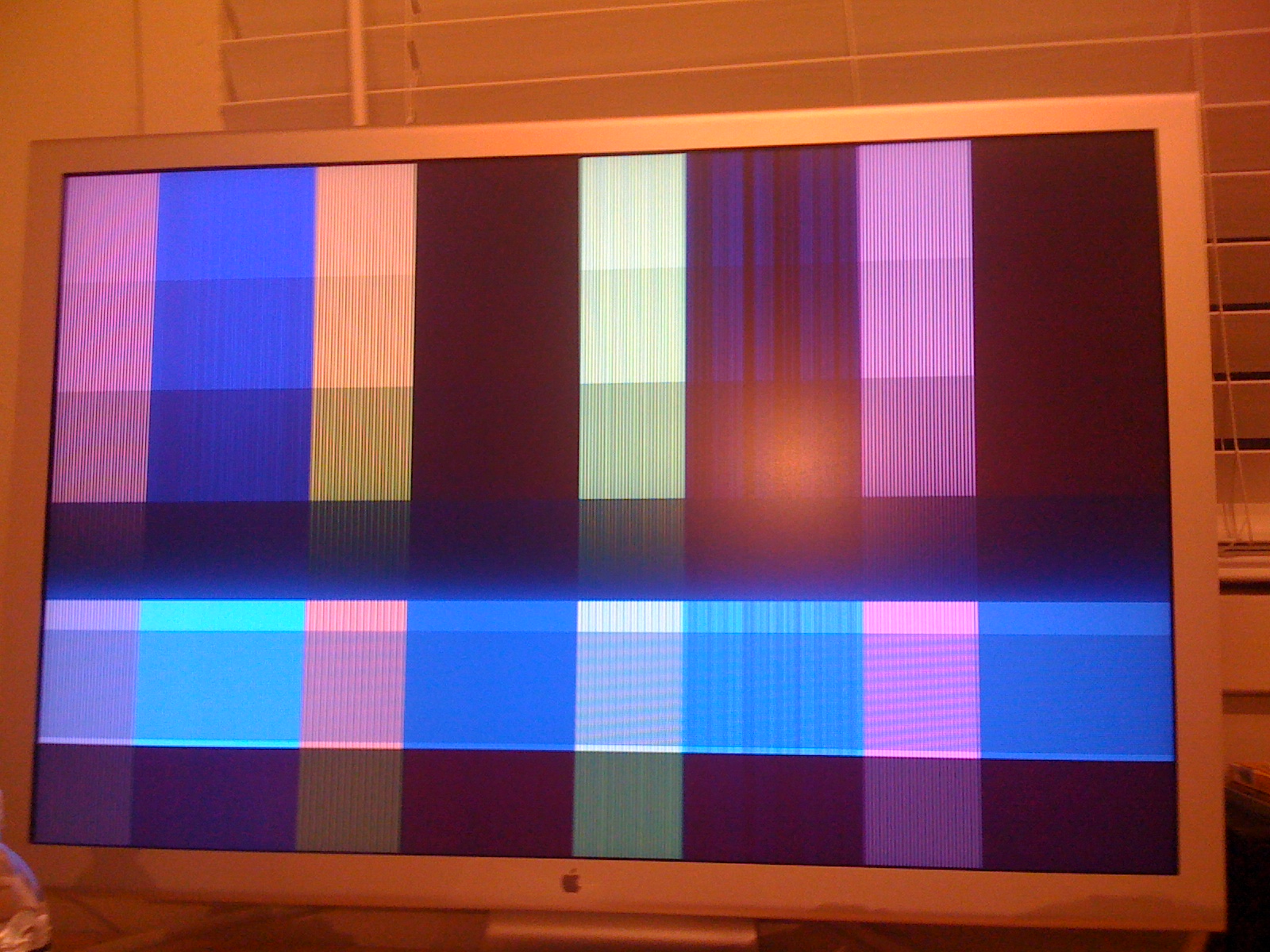

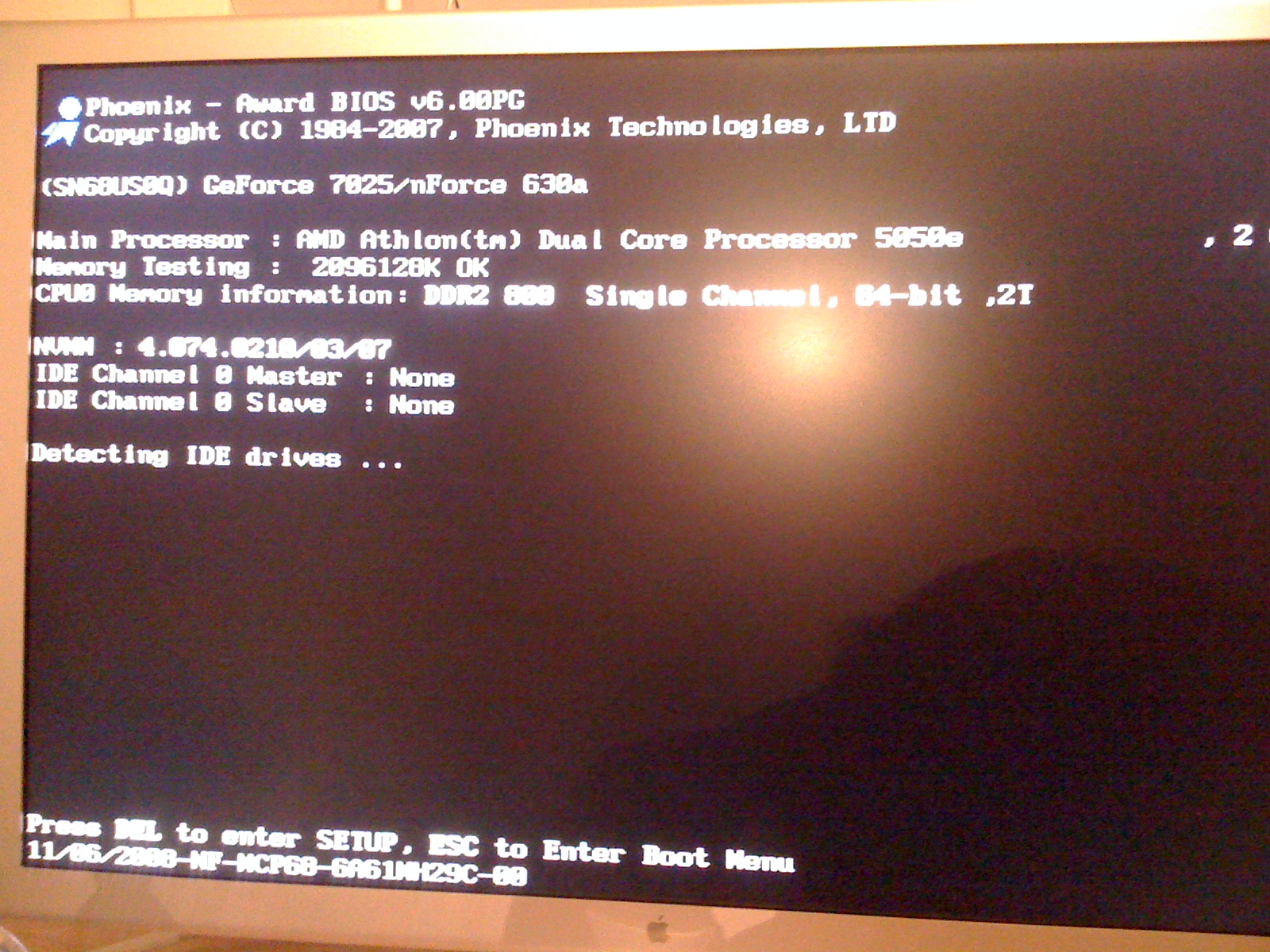

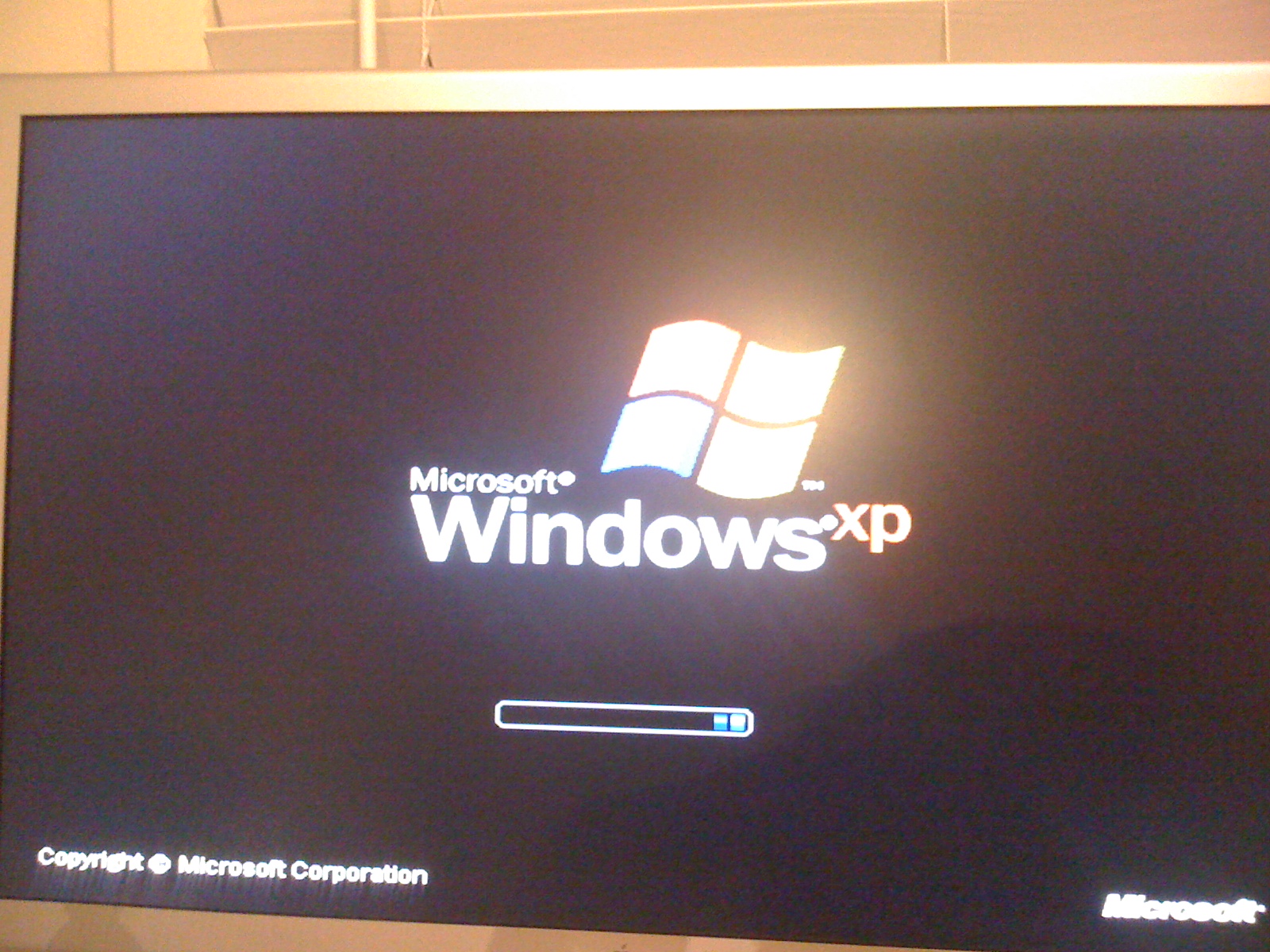

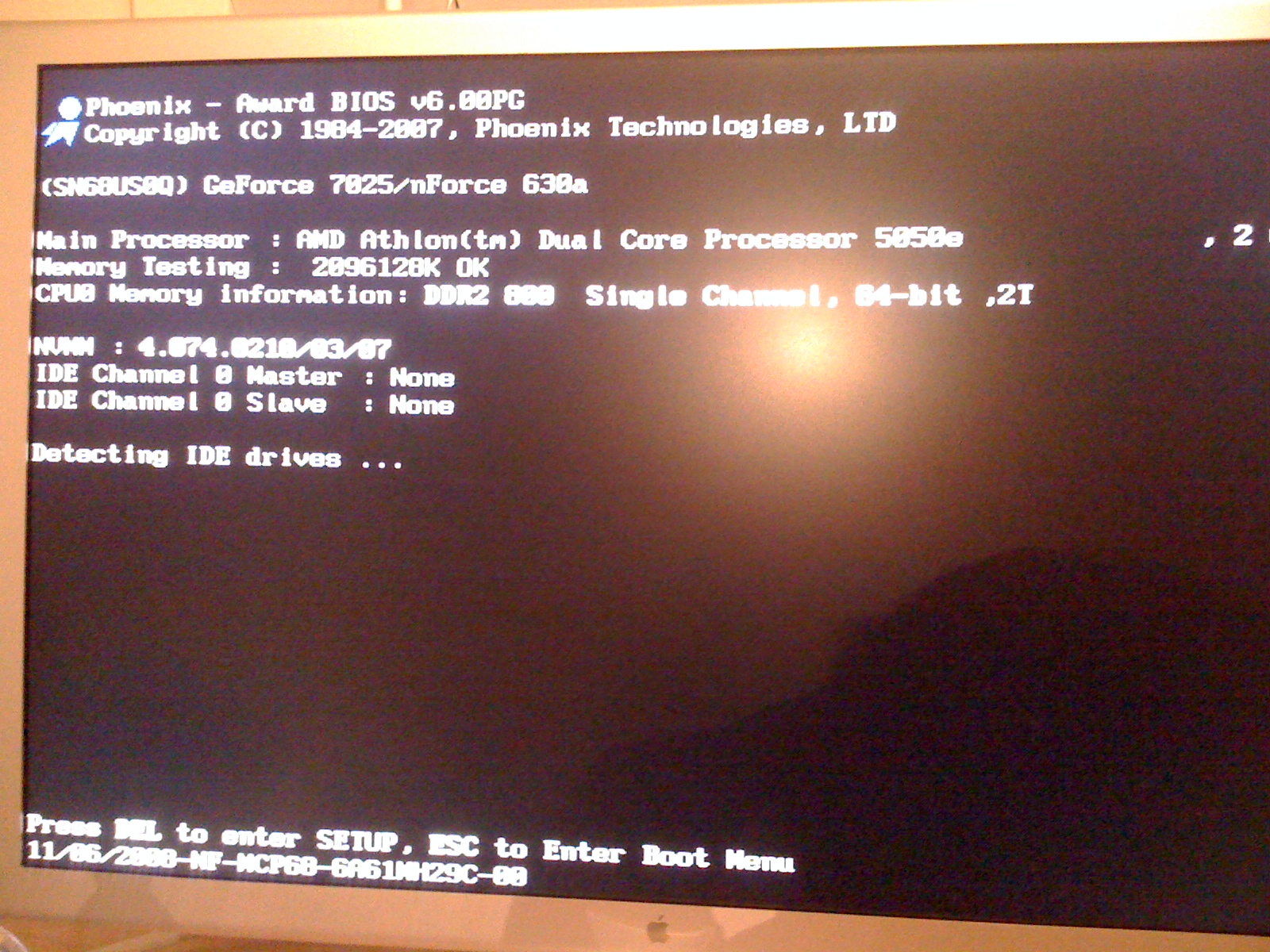

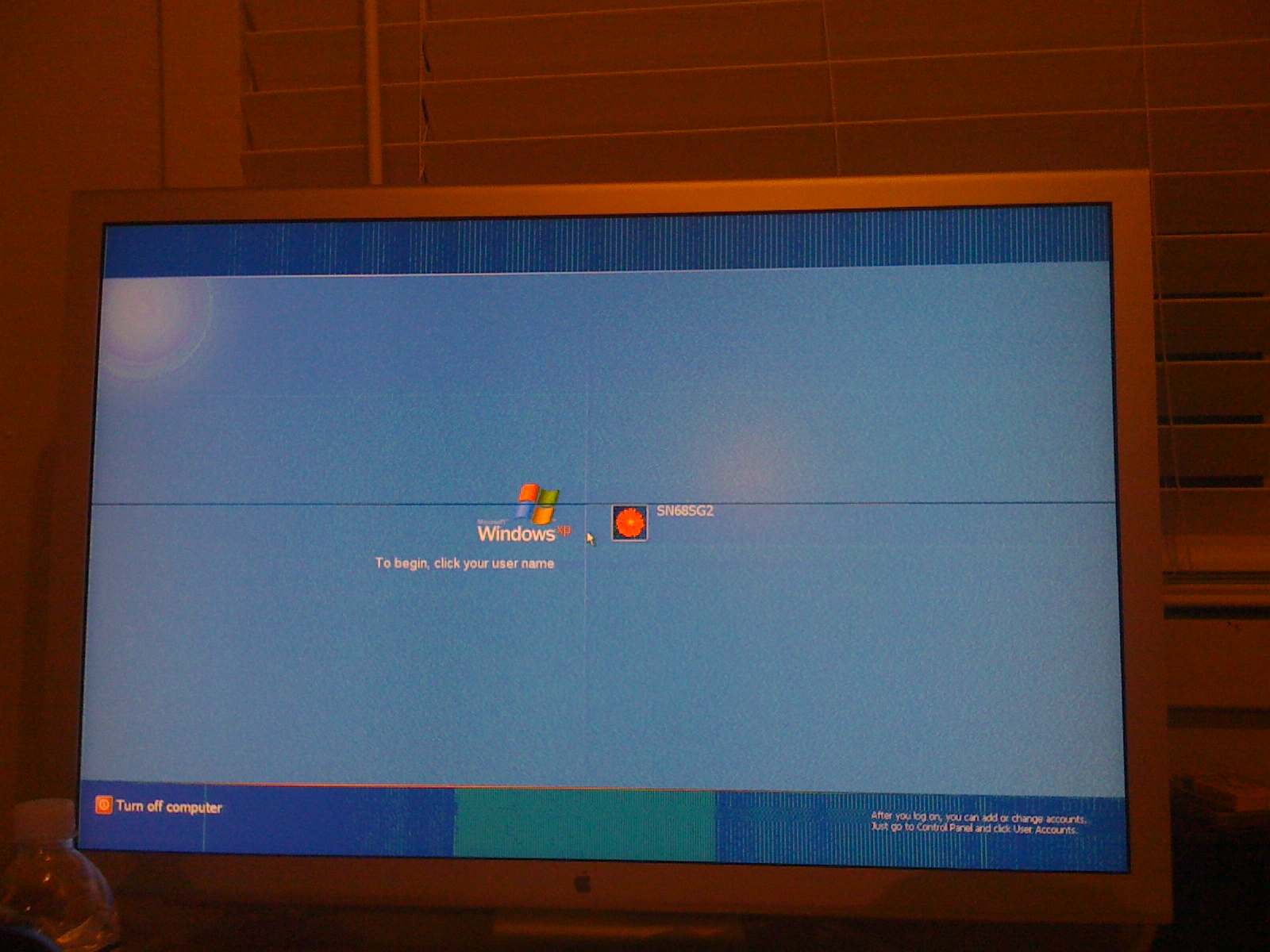

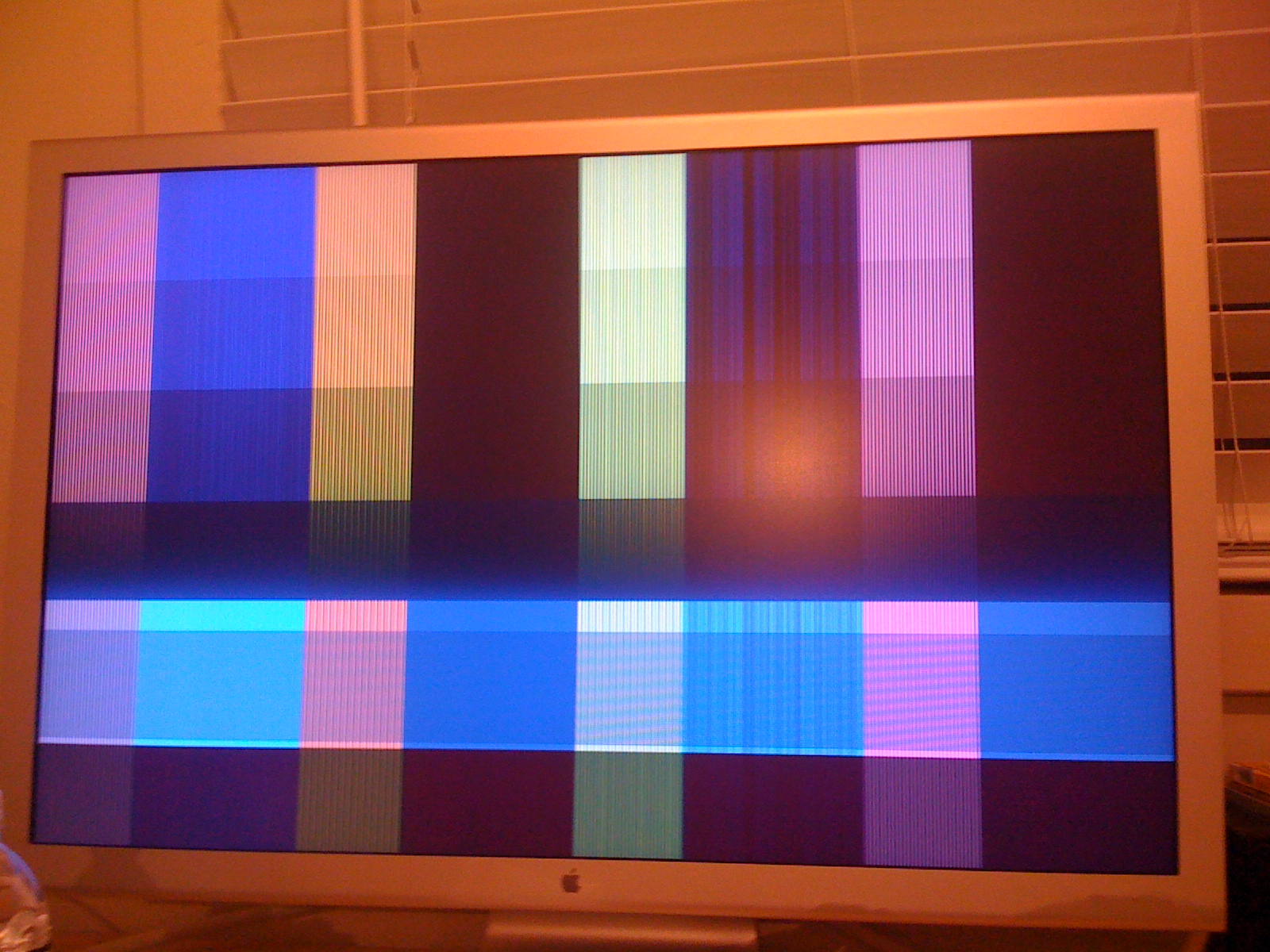

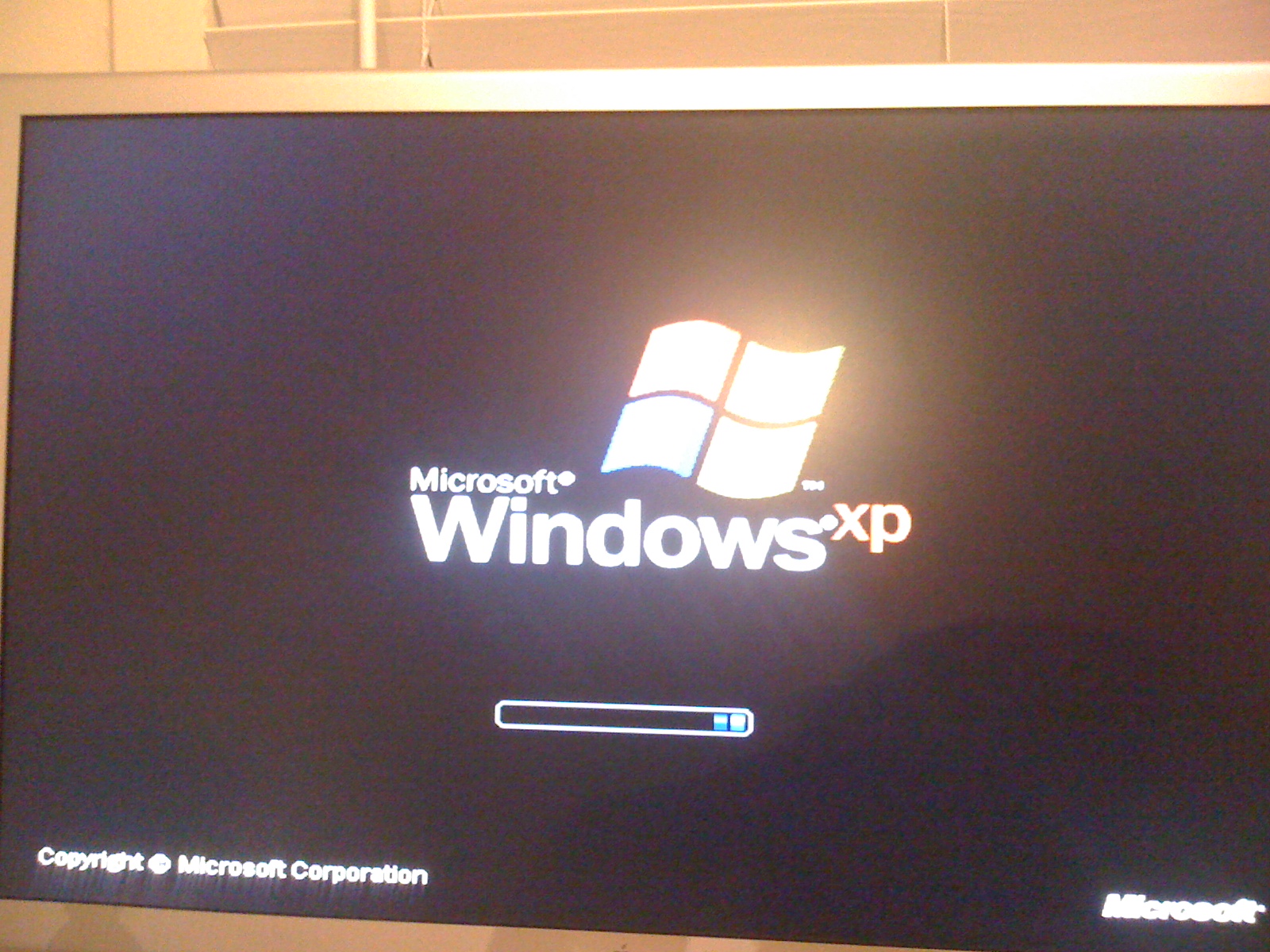

    Hello all, I recently purchased a used 30in Cinema Display. The previous owner let me test it on his mac pro and everything seemed fine. When I got it home and plugged it into my Macbook pro, there would be green dots and horizontal bars that would display on the monitor. I thought it was just my macbook's video card so I connected it to my desktop PC. I'm running a Radeon PRO 2400 w/ Dual link DVI. The monitor displayed fine during the bios boot and windows xp loading page, but when it got to the actual windows, the display went crazy again. Here are some pics of what I mean. Are there anyone that has encountered this problem? I'm beginning to rule out a video card issue and leaning towards a hardware issue with the display. I'm not sure if it makes sense though, if it displays the bios and winxp load page fine and crap out when it gets to the actual windows.


    Attached Files:

  2. alphaod macrumors Core

    alphaod

    Joined:
    Feb 9, 2008
    Location:
    NYC
    #2
    How did you get the display home? Did you carry it in a box? Place it flat in the trunk boxless? Take it on the bus?

  3. shaodeee thread starter macrumors newbie

    Joined:
    Nov 11, 2009
    #3
    I had the screen sitting on the passenger seat of my car with the display face up. I didn't drop it or manhandle it but I guess theres a possibility it broke on the ride home!?? :( Will get a new video card tommorow and run one last test.

  4. AppleNewton macrumors 68000

    AppleNewton

    Joined:
    Apr 3, 2007
    Location:
    1 Finite Place
    #4
    try reseating all the cables, all the power cables..make sure power cable coming form the display to the power brick is in all the way and snug.
    look for any damaged pins on the dvi cable as well.

    shouldnt have been damaged driving, i dont think theyre thaaaat fragile and breakable i transferred mine 2000 miles without a box in the back of a moving truck..risky but survived hah.

  5. quantum003 macrumors 6502a

    quantum003

    Joined:
    Apr 27, 2009
    Location:
    Superposition
    #5
    I think you have a video card issue here. These displays are made to work with Macs, not PC's. I had a similar issue once where I was trying to make a PC work with a bad video card. I made the mistake of disabling the driver of video card. When the PC rebooted, BIOS and Windows XP logo displayed just fine, but as soon as it got past that part, black screen totally. It looks like your display is having the same problem: BIOS and boot up are fine, as soon as you get past the boot stage the display goes to hell. Try seeking out a driver for your PC.

    I don't think your Macbook is strong enough to push out to that 30" monitor. I'm willing to bet your monitor is not the problem.

  6. Wehrwolf macrumors 6502

    Wehrwolf

    Joined:
    May 21, 2009
    #6
    All Macbook Pros can display a 2560x1600 external resolution. The fact that the display is acting up on two separate computers suggests an issue with the display.

  7. itou macrumors regular

    Joined:
    Jan 16, 2008
    #7
    definitely a video card or a driver problem.

    displays just interprets what it's given onto a screen. if the display powers on and you can see something (even if it's displaying bars or something), then there's nothing wrong with the display itself.

  8. jetjaguar Suspended

    jetjaguar

    Joined:
    Apr 6, 2009
    Location:
    somewhere
    #8
    which video card were u using on your mbp ?? maybe you need to run the better one ? just a suggestion as that was a problem for me and fcp .. never know

  9. Transporteur macrumors 68030

    Joined:
    Nov 30, 2008
    Location:
    UK
    #9
    It works absolutely fine on PC's and displays are not made for a certain brand. DVI is a standard and Apple graphic cards are exactly the same as PC ones in terms of the hardware.


    Every MacBook Pro (first gen till now) is capable of running a 30" with it's full resolution.
    Even if he would use a MacBook of an older generation that has only support up to 1920x1200, the 30" would run without such strange errors. It would however display a 1280x800 resolution.

  10. quantum003 macrumors 6502a

    quantum003

    Joined:
    Apr 27, 2009
    Location:
    Superposition
    #10
    But does his Macbook Pro have the juice to push out both to the 30" display and his MBP's display at the same time? I have an early 2009 MBP and it does not have the juice to push out to my Dell 24" LCD display and it's own display at the same time. The Dell's display flickers black lines until I close the lid of my MBP.

    The fact that his PC displays just fine throughout the BIOS stage and gets past the Windows XP image before crapping out means that the problem is with the PC not the monitor. I have encountered the exact same problem in my line of work. Either the refresh rate on the PC is incorrect for the monitor, or the video card's software settings need to be adjusted. Could you boot up your PC using another monitor? Once you're up and running, can you attach the 30" Apple display as a secondary monitor and configure the settings through the ATI control panel?

  11. patrickdunn macrumors 6502a

    patrickdunn

    Joined:
    Apr 16, 2009
    Location:
    St. Louis, MO
    #11
    It looks like a video card issue.

    I opened up this thread, and all I could think about was:
    [​IMG]

  12. shaodeee thread starter macrumors newbie

    Joined:
    Nov 11, 2009
    #12
    Update!!

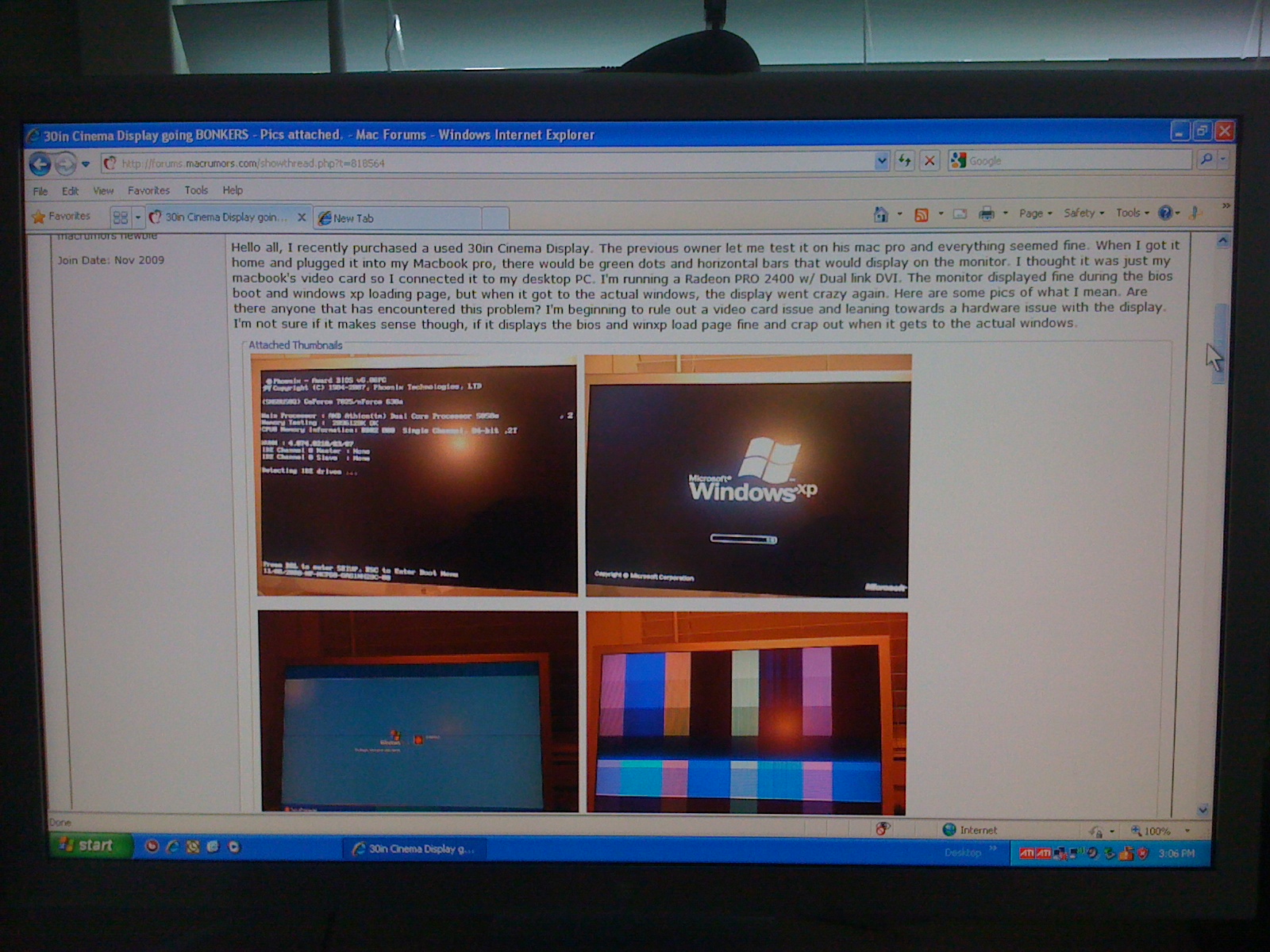

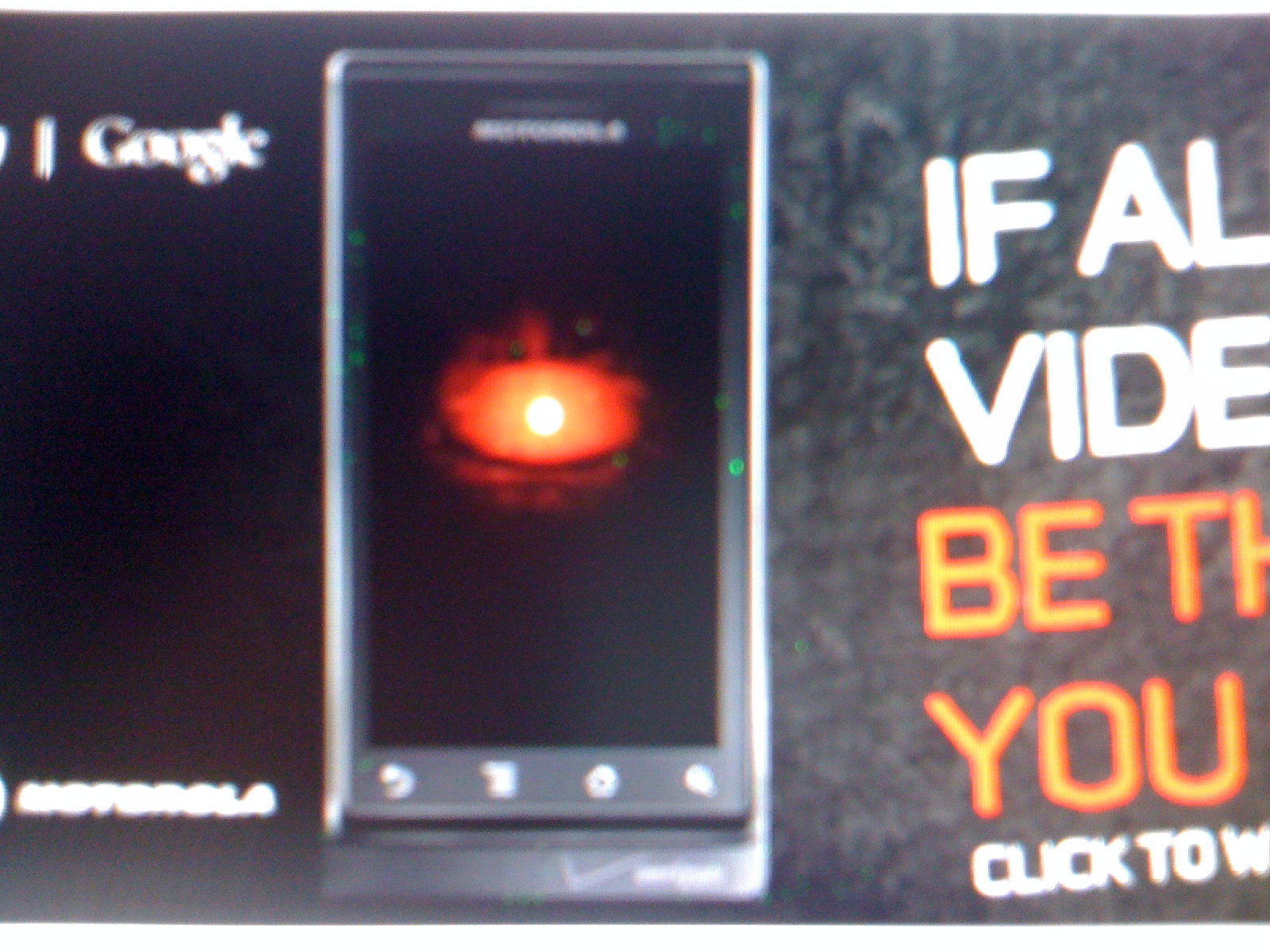

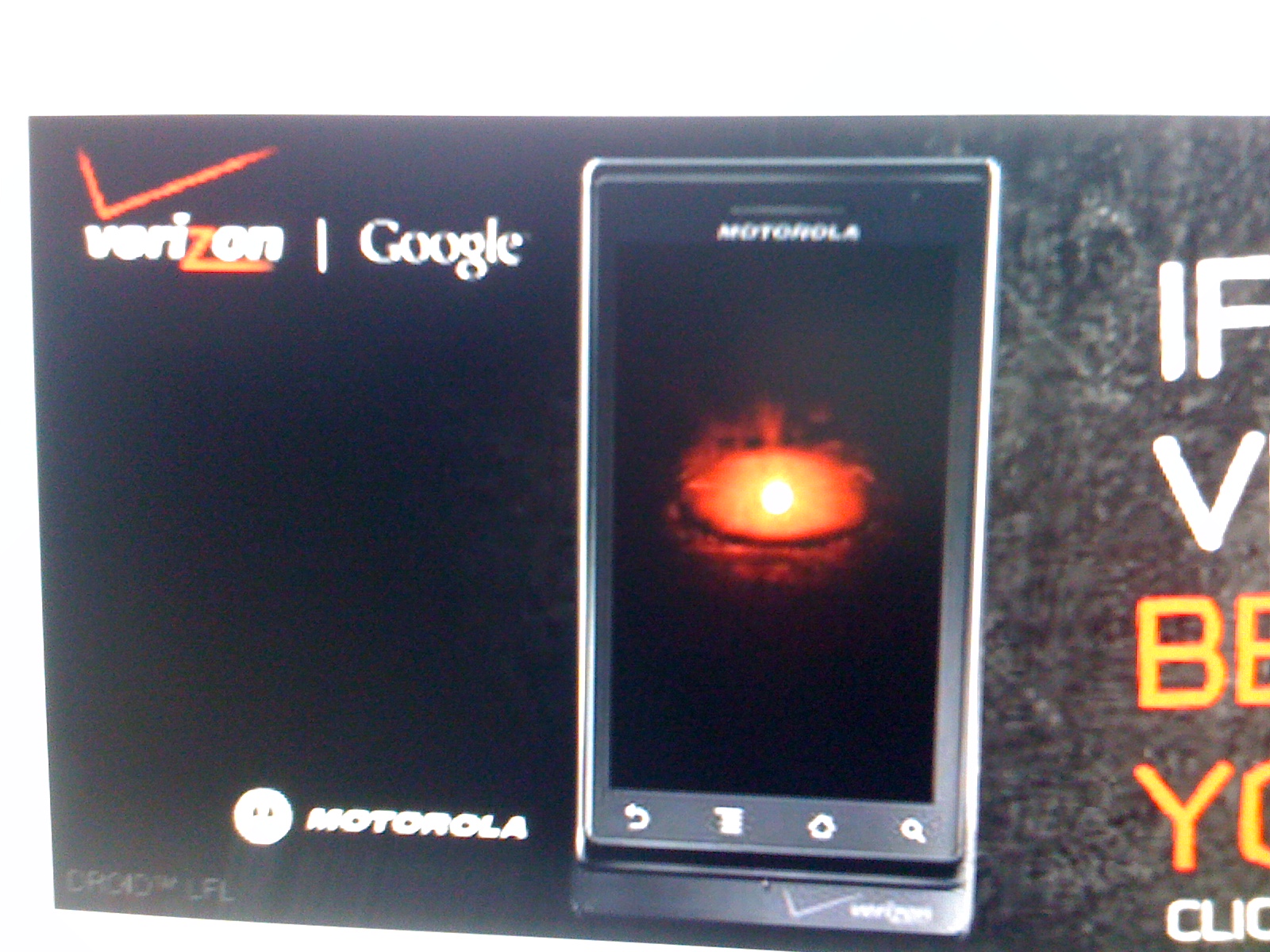

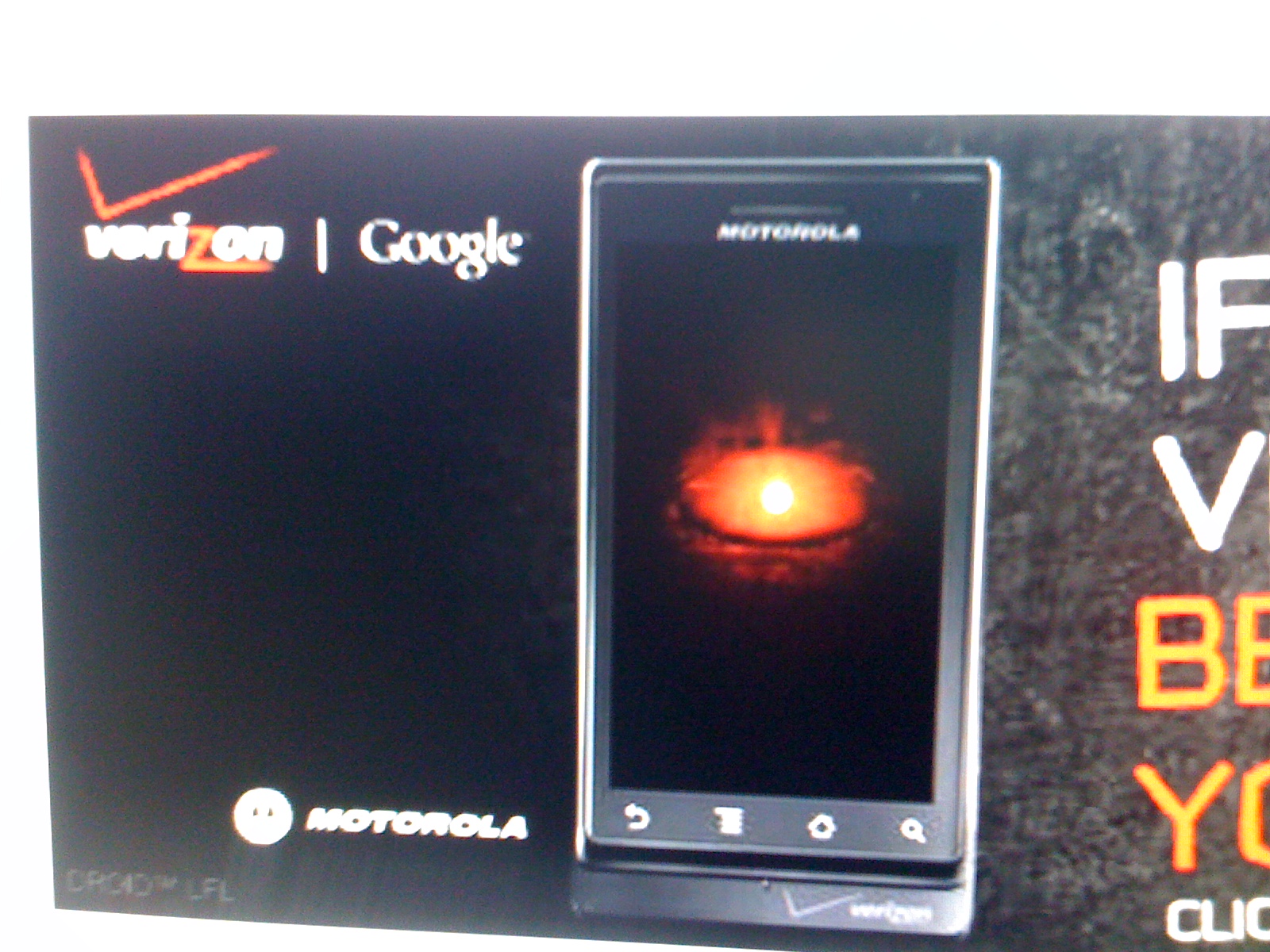

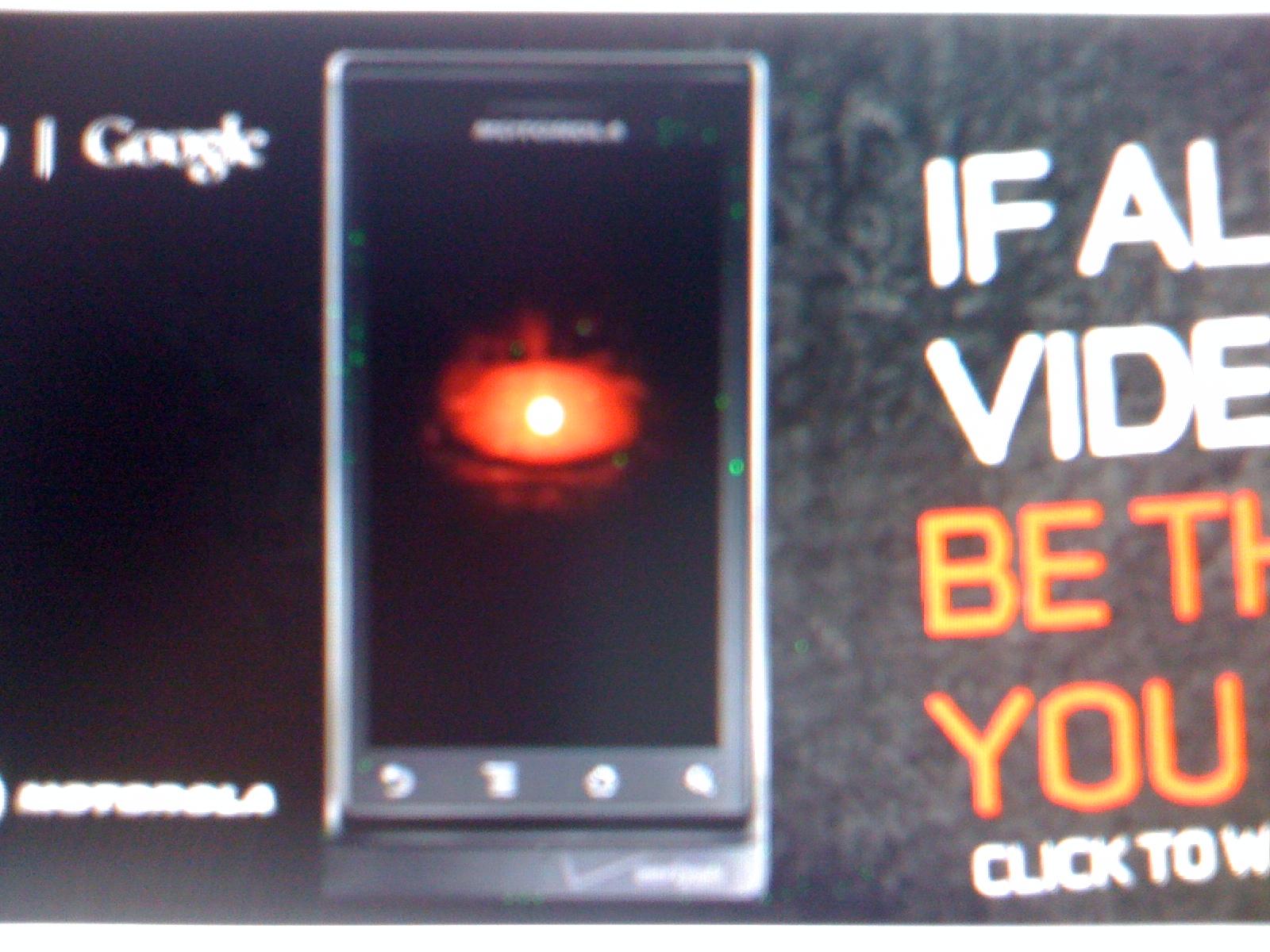

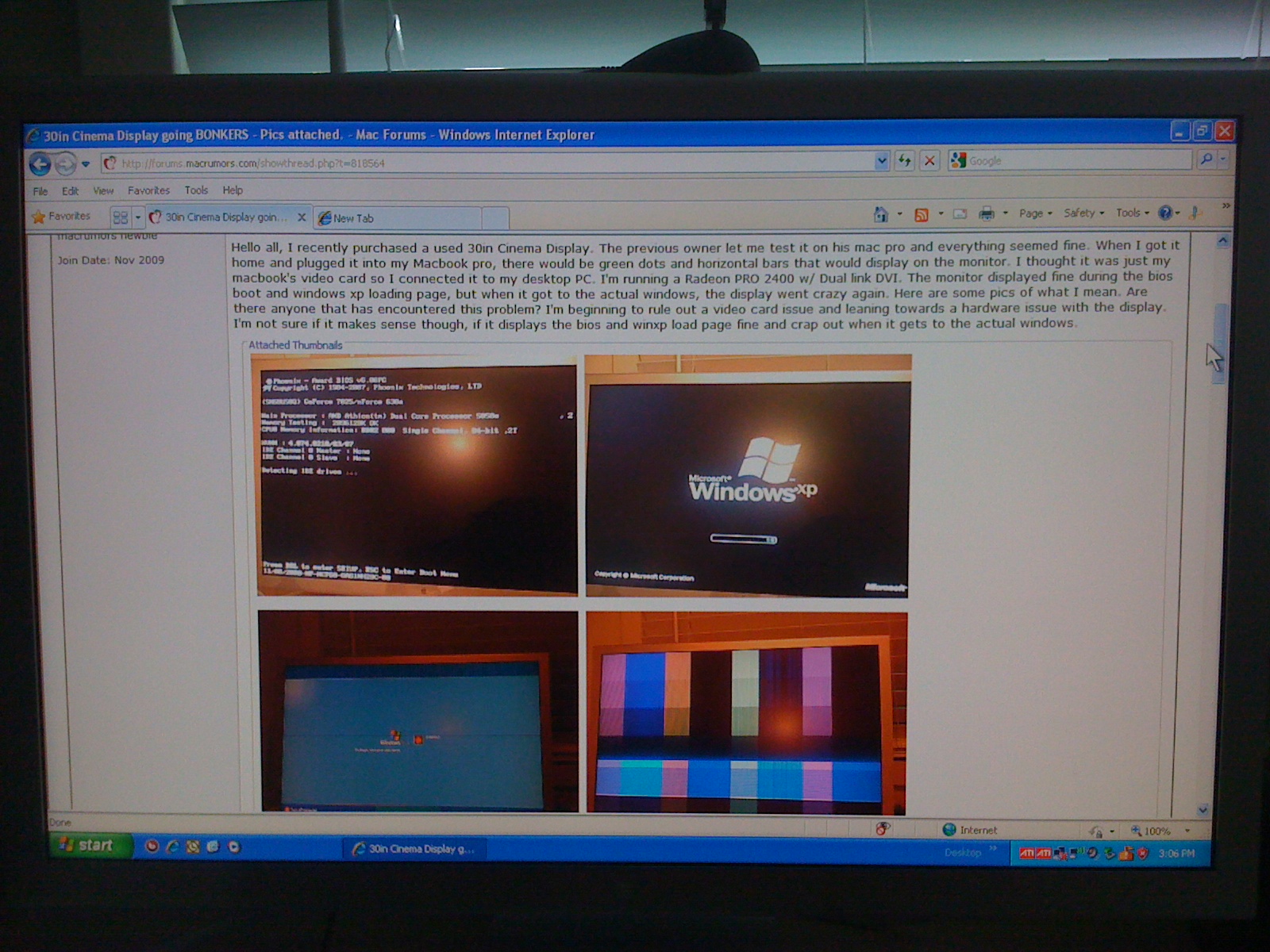

    Here's a a quick update guys. I switched the video card on the PC to a Radeon 4650 with dual DVI-D ports. I plugged the display in and it worked.....kinda. It displays well but there are green specks that show up on some of the darker graphics. Its pretty noticeable and I can't seem to get rid of it. The dots do disappear when I drop the resolution down to 1280x800 or lower but return on any higher resolution. I then tried a new Nvida Quadro 380 and it actually got worse! So is this still a video card issue or display issue? Anybody have any input? Here are some attached pics. Pic 1 shows that it actually displays now. Pic 2 is an example of the green dots on the highest resolution. Pic 3 shows no dots on 1280x800.


    Attached Files:

  13. klaxamazoo macrumors 6502

    Joined:
    Sep 8, 2006
    #13
    That just happened to mine. It was a refurbished one that I bought ~2 months ago. I took it to the Apple store and they hooked it up to another laptop and it had the same issue so it was sent off for repair.
