3D printable stand for AirPods Max

Absrnd

Absrnd

macrumors 6502a
Original poster
Apr 15, 2010
917
1,676
Flatland
I created this retro look Max stand, this can be 3D printed, and is free for anyone.
If you go to a forum for 3D printers, there is always somebody to help you get this printed.

I also created this because I don't want it to hang on a stand, and maybe deform the mesh after a few months :)

www.thingiverse.com

Airpods Max stand by TheHappyOne

This a fun design I made with a bit of a retro look,you can put the Airpods max in the stand without it hanging on the headband, that might deform over time.You can use it as is, but I recommend to put some 1mm sticky back felt on the inside to prevent scratches over time.I have accounted for...
www.thingiverse.com www.thingiverse.com

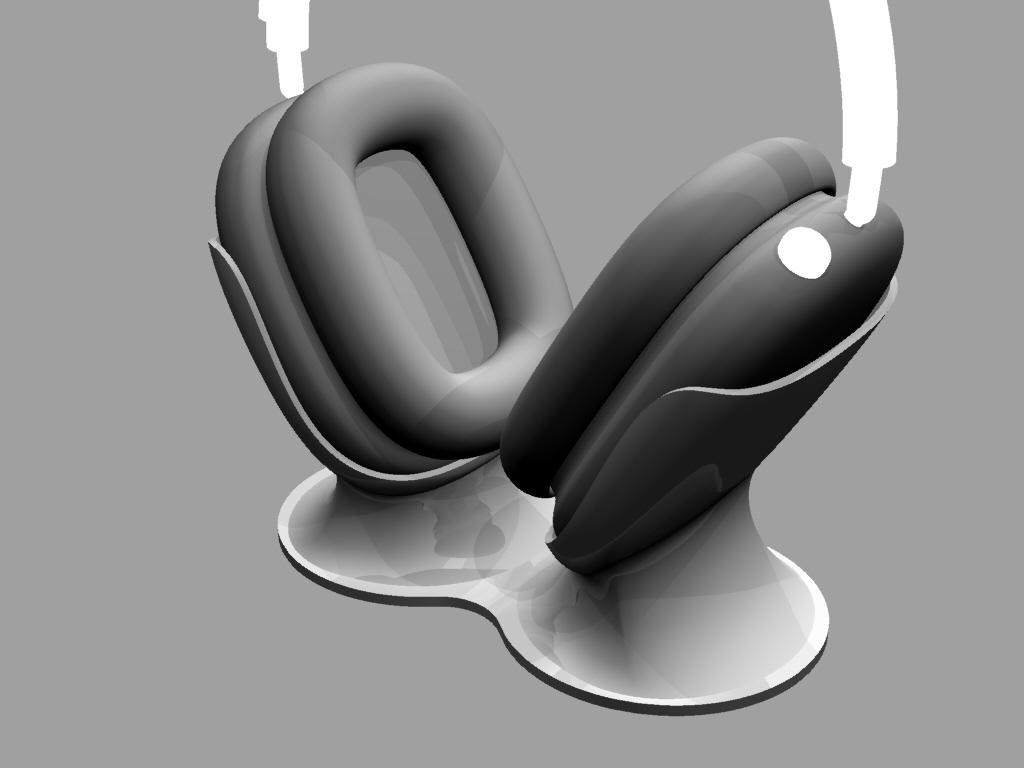

Airpods Max render 1.jpg

  • Like
  • Love
  • Wow
Reactions: xodh, EedyBeedyBeeps, Phil1975 and 22 others
This looks cool. I am waiting for my prusa mini+ order and my APMs.

I have a list of items I want to design and print, and other people’s designs I want to print. This went on my list, I’ll try to remember to post it if I get it done.

Did you print one for yourself? Would be cool to see a pic especially if you applied the felt.

What 3d design tools do you typically work with?

How did you get the right curvature of the exterior APM cup?

- rob - said:
This looks cool. I am waiting for my prusa mini+ order and my APMs.

I have a list of items I want to design and print, and other people’s designs I want to print. This went on my list, I’ll try to remember to post it if I get it done.

Did you print one for yourself? Would be cool to see a pic especially if you applied the felt.

What 3d design tools do you typically work with?

How did you get the right curvature of the exterior APM cup?
Click to expand...
There is a 3D model of the headphones, but they are slightly offsize.
I 3D scanned my headphones to get the correct measurments, and created the stand with Rhino3D.

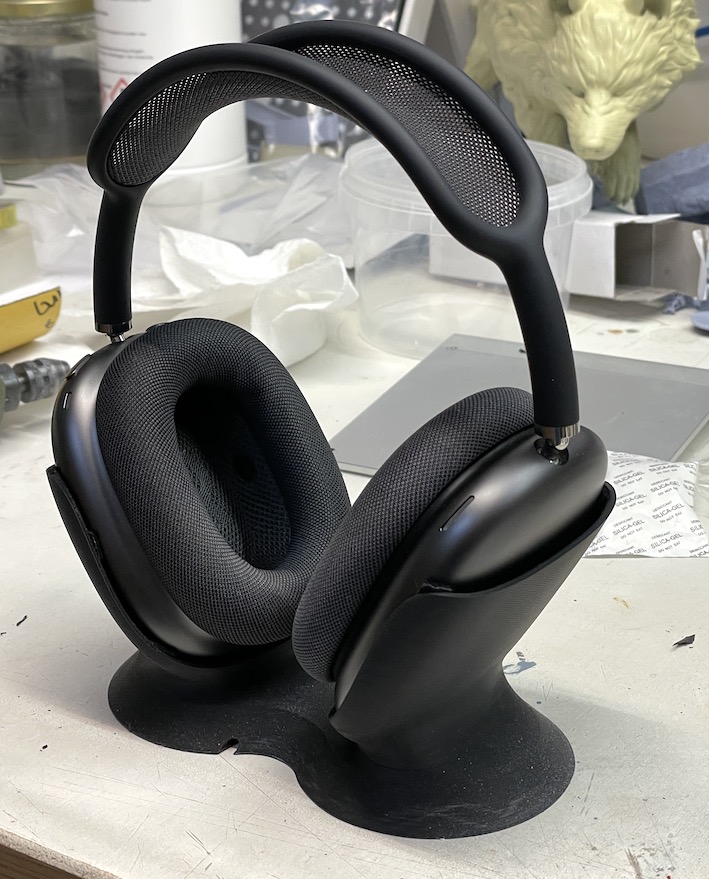

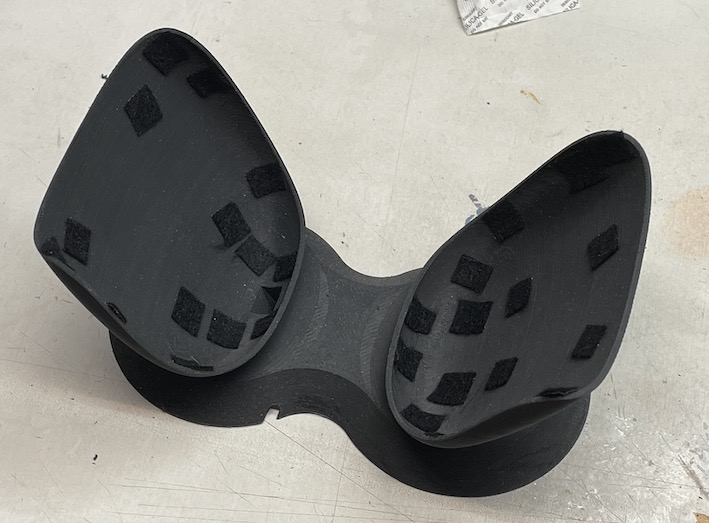

This is the test print (older design) to test if the cups shapes were good, I jus added some small bits of 1mm felt to check the fit.

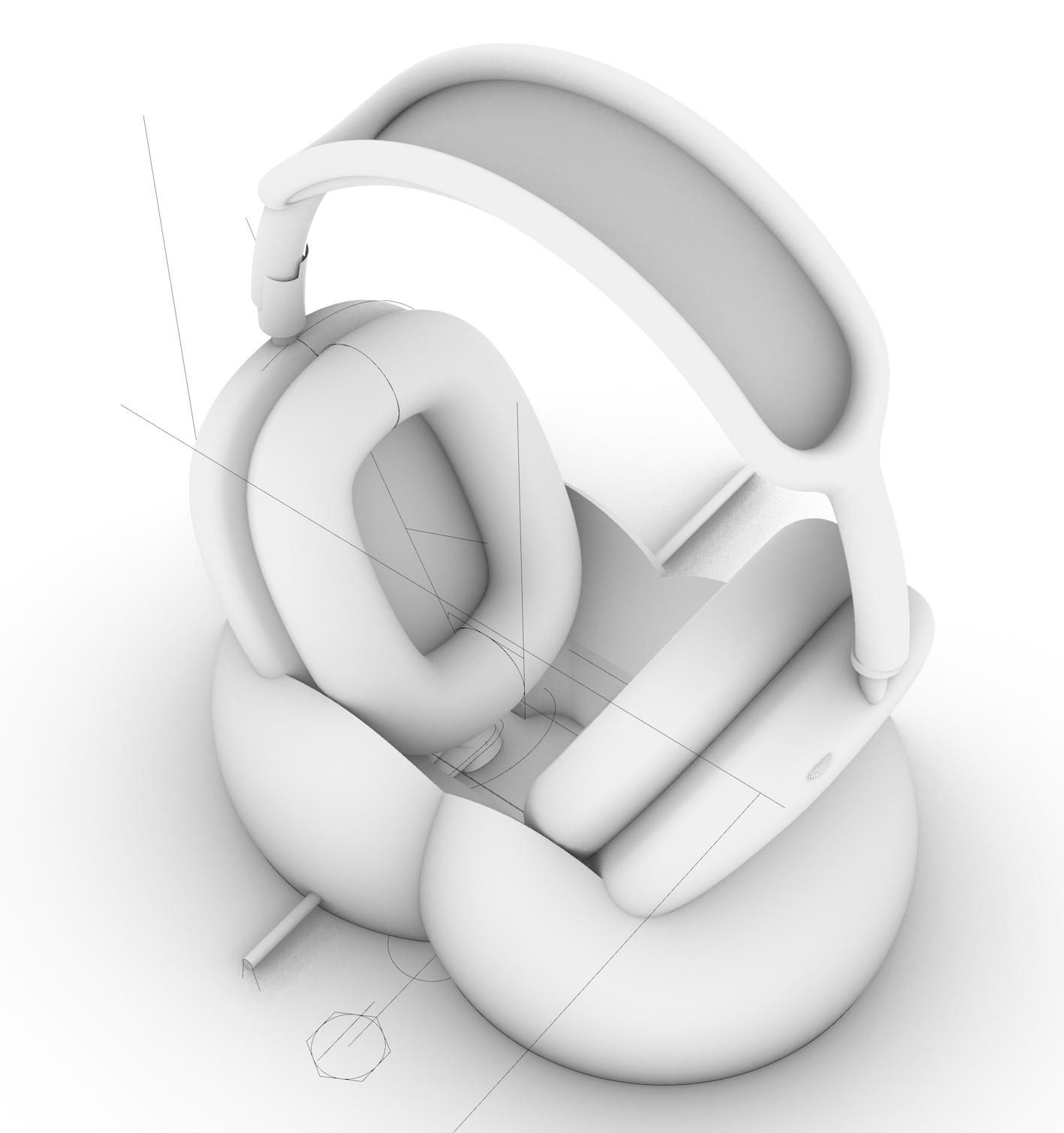

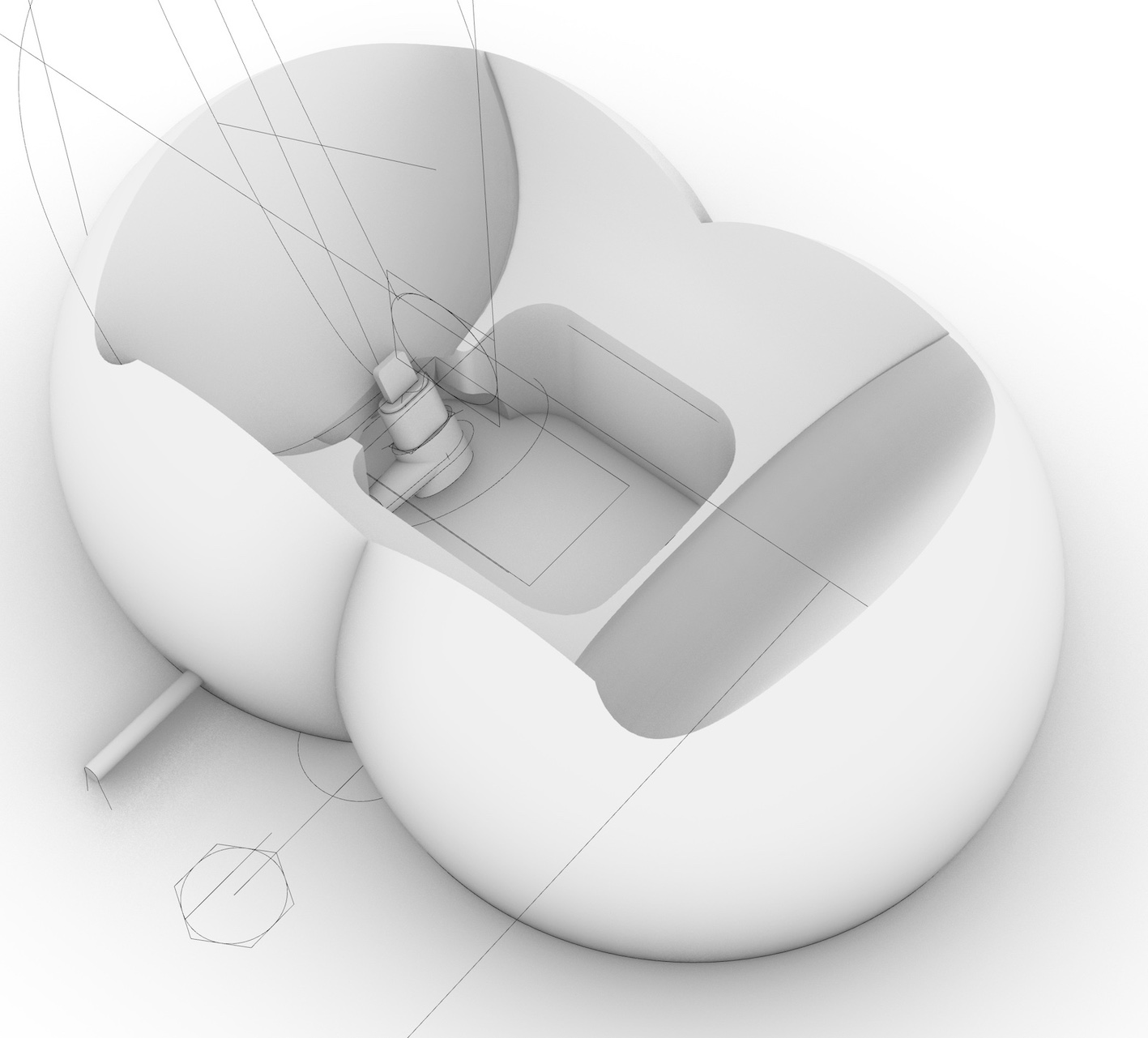

I am also working on a stand that can do charging with a magsafe lightning connector :)

Screenshot 2021-01-28 at 21.24.47.jpg


Screenshot 2021-01-28 at 21.28.11.jpg

Last edited:
  • Like
  • Love
Reactions: Lydia Jane, Paninnguaq, tranceking26 and 12 others
Absrnd said:
There is a 3D model of the headphones, but they are slightly offsize.
I 3D scanned my headphones to get the correct measurments, and created the stand with Rhino3D.

This is the test print (older design) to test if the cups shapes were good, I jus added some small bits of 1mm felt to check the fit.

View attachment 1720961

View attachment 1720962

I am also working on a stand that can do charging with a magsafe lightning connector :)

View attachment 1720969

View attachment 1720970
Click to expand...
Thank you for the additional detail, would you mind sharing your 3D scanning tool or setup?

Im curious if you have any filament type recommendations for this, and what you used in your photos. And if you don’t mind, what kind of printer do you use?

Your design incorporating the lighting cable is also cool. Curious to see how that comes out. Please post any progress on it.

- rob - said:
Thank you for the additional detail, would you mind sharing your 3D scanning tool or setup?

Im curious if you have any filament type recommendations for this, and what you used in your photos. And if you don’t mind, what kind of printer do you use?

Your design incorporating the lighting cable is also cool. Curious to see how that comes out. Please post any progress on it.
Click to expand...
I use an Einscan pro 2X for 3D scanning, and printed the stand on my Ultimaker 2+
but any 3D printer with enough bed size will print this, only if you want to print ABS, you need an enclosed printer.

If you just print the object, and use it as is, then PLA is the best option to print,
if you want to paint the stand you might want to choose a better sandable material like ABS ( can be vapour smoothed), or PETG.

I printed these in ABS, as I want to paint it like the Max space grey colour :)

  • Like
Reactions: AmazeSE and djlythium
Absrnd said:
I created this retro look Max stand, this can be 3D printed, and is free for anyone.
If you go to a forum for 3D printers, there is always somebody to help you get this printed.

I also created this because I don't want it to hang on a stand, and maybe deform the mesh after a few months :)

www.thingiverse.com

Airpods Max stand by TheHappyOne

This a fun design I made with a bit of a retro look,you can put the Airpods max in the stand without it hanging on the headband, that might deform over time.You can use it as is, but I recommend to put some 1mm sticky back felt on the inside to prevent scratches over time.I have accounted for...
www.thingiverse.com www.thingiverse.com

View attachment 1720731
Click to expand...
Why didn’t Apple like sell an accessory like this. It seems so intuitive and simple... except the design without the headphones... it does look quirky.

Looks really nice. I don't see it mentioned but have you thought about adding magnets to them, so the headsets shut off when docked.

Jeaz said:
Looks really nice. I don't see it mentioned but have you thought about adding magnets to them, so the headsets shut off when docked.
Click to expand...
There is a 1mm gap, so you can add some adhesive 1mm felt, and there are also adhesive 1mm magnet strip, that should also work.
But have not tested this.

I have no major batt drain problems, without the case.

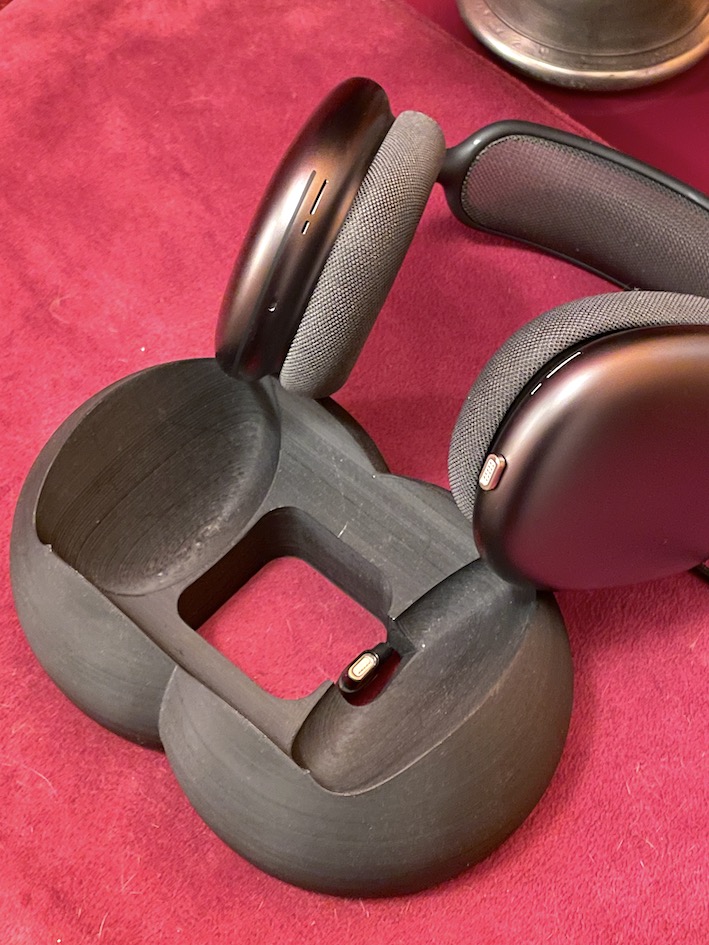

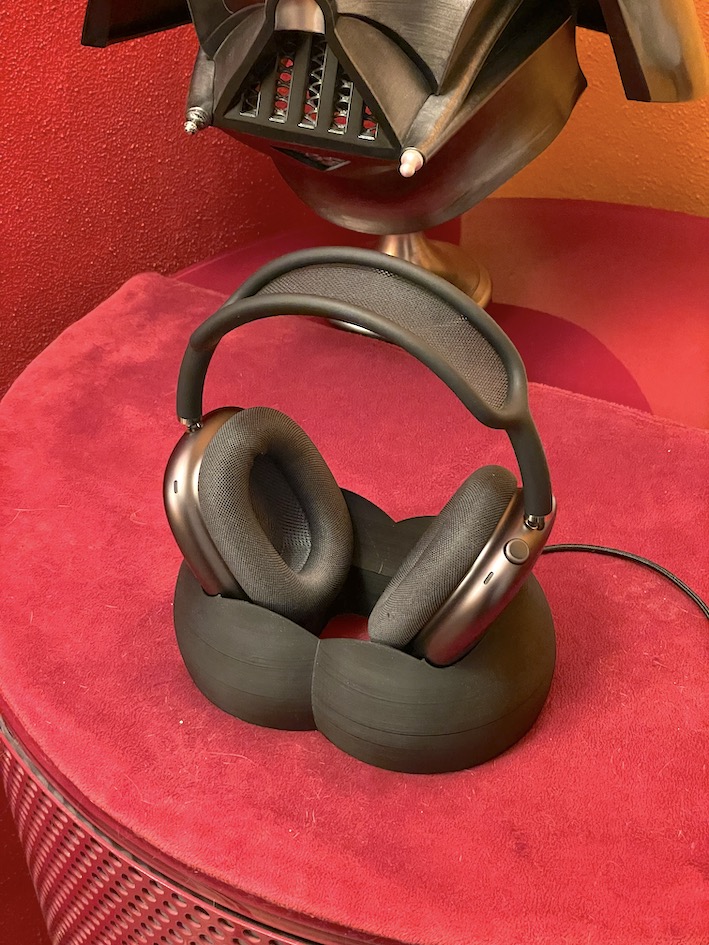

Test printed the second design test version, this has a generic angled magsafe lightning cable, with a tiny dongle in the max charge port.
This work good, but I had to add some weight to the stand, so not lift the whole thing up :)




  • Like
Reactions: paris1129, Mikeeee, Ralfi and 6 others
Absrnd said:
I created this retro look Max stand, this can be 3D printed, and is free for anyone.
If you go to a forum for 3D printers, there is always somebody to help you get this printed.

I also created this because I don't want it to hang on a stand, and maybe deform the mesh after a few months :)

www.thingiverse.com

Airpods Max stand by TheHappyOne

This a fun design I made with a bit of a retro look,you can put the Airpods max in the stand without it hanging on the headband, that might deform over time.You can use it as is, but I recommend to put some 1mm sticky back felt on the inside to prevent scratches over time.I have accounted for...
www.thingiverse.com www.thingiverse.com

View attachment 1720731
Click to expand...
That stand actually makes me want to buy the freakin' headphones! Great look!!!

  • Like
Reactions: artfossil
Absrnd said:
There is a 3D model of the headphones, but they are slightly offsize.
I 3D scanned my headphones to get the correct measurments, and created the stand with Rhino3D.

This is the test print (older design) to test if the cups shapes were good, I jus added some small bits of 1mm felt to check the fit.

View attachment 1720961

View attachment 1720962

I am also working on a stand that can do charging with a magsafe lightning connector :)

View attachment 1720969

View attachment 1720970
Click to expand...
From which app you rendering this white version (Ambient Occlusion)?

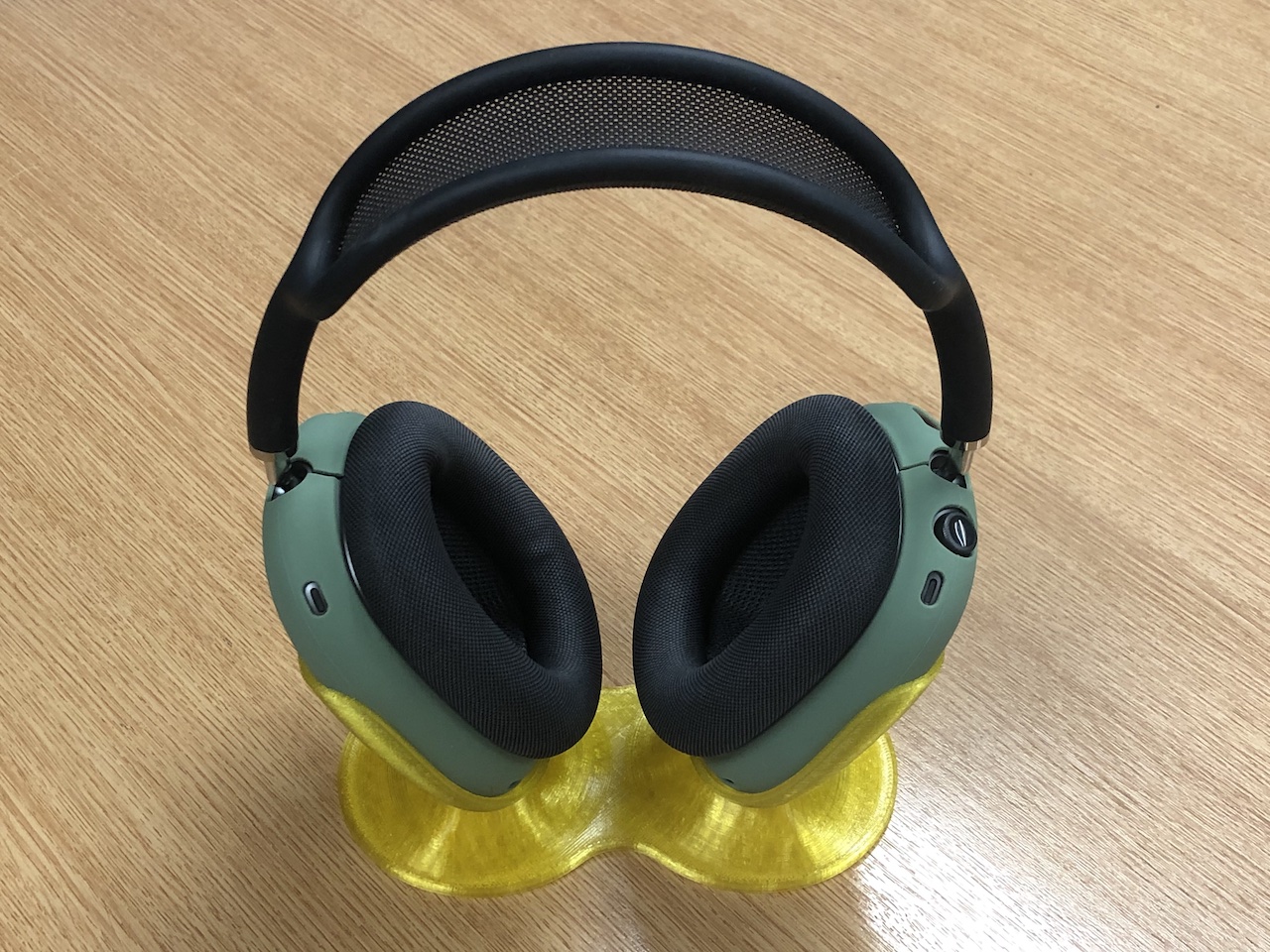

It seems that my stand also works with the silicone covers.
this is printed by iDoogs on Thingiverse :)


- rob - said:
That looks great. I wasn’t aware there were silicon covers but may pick up a pair.

You mention your Einscan pro 2X, I was curious what kind of work you do that requires this equipment. It looks like a great tool.
Click to expand...
I am a professional modelmaker, and work with industrial designers, and make models, prototypes, art and maquettes :)

  • Like
Reactions: - rob -
Jordan921 said:
How much if you were to sell one of those?
Click to expand...
Maybe around $30,-
But I am in Europe, and shipping would probably double he price
Find a forum on 3D printing, you will probably find someone close willing to print it for you :)
