48gb of Other

wrinkster22

macrumors 68030
Original poster
Jun 11, 2011
2,623
6
Toronto
Hey Everybody,
Recently I transferred all my files onto my new external Hard drive and did a Time Machine backup to my Harddrive. I thought that I would have freed a lot of storage but I have 50gb of other (well 48gb) Could anyone tell me how I could get rid of some of that? (Apologies if this has been answered and yes simsaladimbamba I tried advanced search :p )

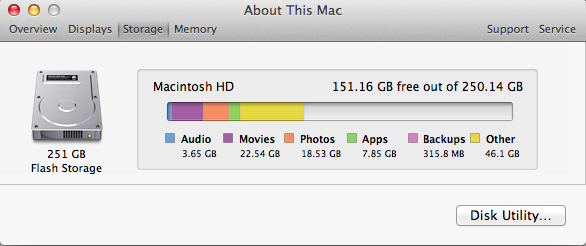

Screen Shot 2012-01-03 at 12.16.25 PM.png
Thanks


ashman70

macrumors 6502a
Dec 20, 2010
942
0
You need to determine what the 48GB of 'other' is, if the files don't fall under any of the other categories, they should be easy to locate.


LAS.mac

macrumors 6502
May 6, 2009
363
0
Mexico
Wirelessly posted (Mozilla/5.0 (iPhone; CPU iPhone OS 5_0_1 like Mac OS X) AppleWebKit/534.46 (KHTML, like Gecko) Version/5.1 Mobile/9A405 Safari/7534.48.3)

Download Space Gremlin (http://www.spacegremlinapp.com/).
That's a useful program able to tell you exactly what are the different portions of your HD used for.


wrinkster22

macrumors 68030
Original poster
Jun 11, 2011
2,623
6
Toronto
You need to determine what the 48GB of 'other' is, if the files don't fall under any of the other categories, they should be easy to locate.
How do I determine this?
EDIT: Could these be Time Machine Backups?
The Space Gremlin app confuses me


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
By using finder or the terminal application. I can't post more right now since I am not at a computer but in my visitor messages there is a link on making finder useful. The command line du will be your friend in terminal


Stewart21

macrumors regular
Dec 9, 2011
187
0
South Yorkshire
How do I determine this?
EDIT: Could these be Time Machine Backups?
The Space Gremlin app confuses me
I've just been playing with my MBA. I had 12.4GB of other. Fired up iPhoto and emptied the iPhoto trash. Other went down by almost 1GB. Give it a try, do it for all users you have on your machine.

Do you empty your Downloads folder?, just doing a clear doesn't get rid of downloaded files.

It should not be Time Machine backups as you say you've done a backup recently but turn it off and see if it makes a difference. I doubt it.

I'm not a fan of so called cleaning utilities but if you are not familiar with the command line then download something like Diskdiet which is free and try getting rid of extra language files, caches, temporary files, and it can clear your downloads too. I just ran it on my iMac and it "claimed" I could free up 1.1GB even though my trash and download folders are empty.

Stewart


paulrbeers

macrumors 68040
Dec 17, 2009
3,960
120
It's Time Machine related - and will continue until you turn off local snapshots. You can do this through terminal using the sudo tmutil disablelocal command. It's really just a snapshot of your drive since your last backup.
This...

Happens on all Lion portables when you aren't connected to the Time Machine Backup drive (i.e. when out and about). Run the command above and it will stop this "feature" and give you back the missing space. I had it consuming 40GB on my MBA before I realized.


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
This...

Happens on all Lion portables when you aren't connected to the Time Machine Backup drive (i.e. when out and about). Run the command above and it will stop this "feature" and give you back the missing space. I had it consuming 40GB on my MBA before I realized.
This isn't completely true. You'll have "Other" even if time machine is completely disabled.

Other is everything else that does not fit into the categories that are shown in the graphics.

So, it can be stuff like your word files, your powerpoint files, the OSX system files and so forth. In some cases the local snapshots can form part of this. All that graphic does is it tries to categorize files based on the spotlight index, your hard disk contents and the operating system's understanding of what files fall into what category. So photos will be files that are png, jpeg, gif and so forth.

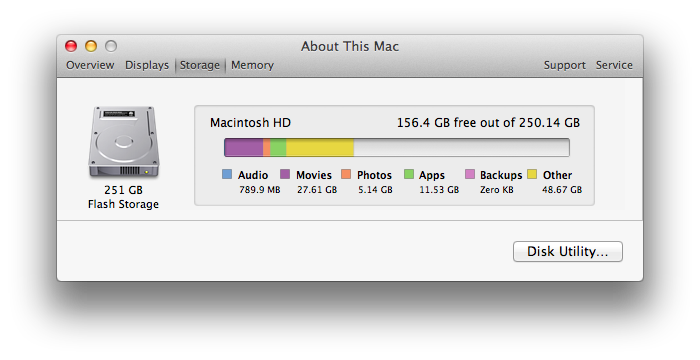

This is the drive on my MBA and my time machine is disabled. Just to double check I also disabled the local backups separately.



Open up your Terminal (Applications --> Utilities) or type Terminal into the spotlight window in the top right (or cmd + space if you don't feel like clicking all the way over there on the search icon)

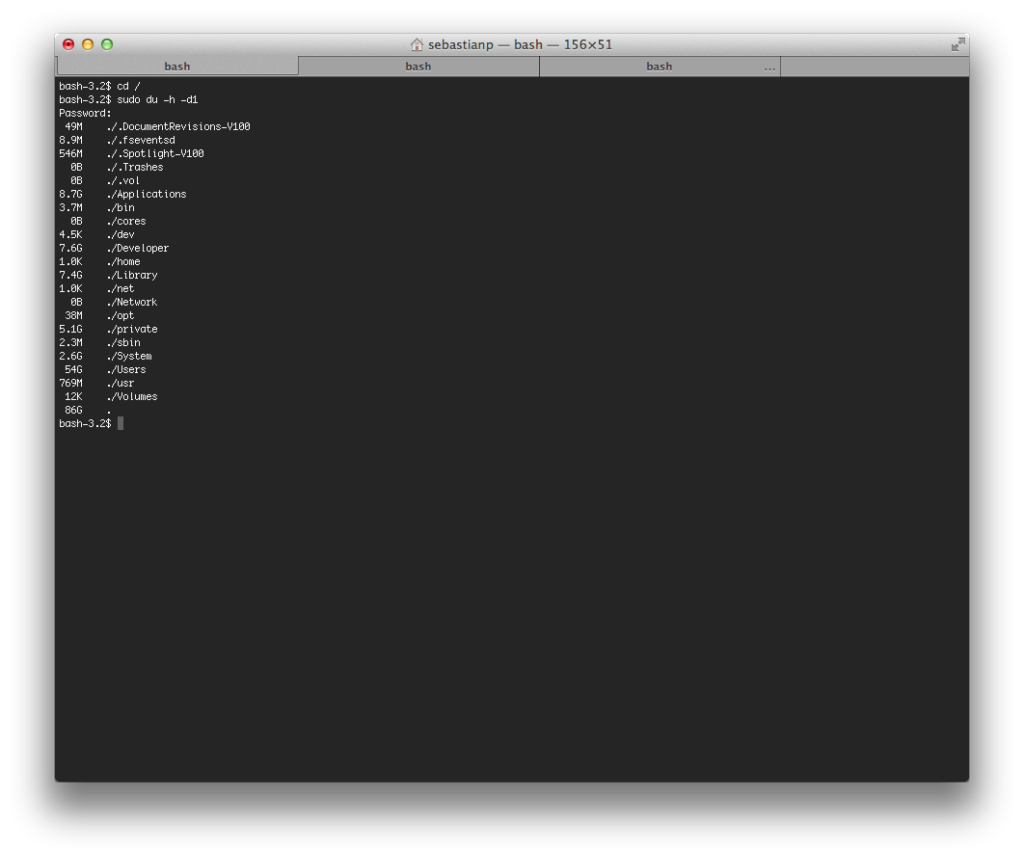

Type in the commands as shown in the screenshot below



This is the contents of your home folder, including the hidden directories. You'll see that I have quite a lot of stuff in the Music folder but I have no music on this computer. Yet the graphic shows that I have 789 MB of Audio.

Why is that? It's because somewhere on my hard drive I do have audio files and the program that displays the graphic found them. They are not music files. They are audio files from applications and the system audio files that make the beeps and gongs when I do things like empty the trash. The Music folder is where your iTunes media folder is by default. I have a couple of movies and series in there, hence why it's that size.

You'll note that there is another big folder called Library. This is where various things get stored that pertain to the user logged in. For example, if you use iMail, this is where your mail is. It's also where your application settings are and many other things that are beyond the scope of this discussion (because I am lazy tonight :D )

Now follow the steps in the next screenshot.



This is the root of your volume and you see folders like System, Private and Library. I am simplifying a lot, but you can think of those folders as where your operating system is. The Library folder has a similar job to the Library folder in your user folder discussed above, except this is now more generic stuff for ALL users, not just for you. There are things like system fonts in there and even sounds for Garageband. All of this stuff takes space. To follow this example back onto the topic: system fonts will be in the "Other" category.

So what's that big Users folder? That's where all of the home directories for the users on this computer are. That's where my home directory is, which has MY movies, documents and so forth are.


You can check it out if you want



type in
Code:
cd Users/<username>
or
Code:
cd Users
cd <username>
cd = change directory
cd .. goes back a level - if I am at Users/sebastianp then cd .. will take me back to Users/

ls - lists the contents of the directory. This is basically what you see in Finder, except that I've added the a and l flags which allow me to see the hidden files and folders and also shows the info in particular format. Try ls without the flags.

Don't be afraid of your computer people. It's how you will learn. Take a back up and don't be afraid to see what makes it tick and tock.

You can also explore your computer's hidden directories and files in Finder by typing this in the command line:

Code:
defaults write com.apple.finder AppleShowAllFiles TRUE
killall Finder
to disable it again

Code:
defaults write com.apple.finder AppleShowAllFiles FALSE
killall Finder
Now, if you set up Finder as per this post, then you can explore your hard drive quite easily
http://forums.macrumors.com/showthread.php?t=1300195

And one last tip for Finder. If you want to see the total size that a bunch of files and directories take up then highlight then or multi select them using cmd and then push cmd + alt + I and you will have one info screen for everything you have selected. Depending on how many files/directories you have selected, it may immediately calculate the total size or you may need to click "Calculate"

Last edited:

bp1000

macrumors 65816
Jul 7, 2011
1,333
47
I was just about to post the same issue - but mine is even worse



Ive tried daisy disk and some other disk utils and even scanning as admin can't reveal what files are taking up all this space.

I have been working with some HD video files recently, without TM connected. I've done a TM backup since, several times but Lion hasn't copied the data over to my ext. HDD and deleted the local copies, so frustrating... assuming it is that.


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
I was just about to post the same issue - but mine is even worse

[url=http://img9.imageshack.us/img9/1135/screenshot20120104at123.png]Image[/URL]

Ive tried daisy disk and some other disk utils and even scanning as admin can't reveal what files are taking up all this space.

I have been working with some HD video files recently, without TM connected. I've done a TM backup since, several times but Lion hasn't copied the data over to my ext. HDD and deleted the local copies, so frustrating... assuming it is that.
If you follow the instructions above and use Terminal, it will be pretty easy to figure out where your space is.


bp1000

macrumors 65816
Jul 7, 2011
1,333
47
I did try the terminal commands before however i didn't do them as sudo

i've tried that and it' highlighted 40gb or thereabouts in the /Volumes/* folder... mobile back ups.

However that doesn't tally up to the incredible 90gb that seems to have gone missing. And i'm disappointed Lion isn't clever enough to sync to time machine once plugged in, move the archive data over and clear it off the mac's HDD.

I'm still at a loss as to how to clear this.

11M ./.DocumentRevisions-V100
2.0M ./.fseventsd
4.0K ./.MobileBackups
153M ./.Spotlight-V100
0B ./.Trashes
0B ./.vol
4.2G ./Applications
3.7M ./bin
0B ./cores
4.5K ./dev
1.0K ./home
4.0G ./Library
1.0K ./net
0B ./Network
4.9G ./private
2.3M ./sbin
2.5G ./System
21G ./Users
428M ./usr
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/.Trashes: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/sbin: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/cores: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/Users: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/Applications: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/Volumes: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/.vol: No such file or directory
du: ./Volumes/MobileBackups/Backups.backupdb/bp-mba/2012-01-04-122359/Macintosh HD/usr: No such file or directory
14G ./Volumes
51G .

Sorry i got that wrong, volumes only stores 14GB...

I have a tonne of No such file or directory... more than what i pasted


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
14G ./Volumes
51G .
Ah. I've think seen this before. Can you tell me the rest of this line though? What was next to the 51G?

You should not have anything in /Volumes apart from symbolic links and I recall another user had a similar issues on this forum a couple of months ago.

Just to confirm. can you tell me what you get when you try
ls -al /Volumes/

----------

Here we go... I think this is what's happened

from http://tech.kateva.org/2011/06/omnidisksweeper-finds-247gb-in-my-os-x.html

Volumes held two folders named after my Time Capsule backups. One held 227 GB, the other a mere 41GB. They were both created within one day of one another in Jan 2011. The smaller one is a copy of a portion of my drive, the bigger one was the entire drive.

Google couldn't explain these findings, but I found this one reference that sounded interesting ...

Another tip is to look in your /Volumes directory. I once found 100's of megabytes there. It seemed to be a mirror of what had been on a firewire drive that had been unplugged before ejecting. Some program had tried to write to '/Volumes/FireWire/data/'. However since the firewire drive had been removed suddenly, it just created a directory called FireWire/data and wrote it there...

Except I didn't find 100s of MBs, I found 100s of GBs. I am pretty sure Time Machine put them there, and I wonder if it had to do with Time Capsule being offline.

After due consideration I deleted these 600,000+ files. I do, after all, have redundant offsite backups in addition to Time Machine.


bp1000

macrumors 65816
Jul 7, 2011
1,333
47
The 51G was the last item in the list and literally just like this

Code:
 51G	.
And the result of the command you asked for is:

Code:
total 28
drwxrwxrwt@  7 root  admin   238  4 Jan 14:09 .
drwxr-xr-x  32 root  wheel  1156  4 Jan 14:08 ..
-rw-r--r--@  1 Ben   admin  6148 23 Dec 19:18 .DS_Store
lrwxr-xr-x   1 root  admin     1  4 Jan 11:17 Macintosh HD -> /
drwxrwxrwx   0 root  wheel     0  4 Jan 14:09 MobileBackups 1
dr-xr-xr-x   4 Ben   staff   136 31 Jan  2009 WIB6_DISC_2
drwxrwxr-x  17 Ben   staff   646  2 Jan 00:06 iBook 1TB
And just to update

I have since gone through TM and manually deleted all copies of the video files i've been playing with, 100's of gigs of them.

They have now gone from TM and future files are ring fenced in a folder TM will exclude. Disappointingly this didn't solve the space issue. I even resorted to turning off local backups but that hasn't cleared the problem either.


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
I added more to my post at the same time as you posted.

As I suspected, you have a duplicate of your Mobile Backups in /Volumes which shouldn't be there. There is nothing you can do within time machine or your backups to correct.

You can, however, feel free to delete this.

Code:
cd /Volumes
rm -rf MobileBackups\ 1 (you can type just Mobile and hit tab - it will autocomplete)
If it gives you grief, then put a sudo in front. This isn't the first time I've seen this and other people have experienced the same problem. I cannot explain it, but I can only assume that it is an intermittent bug that occurs in certain circumstances.


bp1000

macrumors 65816
Jul 7, 2011
1,333
47
Thanks I'm running this command and it's going through each file

However it's saying Read Only File System at the end of each file in terminal.

i'm not sure if it's deleting them... this is running it under sudo too


//also

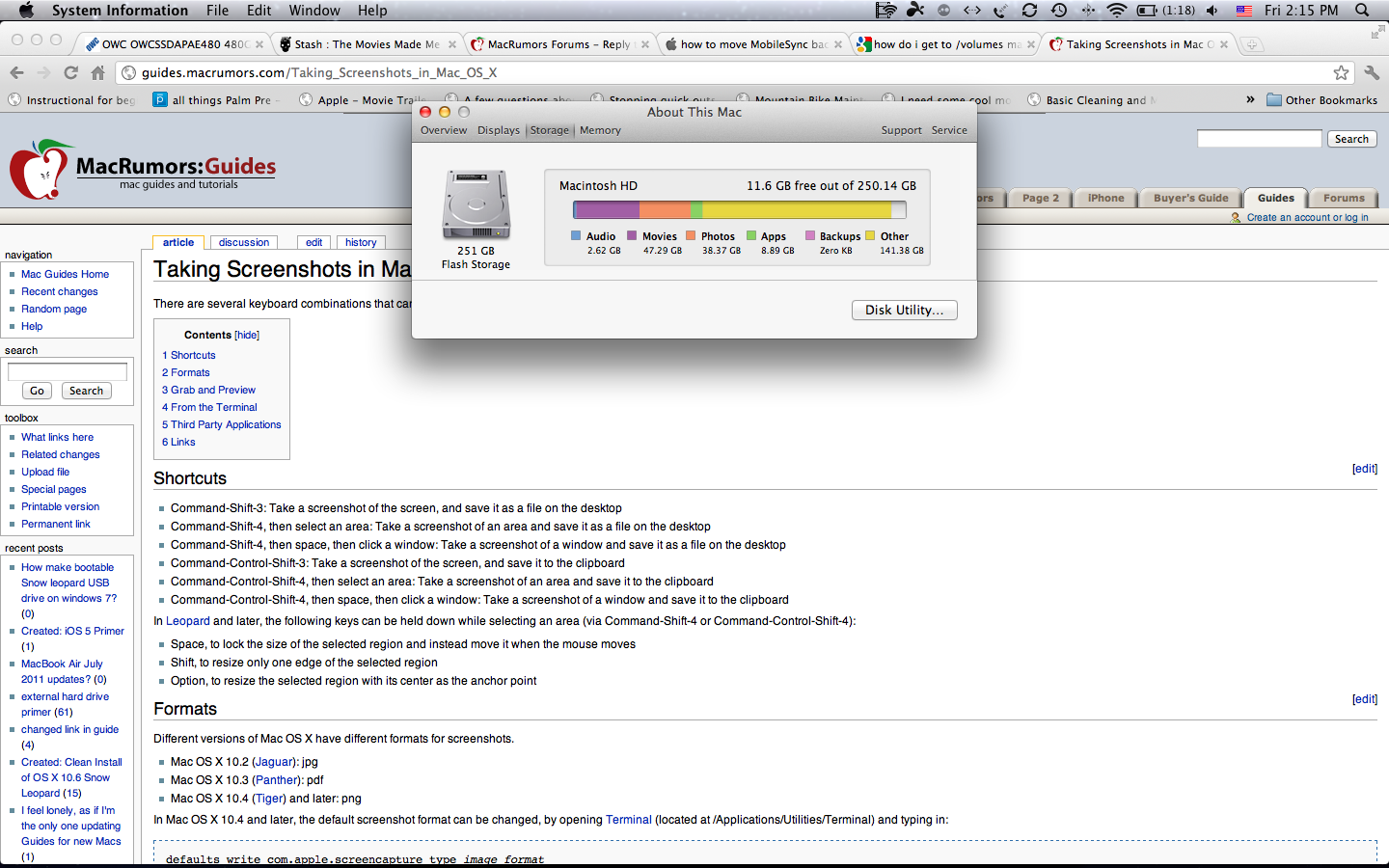

finder reports mobile backups are only using 25.8GB

hjmmm


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
Thanks I'm running this command and it's going through each file

However it's saying Read Only File System at the end of each file in terminal.

i'm not sure if it's deleting them... this is running it under sudo too
Any update?

//also
finder reports mobile backups are only using 25.8GB

hjmmm
What do you mean? Where do you see that exactly?

What does df -h tell you?


bp1000

macrumors 65816
Jul 7, 2011
1,333
47
Result!

Thanks for your help

As a last resort after rebooting i opened up disk utility and ran verify disk

It came up with invalid block count!



So i rebooted into recovery console and repaired the disk

I now have my 90GB of free space back



And the result of df -h

Code:
Filesystem      Size   Used  Avail Capacity  Mounted on
/dev/disk0s2   112Gi   28Gi   84Gi    26%    /
devfs          181Ki  181Ki    0Bi   100%    /dev
map -hosts       0Bi    0Bi    0Bi   100%    /net
map auto_home    0Bi    0Bi    0Bi   100%    /home
And the output from rm -rf .... it basically did something like this

/Volumes/Mobile Backup 1/bpa-mba/somenumber/system/library/fonts/somefont Read only file system

I would run it again but i've disabled local backups and after disk repair mobile backs has gone from the /Volumes/ folder.

----------

The question is

Should i be worried that the SSD has become corrupt and had an invalid block count?


theSeb

macrumors 604
Aug 10, 2010
6,963
83
Poole, England
According to this http://support.apple.com/kb/TS2028 it is very much an issue at the software level (your file system itself) rather than a physical problem with your disk drive. Basically there is a bug in the HFS that occurs in some circumstances.

I would monitor the situation and run disk utility every couple of days to make sure that the problem does not manifest again. Here is someone else that had the same issue:

http://forums.macrumors.com/showthread.php?t=1262080


Smileyboy

macrumors 65816
Aug 6, 2008
1,119
109
I'd like a little help with this too

I ran the info sighted in terminal and this is what I got:

0B ./.config
4.0K ./.cups
25M ./.dropbox
400K ./.Graboid
0B ./.local
112K ./.ssh
0B ./.TemporaryItems
0B ./.Trash
0B ./.Xcode
344K ./Applications (Parallels)
8.0K ./Converted Files
20M ./Desktop
77M ./Documents
308K ./Downloads
4.4G ./Dropbox
8.0K ./Graboid
75G ./iPhoto Library
45G ./Library
2.2M ./Movies
56G ./Music
120K ./Pictures
16K ./Public
28K ./Sites
536K ./business cards.bcard
180G .



Is this normal?
Thanks


Attachments

bp1000

macrumors 65816
Jul 7, 2011
1,333
47
Have you tried running the disk checking utilities - it could be lion incorrectly reporting disk space like it was for me
