4k 144hz with mac mini m2 BASE MODEL

[Domlnlc]

Hello

Hoping for a simple answer for these 2 related questions:

- Can the base mac mini m2 run at 4k 144hz via thunderbolt to dp?
- If yes: can it run this resolution/refresh rate smoothly?

Hoping for someone that actually tested this since the port might support this but the mac internals might not be able to run properly at this resolution/refresh rate. I am woundering if the m2 with 8gb of ram would run PERFECTLY at max resolution and refresh rate of my samsung g7 4k/144hz monitor.

Reading the spec page it talks about up to 6k 60hz via thunderbolt and 4k 60hz via hdmi so it does settle the hdmi port possibilities but 6k 60hz can also mean 4k ???hz…

Thank you



[Bigwaff]

Can the base mac mini m2 run at 4k 144hz via thunderbolt to dp?

Only the M2 Pro Mac mini can provide 4K at higher refresh rates than 60 Hz due to increase number of GPU cores.



[Domlnlc]

Only the M2 Pro Mac mini can provide 4K at higher refresh rates than 60 Hz due to increase number of GPU cores.

Thank you. I feel there is more to it as it can do 6k 60hz.. should be able to do 4k with above 60hz using the thunderbolt port.

I ordered one and will test it out. I will update this tread.



[Saberon2014]

Yes the regular M2 mini can do 4K 120Hz over TB



[Domlnlc]

Yes the regular M2 mini can do 4K 120Hz over TB

Thank you



[Deadceptor]

Got a Gigabyte M32U hooked on my M1 Mac Mini with Thunderbolt and it runs 4K 144hz (with or without VRR) perfectly fine.



[Domlnlc]

Hello

Hoping for a simple answer for these 2 related questions:

- Can the base mac mini m2 run at 4k 144hz via thunderbolt to dp?
- If yes: can it run this resolution/refresh rate smoothly?

Hoping for someone that actually tested this since the port might support this but the mac internals might not be able to run properly at this resolution/refresh rate. I am woundering if the m2 with 8gb of ram would run PERFECTLY at max resolution and refresh rate of my samsung g7 4k/144hz monitor.

Reading the spec page it talks about up to 6k 60hz via thunderbolt and 4k 60hz via hdmi so it does settle the hdmi port possibilities but 6k 60hz can also mean 4k ???hz…

Thank you

Update: I received my mac mini m2 base (8bg ram, 256g,etc) and can confirm that 4k @ 120hz works perfectly using TB to DP. I did not find a 144hz option but good enough 😎



[sunsetrunner]

Ignore forum members who spread false information. Even an M1 Mac mini can run a display at 4K@144Hz. All you need is a Thunderbolt (type-c) to Displayport cable. Just don't use HDMI 2.0 port.

You need a cable like this: https://www.amazon.com/dp/B0995ZNDLR



[abdolsafah85]

Update: I received my mac mini m2 base (8bg ram, 256g,etc) and can confirm that 4k @ 120hz works perfectly using TB to DP. I did not find a 144hz option but good enough 😎

hello mate, I just got the same Mac mini version ( 256g 8ram m2 ) and I want run also 120hz or 144hz if possible. so what type of DP do need 1.4 or 1.2. and if there is anything else I need to know to make this work please inform me. thanks



[Schnitzel1979]

Hi everbody,

is it possible to attach a monitor with 4k and 144 hz via the hdmi port ?
Thank you !

Best regards,
Schnitzel



[Bigwaff]

is it possible to attach a monitor with 4k and 144 hz via the hdmi port ?

Yes … and no. The Mac mini M2 supports HDMI 2.1, capped at 60Hz.



[Schnitzel1979]

Yes … and no. The Mac mini M2 supports HDMI 2.1, capped at 60Hz.

okay, thanks for the info



[Subarctic5216]

Yes … and no. The Mac mini M2 supports HDMI 2.1, capped at 60Hz.

Great info, thanks.
Is it my understanding that using Thunderbolt - Displayport is best for higher refresh rate?

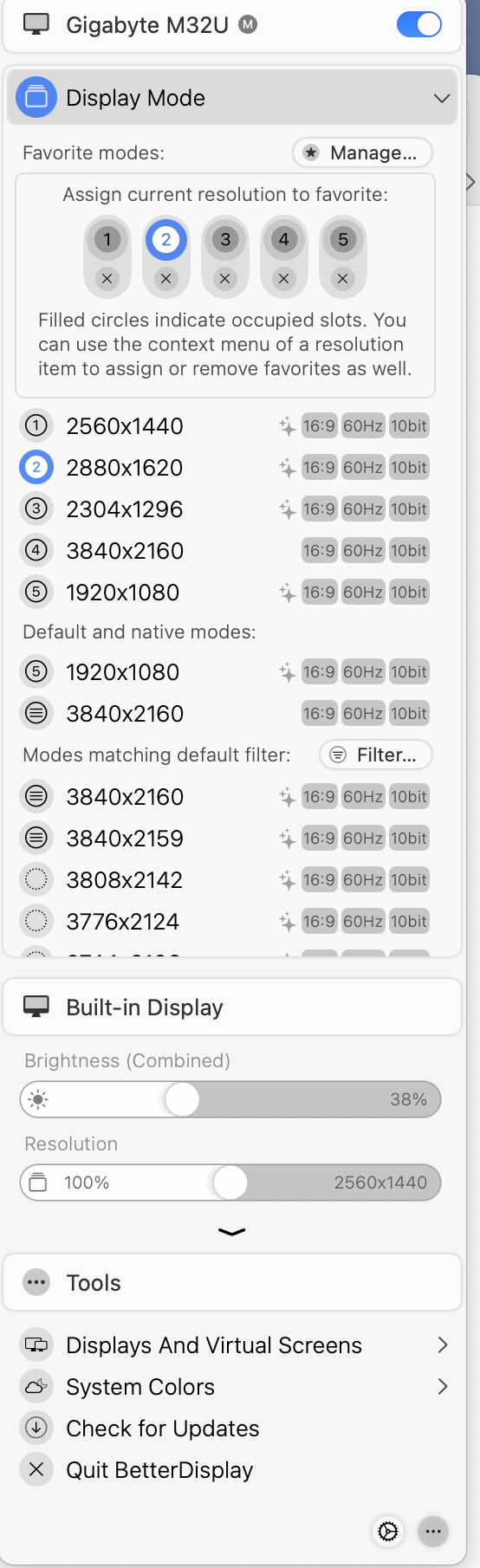

I have a Gigabyte M32U currently used as a 2nd display on an iMac(2015 27"). Thunderbolt 2/Mini Displayport - Displayport capping @ 60Hz that has worked well using "Better Display" software.
HDMI is an option on the M32U though. Currently the 2 HDMI inputs are for an XBox X and Apple TV.
I have preordered a new M4 Pro Mini. That I plan on using Thunderbolt-Displayport or HDMI
