Resolved 4K Display Issues w/ MBP

KingKazma

macrumors newbie
Original poster
Apr 7, 2017
8
2
Hello all,

I have a late 2011 17" MacBook Pro. Ive owned it since August or September of 2011. It is quite a trooper. We've gotten through and out of many sticky situations together:D but now I have a problem that I haven't been able to figure a solution to.

A little over 2 years ago I bought an LG 31MU97-B Cinema 4K Monitor to use with another computer(PC), that I ended up discarding. During the time I was using the monitor with said PC, I was never able to reach the max resolution on the monitor(which is advertised as 4096x2160)without some 3rd party software. It was shoddy but it worked for me then. Now that I don't use that PC anymore, I have only my trusty MBP. I was re-configuring my desk setup, and decided to use the LG monitor as my main display while the MBP is in clamshell, seemed simple enough. The way I have the LG monitor wired up is as follows: MBP--->Thunderbolt Pro Duo--->Thunderbolt Pro Duo--->LG monitor.
Using Apple thunderbolt cables for the drives and a HDMI cable for the monitor, via a thunderbolt to HDMI converter all in a daisy chain configuration.

I am having the same problem as before. I am not able to reach the max resolution, or anywhere close to it tbh. Display prefs only give me a maximum resolution of 1080p(with the option key pressed). I tried to use the same program that I did on the PC to force a resolution, but alas it is not available for OS X. I stumbled upon a program names SwitchResX which all mac users seem to love and looked like my way out. However, this didn't work for me unfortunately. I took it a step further and used Terminal to try and locate my display ID so I could edit the plist file. I was able to locate and edit the file, but to no avail. I can't figure this one out for the life of me:( I really need this to work though as I do occasionally video edit in 4K. Are there any suggestions?

Thanks in advance,

-KingK

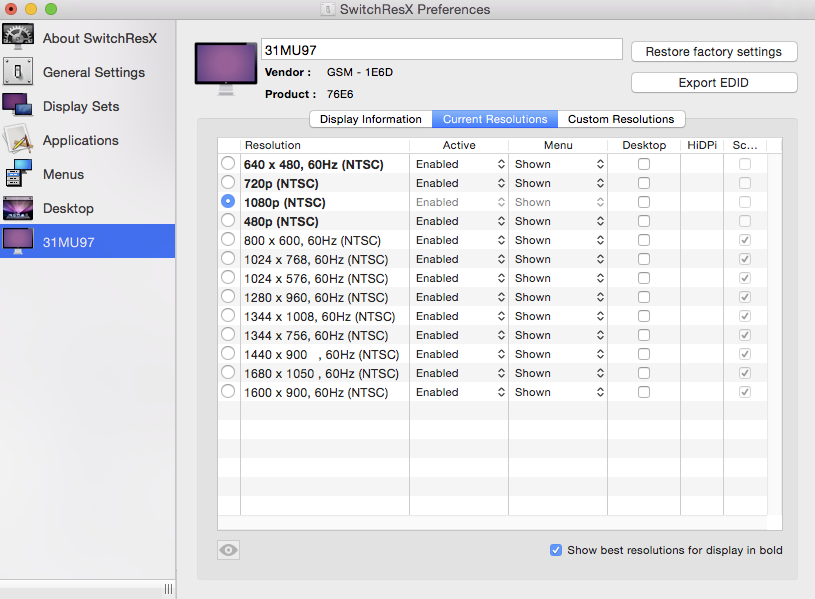

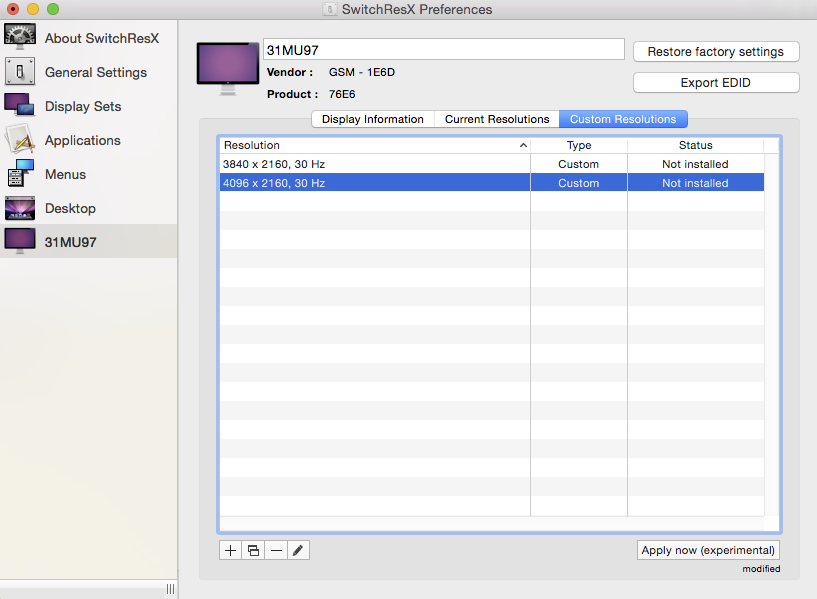

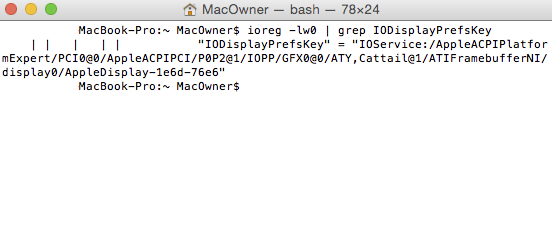

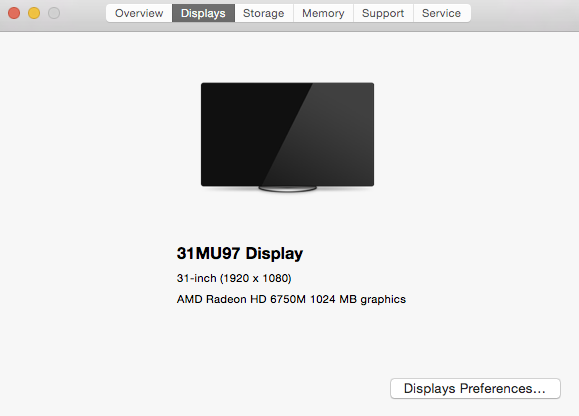

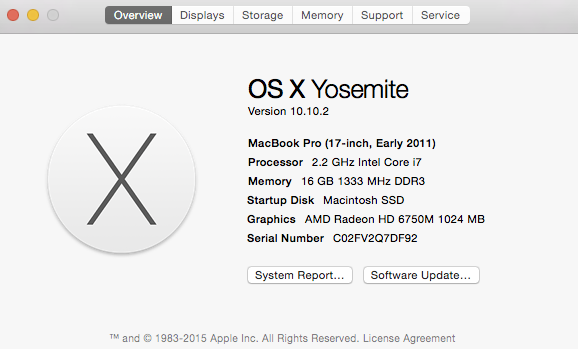

Here are some pics that I thought may be helpful:







jerryk

macrumors 603
Nov 3, 2011
5,920
2,990
SF Bay Area
How about using eGPU setup?

I have 2011 MBP 15" with Radeon 6770M (1024 MB) GPU. It CAN run 4k via a mini Display Port --> Dual Link DVI adapter (from apple https://www.apple.com/shop/product/...30c037147f331cb1938b4d642492b3b8d5a1e56093de0).
It works but it's not clear.

I am going to go with eGPU. This will also extend the life of 2011 MBP as it will not use internal dGPU at all.
Expensive way to fix the problem. I cannot see spending that sort of money on such an old system.

  • Like
Reactions: Patcell

yukari

macrumors 6502a
Jun 29, 2010
559
289
Bought AORUS GeForce GTX 1070 Gaming Box eGPU ($599 NewEgg) which had all the necessary enclosure, PSU and GTX1070 GPU). Tried it with El Capitan OSX - for some reason it did not work.

Upgraded to Sierra OSX (10.12.6) and voila! It worked without any problem.

Set up: 2011 (late) 15" MBP, Apple thunderbolt (TB3 <--> TB1/2) adapter, AORUS GeForce GTX 1070 Gaming Box eGPU, and AOC 40" 4k curved monitor.

Bonus is AORUS has USB-3 connectors. So I can get USB-3 speed on accessories instead of USB-2 speed on my MBP.

  • Like
Reactions: Patcell and hajime

hajime

macrumors 603
Jul 23, 2007
6,017
829
Bought AORUS GeForce GTX 1070 Gaming Box eGPU ($599 NewEgg) which had all the necessary enclosure, PSU and GTX1070 GPU). Tried it with El Capitan OSX - for some reason it did not work.

Upgraded to Sierra OSX (10.12.6) and voila! It worked without any problem.

Set up: 2011 (late) 15" MBP, Apple thunderbolt (TB3 <--> TB1/2) adapter, AORUS GeForce GTX 1070 Gaming Box eGPU, and AOC 40" 4k curved monitor.

Bonus is AORUS has USB-3 connectors. So I can get USB-3 speed on accessories instead of USB-2 speed on my MBP.
Thanks. Have you tried it under Bootcamp Windows or Ubuntu Linux?


jumbz55

macrumors newbie
Jan 1, 2017
4
1
Australia
Bought AORUS GeForce GTX 1070 Gaming Box eGPU ($599 NewEgg) which had all the necessary enclosure, PSU and GTX1070 GPU). Tried it with El Capitan OSX - for some reason it did not work.

Upgraded to Sierra OSX (10.12.6) and voila! It worked without any problem.

Set up: 2011 (late) 15" MBP, Apple thunderbolt (TB3 <--> TB1/2) adapter, AORUS GeForce GTX 1070 Gaming Box eGPU, and AOC 40" 4k curved monitor.

Bonus is AORUS has USB-3 connectors. So I can get USB-3 speed on accessories instead of USB-2 speed on my MBP.
Hi dude, what is the TB3 > TB1/2 adapter you used? I tried searching for this but no luck.
Thanks for the tips :)
