5,1 Mojave upgraded - no video from MSI Gaming Radeon RX 560

VelNZ

macrumors newbie
Original poster
May 21, 2010
24
5
I upgraded my 5,1 to Mojave by first upgrading the ROM to 138.0.0.0.0 with my ATI Radeon HD 5870 installed. I then booted up with my MSI Gaming Radeon RX 560 to install Mojave which installed with no issues.

However, now when I have the RX560 installed, I get no video. It doesn't show the login screen.

So I installed my 5870 and lo and behold Mojave boots with it just fine but only shows output through the Mini DisplayPort to my 27" LED Cinema Display and not through DVI to my 23" Cinema Display.

Anyone have any ideas? Why is the RX560 not showing anything?

Edit: proof that it's possible to boot Mojave with 5870: https://i.imgur.com/cnZ2F0j.jpg

Last edited:

Morpheo

macrumors 65816
Feb 26, 2014
1,273
1,588
Paris/Montreal
I upgraded my 5,1 to Mojave by first upgrading the ROM to 138.0.0.0.0 with my ATI Radeon HD 5870 installed. I then booted up with my MSI Gaming Radeon RX 560 to install Mojave which installed with no issues.

However, now when I have the RX560 installed, I get no video. It doesn't show the login screen.

So I installed my 5870 and lo and behold Mojave boots with it just fine but only shows output through the Mini DisplayPort to my 27" LED Cinema Display and not through DVI to my 23" Cinema Display.

Anyone have any ideas? Why is the RX560 not showing anything?

Edit: proof that it's possible to boot Mojave with 5870: https://i.imgur.com/cnZ2F0j.jpg
It may boot but no hardware acceleration I would guess.

As for your 560, have you tried all 3 ports?


Lycestra

macrumors member
Oct 1, 2018
31
24
Cheesy Midwest
Tried booting safe mode? Hold shift before boot chime. It will try without any 3rd party or unneeded extensions.

Safe was working for me, but without it, it would stay black. I swapped in my original non-metal card, and it would boot up to 90% and sit, right about the point you'd expect the video modes to change with the hand off from firmware to the OS. In safe mode, I removed any and all unsigned extensions in /Library and /System/Library (I can re-add them later as I find I need them) and it booted fully in normal mode. Unsigned kexts weren't protected by SIP, so no extra effort on permissions. Just move them to a different directory, like "Extensions Disabled" or something in case you want them later.

  • Like
Reactions: VelNZ

VelNZ

macrumors newbie
Original poster
May 21, 2010
24
5
Yeah I've tried all ports on the 560. Safe mode doesn't work, still a black screen.
[doublepost=1538459211][/doublepost]
Tried booting safe mode? Hold shift before boot chime. It will try without any 3rd party or unneeded extensions.

Safe was working for me, but without it, it would stay black. I swapped in my original non-metal card, and it would boot up to 90% and sit, right about the point you'd expect the video modes to change with the hand off from firmware to the OS. In safe mode, I removed any and all unsigned extensions in /Library and /System/Library (I can re-add them later as I find I need them) and it booted fully in normal mode. Unsigned kexts weren't protected by SIP, so no extra effort on permissions. Just move them to a different directory, like "Extensions Disabled" or something in case you want them later.
Ok, I couldn't boot into Safe Mode but I used my old card to boot into Mojave and found that I had old kexts from AirDisplay, a program I installed ages ago to use my iPad as a second display. After deleting those and putting my RX560 in all is well! Thanks so much for the tip!


h9826790

macrumors G5
Apr 3, 2014
14,110
6,737
Hong Kong
I upgraded my 5,1 to Mojave by first upgrading the ROM to 138.0.0.0.0 with my ATI Radeon HD 5870 installed. I then booted up with my MSI Gaming Radeon RX 560 to install Mojave which installed with no issues.

However, now when I have the RX560 installed, I get no video. It doesn't show the login screen.

So I installed my 5870 and lo and behold Mojave boots with it just fine but only shows output through the Mini DisplayPort to my 27" LED Cinema Display and not through DVI to my 23" Cinema Display.

Anyone have any ideas? Why is the RX560 not showing anything?

Edit: proof that it's possible to boot Mojave with 5870: https://i.imgur.com/cnZ2F0j.jpg
Obviously your problem is fixed.

And thanks for the confirmation that the Apple 5870 can display via EFI in Mojave for emergency situation.

  • Like
Reactions: giodelgado

Lycestra

macrumors member
Oct 1, 2018
31
24
Cheesy Midwest

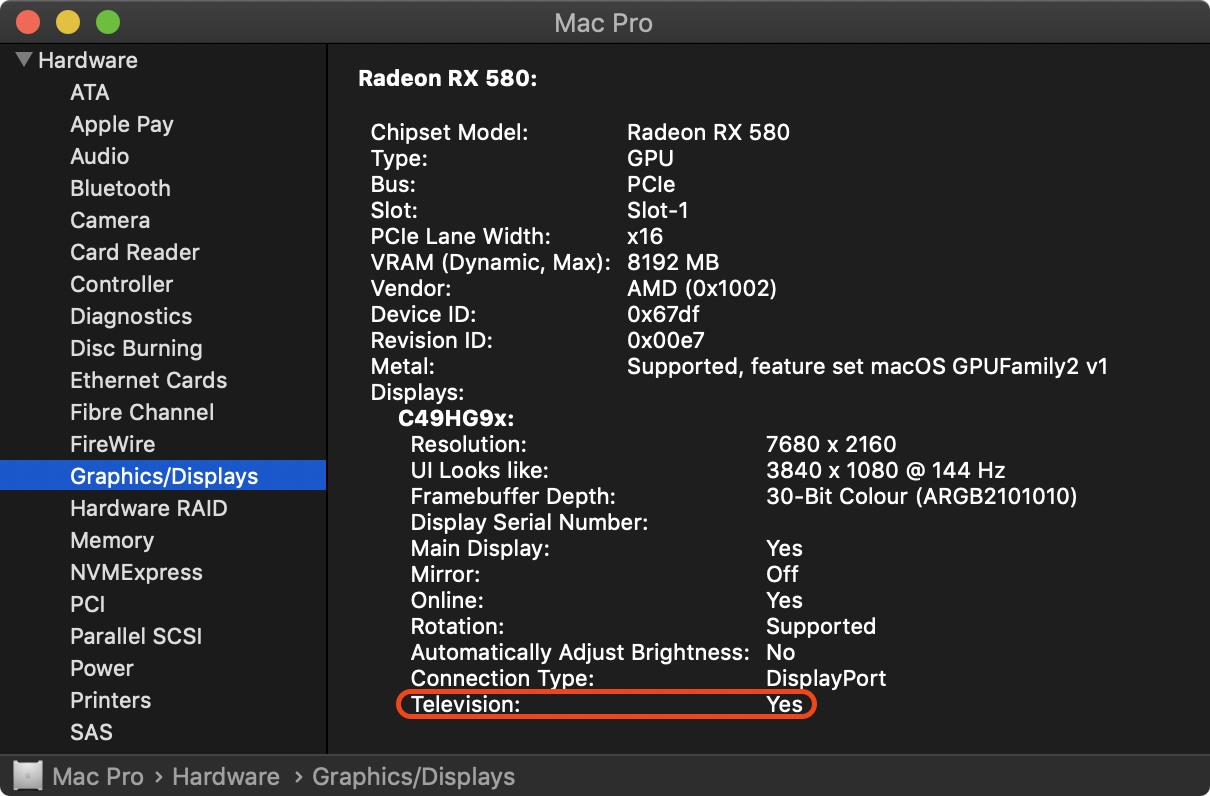

I speculate "Television" is an attribute the device will advertise, most importantly for the purpose of Overscan, which I've seen appear in desktop display settings on some displays and not others (as well as in the device's own settings).

If the speculation is true, the Overscan checkbox only appears if the display is identified as a Television. My LCD screen with vga, dvi, and hdmi connections on back will behave differently depending on the connection I use, with only some of them allowing to toggle overscan. I never looked for the "Television" property. I guess it depends if the display is tuned for video playback instead of a pure full-time computer display, thus overscan could be a desired feature... Thinking for a moment about if you used a TV as a monitor, and the potential gotchas of display lag (enable gaming mode), especially if you enable its motion smoothing "tweening" feature... when displaying a PC GUI instead of video.

  • Like
Reactions: h9826790

PhamNA

macrumors newbie
Sep 12, 2018
2
2
Yeah I've tried all ports on the 560. Safe mode doesn't work, still a black screen.
[doublepost=1538459211][/doublepost]

Ok, I couldn't boot into Safe Mode but I used my old card to boot into Mojave and found that I had old kexts from AirDisplay, a program I installed ages ago to use my iPad as a second display. After deleting those and putting my RX560 in all is well! Thanks so much for the tip!
May be your card have problem? My MSI Radeon RX 560 works OK on Mojave.


Attachments

nglevin

macrumors member
Jul 8, 2018
67
29
Ok, I couldn't boot into Safe Mode but I used my old card to boot into Mojave and found that I had old kexts from AirDisplay, a program I installed ages ago to use my iPad as a second display. After deleting those and putting my RX560 in all is well! Thanks so much for the tip!
If only there was a good way of reporting misbehaving kexts to Apple. I guess Feedback Assistant is still the best way.

I remember Apple used to blacklist certain Logitech drivers in Mac OS X upgrades for exactly this reason; bad upgrade experiences.


mattspace

macrumors 65816
Jun 5, 2013
1,416
1,080
Australia
I hadn't noticed that. It came up in the menubar at the top right and was listed as a projector there.
Little offtopic but - does anyone else never get the displays menulet?

Still on sierra, but if I try toggling on the show displays in menubar option - everything else shifts left for a moment and then back. Same thing when I try to doubleclick the menuitem in system / library / coreservices etc.

Rebooting off a clean sierra system, and just nothing happens when i attempt to turn it on or off - it just doesn't appear. Wouldn't mind, but was trying to figure out if I could airplay video. Audio seems to work.


h9826790

macrumors G5
Apr 3, 2014
14,110
6,737
Hong Kong
If only there was a good way of reporting misbehaving kexts to Apple. I guess Feedback Assistant is still the best way.

I remember Apple used to blacklist certain Logitech drivers in Mac OS X upgrades for exactly this reason; bad upgrade experiences.
Submit issue via bugreport.apple.com is way better. This is the only way that will get Apple engineer's reply to know if that's an expected behaviour, or something is wrong (they usually will ask for more info). Sometimes they will even tell you it's already fixed in the beta. So you can try that, or wait for the next official release.

  • Like
Reactions: crjackson2134

docdawning

macrumors newbie
May 10, 2016
18
9
After upgrading my MacPro5,1 from High Sierra to Mojave, I had zero displays. I could Remote Desktop to the machine and all seemed more or less fine, but the physical displays wouldn't come up. Then I removed my secondary video card, a GT720 and everything began working completely fine with my Radeon RX560. A nice change from High Sierra is that my third display output on my 560 now works! I don't mind that I can seemingly no longer run the GT720 at the same time as the RX 560, though that does seem kind of odd.


wallah

macrumors member
Mar 2, 2011
73
83
I upgraded my 5,1 to Mojave by first upgrading the ROM to 138.0.0.0.0 with my ATI Radeon HD 5870 installed. I then booted up with my MSI Gaming Radeon RX 560 to install Mojave which installed with no issues.

However, now when I have the RX560 installed, I get no video. It doesn't show the login screen.

So I installed my 5870 and lo and behold Mojave boots with it just fine but only shows output through the Mini DisplayPort to my 27" LED Cinema Display and not through DVI to my 23" Cinema Display.

Anyone have any ideas? Why is the RX560 not showing anything?

Edit: proof that it's possible to boot Mojave with 5870:
Curious if you can still boot with the Radeon 5870 since the more recent Mojave updates?? If so, what's the performance like?
