5.25" bay to 4 x 2.5" HDD

Discussion in 'Mac Pro' started by bax2003, Jan 20, 2016.

  1. bax2003, Jan 20, 2016
    Last edited: Jan 20, 2016

    bax2003 macrumors 6502a

    bax2003

    Joined:
    Dec 25, 2011
    Location:
    Belgrade, Serbia
    #1
    http://www.amazon.com/gp/product/B00V5JHOXQ?keywords=5.25 to 2.5&qid=1445795307&ref_=sr_1_102&sr=8-102

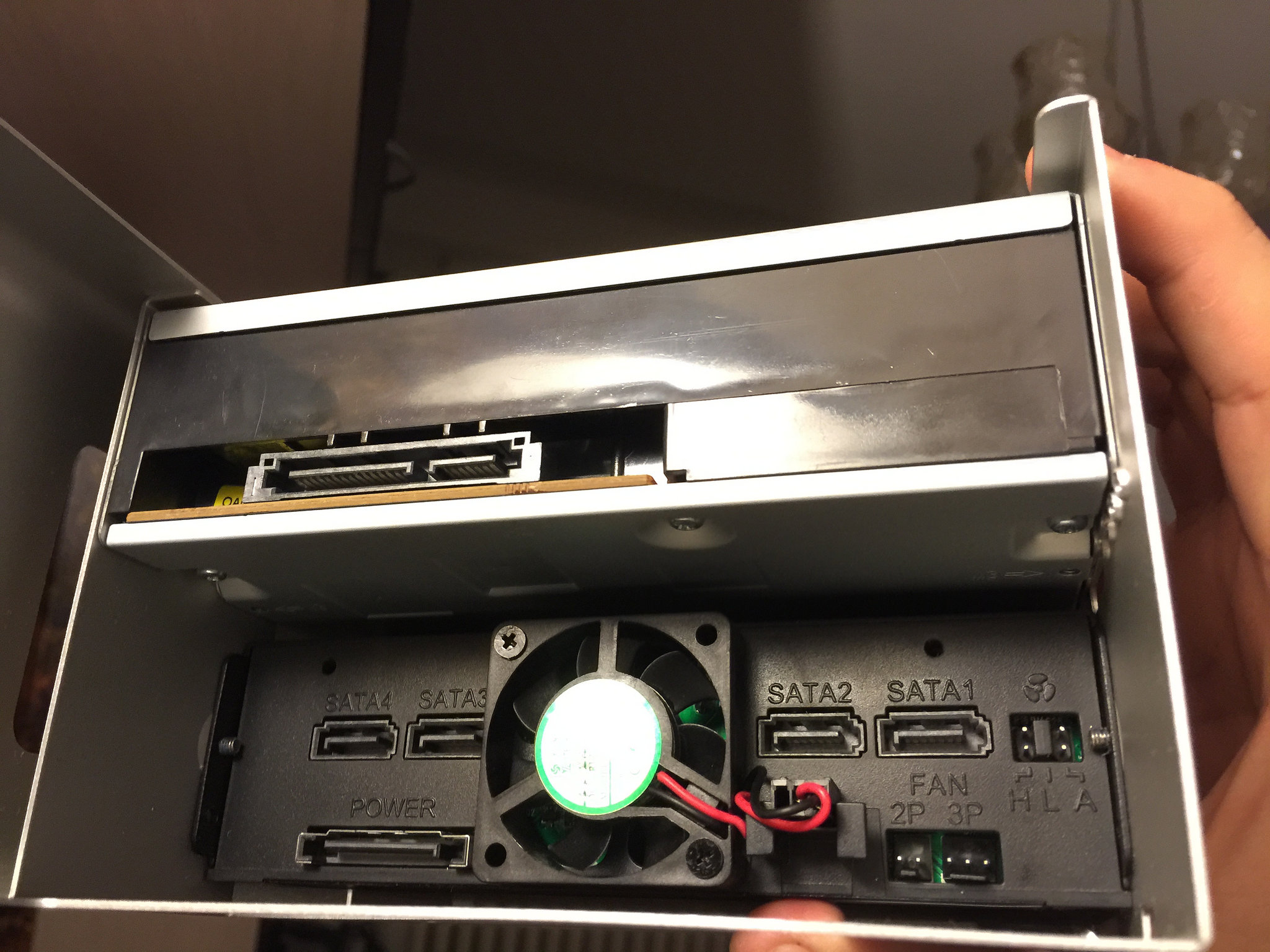

    As you can see, the thing is called Icy Dock ExpressCage MB324SP-B, and it is a great way to add more HDD/SSDs to your Mac Pro. You need this, 4 x SATA Controller, and 4 long 1m SATA cables.

    My Dock is connected to RAID controller from the link below and everything works as expected:
    http://www.amazon.com/IO-Crest-Controller-Components-SI-PEX40057/dp/B00AZ9T264

    Fan is quiet, there are 3 speed options or you can disconnect it like I did ( SSDs :) )

    [​IMG]

    [​IMG]

  2. raymanster macrumors 6502

    raymanster

    Joined:
    Feb 13, 2008
    Location:
    UK
    #2
    That's a really cool idea, I might do this on my 3,1.

    Thanks for sharing!

  3. scott.n macrumors 6502

    Joined:
    Dec 17, 2010
    #3

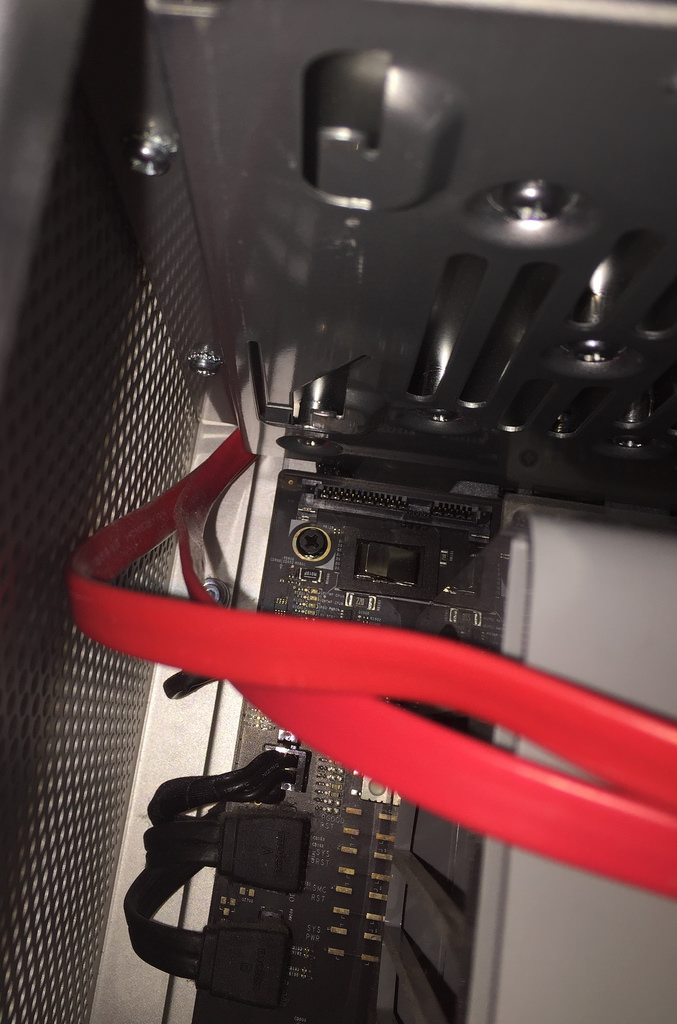

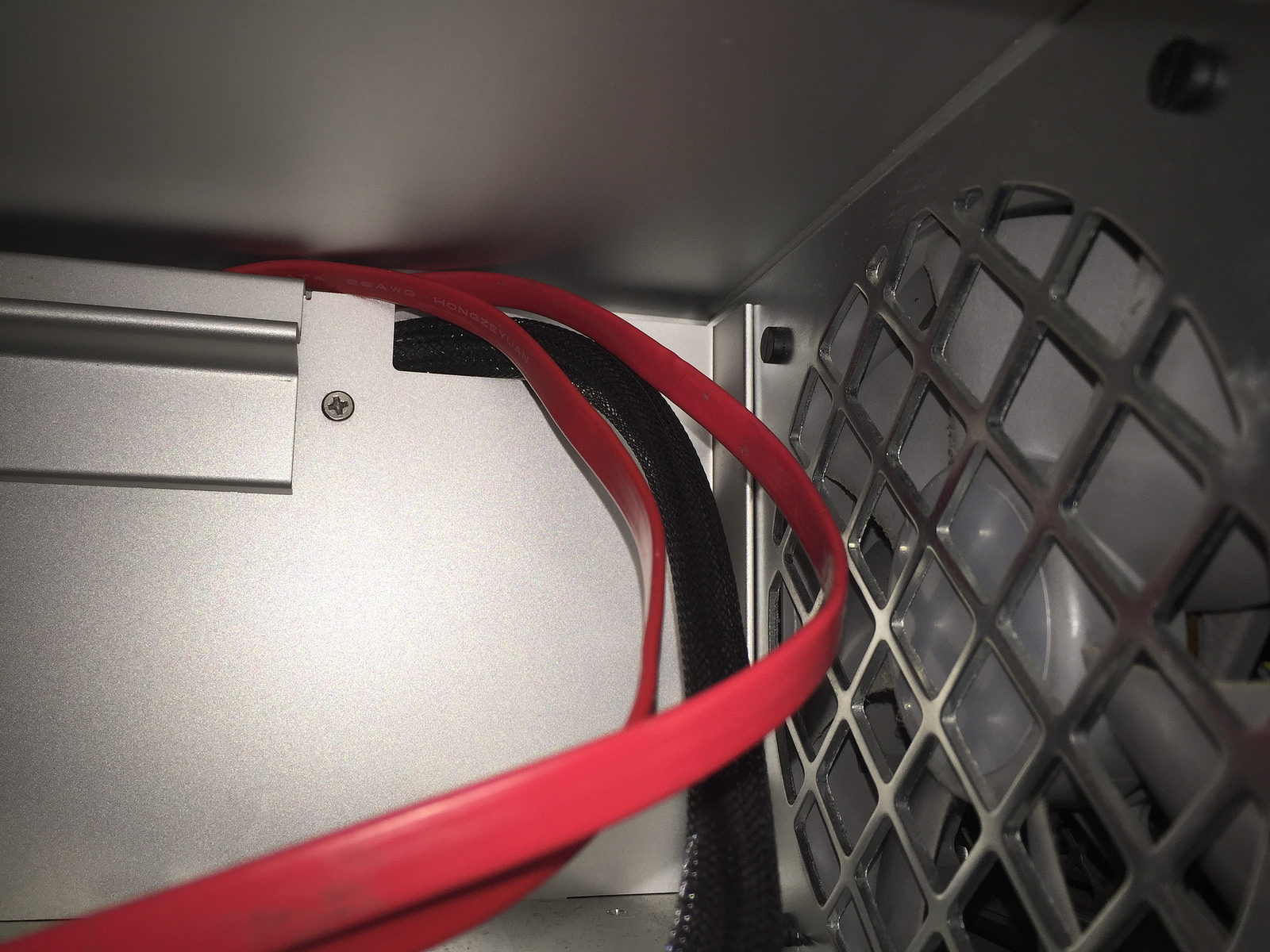

    Can you share some pictures showing how you've routed the SATA cables?

  4. ZombiePhysicist macrumors 6502

    ZombiePhysicist

    Joined:
    May 22, 2014
  5. bax2003 thread starter macrumors 6502a

    bax2003

    Joined:
    Dec 25, 2011
    Location:
    Belgrade, Serbia
    #5
    Controller is bootable in OS X and Windows. In OS X controller is recognized as Generic AHCI controller and as far as i know there is no Marvel util or web management for RAID. So in OS X disk are in JBOD or RAID 0/1.
    --- Post Merged, Jan 21, 2016 ---
    [​IMG]

    [​IMG]

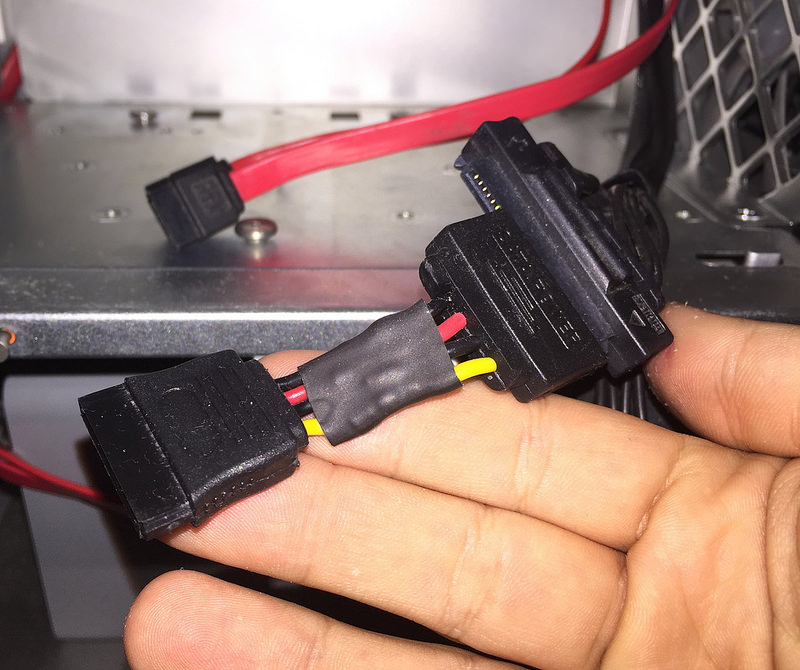

    This is only hardware trickery: short SATA power male to female adapter

    [​IMG]

  6. scott.n, Jan 21, 2016
    Last edited: Jan 21, 2016

    scott.n macrumors 6502

    Joined:
    Dec 17, 2010
    #6
    Thanks for sharing. This seems like a much better option than an Apricorn card or any other method of adding bootable SATA 3 drives.

  7. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #7
    These are good cages. I use them since a few years when building MPs. Reliable ones.
    For more demanding users there's 8 bay one as well. Combine this with Areca or Atto card + 8 1TB SSDs and you'll get a pretty fast 4K editing array.

  8. ZombiePhysicist macrumors 6502

    ZombiePhysicist

    Joined:
    May 22, 2014
    #8
    Wow, do you have a link to the 8 bay cage?

  9. blut haus, Jan 23, 2016
    Last edited: Jan 23, 2016

    blut haus macrumors regular

    blut haus

    Joined:
    Dec 27, 2015
    #9
    Extremely cool. Thanks for sharing. This will probably be an addition to my 4,1 server.

  10. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
  11. blut haus macrumors regular

    blut haus

    Joined:
    Dec 27, 2015
    #11
    Epic
