5770 in Mac Pro 3,1

Discussion in 'Mac Pro' started by cledet, Jul 6, 2012.

  1. cledet, Jul 6, 2012
    Last edited: Jul 6, 2012

    cledet macrumors regular

    cledet

    Joined:
    Mar 26, 2012
    Location:
    San Francisco, CA
    #1
    I recently purchased Apple's ATI 5770 video card and installed it in my Mac Pro 3,1.

    I am getting terrible benchmarks and noticed the PCI-E Lane Width is only x1 instead of x16.

    Is there anything I can do to make them x16? I'm running OS X 10.7.4.

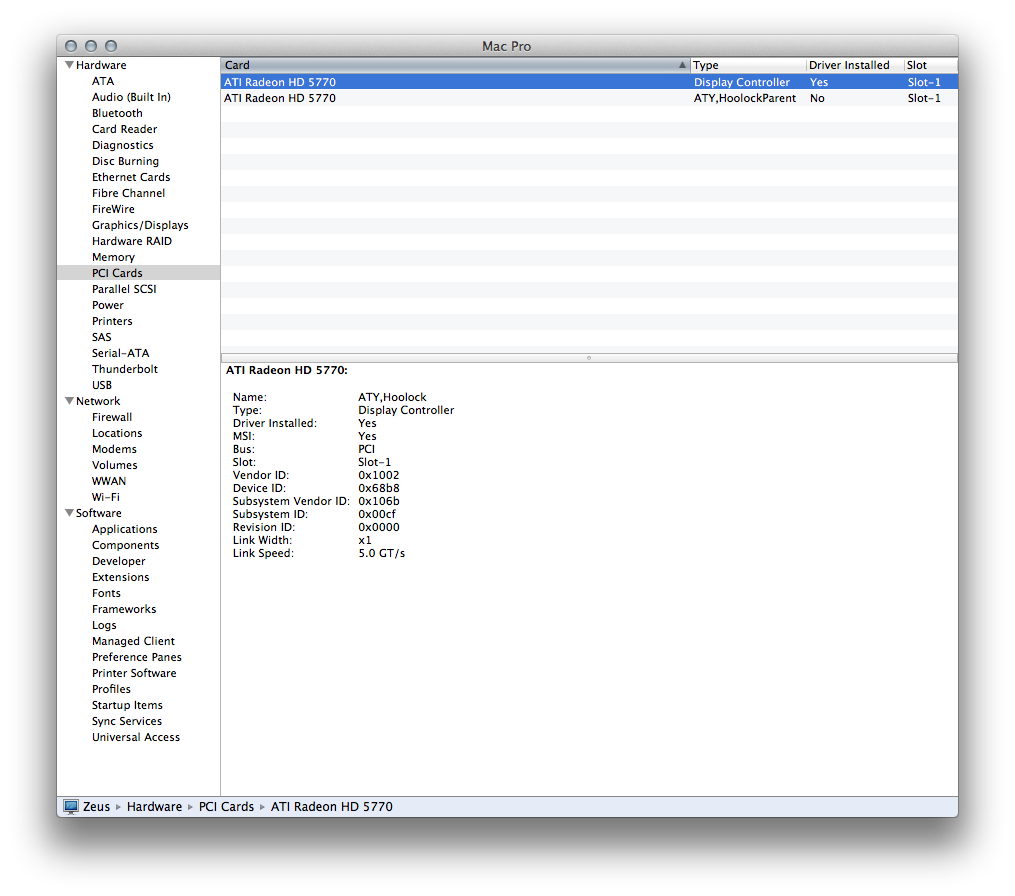

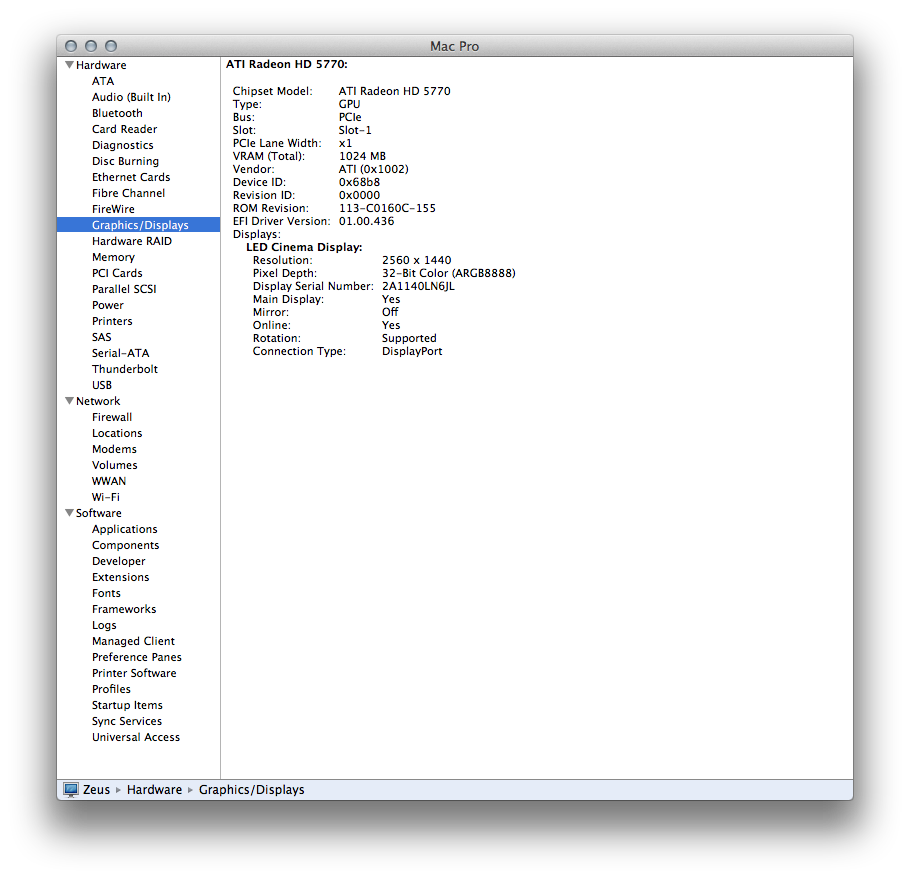

    Here are some screenshots


    Attached Files:

  2. bax2003 macrumors 6502a

    bax2003

    Joined:
    Dec 25, 2011
    Location:
    Belgrade, Serbia
  3. initialsBB macrumors 6502a

    Joined:
    Oct 18, 2010
    #3
    It's strange seeing 2 cards listed in the PCI section, with one having the driver installed reading "no"… I only have one 5770 card listed on my Mac Pro 5,1 system profiler.

  4. cledet thread starter macrumors regular

    cledet

    Joined:
    Mar 26, 2012
    Location:
    San Francisco, CA
    #4
    This fixed it. Thanks.

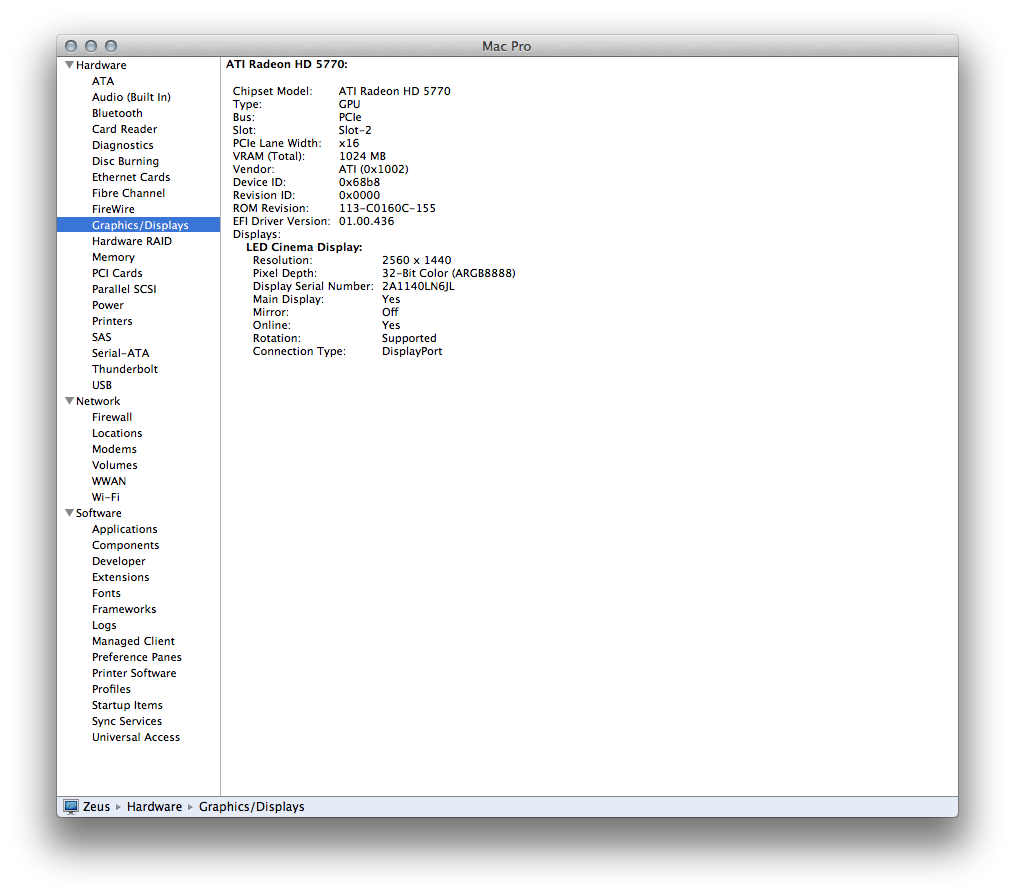

    Attached Files:

  5. cledet thread starter macrumors regular

    cledet

    Joined:
    Mar 26, 2012
    Location:
    San Francisco, CA
    #5
    Yeah I thought this was strange too.

  6. bax2003 macrumors 6502a

    bax2003

    Joined:
    Dec 25, 2011
    Location:
    Belgrade, Serbia
    #6
    It is probably dirty contacts in slot 1 or something like that. It dont think that connections on slot 1 are faulty.

    For argument sake, 5870 in my MP 3.1, this is PCI cards section:

    [​IMG]

    So, what exactly is ATY,Langur....I think it is framebuffer, and why it is on the PCI card list I dont know.

  7. umbilical macrumors 6502a

    Joined:
    May 3, 2008
    Location:
    FL, USA
    #7
    I order that card today for my 3,1


    on macconnection.com some minutes ago:

    Subtotal: $229.00
    Shipping & Handling: Best Way - Ground $0.00
    Tax: $16.03
    Total: $245.03


    I hope comes well and dont have any problem :D
