MP 1,1-5,1 802.11ac, BT 4.0, Continuity, and Handoff Working on Mac Pro 2010

[tsialex]

yes there is wrong in the quote (it is not from me)
2010 and 2012 has the same boardID F221BEC8
corrected the post

2009, 2010 and 2012 Mac Pros have the same board-id, since it's exactly the same board, except the SMC firmware version.



[krakman]

Does anyone have any info about installing bluetooth 5 in our old mac pros?

I have googled but not found any relevant information????



[KingBurb]

I upgraded WiFi with Bluetooth 4.2. However, magic mouse 2 acting strange lag respond. I assumed due to weak reception so I ordered Bluetooth antenna kits - Range Extender for my MacPro 5.1 2010. I installed and test it still same problems. I am frustrated about it. Any idea?



[Flocarino]

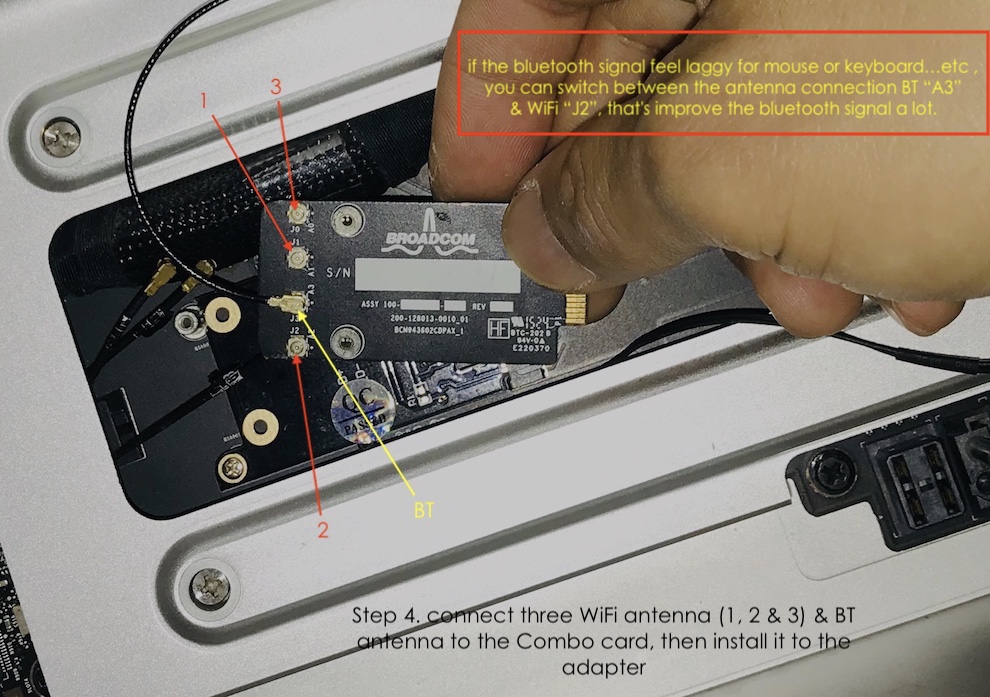

Depending which upgrade kit you installed. It happened exactly the same thing to me but after switching 2 wires, everything works perfectly (Apple Magic Mouse), etc...full strength signal.

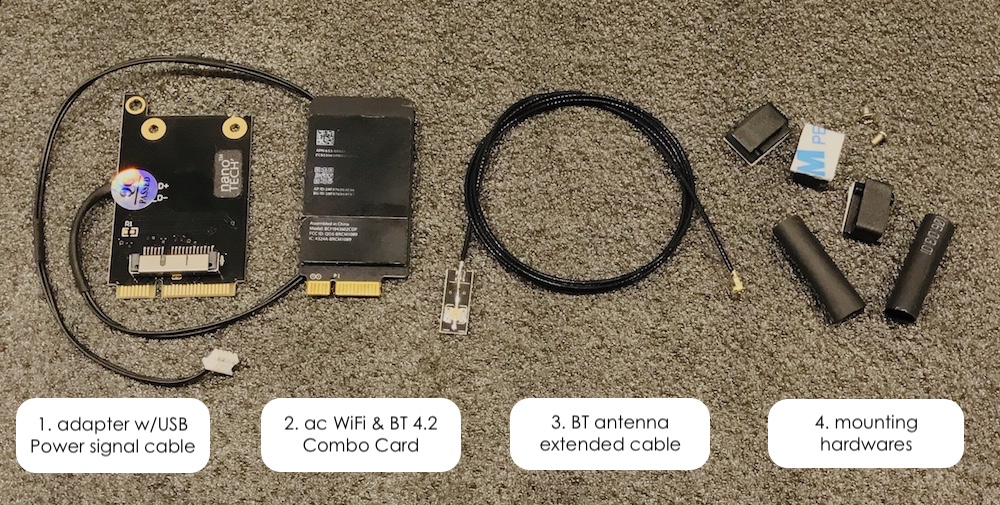

Here are the pictures of the kit and the 2 wires in question.
I just switched BT with 2 and everything works perfectly...no antennas.
Hope it helps.



[Executor]

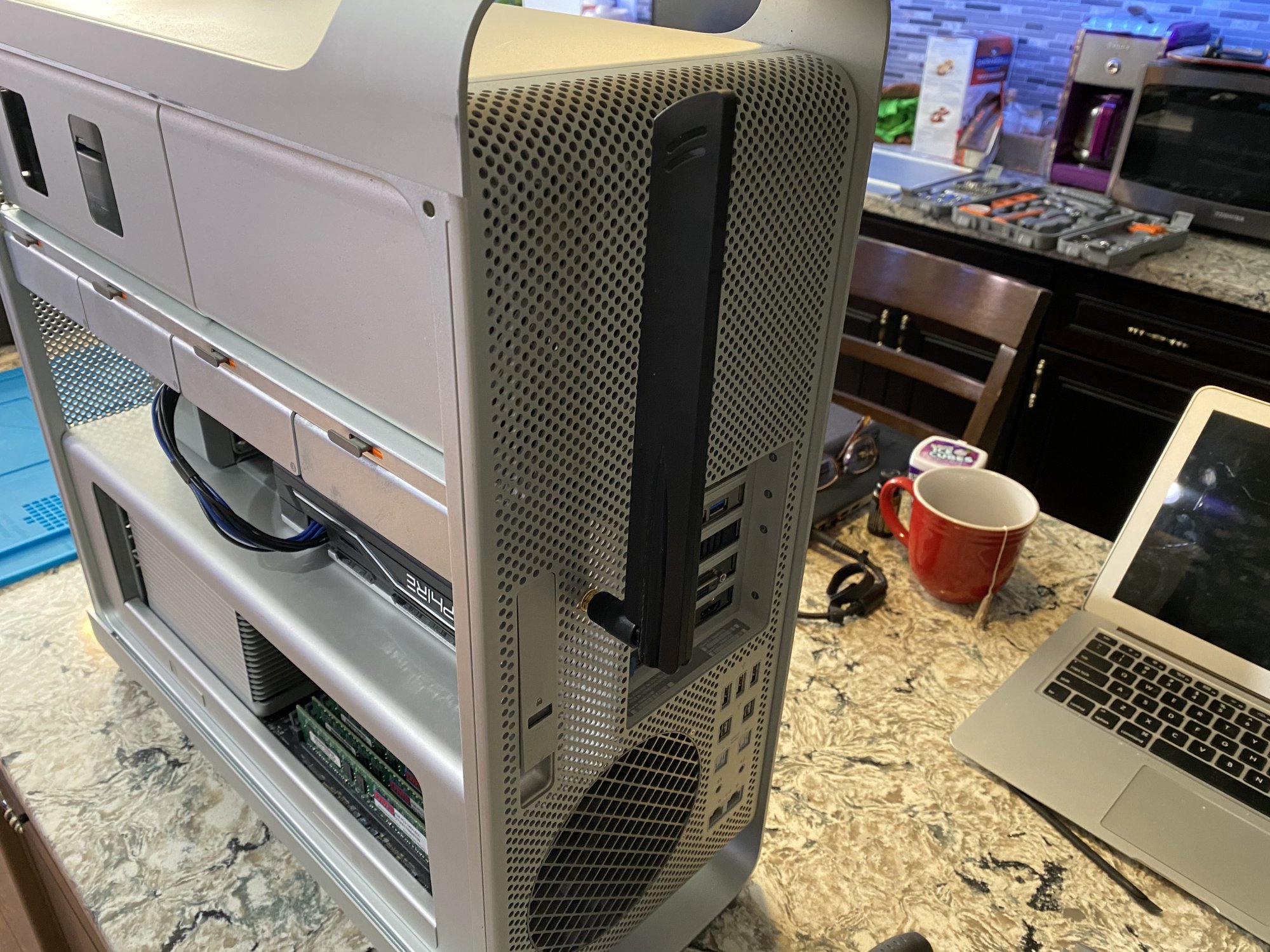

I upgraded WiFi with Bluetooth 4.2. However, magic mouse 2 acting strange lag respond. I assumed due to weak reception so I ordered Bluetooth antenna kits - Range Extender for my MacPro 5.1 2010. I installed and test it still same problems. I am frustrated about it. Any idea?

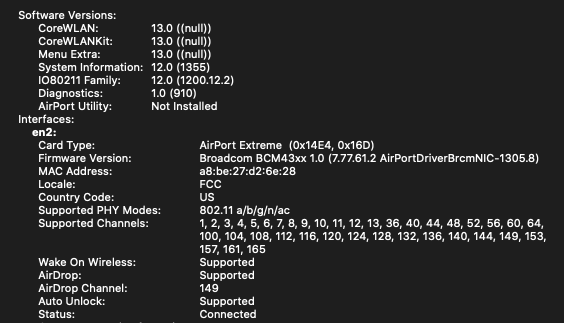

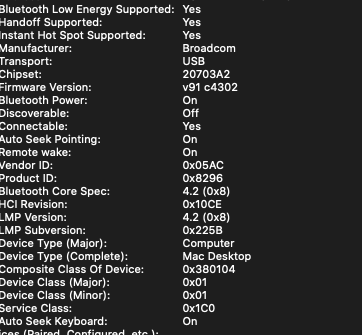

View attachment 884610

Sorry I can’t help with your problem but I wanted to comment on the external antenna. It looks very nice and clean. If you don’t mind sharing, how did you install it like that? Dremel?



[waimtrp]

Depending which upgrade kit you installed. It happened exactly the same thing to me but after switching 2 wires, everything works perfectly (Apple Magic Mouse), etc...full strength signal.
Here are the pictures of the kit and the 2 wires in question.
I just switched BT with 2 and everything works perfectly...no antennas.
Hope it helps.

i have the same kit from this seller, and like you, i switch the antenna 2 & BT too, then work just fine , no BT connection issue any more 😉



[KingBurb]

Ahh I fixed after I found BT cable was not connected correctly. Here the images that you wanted see me how I do that.

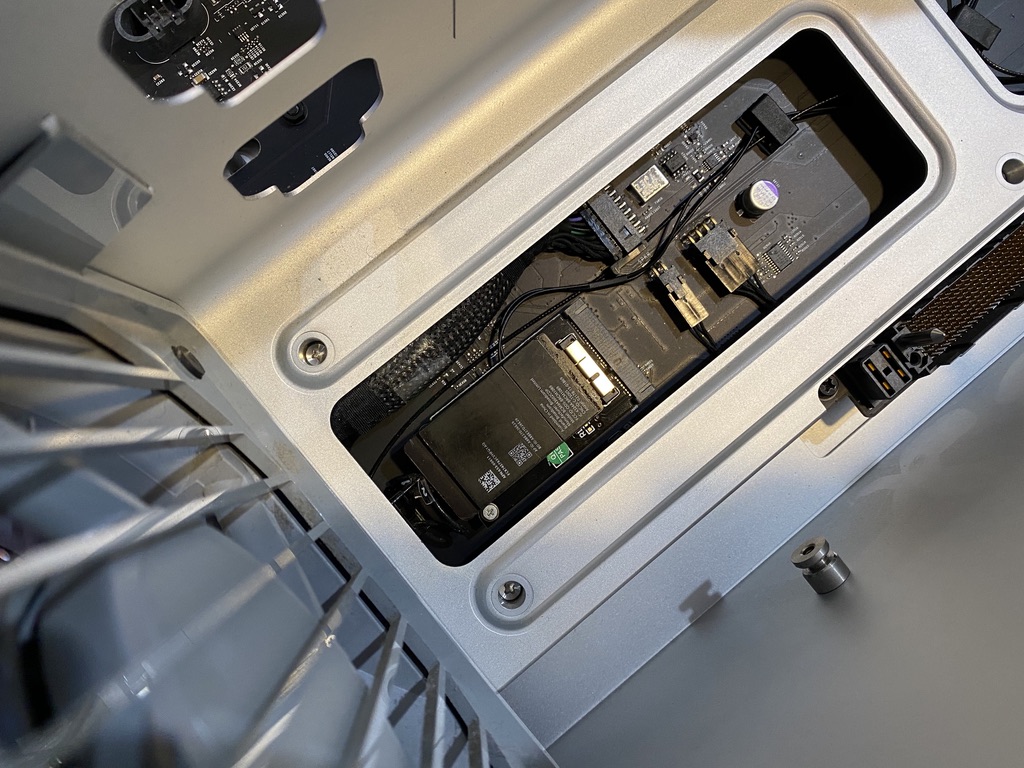

1) Installed Wifi AC and BT 4.2

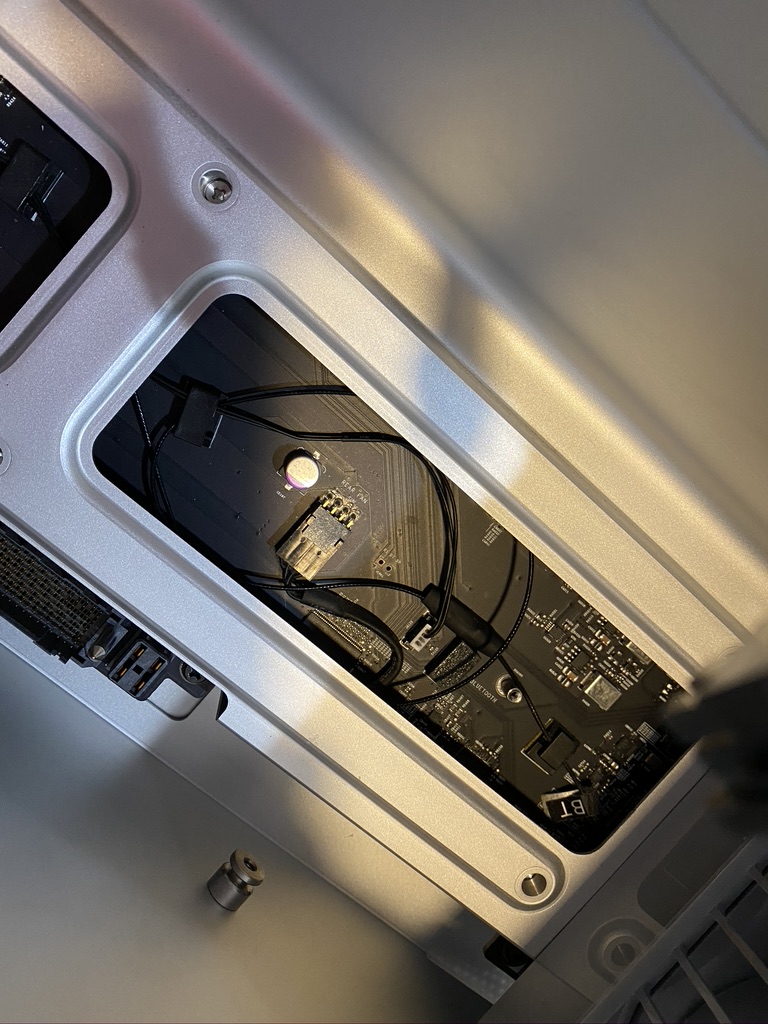

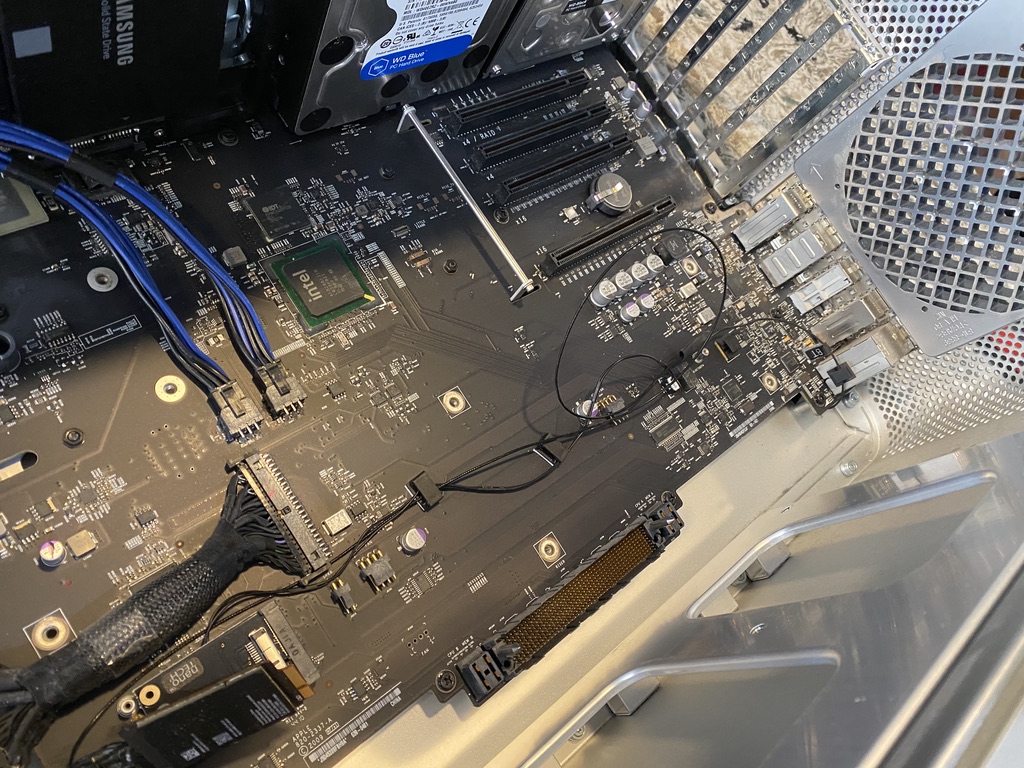

2) Connected extended BT cable.

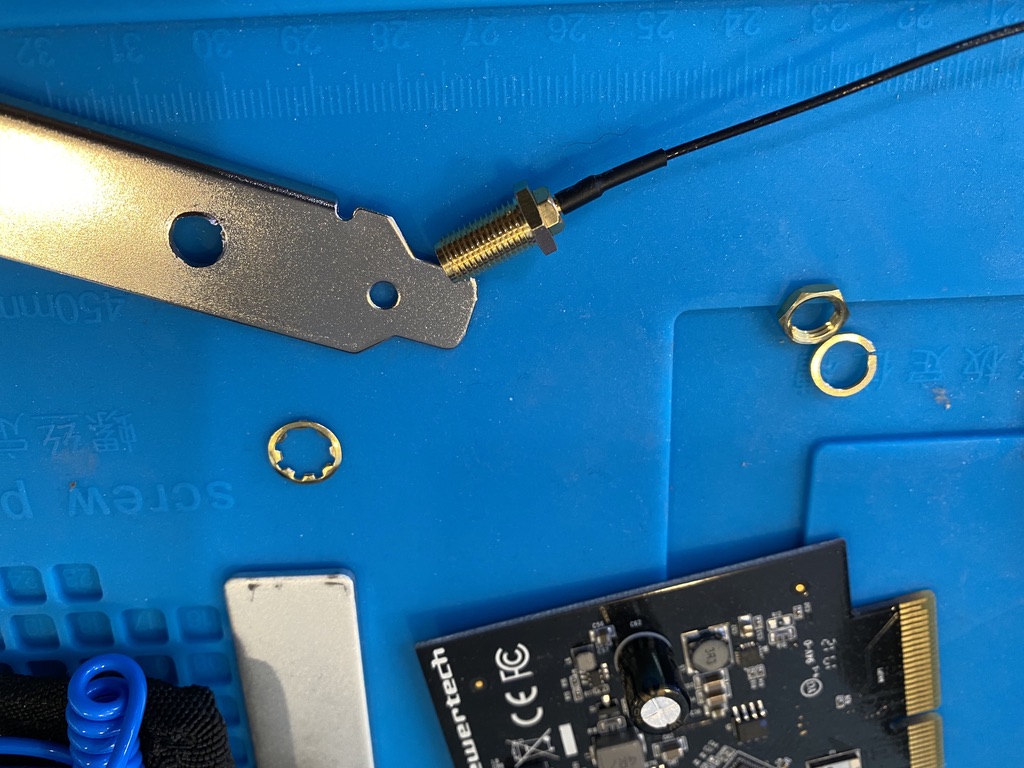

3) Took out from panel

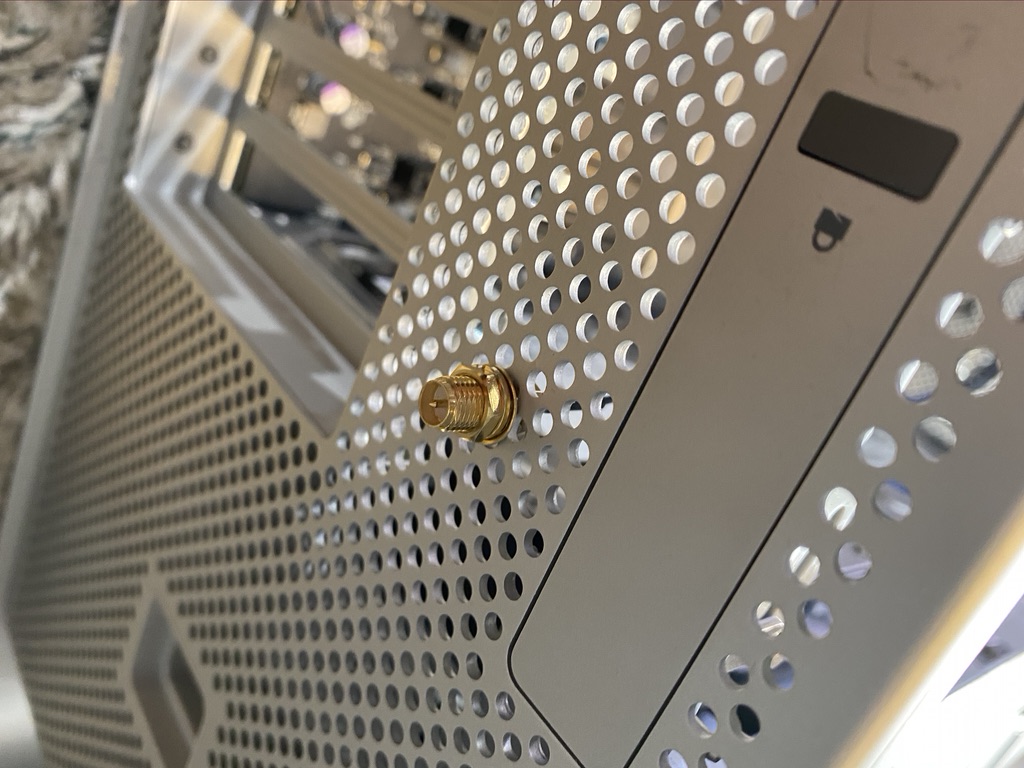

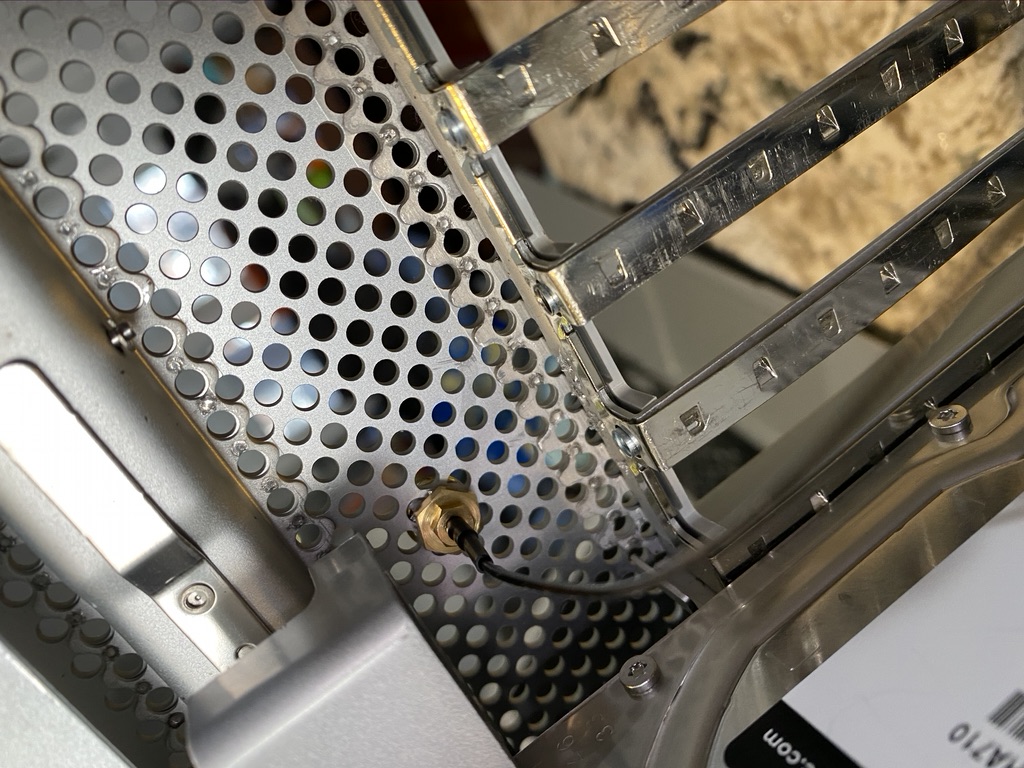

4) Drilled on the back of MacPro 5.1 and installed

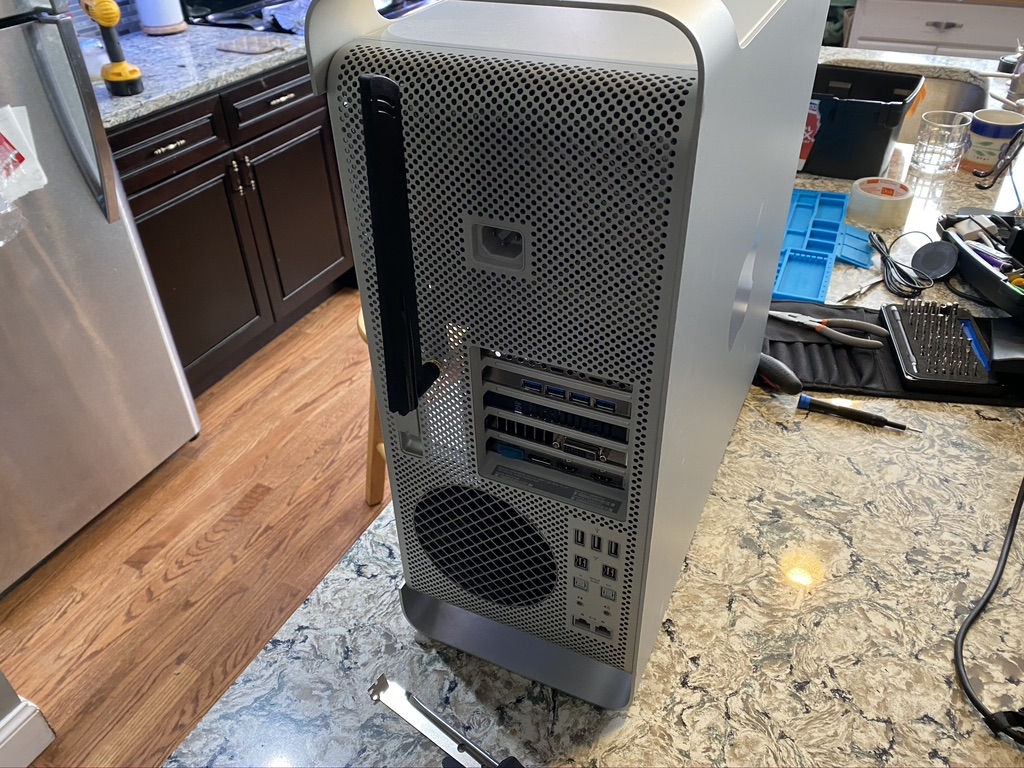

5) Perfect position for Range Extender


Looked great!



[fatespawn]

So, kind of a bummer going on. Not really a big deal, but I got a new Series 5 Apple Watch for Christmas. I had a Series 3. I was using the Apple Watch unlock feature with no problems on my 4,1 but now with the series 5, it's not working anymore. Any difference in bluetooth or something that would make the Series 5 incompatible with my Mac Pro?



[Accrok]

Hi everybody,

I'm also tried to upgrade my Wifi/Bluetooth Card.
I read the 54 pages of this topic just to be sure that don't miss or forget something important!

Unfortunately, despite all my efforts and precautions, I can't activate handoff, universal pasteboard, or unlock with my Apple Watch S4.

I tried several times :
• SMC reset
• NVRAM reset (my Nvidia card don't like this)
• Disconnect/Reconnect my iDevices from iCloud
but unfortunately nothing helps, no changes!

I just successfully obtained AirDrop & Instant Hotspot.

Could someone please help me, or could @crjackson2134 can confirm that if I perform the manipulation that you describe here, it will work!

My configuration:

Mac Pro 2009 4.1 with 5.1 - High Sierra 10.13.6 (17G65)
Bluetooth software version : 6.0.7f10

Wifi 5ghz work fine with my Airpot Extreme (5th generation) & Apple TV (3rd generation)
Bluetooth work fine with my Magic Keyboard, Magic Trackpad & MIDI Bluetooth Network



[tommy chen]

802.11ac, BT 4.0 and Continuity & Handoff are working on Mac Pro 2010 (Keep Updating)

this works in HS and mojave (not testet in catalina):

forums.macrumors.com



[Accrok]

802.11ac, BT 4.0 and Continuity & Handoff are working on Mac Pro 2010 (Keep Updating)

this works in HS and mojave (not testet in catalina):

forums.macrumors.com

???



[startergo]

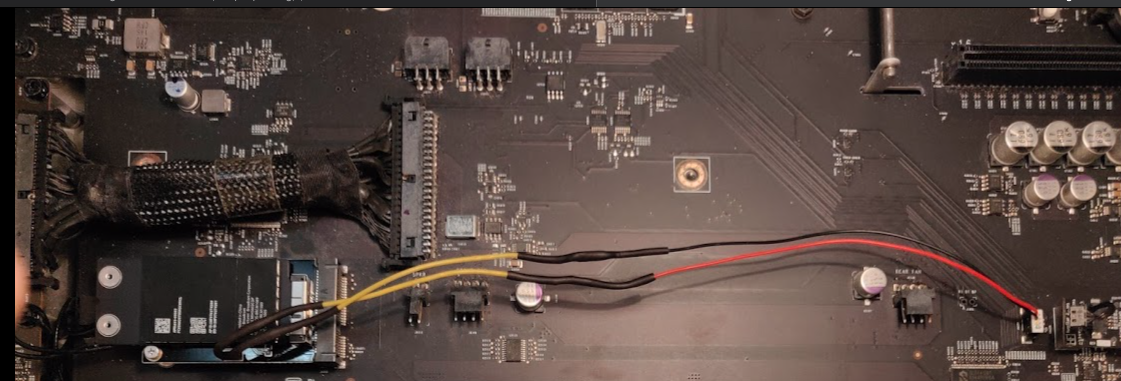

For some reason I can't see the bluetooth. Is the power properly connected? Red is positive (at the end) next to it is black (negative to the adapter):

[automerge]1578253866[/automerge]
Bluetooth PAN:
Type: Ethernet
BSD Device Name: en3
IPv4:
Configuration Method: DHCP
IPv6:
Configuration Method: Automatic
Proxies:
Exceptions List: *.local, my ip address
FTP Passive Mode: Yes
[automerge]1578253975[/automerge]
Card Type: AirPort Extreme (0x14E4, 0x14A)
Firmware Version: Broadcom BCM43602 1.0 (7.77.61.3 AirPortDriverBrcmNIC-1305.9)
MAC Address: my Mac address
Locale: FCC
Country Code: US
Supported PHY Modes: 802.11 a/b/g/n/ac
Supported Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165
Wake On Wireless: Supported
AirDrop: Supported
AirDrop Channel: 149
Auto Unlock: Supported
Status: Connected
Current Network Information:



[startergo]

Well it looks like I followed the wrong guide here. Crystalidea is clearly wrong 🙂. Negative is on the outside and positive on the inside.

 Apple Bluetooth Software Version:    6.0.14d3
  Hardware, Features, and Settings:
  Name:
  Address:
  Bluetooth Low Energy Supported:    Yes
  Handoff Supported:    Yes
  Instant Hot Spot Supported:    Yes
  Manufacturer:    Broadcom
  Transport:    USB
  Chipset:    20703A1
  Firmware Version:    v168 c4824
  Bluetooth Power:    On
  Discoverable:    Off
  Connectable:    Yes
  Auto Seek Pointing:    On
  Remote wake:    On
  Vendor ID:    0x05AC
  Product ID:    0x8294
  HCI Version:    4.2 (0x8)
  HCI Revision:    0x12D8
  LMP Version:    4.2 (0x8)
  LMP Subversion:    0x21A8
  Device Type (Major):    Computer
  Device Type (Complete):    Mac Desktop
  Composite Class Of Device:    0x380104
  Device Class (Major):    0x01
  Device Class (Minor):    0x01
  Service Class:    0x1C0
  Auto Seek Keyboard:    On



[JedNZ]

Post 740 has all the right info.

Do you still have the original BT module installed? I suggest you remove it if you do.



[startergo]

Post 740 has all the right info.

Do you still have the original BT module installed? I suggest you remove it if you do.

Thanks for the info. I got it working already. The first post is not very clear because of the designation A and B. That is meaningless and the guide I followed was wrong. I found out the hard way.
[automerge]1578258970[/automerge]
Ah and the original bluetooth is out. But even if it was inside without the power connected it is the same.



[tommy chen]

Well it looks like I followed the wrong guide here. Crystalidea is clearly wrong 🙂. Negative is on the outside and positive on the inside.

the guide is ok, he uses the black wire for the D+

also my adapter has the red wire wrong



[startergo]

the guide is ok, he uses the black wire for the D+

also my adapter has the red wire wrong

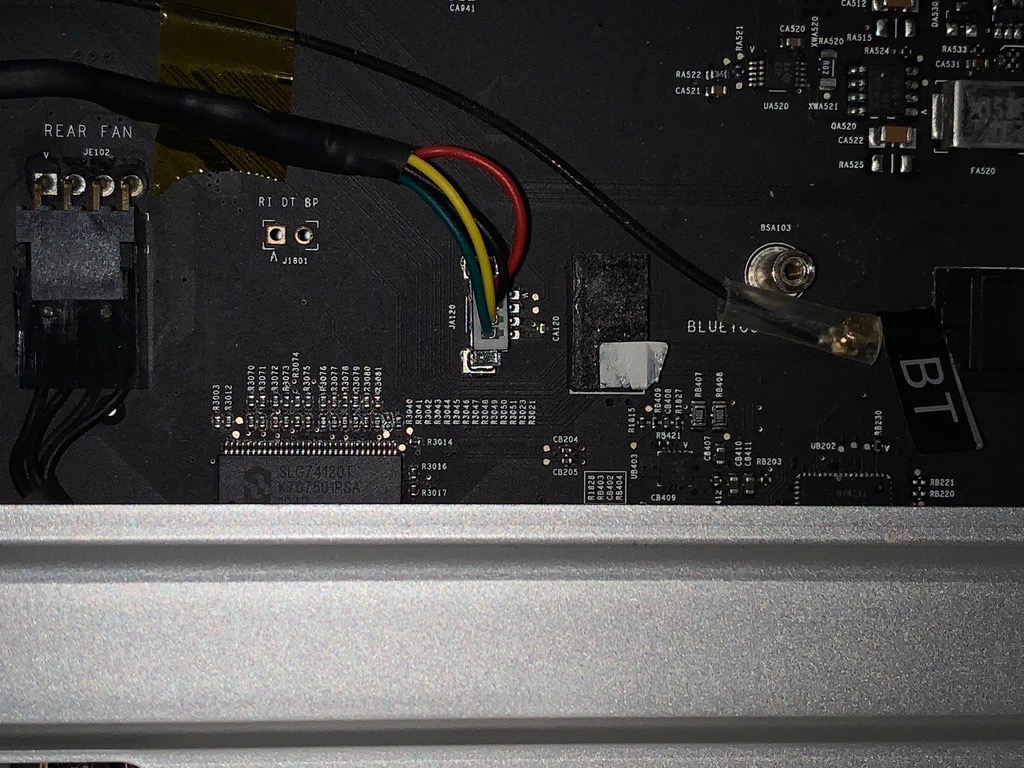

View attachment 886922

Those connectors come with the wires and the red wire is at the end.

US recommended DC power circuit wiring color codes.

Function	label	Color
Protective ground	PG	bare, green, or green-yellow

2-wire ungrounded DC Power System
Positive	L+	no recommendation (red)
Negative	L-	no recommendation (black)

2-wire grounded DC Power System
Positive (of a negative grounded) circuit	L+	red
Negative (of a negative grounded) circuit	N	white
Positive (of a positive grounded) circuit	N	white
Negative (of a positive grounded) circuit	L-	black



[tommy chen]

yes, recommended in the US (and europe) > not in china ;- )



[Accrok]

Hi @IndioX

Thanks for your help!

I carried out the manipulation that you recommended to me and I'm happy to announce that's work fine now! 😉

I now manage to obtain:
• Apple Watch unlock
• Instant Hotspot
• Handoff (Mac & iPhone)
• Universal pasteboard
• Airdrop

The only thing I find weird is that I can't get the opened iCloud tabs on my Mac <--> iPhone.

How do I get this?

Many thanks for your help! 👍🙌👊



[tommy chen]

THX

but can you be more specific about what you mean by icloud tabs?



[Accrok]

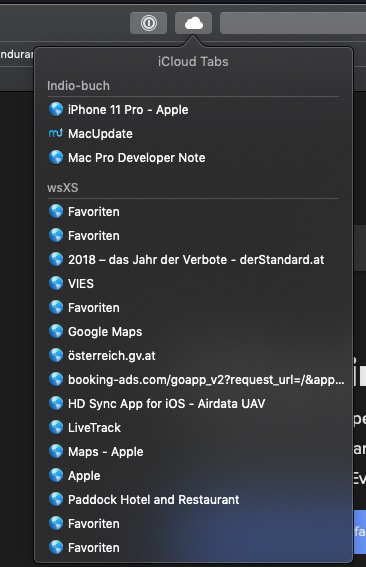

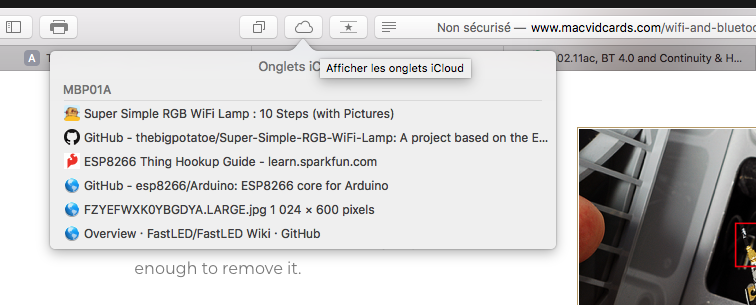

Hi @IndioX , see screenshot attached !

The iCloud tabs with Safari browser.



[tommy chen]

ah, this works for me

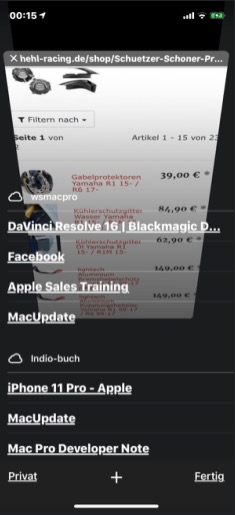

see the tabs on the macs (10.14.6) - and also on the iphone Xs (13.3)

but i did not use safari > firefox


only for testing:



[Accrok]

Strange ! I'm going to look for where this problem could come from and I'll come back and post the solution if I find it



[Engender]

Here's a tip. Purchase four U.Fl cables, like this one, and attach them to the card before you open your cMP. Connecting the cables to the antennas is a lot easier than attaching the antennas directly to the card. Further, if you unsuccessfully attach the antennas to the card too many times, you can warp the attach points on the card. Fixing that is a real pain in the ass. And if you fail often enough, you can damage the attach points on the card—at which point you'll need to get a new card.



[mattspace]

Strange ! I'm going to look for where this problem could come from and I'll come back and post the solution if I find it

try logging out of iCloud, Reset the SMC on your Mac Pro, log out of iCloud on iOS devices, then log back in on everything,

Also, some versions of Safari between iOS and macOS aren't compatible for iCloud tab sync. I've had situations where history and reading list were synced, but not iCloud tabs.
