A1111 Stable Diffusion speed?

TzunamiOSX

TzunamiOSX

macrumors 65816
Original poster
Oct 4, 2009
1,058
436
Germany
I am playing a bit with Automatic1111 Stable Diffusion. At the moment, A1111 is running on M1 Mac Mini under Big Sur.

The performance is not very good.

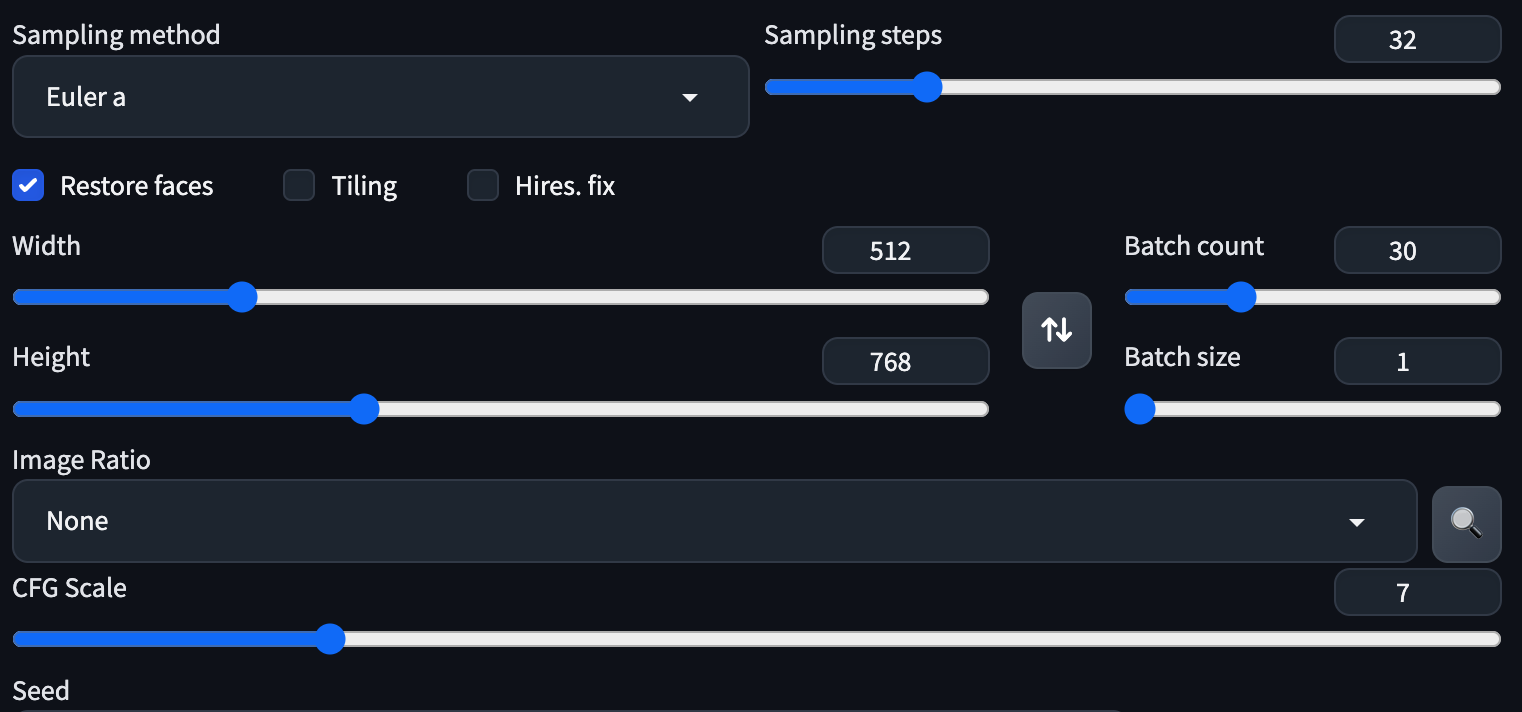

Bildschirmfoto 2023-08-31 um 04.20.27.png

A picture with sees settings need around 5 min. 47 sec. (10.86s/it). My Mac Pro with Windows and an old Titan X give me a picture every 40 seconds.

It looks like GPU and Neural Engine are not working. Did I get a better speed when using a newer system?

Start setting are: ./webui.sh --skip-torch-cuda-test --precision full --no-half --medvram --opt-sub-quad-attention

Last edited:
A short feedback...

Same stable Automatic1111 Stable Diffusion with same settings.
I have updated the System to Ventura and now I get better results

Big Sur, Standard A1111: 5 min. 47 sec. (10.86s/it)
Ventura, Standard A1111: 1 min. 40 sec. (3.14s/it)

Ventura, Standard A1111: Slartibarts link 1 min. 19 sec. (2.64s/it)

Looks like the neural engine is not in use, only the GPU.

  • Like
Reactions: T'hain Esh Kelch
That's pretty dang slow. Have you tried Draw Things from the app store? Although I suppose Draw Things also uses similar back end

thebart said:
That's pretty dang slow. Have you tried Draw Things from the app store? Although I suppose Draw Things also uses similar back end
Click to expand...
What is your system and how long do you need?

EDIT: Draw Things needs 1:42 under Monterey

Last edited:
thebart said:
M1 mini (base, not pro, not max) 16gb ram Ventura. 512x768 32 steps takes 1:16
Click to expand...
This is the MPS optimization from Ventura. Monterey is a little bit slower. My personal problem is, that my Mac Pro from 2008 with a old Titan X Maxwell is up 2 to 3 times faster, My 2010 Mac Pro with Vega Frontier is at nearly the same speed as the M1 Under Windows. Im sure the 5,1 is faster under MacOS (Tests with my Mac Pro 2013), but I don’t have OpenCore on it.

Exactly values coming, when back to my room.

Last edited:
TzunamiOSX said:
This ist the MPS optimization from Ventura. My personal problem ist, that my Mac Pro from 2008 with a old Titan X Maxwell is up 2 to 3 times faster, My 2010 Mac Pro with Vega Frontier is at nearly the same speed Under Windows. Im sure the 5,1 is faster under MacOS (Tests with my Mac Pro 2013), but I don’t have OpenCore on it.
Click to expand...
Yeah SD on Silicon is way behind PCs with discrete GPUs, even older Macs with older GPUs, let alone anything like a 4070.

32 Sampling steps, 512x768

Mac Pro 2008, Windows 10, Titan X (Maxwell) 12 GB
Bildschirmfoto 2023-09-05 um 04.16.25.png


Mac Pro 2010, macOS Monterey, Vega Frontier 16 GB


Mac Mini M1, macOS Monterey
Bildschirmfoto 2023-09-05 um 05.16.06.png


Mac Pro 2013 macOS Monterey, 1x D500, 3 GB
Ohne Titel.png


Mac Pro 2013 Windows 11, 1x D500, 3 GB
over 20 mins, make a test when I have the time

Last edited:
That doesn't look to bad. The Titan X is a dedicated GPU with a 250 TDP running CUDA code that has been optimized over the arc of a decade. The M1 GPU is what, 15 Watt?

galad said:
That doesn't look to bad. The Titan X is a dedicated GPU with a 250 TDP running CUDA code that has been optimized over the arc of a decade. The M1 GPU is what, 15 Watt?
Click to expand...

This is a GPU from 2015 with 28nm, so it looks not so nice.

I have added my Mac Pro 2010 who is also faster than my M1. On my 6,1 I can't finish the picture under Windows, because I got a low VRAM error.

Last edited:
Is here anyone with a Rx 5700 or newer on a Intel Mac, who can run automatic 1111? Hope to see results of newer GPUs.
