A1151 - Checkerboard Pattern on Screen, Freezes

dbdjre0143

macrumors 6502
Original poster
Nov 11, 2017
292
313
West Virginia
Disclaimer: I realize this isn't PPC, but I know there are knowledgable folks here about early Intel models as well.

I recently took a gamble on a 2006 17" Macbook Pro (A1151). When initially trying to boot to the Snow Leopard DVD, there was a checkerboard pattern on the screen, and when the Apple logo and spinner disappeared, the machine would freeze. However, for seemingly no reason, the next day when I was about to work on it again, it worked normally, and I successfully installed Snow Leopard.

Now, I'm back to the same issue. Booting with Safe Mode allows me to get past the grey screen, but the checkerboard pattern remains. I have also connected to an external screen in safe mode, and the checkerboard pattern is present there too. Based on what I have read and my own experience, this is almost certainly a graphics chip issue.

I've read that reflowing the logic board in that area has been known to solve the problem for this model, but I wanted to check with the folks here before I go down that route. I've had mixed results in the past with heat gun reflows, so wanted to see if any of you had any alternatives I should try first. Thanks in advance for any assistance!

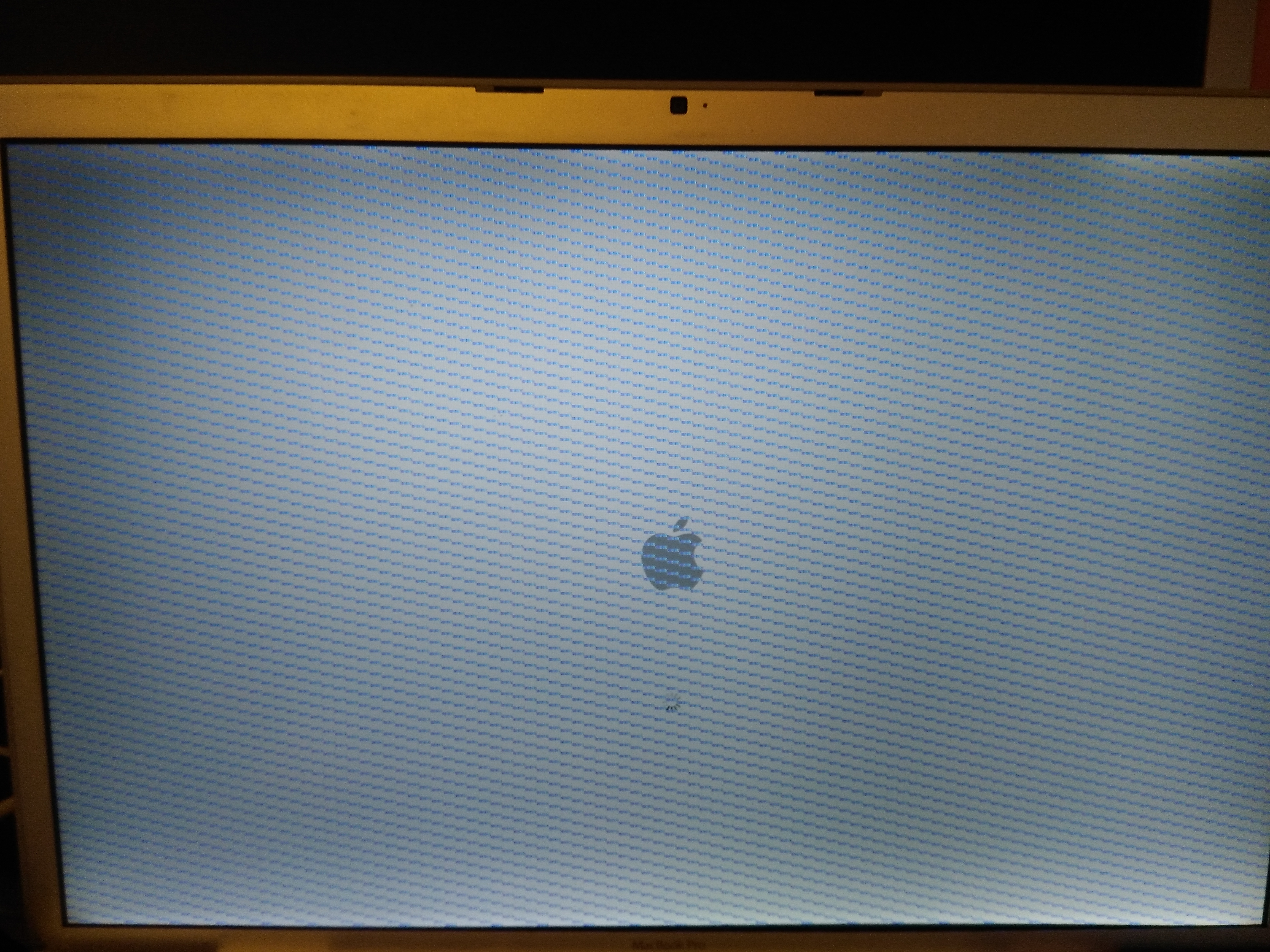

[doublepost=1543430618][/doublepost]Image of pattern.


keysofanxiety

macrumors G3
Nov 23, 2011
9,471
24,220
Checkerboard on the boot is 99.9999999% graphics failure. I've allowed a 0.0000001% possibility to the chance it's something else, given I've got a penchant for declaring things are correct and then being wildly wrong.

I remember I failed a spelling bee once because of that. Misspelled the word "vitiate", because dumb baby keys thought it had an "e" rather than an "i" in it. Also it doesn't have a "y" either. Plus it begins with a "v" – yeah, maybe I started on the wrong foot. The pressure really must have hit hard: my brain wilfully misheard the word as "affiliate" or something similar. I was so confident when I answered it and the failure buzzer pierced my body like a bullet.

All the kids started to point and laugh at me. With thick tears in my throat I went to the microphone again to thank the judges for the opportunity, so I could lose with dignity, but the moisture from my fat young face just resulted in the microphone producing ear-screeching feedback. They all began to laugh even harder and I think I saw one of the judges stifle a laugh too.

My last memory of that stage was seeing my Dad in the audience shake his head
solemnly, then stand up and walk out of the building.


LightBulbFun

macrumors 68020
Nov 17, 2013
2,127
1,942
London UK
sadly your GPU is dying the only way to properly fix this issue is to replace the GPU chip it self, if you wish to do so DO NOT reflow the board in an oven.

  • Like
Reactions: Traace

dbdjre0143

macrumors 6502
Original poster
Nov 11, 2017
292
313
West Virginia
I did not think the Radeon chips were problematic? I've read the threads about the failing Nvidia chips in the early Intel models, but didn't think there were issues with the ATI ones. This has an ATI Mobility Radeon X1600. Also, when it was booting properly, the full x16 lane width was given in the System Profiler. If I remember correctly from that thread (having trouble finding it atm), a telltale sign of chip failure was that the lane width would report as less.

EDIT: Of course, I'm not saying this couldn't still be a chip failure. Just wanting to make sure y'all weren't assuming I had that one particularly bad Nvidia chip when making that diagnosis is all. :)


miksat

macrumors member
Jan 27, 2018
49
37
Republic of Serbia
Looking online on ebay and such, I've come across a lot of 2006 MBPs with defective GPUs, usually the display would not power on at all or the image was corrupted. So yes, this seems like a GPU defect.

It's not even worth trying to replace the chip. On the other hand, it makes for a great space heater or door stop.

  • Like
Reactions: eyoungren

eyoungren

macrumors Core
Aug 31, 2011
21,179
13,014
ten-zero-eleven-zero-zero by zero-two
Looking online on ebay and such, I've come across a lot of 2006 MBPs with defective GPUs, usually the display would not power on at all or the image was corrupted. So yes, this seems like a GPU defect.

It's not even worth trying to replace the chip. On the other hand, it makes for a great space heater or door stop.
I think I was very fortunate a few years back. My A1151 cost me $189. The ONLY issue I had was that a few keys stopped working. I got a new keyboard for $20 and swapped it in and the eBay seller credited me that $20 back.

But, I've never had any issues after that. I dropped in a 500GB hard drive too and that's worked just fine. That was free, thanks to a member here.

  • Like
Reactions: miksat
