A1312 LCD Temp Sensor; what transisor is used?

Discussion in 'iMac' started by greekhero, Aug 25, 2014.

  1. greekhero macrumors member

    Joined:
    Oct 24, 2013
    #1
    Hello,

    I bought an iMac 2009 but it is missing the LCD temp sensor. According to the pictures that I have seen it is a TO-29 Transistor looking component that is the LCD sensor. Does anyone know what is the transisor number so I can buy it from digikey or elsewhere?

    Thanks!

  2. greekhero, Sep 10, 2014
    Last edited: Sep 10, 2014

    greekhero thread starter macrumors member

    Joined:
    Oct 24, 2013
    #2
    SOLVED: A1312 LCD Temp Sensor; what resistor is used

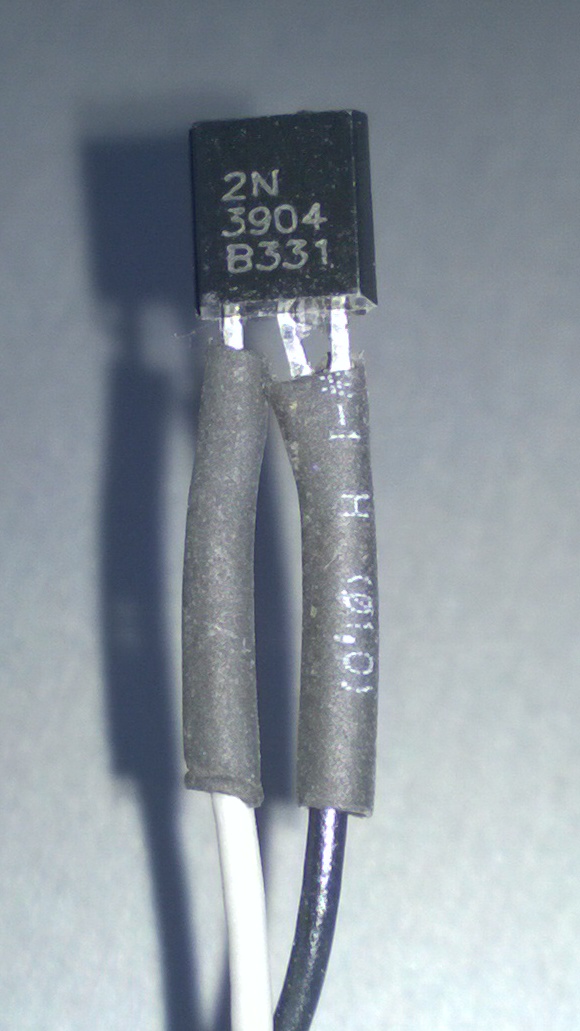

    No answer here or anywhere so I ended up forking $20 on this. But to help others, here is are the numbers on transistors (and it can be bought from digikey for 19 cents ($0.19):

    2N
    3904
    B331

    Number that helped me find it on digikey was 2N3904. the right two legs are shorted. See the picture.

    Take care,


    Attached Files:

  3. mcdermd macrumors regular

    mcdermd

    Joined:
    Mar 17, 2004
    #3
    Thanks for taking one for the team on this. It's exactly the information I needed.
