a1342 lvds connector has a burnt pin

Discussion in 'MacBook' started by garegin16, Jan 3, 2015.

  1. garegin16 macrumors newbie

    Joined:
    Jan 3, 2015
    #1
    Hi

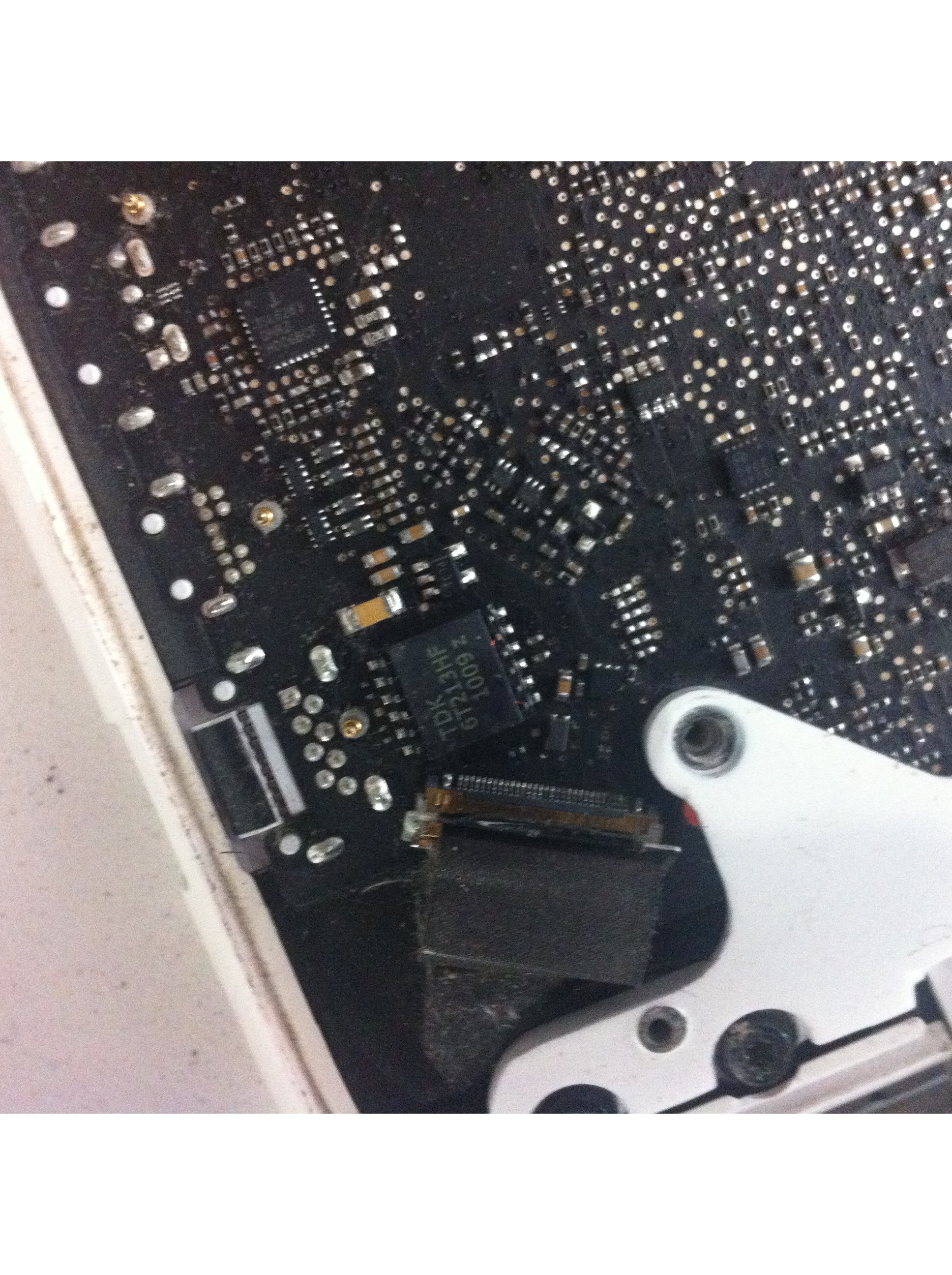

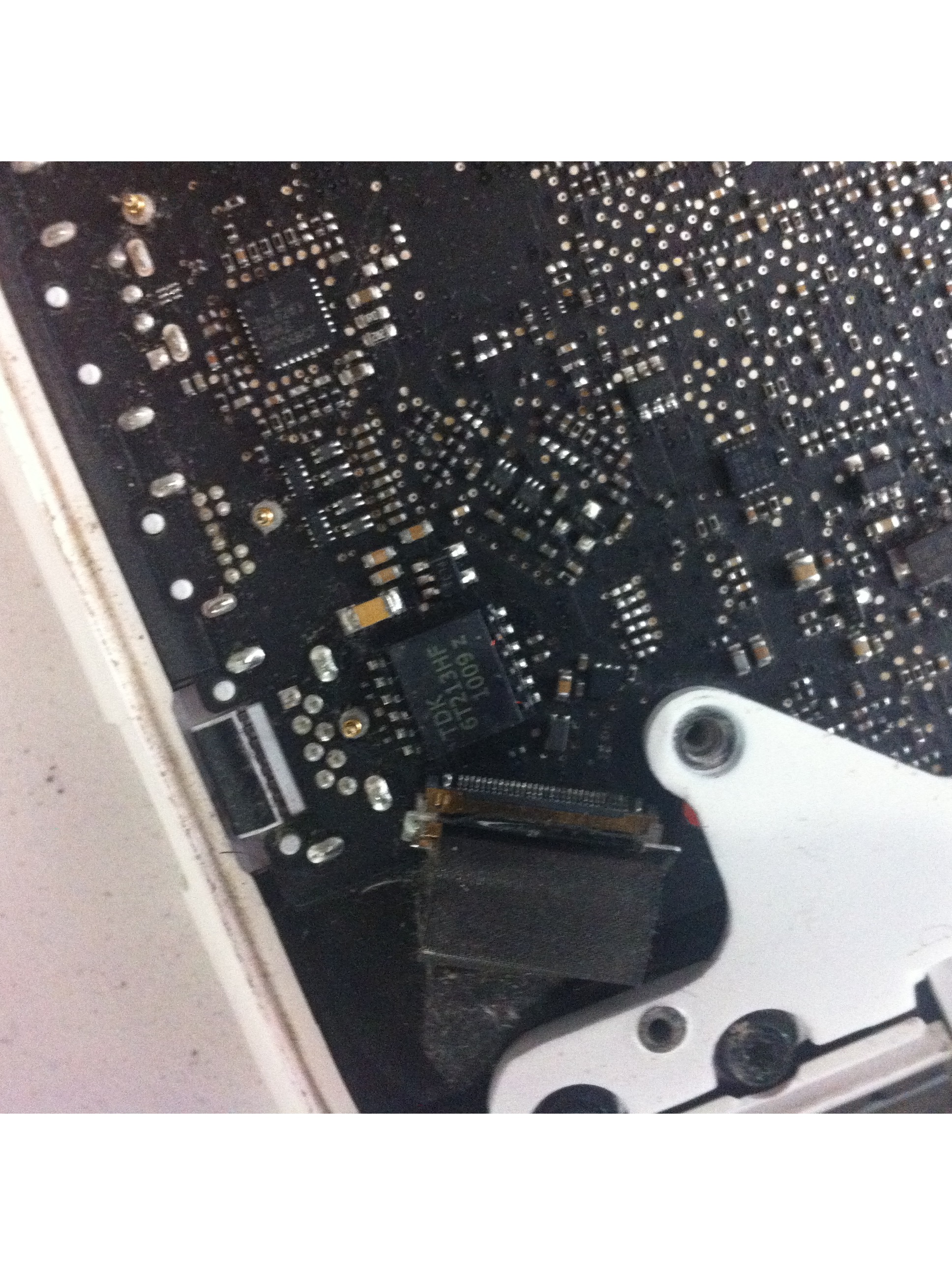

    The pin on the LVDS connector is burnt on the cable and on the board. The screen still functions. Do you know what it is and if its essential? Should I send it for board repair?

    It's the four right from the right side


    Attached Files:

  2. geekdad macrumors newbie

    Joined:
    Jan 27, 2013
    Location:
    Indiana
    #2
    What is the board number? If I have the schematic I can look it up.

    Thanks,
    Adam

  3. garegin16 thread starter macrumors newbie

    Joined:
    Jan 3, 2015
  4. garegin16 thread starter macrumors newbie

    Joined:
    Jan 3, 2015
    #4
    I have both the k84 and k87 schematics. what should I be looking for?
