MP 1,1-5,1 Activate AMD hardware acceleration

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
h9826790 said:
SIP disabled?

Can you try direct SATA connection?
Click to expand...

1) Yes, double checked its disabled:
Last login: Mon Feb 3 18:00:46 on ttys000
tests-Mac-Pro:~ test$ csrutil status
System Integrity Protection status: disabled.
tests-Mac-Pro:~ test$

2) Yes, I misspoke. SSD is in SATA drawer, closest to the back of the computer. No other drives attached. Did not mean to say SAS.

Nick_P said:
1) Yes, double checked its disabled:
Last login: Mon Feb 3 18:00:46 on ttys000
tests-Mac-Pro:~ test$ csrutil status
System Integrity Protection status: disabled.
tests-Mac-Pro:~ test$

2) Yes, I misspoke. SSD is in SATA drawer, closest to the back of the computer. No other drives attached. Did not mean to say SAS.
Click to expand...

Can you double check if you do everything right?

Mount your EFI partition, and check if you can see something like the screen capture as per step 12. Most important, make sure you can see the identical file path as showed in that screen capture.
[automerge]1580772940[/automerge]
I re-tested the command, it works (OpenCore installed on disk6 in my cMP)
Screenshot 2020-02-04 at 7.33.59 AM.png

I rebooted, deleted the EFI folder in the EFI disk partition, and tried again. I also checked post 594 again and this time downloading the bootpicker config file worked, so I used that.

I went through all the steps again, and didn't get an error this time after blessing. I rebooted. Still no HW access visible in VideoProc.app. But, about this Mac shows 3.5GHz CPU's, so something partially worked.

I saw your earlier post to another member to try: Result is as follows:

tests-Mac-Pro:~ test$ nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102😱pencore-version
4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102😱pencore-version REL-055-2020-02-03
tests-Mac-Pro:~ test$
[automerge]1580773470[/automerge]
Here is my diskutil list output. Same as post 594, so I did copy/paste from the commands there.


tests-Mac-Pro:~ test$ diskutil list
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *60.0 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_APFS Container disk1 59.8 GB disk0s2

/dev/disk1 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +59.8 GB disk1
Physical Store disk0s2


1: APFS Volume MacOSTest 12.7 GB disk1s1
2: APFS Volume Preboot 23.9 MB disk1s2
3: APFS Volume Recovery 507.4 MB disk1s3
4: APFS Volume VM 20.5 KB disk1s4

Nick_P said:
I rebooted, deleted the EFI folder in the EFI disk partition, and tried again. I also checked post 594 again and this time downloading the bootpicker config file worked, so I used that.

I went through all the steps again, and didn't get an error this time after blessing. I rebooted. Still no HW access visible in VideoProc.app. But, about this Mac shows 3.5GHz CPU's, so something partially worked.

I saw your earlier post to another member to try: Result is as follows:

tests-Mac-Pro:~ test$ nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102😱pencore-version
4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102😱pencore-version REL-055-2020-02-03
tests-Mac-Pro:~ test$
[automerge]1580773470[/automerge]
Here is my diskutil list output. Same as post 594, so I did copy/paste from the commands there.


tests-Mac-Pro:~ test$ diskutil list
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *60.0 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_APFS Container disk1 59.8 GB disk0s2

/dev/disk1 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +59.8 GB disk1
Physical Store disk0s2


1: APFS Volume MacOSTest 12.7 GB disk1s1
2: APFS Volume Preboot 23.9 MB disk1s2
3: APFS Volume Recovery 507.4 MB disk1s3
4: APFS Volume VM 20.5 KB disk1s4
Click to expand...

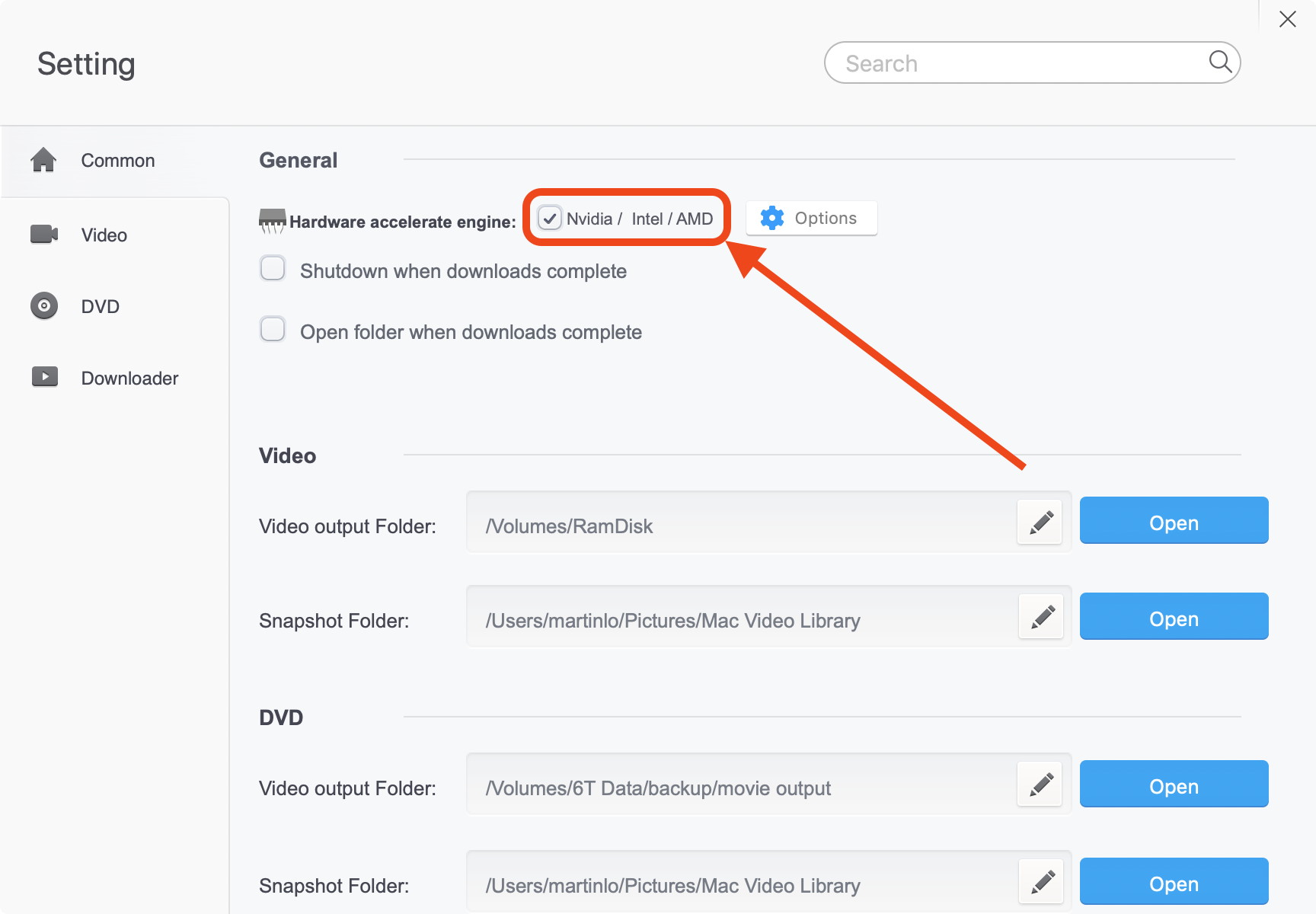

You can't see this tick?
Screenshot 2020-02-04 at 7.45.24 AM.png

I see that tick, yes. But when I go to the options page to its right, it says "unavailable" for both H264 and HEVC. I tried downloading that sword 4k video file in post #1, but google says too many people downloaded it, and to try again in 24 hrs (had the same message yesterday).

Nick_P said:
I see that tick, yes. But when I go to the options page to its right, it says "unavailable" for both H264 and HEVC. I tried downloading that sword file in post #1, but google says too many people downloaded it, and to try again in 24 hrs (had the same message yesterday).
Click to expand...

It's working.

Please read post #1 Q29

You can use the jellyfish test video

Jellyfish Bitrate Test Files

A collection of .mkv video clips encoded at various bitrates; useful for testing the network streaming and playback performance of media streamers & HTPCs.
jell.yfish.us jell.yfish.us

  • Like
Reactions: kohlson

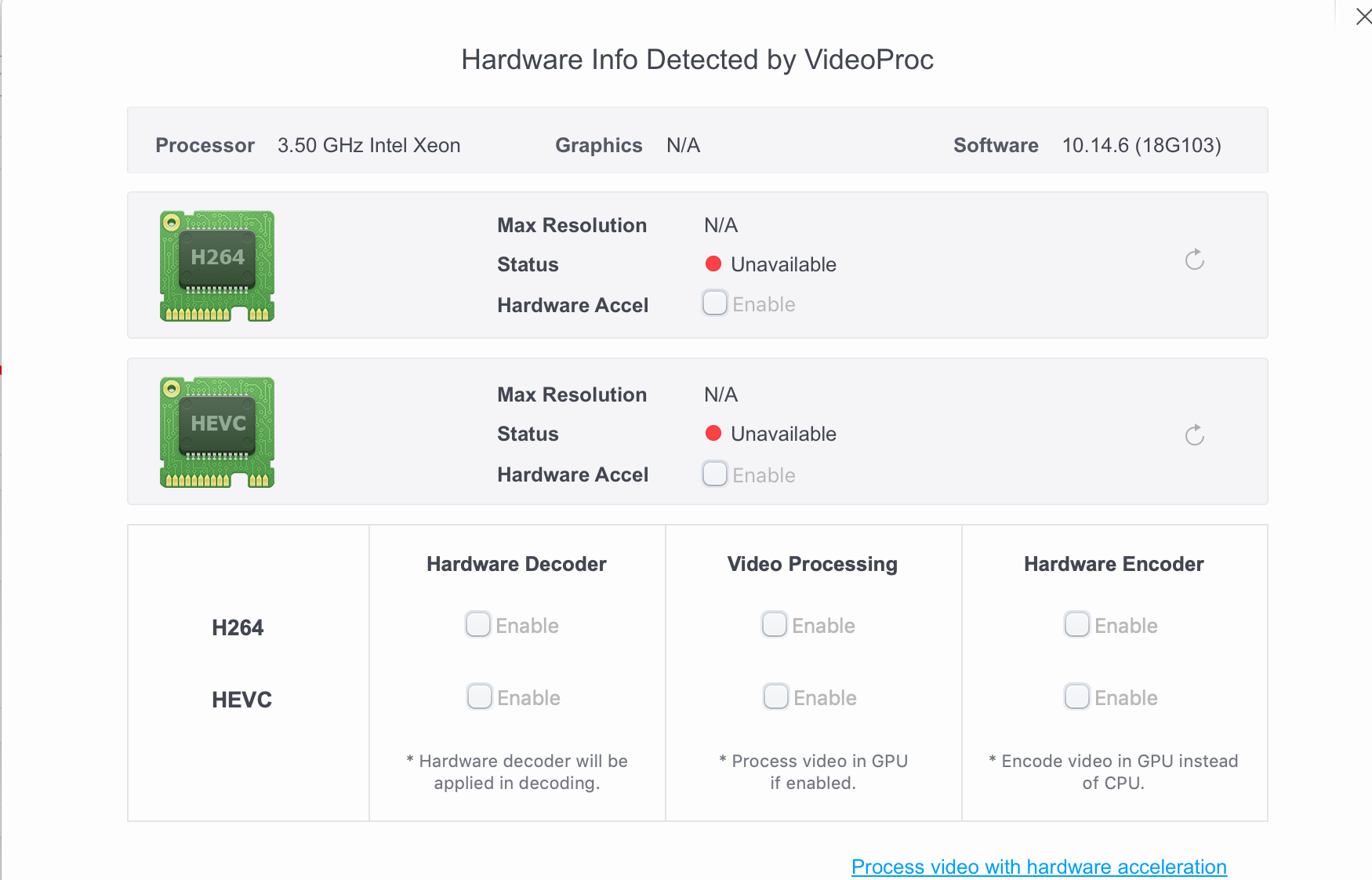

Screen Shot 2020-02-03 at 6.51.32 PM.png
Screen Shot 2020-02-03 at 6.51.45 PM.png

[automerge]1580774128[/automerge]

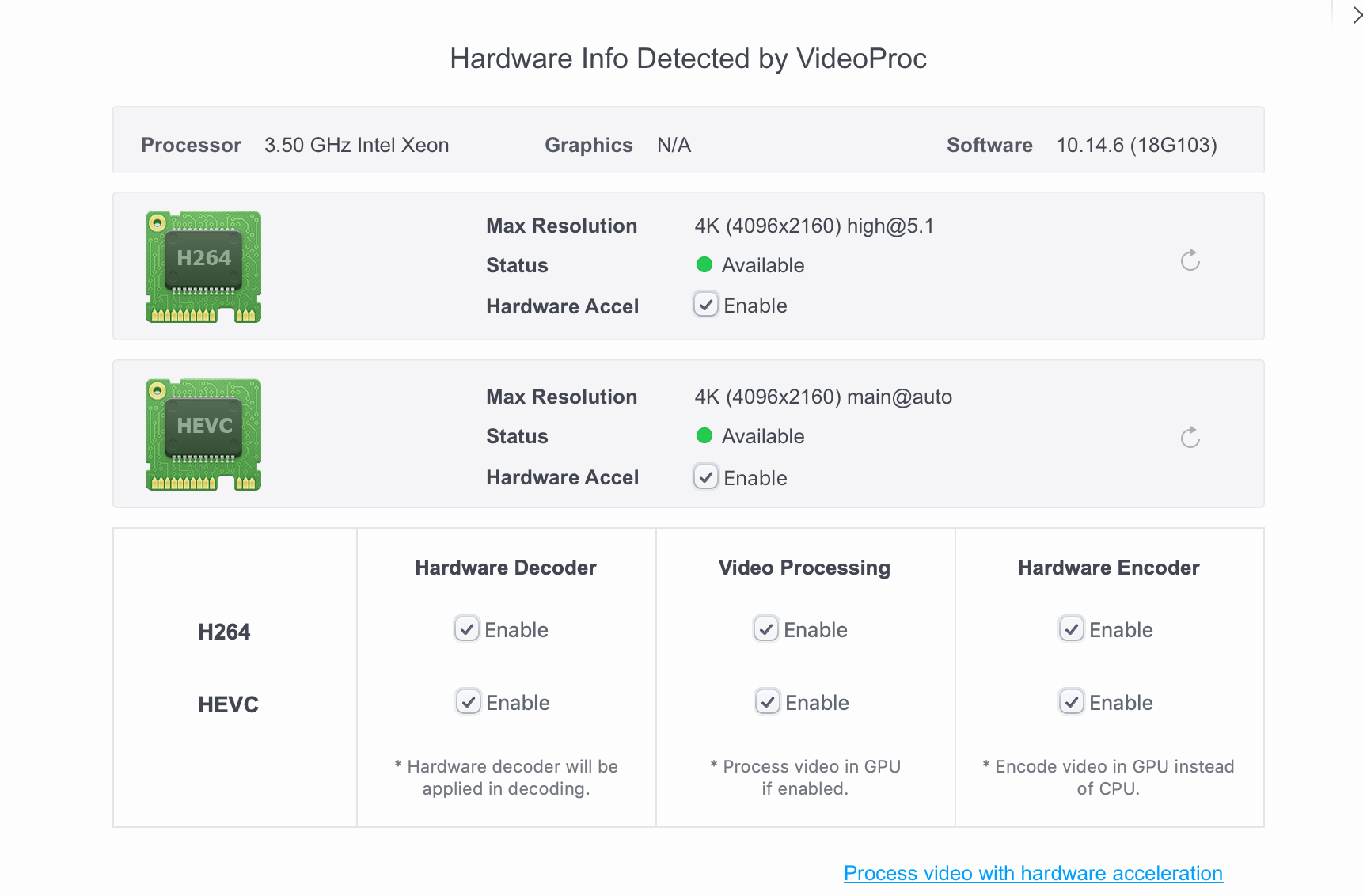

Wow! You were right. Now it works🙂 Sorry for wasting your time! And thanks for hanging with me🙂

Screen Shot 2020-02-03 at 6.54.57 PM.png

  • Like
Reactions: h9826790
Nick_P said:
I downloaded the biggest jellyfish file from the post above. WOW, it looks amazing!
Click to expand...
And I would like to confirm that you can see the boot picker, correct?

I am too lazy to re-flash my RX580 with the original ROM image and test that config.plist.

h9826790 said:
And I would like to confirm that you can see the boot picker, correct?

I am too lazy to re-flash my RX580 with the original ROM image and test that config.plist.
Click to expand...

No bootpicker. I re-read post 594 and did not see any hotkeys to press to get to it? If I reboot, it is black for a minute, then goes to my logon screen. If I hold down option after the chime (a guess on my part since that is how apple does it), it hangs, and pressing the power button shuts it down immediately (no long press needed).

I don't have any other drives or OS's installed right now. Do they need to be installed for the menu to show up? I do have Win 10 on a separate SSD and OS10.15 on a separate NVMe I can re-install to test, if you deem necessary. Thanks.

Edit, I put in my 10.15 NVMe drive, and it made no difference on the bootpicker showing up. I was able to select it as the boot disk using system preferences. PS, I tried playing the jellyfish file on that, it it stuttered most of the way though. What a difference hardware acceleration makes.

Last edited:
MacManu77 said:
I used the universal file ... is it correct?

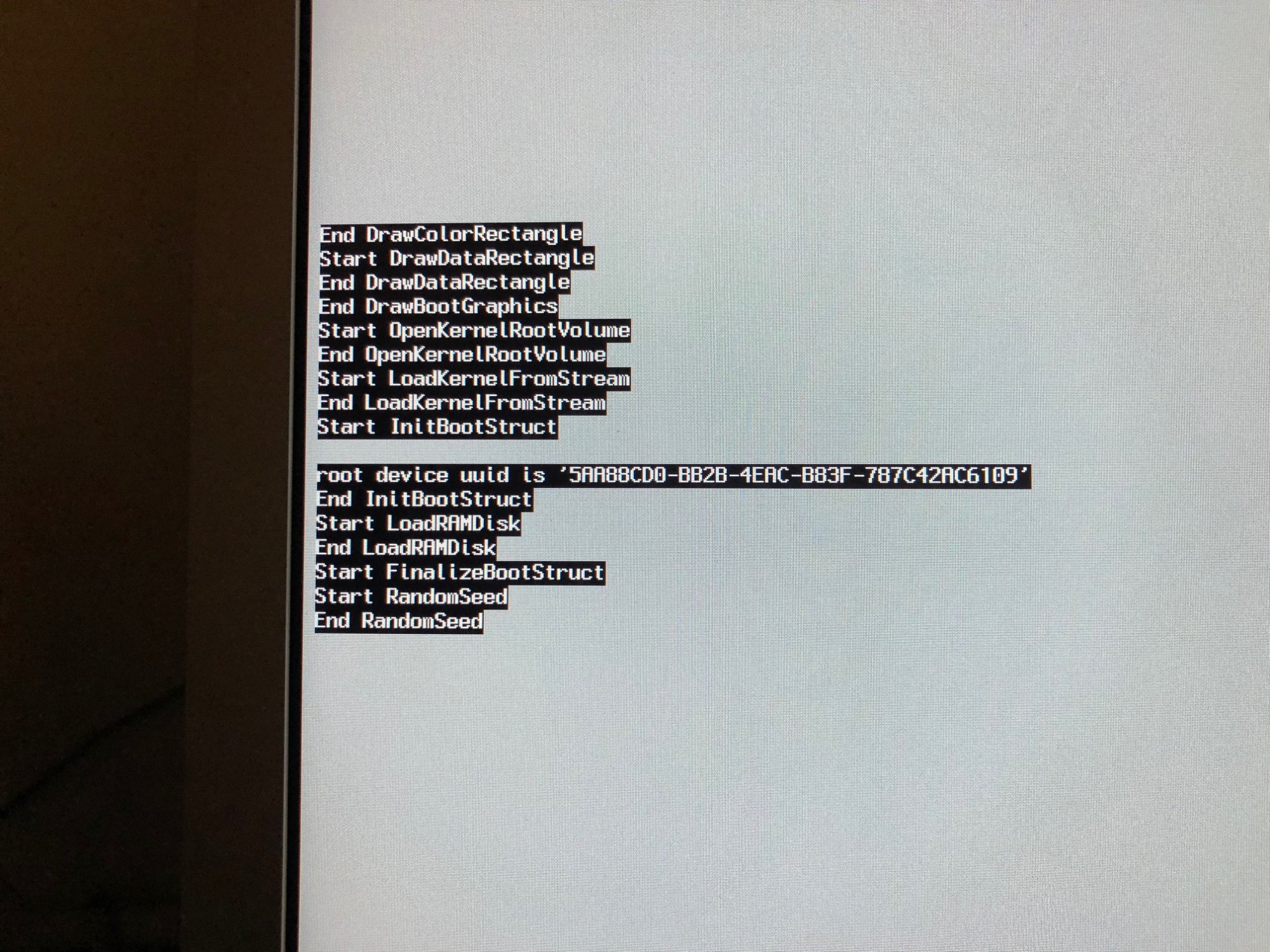

on reboot I see this:

View attachment 892292
Click to expand...
tsialex said:
You GPU is MVC flashed? If it is, disable ProvideConsoleGop.
Click to expand...


I am also experiencing the exact same error. I was able to boot into my backup disk and delete OC from my EFI partition but I am not sure how to proceed getting this working.

As noted in my sig I have a 560. I used the Universal config file. This sort of thing may be out of my wheelhouse but any help is appreciated.

tsialex said:
You GPU is MVC flashed? If it is, disable ProvideConsoleGop.
Click to expand...

What do you mean, please?
I don't know if my Gpu Rx Vega 56 is mvc flashed.
I take it used.
However, after that screen the Mac Pro is rightly averted.
I don't know if I m gonna make the passage you say, if you don't know how to do it.

MacManu77 said:
What do you mean, please?
I don't know if my Gpu Rx Vega 56 is mvc flashed.
I take it used.
However, after that screen the Mac Pro is rightly averted.
I don't know if I m gonna make the passage you say, if you don't know how to do it.
Click to expand...

If just that cometic error, you don't need to touch anything.

I tried to make the procedure "one size fit all", it isn't that easy, and may produce artifacts during boot stage for some setup.

As long as the cMP can boot to desktop, work stably with HWAccel. Then nothing need to be changed.

mikeydeezy said:
I am also experiencing the exact same error. I was able to boot into my backup disk and delete OC from my EFI partition but I am not sure how to proceed getting this working.

As noted in my sig I have a 560. I used the Universal config file. This sort of thing may be out of my wheelhouse but any help is appreciated.
Click to expand...

Your cMP hang at there?

MacManu77's cMP can boot to desktop and use HWAccel.
[automerge]1580800469[/automerge]
Nick_P said:
No bootpicker. I re-read post 594 and did not see any hotkeys to press to get to it? If I reboot, it is black for a minute, then goes to my logon screen. If I hold down option after the chime (a guess on my part since that is how apple does it), it hangs, and pressing the power button shuts it down immediately (no long press needed).

I don't have any other drives or OS's installed right now. Do they need to be installed for the menu to show up? I do have Win 10 on a separate SSD and OS10.15 on a separate NVMe I can re-install to test, if you deem necessary. Thanks.

Edit, I put in my 10.15 NVMe drive, and it made no difference on the bootpicker showing up. I was able to select it as the boot disk using system preferences. PS, I tried playing the jellyfish file on that, it it stuttered most of the way though. What a difference hardware acceleration makes.
Click to expand...

If no boot picker, you better use the Universal config plist, that cut the boot time by 10s.

h9826790 said:
cdf just provided the fix for this issue.

I updated the Universal config.plist in post #594 already. You may download that, mount the EFI partition, replace the config.plist, and see if it helps.
Click to expand...

Thank you so much, as soon as I get home, I'll try the updated file and let you know.

h9826790 said:
cdf just provided the fix for this issue.

I updated the Universal config.plist in post #594 already. You may download that, mount the EFI partition, replace the config.plist, and see if it helps.
Click to expand...

Hello,

I confirm that updating the file now starts without that screen of post # 1,186
Can I now enable SIP?
I tried with the key combination cmq + R but it didn't let me in.
Can I do it from the terminal?
Thanks again for your help.

MacManu77 said:
Hello,

I confirm that updating the file now starts without that screen of post # 1,186
Can I now enable SIP?
I tried with the key combination cmq + R but it didn't let me in.
Can I do it from the terminal?
Thanks again for your help.
Click to expand...

I never test this setup with SIP ON. I always keep it OFF.

If you want to enable SIP to protect your system files, you can join/search the OpenCore thread, or study the OpenCore manual, and set that in the config.plist.

h9826790 said:
I never test this setup with SIP ON. I always keep it OFF.

If you want to enable SIP to protect your system files, you can join/search the OpenCore thread, or study the OpenCore manual, and set that in the config.plist.
Click to expand...

ok, I leave it so ... the risk is too high and I'm afraid of having serious problems.
Can I ask you one last thing?
I would like to check now that the GPU actually works well with both .h264 and hevc files .... because I know that the GPU does not always go to 100% but alternates moments of full load to moments of unloading.
jellyfish is reproduced very very fluidly.
But in FCPX, for example, when I export files, the GPU is not always 100% loaded, but it alternates moments with full and others not.
Can we do tests?
