idark77

macrumors 6502a
Original poster
Dec 2, 2014
529
421
During last week I was monitoring my "Transfer File Speed" and I used Activity Monitor - Network Tab to view my network statistics etc...
I found that Activity Monitor doubles the "Data sent/sec" numbers and it also adds a few MB/sec on top of that!

Please can you also try to copy a file over network and look at Data sent? Or can you try to do a speed test over internet and look at the Data sent/sec number?
For example during my Internet Speed Test I had 20Mbits/sec of Upload (https://www.speedtest.net/ and this value is correct ) but Activity Monitor showed 5-7MBytes/sec (so It was equal to 40-56Mbits/sec)...

Searching Google I found this website https://thehouseofmoth.com/apple-has-been-lying-to-me-for-years/ and this guy had the same problems.

Please can you check your Activity Monitor Network Tab?

My MBP is connected through WiFi 802.11AC (1300Mbs Rate).


Howard2k

macrumors 603
Mar 10, 2016
5,389
5,232
I have a 2.03 GB file on my NAS I'm going to move to local and back. Resarting the test after confirm that Time Machine has finished the backup :D

Before
12.37GB Rcvd
28.64GB Sent

After moving 2.03GB file to local:
14.35GB Rcvd
28.65GB Sent

Moving back to NAS:
Before:
14.35GB Rcvd
28.65GB Sent

After
14.38GB Rcvd
30.64GB Sent

So it appears pretty close the second time. Lower than I expected to be honest, with protocol overhead.

Also 802.11ac 3x3.

Last edited:

idark77

macrumors 6502a
Original poster
Dec 2, 2014
529
421
Thanks for your test, but I was speaking about speed "Data sent/sec". Can you also check the MB/sec during your test? I see that my throughput is double (and more) when transfer files to my NAS. ( example: My NAS shows 30MB/sec but Activity Monitor Data sent/sec shows 70MB/sec or more ).
Can you read the speed?
Thanks


Howard2k

macrumors 603
Mar 10, 2016
5,389
5,232
Apologies, totally misread that. Yes, stats look misleading.

But in terms of actual time, the 2GB file was moved over from the NAS to the local drive in 32 seconds, so that's just over 500Mb/s, or 63MB/s. Moving the other way was 29 seconds, so 70MB/s.

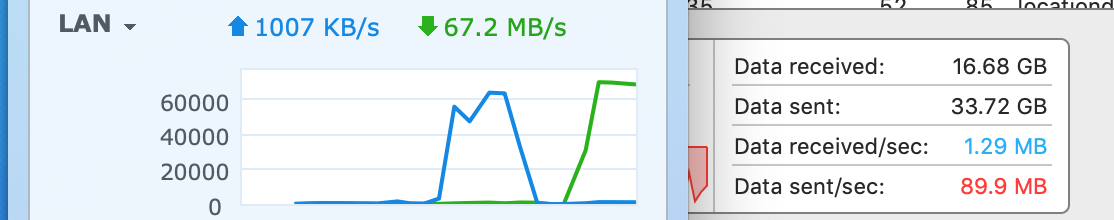

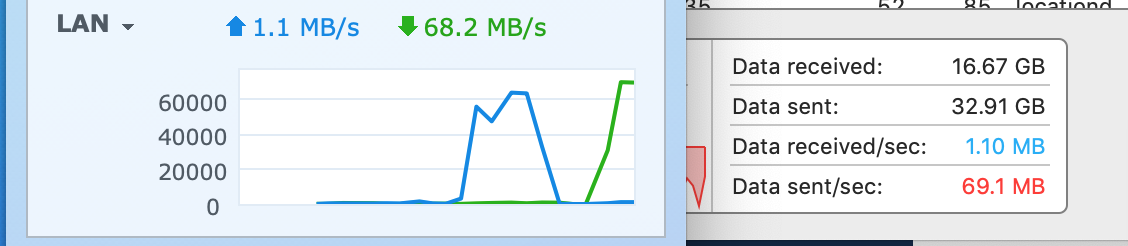

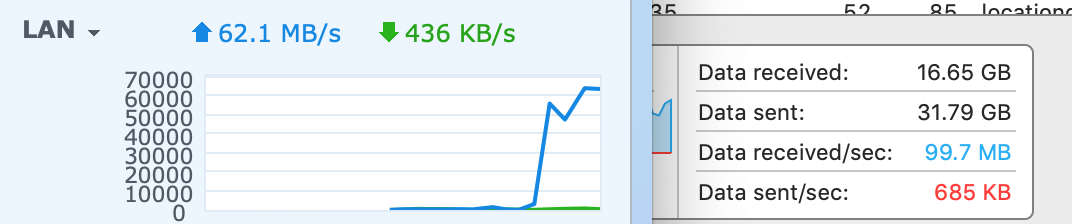

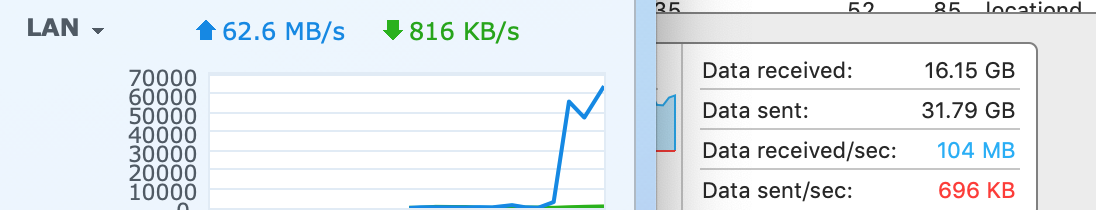

Some comparison images showing throughput in each direction.

Screen Shot 2019-09-05 at 9.18.09 AM.png


Screen Shot 2019-09-05 at 9.17.58 AM.png


Screen Shot 2019-09-05 at 9.17.11 AM.png



Screen Shot 2019-09-05 at 9.17.03 AM.png


Howard2k

macrumors 603
Mar 10, 2016
5,389
5,232
A quick non-scientific test seems to show that a 1 second update interval gives a result that is closer to reality.
It might be that the traffic is quite bursty and the calculation in Activity Monitor is doing some generous extrapolation?


idark77

macrumors 6502a
Original poster
Dec 2, 2014
529
421
Thanks for your feedback. I also changed the update interval to 1 second in Activity Monitor but the results are always wrong (Higher)... I try to investigate this issue but I suppose that Apple should fix it.


sylvercloud

macrumors newbie
Jul 25, 2015
1
0
I had observed this with my new M1 mac. The reported upload/download speed is more than twice the real speed (that I can calculate by timing the file transfer).


idark77

macrumors 6502a
Original poster
Dec 2, 2014
529
421
Using macOS Monterey (MBP Intel) I don’t see this problem anymore.


ziimen

macrumors newbie
Apr 8, 2022
1
0
M1 Pro macbook.... data sent reports exactly double the actual speed... 20mbps upload gets reported as 40mbps.
