Adding and splitting a fusion drive Mini 2014

Discussion in 'Mac mini' started by OLDGUYWITHAHIFI, Dec 16, 2018.

  1. OLDGUYWITHAHIFI, Dec 16, 2018
    Last edited: Dec 16, 2018

    OLDGUYWITHAHIFI Suspended

    OLDGUYWITHAHIFI

    Joined:
    Nov 14, 2018
    #1
    I have a 2014 Mac Mini. I was reading about hard drive benchmarks some people were getting and so I ran BlackMagic Disk Speed Test and found very disappointing results.

    Some background. After getting my 2014 new about a year ago, I found it unbearably slow with the 1TB spinner. It was almost unusable to me. So I cracked it open and installed a Samsung EVO 840 SSD I had lying around. Night and day faster.

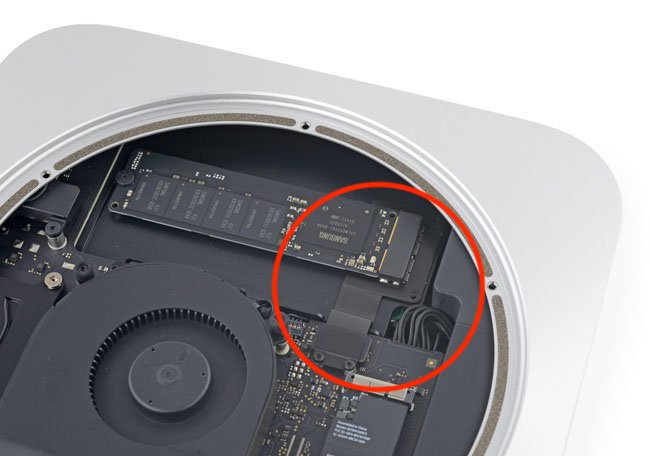

    I then found I could add a controller and add an M2 drive to my mini. This is what is used create a Fusion Drive. I learned the mid level mini had a plug on the motherboard to add the connecter. See photo.


    So I bought an adapter off of eBay, and then started shopping for an M2 stick. I learned that Apple uses a proprietary connector on their M2 style drives so I had to buy another adapter. I was able to connect a Samsung EVO 960 using an adapter I purchased on eBay. (Or I could have added an Apple branded M2 from any 2015 or newer laptop with an M2 drive). But we all know an Apple branded drive was much more expensive.

    I set up the mini with two separate hard drives instead of creating a fusion drive. After installing High Sierra on the 960 I found I could not boot off the 960 consistently and if the computer went to sleep it would not wake back up. So I did some more reading and learned that some M2 adapters work better than others. So I bought another adapter on eBay and now I have full control of the M2 installed as a primary drive. It now runs on Mojave without issue.

    With the EVO 840 SSD I was getting write speeds in the 200's and read speeds in the 400's. I am guessing the older 840 EVO was part of the problem and the SATA bus was the other.

    The adapter and drive I added created a PCI-X hard drive that now reads and writes in the 700's.

    Moral to my story, my computer is much faster and now I contemplate if I even need to purchase a 2018 mini. Choices...

  2. Fyod macrumors newbie

    Joined:
    Nov 15, 2014
    #2
    How did you go about installing not as Fusion Drive? Does the HDD now just show up as another drive that you control the reads/writes to (instead of MacOS controlling how the drives are shared)?

  3. OLDGUYWITHAHIFI thread starter Suspended

    OLDGUYWITHAHIFI

    Joined:
    Nov 14, 2018
    #3
    I added the second drive after the first was already installed and formatted with Mojave. Showed up as a second drive that I formatted and use for backup and storage.

    I have done some reading and found you can separate a Fusion drive and create two separate drives well as add a second drive and create a fusion drive. However; both methods have to be done using Terminal.

    https://www.lifewire.com/split-fusion-drive-apart-2260166
