I apologize for the lack of detail I posted. The set up here for me is there is just a cat6 cable in my room. That cable goes straight to a switch thats connected to a fiber backbone thats connected to a satellite. The ISP is local here on base and doesn't do any MAC filtering or any real security for that matter.
This place is a total poop hole and its covered in moon dust so leaving stuff on all the time that has a fan is not a good thing. also I have a limited time to even be on line as we I work 15 hours a day 7 days a week. I had a buddy out here that had this set up and its worked great. I on the other hand can't seem to figure it out. Its not a PPoE connection, You login to a webpage and as long as you don't log out its yours for ever. I'll keep tinkering and hope to figure it out soon. Thanks for all the assistance so far! You guys ROCK!
----------
I forgot to mention that I want to have all my devices on the WIFI all at once, PS3, Mac book pro, PSVita, cell phone and other devices. Mostly for updates but also ITunes updates, software updates Ect. We pay through the nose here for flooded dialup (4-30 KBPS). but that limitation seems to be per connection. Before the Air express I shared out my WIFI on my macbook and plugged the cat6 cable into it. Works great for all my "I" products but PS3 and other devices just won't connect. I'd buy a Apple game console if they made one... LOL Okay I think thats it. Thanks again!

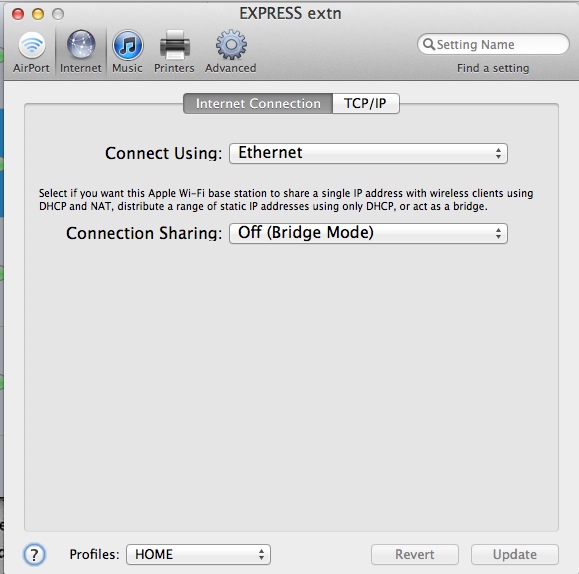

I did a similar setup for my Sister in Spain last year, where her condo just offered an ethernet outlet to which one would connect the Airport Express. You can try the setup I did for her (similar to my pic above):
By the way, I am using Airport Utility 5.6 on my Mac, as I prefer it to the newer version, which is kind of "dumbed down".

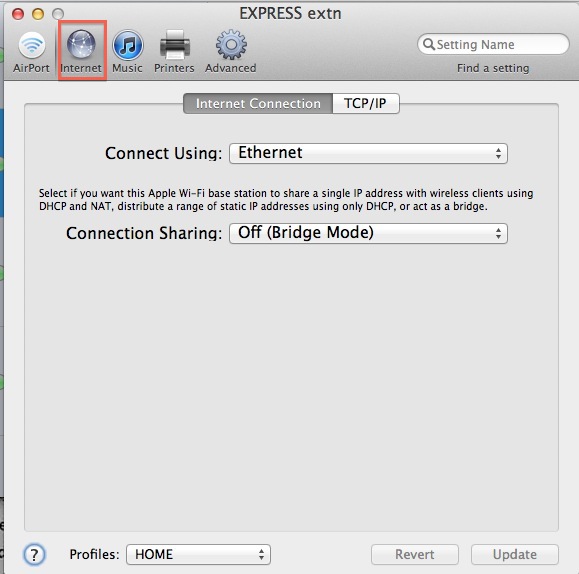

On the Internet tab>Internet Connection, the setting "Connect Using":ethernet.
Connection sharing: Off(bridge mode) See below:

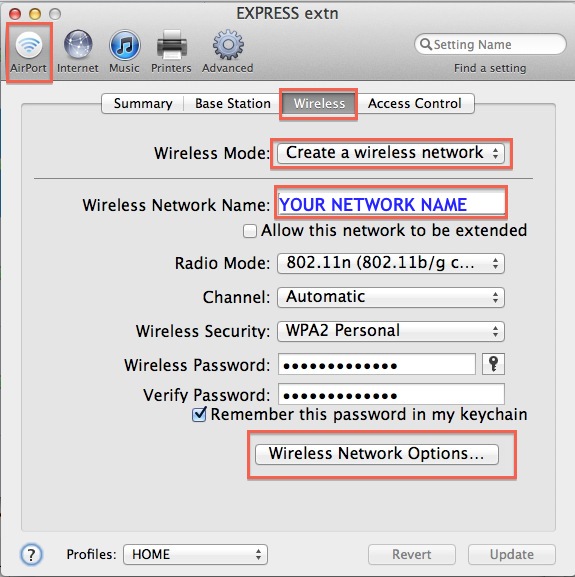

In Airport Tab setting>Wireless, see my pic below:

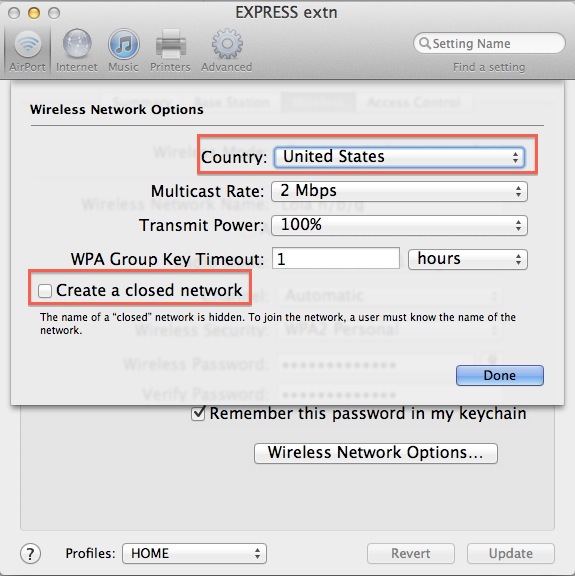

If you are worried about security/some unauthorized person connecting to your network, select the "Wireless Network Options" button (in red above), and create a closed network. You must remember the exact name of your network in this case, in order to join it on your other devices. I am not sure if these devices, such as the PS 3 have the option, like the iPad/Mac does, to join "Other network" in their settings. If you elect to do this option, when other people are around, your network will be invisible to their devices. (Hope that makes sense.) See pic below to enable this option. You would check the box to "Create a closed network":
One caveat:

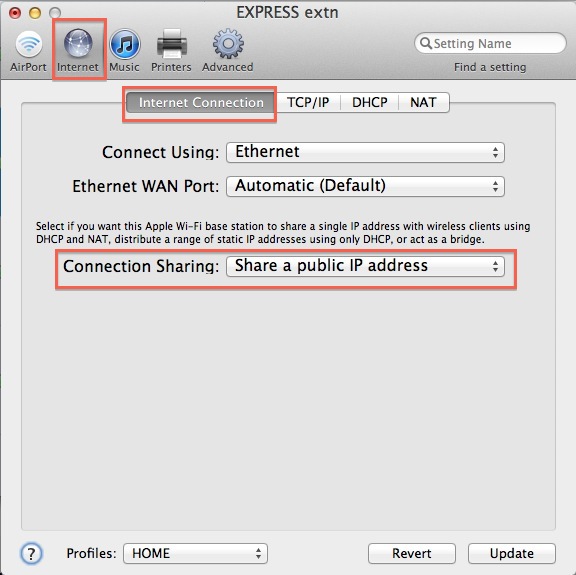

if the above INTERNET settings, do not work...(I am still not sure of your exact ISP setup), try these settings; instead of being set to "Bridge Mode", your Connection Sharing would be set to "Share a Public IP Address":
