Airport Extreme 5GHz mode?

carrollf

macrumors regular
Original poster
Aug 8, 2007
225
0
Ireland
How can I setup my airport extreme to operate in the 5GHz mode as I think my cordless phone is affecting the connection now?


PhatBoyG

macrumors regular
Jun 8, 2007
125
0
Tulsa, OK
How can I setup my airport extreme to operate in the 5GHz mode as I think my cordless phone is affecting the connection now?
I'm wondering this too since the AEBS seems to be one of the few 802.11n devices that actually supports the 5 GHz band. Most I've seen only do the 2.4 GHz band, which is obviously crowded.


CLuv

macrumors 6502
Apr 9, 2007
293
2
Northern VA, USA
Open up AirPort Utility, and then click on Manual Setup. I believe it's under network or wireless, not real sure since I'm not next to my AEBS in order to verify. You'll see a drop down box that allows you to select the mode of 2.4 or 5Ghz. Realize though if you have a b or g card in your network, 5Ghz is not compatible. Therefore, you will have to leave it set to 2.4. If not, switch it to 5Ghz. I ran 5Ghz, but now I have my gf's laptop on it and her laptop is 802.11g, therefore I'm running at 2.4Ghz now. I'm tempted to buy her an express card so she can be 802.11n. I see an AppleTV in my future, ha.

Hope that helps.


PhatBoyG

macrumors regular
Jun 8, 2007
125
0
Tulsa, OK
So it isn't dual band, it's either 2.4 or 5.

I guess that's reasonable, perhaps having two routers might make sense to get the speed advantage of 5 Ghz with the compatibility of 2.4 GHz for things like the iPhone and other G-only devices.


kwood

macrumors 6502a
Jun 26, 2006
835
0
In the Great White North.
Well it is dual band, just not simultaneously. One or the other. The worka roung is to buy a cheap 802.11g router and plug it in the Extreme's LAN port and set it in bridge mode.


~J~

macrumors 6502
Jul 27, 2007
447
0
3rd Rock from the sun
So, theoretically, I could use my Extreme in 5GHz mode (giving me a connection speed of 300Mb/sec to my MBP), and the Express (connected via ethernet) to broadcast my network in -g??


kwood

macrumors 6502a
Jun 26, 2006
835
0
In the Great White North.
I do believe the Airport Express has a bridge mode in addition to the router mode. That would give you an 802.11g bridge on your network.
You are right, it does. Basically you set up the Airport Express as its on network with different SSID as the Extreme network. Then Open the Airport Admin Utility Configure the Express and click on the Network Tab and uncheck "Distribute IP addresses". In The airport Utility, Open up the Express in manual mode, select Internet and change connection sharing to Off(Bridge Mode).

This in effect will give you 5.0GHz and a 2.4GHz network and allow all computers to see each other despite being on two separate networks.


~J~

macrumors 6502
Jul 27, 2007
447
0
3rd Rock from the sun
You are right, it does. Basically you set up the Airport Express as its on network with different SSID as the Extreme network. Then Open the Airport Admin Utility Configure the Express and click on the Network Tab and uncheck "Distribute IP addresses". In The airport Utility, Open up the Express in manual mode, select Internet and change connection sharing to Off(Bridge Mode).

This in effect will give you 5.0GHz and a 2.4GHz network and allow all computers to see each other despite being on two separate networks.
SWEET! I tried to do this last week, but couldnt get it working like I wanted. The goal is to have as fast a connection as possible for my MBP, I do large file transfers on a regular basis to a wireless disk - but still have a -g network for my XBOX360, airtunes, & iPhone. Thanks for the help, you guys rock!

EDIT: Will this work with airtunes if my MBP is on a different network than my express running airtunes??


macleod199

macrumors 6502
Mar 10, 2007
273
0
SWEET! I tried to do this last week, but couldnt get it working like I wanted. The goal is to have as fast a connection as possible for my MBP, I do large file transfers on a regular basis to a wireless disk - but still have a -g network for my XBOX360, airtunes, & iPhone. Thanks for the help, you guys rock!

EDIT: Will this work with airtunes if my MBP is on a different network than my express running airtunes??
It should all work. I believe the longer networking guide (not the manual for the individual router) on the Apple website covers a situation like that (bridging an Extreme with an Express).


RaceTripper

macrumors 68030
May 29, 2007
2,698
21
So, theoretically, I could use my Extreme in 5GHz mode (giving me a connection speed of 300Mb/sec to my MBP), and the Express (connected via ethernet) to broadcast my network in -g??
Yes. I have that setup (but with 2.4 GHz for the AEX). The Airport Express is used for my iPhone.

Unfortunately, I'm about to dump all my Apple networking gear. I have two AEX in WDS mode with Wireless N 2.4 GHz, and the Express in Wireless G with an ethernet connection to the base AEX. It's flakey at best (constantly dropping my wireless connection, disconnecting me from airport drives and then failing to authenticate me on reconnect until I reboot the AEX and/or my Mac). Worse yet it becomes unusable when I attach my PC or use Windows in Fusion and connect to work via VPN. It won't keep any connection alive for more than 30 minutes. I won't be able to work from home again until I go out and get replacement network gear. A waste of over $400 for me.

I think Apple needs more work on their networking technology, at least in my case they do. Maybe a simple setup for AEX works fine, but start to exercise the claimed features and it goes to hell in a handbasket.


badsandwich

macrumors member
Sep 8, 2009
90
0
I’ve just been playing around with this option myself.
It seems that you can in fact broadcast both 5 and 2.4 from the same unit (on a time capsule at least). In manual setup > wireless > options just check the 5GHz box and give it a different name.
I connect via my MBP to the GHz one, and other devices to the original network.


RaceTripper

macrumors 68030
May 29, 2007
2,698
21
I’ve just been playing around with this option myself.
It seems that you can in fact broadcast both 5 and 2.4 from the same unit (on a time capsule at least). In manual setup > wireless > options just check the 5GHz box and give it a different name.
I connect via my MBP to the GHz one, and other devices to the original network.
Of course the discussion you're replying is about the AEX model long prior to the newer ones that support dual band mode. That feature was added to the AEX hardware long after this thread originally ended 2 years ago.


PaulinhoC

macrumors newbie
Feb 15, 2010
1
0
5GHZ on express, and both 5 and 2.4 on time capsule?

Hi,

I'd like to know if I could have 5ghz on my airport express and both 2,4 and 5 on my time capsule. I also want the express to extend the signal of the time capsule

Thanks


theBB

macrumors 68020
Jan 3, 2006
2,455
3
In case anybody else tries to extend their network with Airports or use one as an ethernet-to-WiFi adapter, here is how to do it:

http://support.apple.com/kb/HT2044

It seems any Airport Express or Extreme is capable of WDS to accomplish such tasks. There are non-Apple WDS base capable base stations, but I don't know how well they would work together. The manuals for those base stations only support WDS links between two of the same model. My roommate 5-6 years ago flushed the firmware on a Linksys router to allow WDS, and they sort of worked, but it was a flaky connection between that router and an Express.


psaint

macrumors newbie
Sep 18, 2009
2
0
Dublin
Guys go with Airport Extreme/Time Capsule as they operate simultaneous on 2.4 and 5GHz. I have two Netgears routers WTG624 and WNR2000 and they both suck big. One is randomly loosing connection to internet while the other seems to just drop wireless signal.


Mace1856

macrumors newbie
Oct 3, 2011
3
0
Dual Band

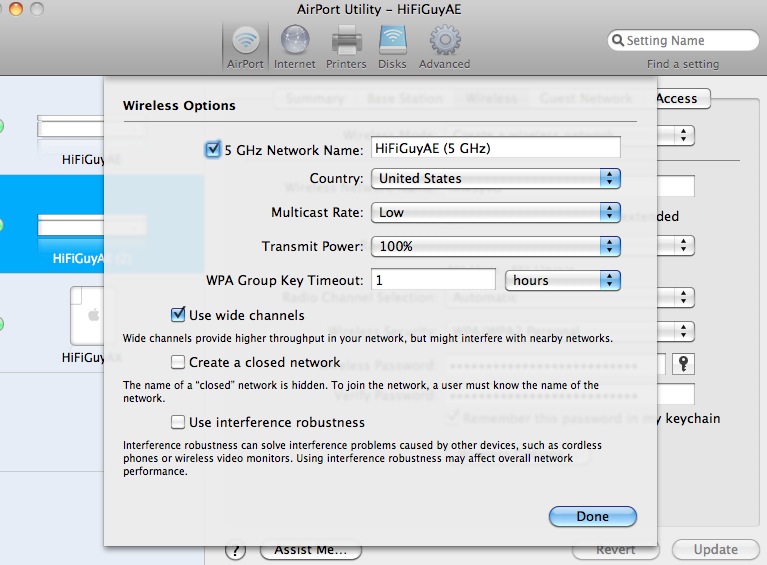

A bit confused...are we saying that the Airport Extreme is indeed simultaneous dual band, and therefore I dont need to activate the 5 GhZ network as a seperate network name (as shown in the screenshot by djamtrax in the previous post)?


hafr

macrumors 68030
Sep 21, 2011
2,742
5
A bit confused...are we saying that the Airport Extreme is indeed simultaneous dual band, and therefore I dont need to activate the 5 GhZ network as a seperate network name (as shown in the screenshot by djamtrax in the previous post)?
That's correct. The only reason why you'd want to give the 5 GHz network a separate name is to force a device to only use the 5 GHz band, since otherwise it's using the one with the strongest signal (which will almost always be 2.4 GHz, if you're not really close to the AEBS).


Gizmo22

macrumors regular
Oct 22, 2009
148
1
Midwest USA
A bit confused...are we saying that the Airport Extreme is indeed simultaneous dual band, and therefore I dont need to activate the 5 GhZ network as a seperate network name (as shown in the screenshot by djamtrax in the previous post)?

You're talking about a thread 1 to 4 years old...simultaneous dual band has been added since then.


700-Grizz

macrumors 6502
Sep 9, 2010
440
63
ALASKA
Ok I have the newest MBP and Airport extreme! I specificaly says that im using 2.4 right now, not 5GHZ--so How do I get my MBP to run the 5GHZ Band? I have looked all over my airport utility and I cant find anything


hafr

macrumors 68030
Sep 21, 2011
2,742
5
Ok I have the newest MBP and Airport extreme! I specificaly says that im using 2.4 right now, not 5GHZ--so How do I get my MBP to run the 5GHZ Band? I have looked all over my airport utility and I cant find anything
Open AirPort Utility, choose Manual Setup, click the Wireless tab, then Wireless Network Options. Here you give the 5 GHz network its own name. This will create two separate networks, one for each band. You can now connect to this network instead, that way you force your computer to always use the 5 GHz band.

But beware though, because the 5 GHz band doesn't have the same reach and doesn't travel as well through walls and other obstacles. So unless you more or less have an unobstructed line of sight between the router and the computer or if they're not in the same room, it might be better to leave it on automatic...
