Any 3D animators here able to answer me a simple yes or no question?

Discussion in 'Design and Graphics' started by chrono1081, Sep 28, 2011.

  1. chrono1081 macrumors 604

    chrono1081

    Joined:
    Jan 26, 2008
    Location:
    Isla Nublar
    #1
    Hi guys,

    If I am making a 3D animated character should I paint skin weights before or after I create its basic animation?

    Sorry for the strange question but I got thrown in to this position for a class project since I know Maya (but I don't animate in Maya!).

    My character is rigged, but I noticed that without animating it first, painting weights isn't working so hot so I assume I paint after I animate but I wanted to see what the general workflow was.

  2. YESimBLUNTED macrumors member

    Joined:
    May 25, 2011
    Location:
    In my cubicle somewhere in this rat maze
    #2
    I have always painted my weights right after skinning, with basic movements of course to tell where the adjusting needs to take place.

  3. chrono1081 thread starter macrumors 604

    chrono1081

    Joined:
    Jan 26, 2008
    Location:
    Isla Nublar
    #3
    Thanks!

    I'm a programmer but got thrown in to the artist role for a game project for class, which is normally fine except for this time I needed to animate a character, which is not fine.

  4. oxygencube macrumors newbie

    Joined:
    Sep 29, 2011
    #4
    Also make sure you UV the character before you rig him.

  5. chrono1081 thread starter macrumors 604

    chrono1081

    Joined:
    Jan 26, 2008
    Location:
    Isla Nublar
    #5
    Thanks! I got that part covered (although my map has seams for some reason but no biggie).

    I'm usually pretty good with the modeling part and can what I need made, its the animation part throwing me for a loop.

  6. Lone Deranger macrumors 65816

    Lone Deranger

    Joined:
    Apr 23, 2006
    Location:
    London
    #6
    Make sure you paint over the borders of the UV shells by at least a few pixels. Render engines frequently sample more than one texel (a pixel in your texture) at a time in order to perform filtering operations. If it encounters an out of place colour beyond the borders (say black) it’ll influence the colour that gets rendered, thus causing seams.

    So, model, UV, rig & paint weights, make any necessary changes to model if required and fix any UV problems as a result. Then texture, shade/lookdev, animate and render.

  7. chrono1081 thread starter macrumors 604

    chrono1081

    Joined:
    Jan 26, 2008
    Location:
    Isla Nublar
    #7
    Thanks for the tip :) I ended up learning that the hard way. As soon as I animated I got seams so I started painting a few pixels out.

    I'm pretty sure I'm going above and beyond what is required in class anyway but I have a thing against handing in garbage so I try and do my best even if I am a programmer playing the artist role :p

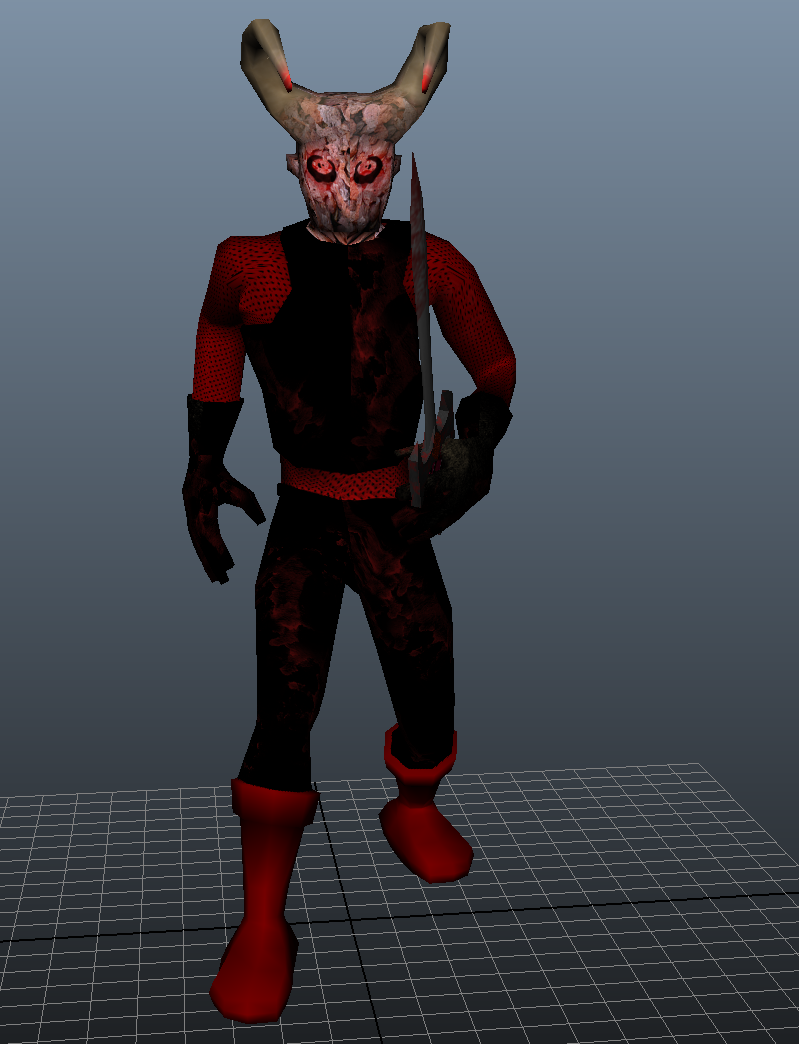

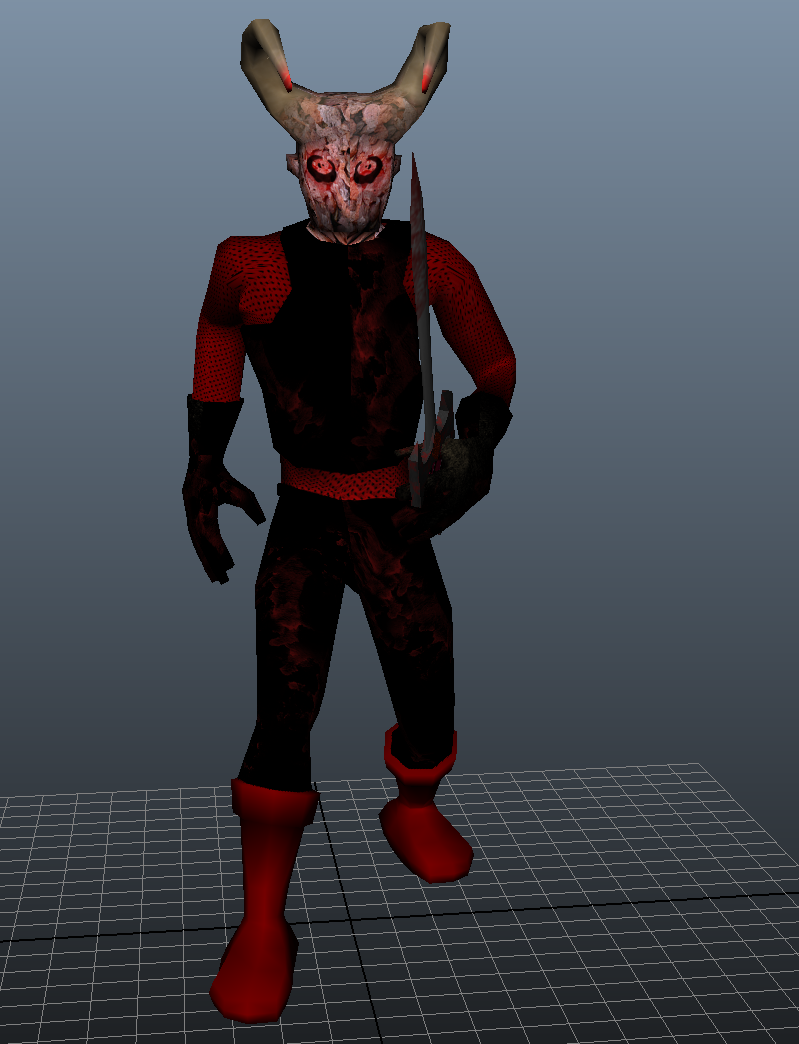

    Here's how my little guy turned out. Thats his "idle" pose. I could have done much better on the texture painting but with two weeks left and an entire game level to make theres just no time. He works though for a class project.


    Attached Files:

    • pic.png
      File size:
      220.4 KB
      Views:
      56
