Any Mac I can put this IDE LED light into?

Discussion in 'PowerPC Macs' started by PowerMac G4 MDD, Jan 11, 2015.

  1. PowerMac G4 MDD macrumors 68000

    PowerMac G4 MDD

    Joined:
    Jul 13, 2014
    Location:
    At the intersection of Conch and Coral.
    #1
    I pulled this three-prong IDE LED light from an external drive enclosure. I thought it would be cool to stick it inside of some old Mac and maybe let it poke out from behind a fan or some opening.

    I know I could easily stick this in a Windows PC that has those prongs right on the board, but is there an old Mac I can put this inside of? I don't want to do any rewiring, although it DOES seem as though Macs don't have these prongs right on the motherboard.

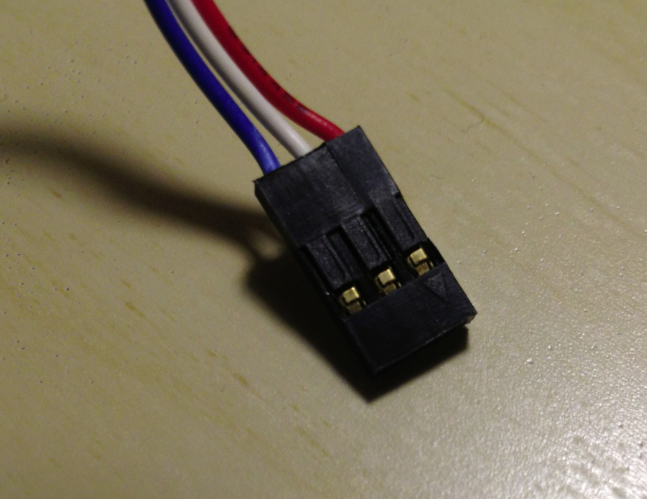

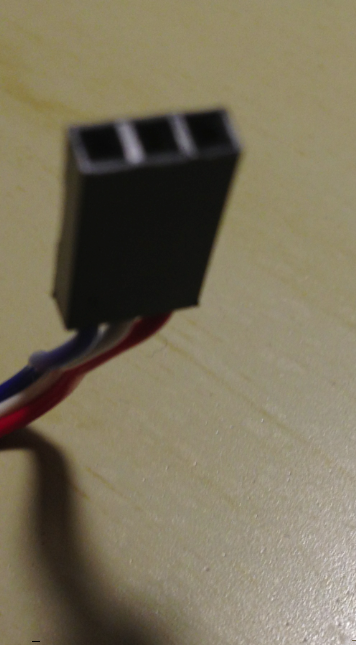

    Here is the device:


    Any suggestions? Thanks.


    Attached Files:

  2. poiihy macrumors 68020

    poiihy

    Joined:
    Aug 22, 2014
    #2
    What exactly is that? Where does it plug into? Does it plug into an IDE port? Is it a hard drive indicator light?

    ----------

    Oh so it looks like that plugs into a special connector on the mobo for lights. I don't know of any mac that has those ports.

  3. Hrududu macrumors 68020

    Hrududu

    Joined:
    Jul 25, 2008
    Location:
    Central US
    #3
    I can't recall any Mac that had any kind of HDD activity light. Many of your old Mac users would enable an extension or control panel that used a little drive icon or pixel in the upper left of the screen to indicate drive activity

  4. bse5150 macrumors 6502

    bse5150

    Joined:
    Jan 12, 2014
    #4
    Most hard drives have a couple of pins for attaching an activity LED.

  5. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #5
    You could put in it one of my Macs! ;)

  6. PowerMac G4 MDD thread starter macrumors 68000

    PowerMac G4 MDD

    Joined:
    Jul 13, 2014
    Location:
    At the intersection of Conch and Coral.
    #6
    Whoops---I forgot to mention that it's a normal, blue, LED light. It's not a blinking activity light---rather, it illuminates to show that the external enclosure has been switched on.

    ----------

    I forget to mention that it's NOT an activity light, it is just a normal LED. That's what I was thinking---I hadn't seen any common prongs in my Macs and was wondering if they were just in some odd place (or if it HAS to be on the motherboard).

    ----------

    The only other pins I see on an IDE hard drive are reserved for the Master, Slave, etc. selectors (unless those also work for LEDs).

  7. poiihy macrumors 68020

    poiihy

    Joined:
    Aug 22, 2014
    #7
    Quantum Prodrive LPS has an LED that plugs directly into the hard drive.
    Quantum Fireball has an led in the middle of the logic board.

    ----------

    I think most hard drives actually don't... only the old ones like the Quantums. The Quantum Prodrive LPS has an LED plug on the front, for a yellow LED.

    ----------

    Well in that case just connect the LED to the power source.

  8. PowerMac G4 MDD thread starter macrumors 68000

    PowerMac G4 MDD

    Joined:
    Jul 13, 2014
    Location:
    At the intersection of Conch and Coral.
    #8
    In what way? I'm not looking to do any re-wiring; if so, I'd rather get better lights.

  9. weckart macrumors 68040

    Joined:
    Nov 7, 2004
    #9
    Blinkenlights despoil any computer. Don't do it.

  10. bse5150 macrumors 6502

    bse5150

    Joined:
    Jan 12, 2014
    #10
    The Quadra 700 had an activity light. Maybe some other 68k machines as well.
