Any smaller GPUS

Discussion in 'Mac Pro' started by max001, Feb 22, 2017.

  1. max001 macrumors newbie

    Joined:
    Feb 13, 2017
    #1
    Are there any smaller gpus just for plunging in 2 monitors I have i have 5770 in there now but i also have NVIDIA GeForce GT 120 anything in that small factor but is as good as 5770

    Thanks

  2. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2
    Flashed single slot 750Ti, but won't work with old OS, and you need Nvidia web driver.

  3. Filin Contributor

    Filin

    Joined:
    Mar 7, 2010
    Location:
    Ukraine
    #4
    I think any GPU with TDP under 50w have 1 slot design.
    What you prefer - AMD or Nvidia?

  4. Draeconis macrumors 6502a

    Joined:
    May 6, 2008
    #5
    Single slot 460s are available, but I think the drivers have changed sufficiently in 10.12.4 to prevent it working properly? Or is that just Polaris 10 that's broken?

  5. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #6
    AFAIK, so far none of those single slot RX460 works in cMP.

  6. max001 thread starter macrumors newbie

    Joined:
    Feb 13, 2017
    #7
    Thanks for help but any card with 2 slot design

  7. Draeconis macrumors 6502a

    Joined:
    May 6, 2008
    #8
    So, when you say smaller, do you mean shorter? As we've all given you 1 slot recommendations and you don't seem to want that..?

  8. max001 thread starter macrumors newbie

    Joined:
    Feb 13, 2017
    #9

    Hi smaller shorter with 2 slots for 2 monitors

    Thanks

  9. Filin Contributor

    Filin

    Joined:
    Mar 7, 2010
    Location:
    Ukraine
    #10

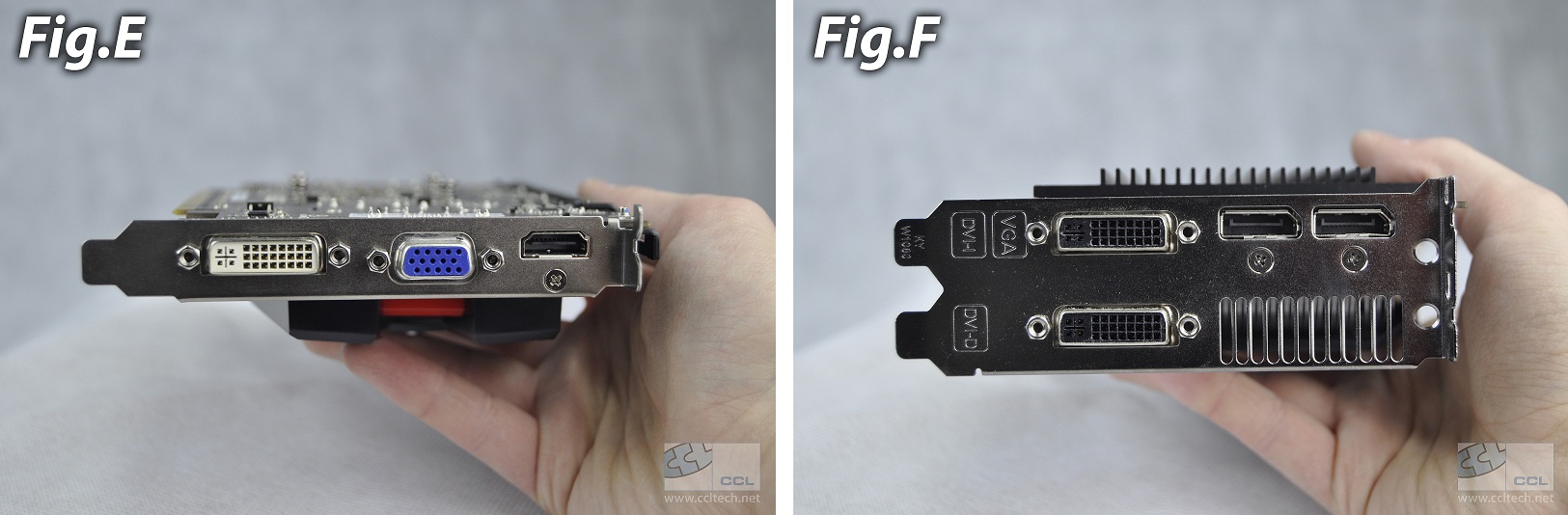

    @max001, did you correctly understand terms "single slot" or "dual slot" design?


    Fig.E - 1 slot design
    Fig.F - 2 slot design

    [​IMG]

  10. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #11
    Slots or ports?

  11. namethisfile macrumors 6502a

    namethisfile

    Joined:
    Jan 17, 2008
    #12
    Fig.E is tricky. It's single slot or single bracket. But, the photo shows a protruding heatsink, which effectively takes up two slots once inside the computer.

    So, Fig.E is a fake single slot design, which buyers are not readily aware of until they put it in their PC and find out the cold hard fact.

  12. AndreeOnline macrumors 6502

    AndreeOnline

    Joined:
    Aug 15, 2014
    Location:
    Zürich
    #13
    There has been surprisingly little discussion here about the new Radeon Pro cards from AMD. This recent launch, the Radeon Pro WX 7100, features 10 bit cards with 8GB RAM and performance equal to an RX480 in a single slot design:

    [​IMG]

    They are also rated at 130W compared to 150W for the RX480.

    They are pricier though, at around $650. Still... some pro features with 10bits in pro apps and so on. Also... with the Radeon Pro naming of the gfx in the latest Macbook Pro, I was wondering if these cards are pretty much compatible out of the box. At least on the level of the RX480s?

  13. max001 thread starter macrumors newbie

    Joined:
    Feb 13, 2017
    #14
    Ohhhh i get it fig.e that's what i need thanks
    --- Post Merged, Feb 23, 2017 ---
    Pro WX 7100 are nice but over the budget or me 150 is my max. Question is GeForce GT 120 outdated what am i missing when it comes to 5770 i mean i am just using 5770 for monitoring. how would you connect second monitor?

    Thanks

  14. Synchro3 macrumors 65816

    Synchro3

    Joined:
    Jan 12, 2014
    #15
    Successor of the GT 120 is GT 630, but I guess to weak for your applications.

    I would recommend a GTX 960 4GB: http://www.evga.com/Products/ProductList.aspx?type=8

  15. brianbrook macrumors member

    brianbrook

    Joined:
    Jan 3, 2016
    Location:
    Northern California
    #16
    Yes, I went with the 960 4GB last year: http://www.evga.com/Products/Specs/GPU.aspx?pn=c7bd6671-43f0-480b-bf91-a47e0885de56, I've had Zero problems in a 1,1 running 10.10.5, just got FLAME 2018 and it runs great!! Big recommendation for this particular model, all you need is a 6-pin converter and Cuda and Nvidia drivers and your good to go with no flashing...of course you don't get the boot screen but this card fires up so fast you won't miss it...as you can tell I can't recommend it enough and it's even cheaper this year due to the 10XX releases!!
