apple says the original Macbooks can only take 2GB... What do you say?
http://support.apple.com/kb/SP23
(MA699LL/A) (MA700LL/A) (MA701LL/A)
http://support.apple.com/kb/SP23
(MA699LL/A) (MA700LL/A) (MA701LL/A)
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Anyone stuffed 4GB in their (original) MacBook? Apple says don't go over 2GB
- Thread starter TommyLee
- Start date
- Sort by reaction score
here's a stupid question: Can one use the Mac Pro ram (with aluminum heatsinks) in a PowerMac G5?
CanadaRAM will clarify, but you can put 2 x 2GB in an original MacBook. It will only address 3 however.
2 x 2GB will be matched pairs however and is slightly faster than 1 x 2, 1 x 1 GB.
2 x 2GB will be matched pairs however and is slightly faster than 1 x 2, 1 x 1 GB.
You've got that wrong. It works with the Rev B & Rev C Core 2 Duo MacBooks but not the original Core Duo Rev A. It is clearly explained here. It's CanadaRAM's guide by the way
You are stuck with a maximum of 2GB with the original MacBook.
You've got that wrong. It works with the Rev B & Rev C Core 2 Duo MacBooks but not the original Core Duo Rev A. It is clearly explained here. It's CanadaRAM's guide by the way
You are stuck with a maximum of 2GB with the original MacBook.
This.

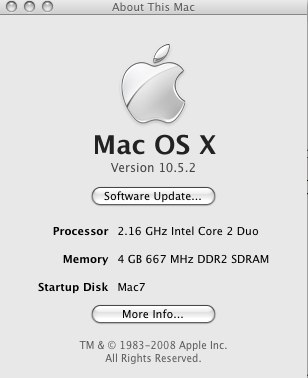

You say "original" MacBook but your link points to the Late 2006 model. I have the Late 2006 model with 4GB. It only addresses 3 but it has given my MB a new life. The price diff is only $20 between 3 and 4GB and the speed diff is about 5-6% overall so worth the $20 to me. The "original" MacBooks (pre-C2D) can not take more than 2GB. They won't boot with a 2GB stick.
Yea your only addressing 3GB of the 4GB as proven from the activity monitor (Add up Free and Used).
1. Original Calistoga MacBooks with Core Solo or Core Duo were firmware restricted to 2 gb (thanks Apple! ), even though the controller can support 3 gigs (32 bit addressing).
2. All other Calistoga MacBooks with Core 2 Duo support 3 gigs (even though System Profiler or ATM show 4 gigs).
3. Santa Rosa MacBooks support 4 gigs, perhaps even 8 gigs if Apple hasn't done to them what they did in #1 above.
), even though the controller can support 3 gigs (32 bit addressing).2. All other Calistoga MacBooks with Core 2 Duo support 3 gigs (even though System Profiler or ATM show 4 gigs).
3. Santa Rosa MacBooks support 4 gigs, perhaps even 8 gigs if Apple hasn't done to them what they did in #1 above.
3.3, if my math's right, but the point being there's no problem to 4GB in a pre-SR MB. Sure, I'm not utilizing 700MB (roughly), but I did gain 300MB I wouldn't have with a 2 x 1GB set, there's no performance issues with the machine in doing so, and the difference in cost was all of about $20. And, if I upgrade to a SR (or later) in the future, I've got plenty of RAM to swap over.
I guess all I was trying to point out was that you can safely install 4GB, you just can't use all of it, but still more than 3GB.
Might want to recheck that math; you're addressing almost exactly 3.00 GB of RAM in that screenshot you put here. (Interesting to see though.)
Actually, you do take a bit of a performance hit by not using matched sticks (dual-channel).
That's true for the Core 2 Duo pre-SR MacBook.
The Core Duo models are still restricted to a maximum of 2 x 1GB.
