MP 1,1-5,1 Apple Hardware test error

[gwieczorek]

Hi

MP is 4.1 single cpu

does anybody know what does it mean?

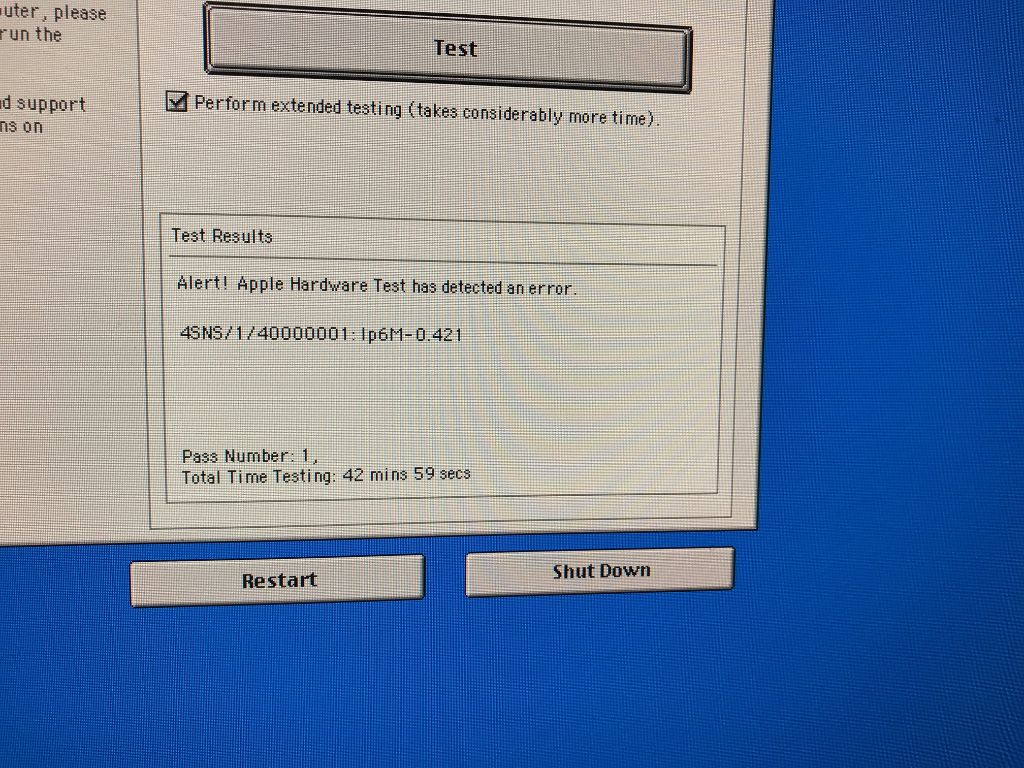

4sns/1/40000001:lp6M

found some info that its false error because of buggy AHT software, but it was related to 5.1

thanks



[tsialex]

It's power related, Ip6M sensor it's a 12V main current sensor for the backplane:

Ip6M Current PP12V_S0 MLB2 240V A Main Current
[automerge]1596148418[/automerge]
Btw, if your early-2009 Mac Pro was cross-flashed with the MP5,1 firmware, you have to use MP5,1 AHT/ASD.



[gwieczorek]

thanks...
i used 022-5348-A which is listed as a bundle version (for many different macs)

tomorrow i will try with 022-4149-A which seems to be dedicated to MP4.1

its not flashed ... ive bought it few days ago but didnt test it deeply ... then i did total disassemble to remove dust fur etc (i even opened PSU unit).



[gwieczorek]

i run asd 3s130 (efi version from usb stick) - PASSED
It wasnt full - ive unchecked memory test because ram was tested in other MP before.
Is it really software bug?



[gwieczorek]

I used 022-4149-A (its AHT 3A153) both modes (standard & extended) PASSED

So it looks like 022-5348-A is probably buggy



[tommy chen]

I used 022-4149-A (its AHT 3A153) both modes (standard & extended) PASSED

So it looks like 022-5348-A is probably buggy

the AHT version
for a 4,1 is 3S130 > 022-4149-A
for a 5,1 is 3S149 > 022-4831-A



[tsialex]

the AHT version
for a 4,1 is 3S130
for a 5,1 is 3S149

No, you are mistaking AHT with ASD.



[tommy chen]

i remember that 3S130 is the ASD bundle package with AHT 022-4149-A inside?

am I wrong?



[tsialex]

i remember that 3S130 is the bundle package with AHT 022-4149-A inside?

am I wrong?

ASD was never distributed legally outside Apple. 3Sxxx are ASD packages and restricted to Apple/AASPs, 0xx-yyy-z are AHT packages and are public.



[tommy chen]

we were apple service provider until 2016
