Apple Studio Display dimensions

[LonderJan]

Hello,

Can someone provide me with these measurements (preferabele in centimeters).

Thank you



[G46&Fbnth5]

Isn’t good enough knowing that the base is 20,7 cm, as found in Apple specs page?

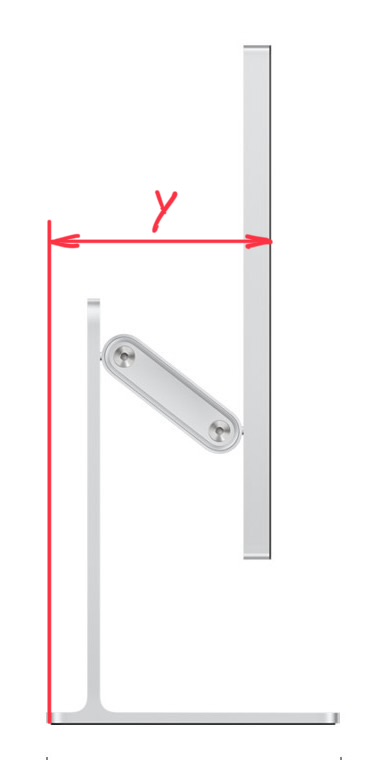

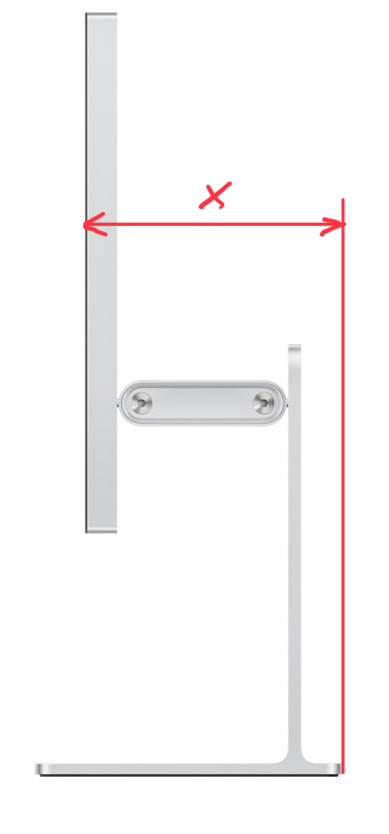

I would say that approximately X and Y are 18 and 16 cm, but if you need greater accuracy, I can’t help, sorry.



[Nermal]

Won't Y vary depending on how much you tilt/pivot the display?



[MacGizmo]

If you're concerned about those measurements, it seems to me you're the perfect candidate for a VESA Mount and Arm – that way you can adjust it exactly the height and depth you want.



[LonderJan]

Isn’t good enough knowing that the base is 20,7 cm, as found in Apple specs page?

I would say that approximately X and Y are 18 and 16 cm, but if you need greater accuracy, I can’t help, sorry.

If you're concerned about those measurements, it seems to me you're the perfect candidate for a VESA Mount and Arm – that way you can adjust it exactly the height and depth you want.

A VESA arm is not an option, the only thing I could do is mount it to the wall but that is a permanent solution which is not preferrable.

The studio display with tilting base would work as it is comparable to my current setup but i’m just wondering how much closer the screen would be with the adjustable base (and if that is still ergonomically workable).

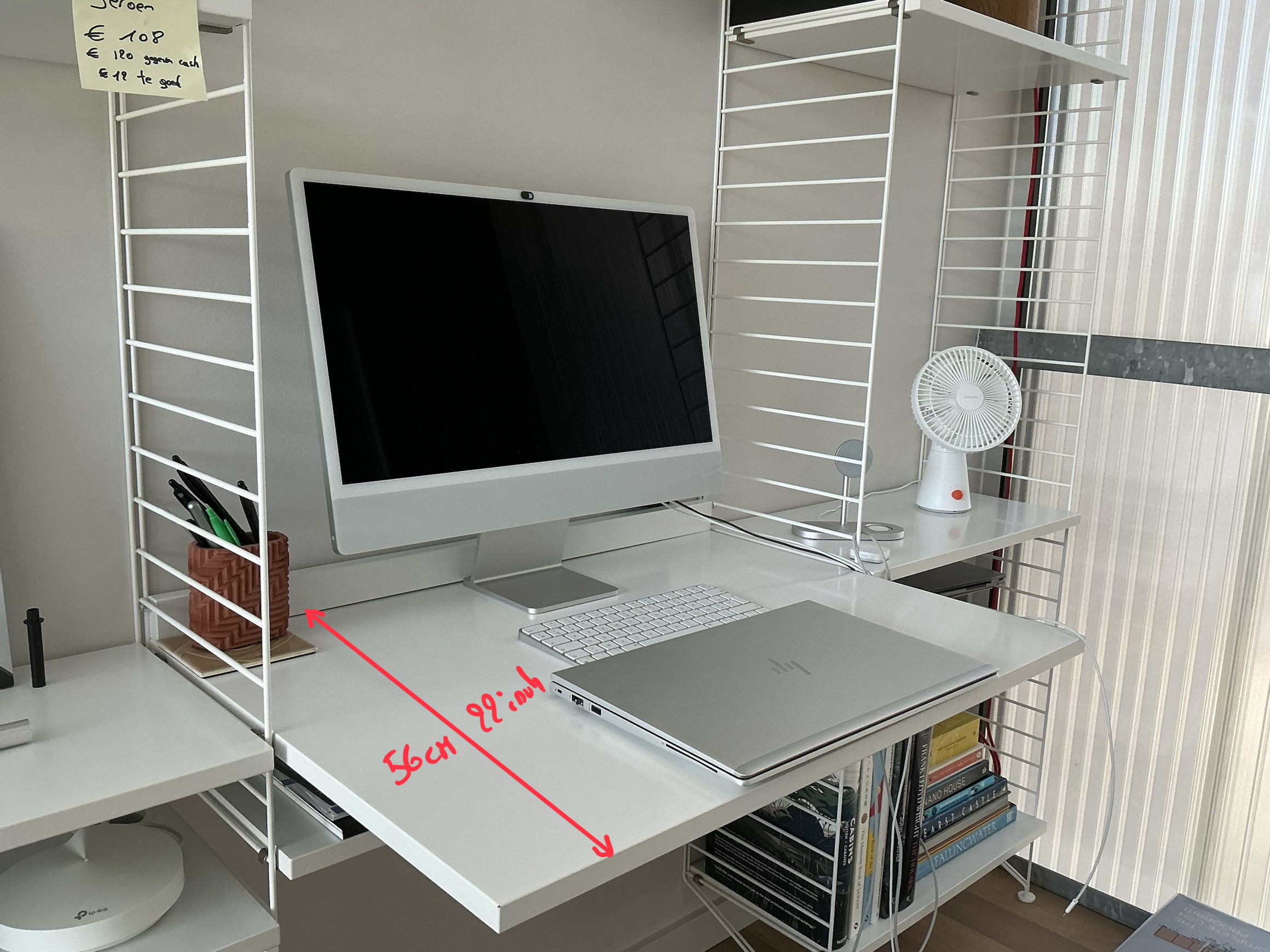

I tried it with an ALOGIC Clarity 27” and this is not workable but the base of that monitor is larger and the mounting mechanism is not as elegant and compact as Apple’s. If I would know the distance of the front of the screen versus the back of the base, I could try and simulate it by moving my iMac forward to those exact positions.



[Nemensi]

X = 17.5 cm
Y = 15.5 cm
